艾博康超低抖動的差分輸出振蕩器系列編碼，Abracon是一家實力派制造商，秉持著專業化的精神，以及不忘初心，堅持將最好的品質貢獻于世界，隨著不斷拓展自身的能力邊界，針對開發各種高質量產品。Abracon增加了全新的AK2A和AK3A系列振蕩器，擴展了其高性能ClearClock振蕩器產品線。Abracon的這一全新超低抖動SMD時鐘晶體振蕩器系列旨在為各種高速應用提供穩定、精確的時鐘信號，例如光收發器和模塊、數據中心、網絡交換機和網關以及100G/200G/400G/800G以太網。

德克薩斯州斯派塞伍德- Abracon是頻率控制、定時、功率、磁性、RF和天線解決方案的領先供應商，通過添加全新的AK2A和AK3A系列振蕩器。Abracon的這一全新超低抖動SMD振蕩器系列旨在為各種高速應用提供穩定、精確的時鐘信號，例如光收發器和模塊、數據中心、網絡交換機和網關以及100G/200G/400G/800G以太網。AK2A和AK3A系列提供可靠高效的振蕩，同時在-40°C至+85°C的溫度范圍內保持25ppm的穩定性，在-20°C至+70°C的溫度范圍內保持15ppm的穩定性。

這些新的ClearClock有源晶體振蕩器非常適合要求載波頻率在100至212/5 MHz之間、通道速率高達400Gbps的應用。AK2A和AK3A振蕩器的封裝尺寸支持2.5毫米x 2.0mm毫米和3.2毫米x 2.5mm毫米的行業標準尺寸，提供節省空間的設計，與以前的型號相比，抖動性能大幅提高。這些振蕩器還支持各種差分輸出，因此可以輕松集成到各種系統中。第三泛音ClearClock技術減少了基于鎖相環(PLL)的乘法運算，消除了降低整體功耗的可能性。

“新型AK2A和AK3A系列振蕩器將小封裝尺寸與83fs的極低均方根抖動性能相結合，”說明羅杰·伯恩斯，產品線經理。“這種組合使它們有別于以前只能在更大封裝尺寸下使用的產品，使這些新的ClearClock振蕩器非常適合光收發器、數據中心、存儲和服務器、網絡交換機和網關、100G/200G/400G/800G以太網、光纖通道和PCIe終端應用。”艾博康超低抖動的差分輸出振蕩器系列編碼.

Abracon總部位于德克薩斯州奧斯汀市外，是一家值得信賴的領先和創新電子元件供應商，包括頻率控制、定時、電源、磁性、射頻和天線解決方案。Abracon晶振服務于數據通信、運輸、工業、醫療、消費、航空航天和國防工業領域的世界級公司，通過提供無與倫比的產品解決方案、專業技術和卓越的服務來加快客戶的上市時間。

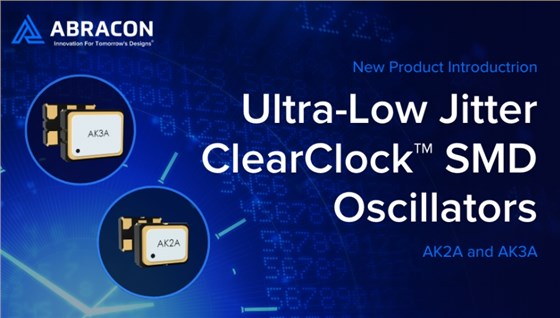

Spicewood, Texas- Abracon, a leading provider of Frequency Control, Timing, Power, Magnetics, RF and Antenna solutions, expands its line of high-performance ClearClock™ oscillators with the addition of the brand newAK2A and AK3A-series oscillators. This new line of ultra-low jitter SMD oscillators from Abracon are designed to provide stable and accurate clock signals for a variety of high-speed applications such as optical transceivers and modules, data centers, network switches and gateways, and 100G/200G/400G/800G ethernet. The AK2A and AK3A series deliver reliable and efficient oscillations while maintaining 25ppm stability over a temperature range of -40°C to +85°C and 15ppm stability over -20°C to +70°C.

These newClearClock™ oscillatorsare ideal for applications that require a carrier frequency between 100 and 212/5 MHz and need lane rates to 400Gbps. With package sizes that support industry-standard footprints of 2.5mm x 2.0mm and 3.2mm x 2.5mm, the AK2A and AK3A oscillators offer space saving designs with substantially increased jitter performance compared to previous models. These oscillators also support various differential outputs which allows them to be easily integrated into a large range of systems. Third overtone ClearClock™ technology mitigates phase locked loop (PLL) based multiplication, eliminating the chance of reduced overall power consumption.

“The new AK2A and AK3A series oscillators couple a small package size with extremely low RMS jitter performance of 83fs,”explainsRoger Burns, Product Line Manager. “This combination sets them apart from their previous iterations which were only available in larger package sizes, making these new ClearClock™ oscillators ideally suited for optical transceivers, data centers, storage & servers, networking switches & gateways, 100G/200G/400G/800G Ethernet, fiber channel and PCIe end-applications.”
