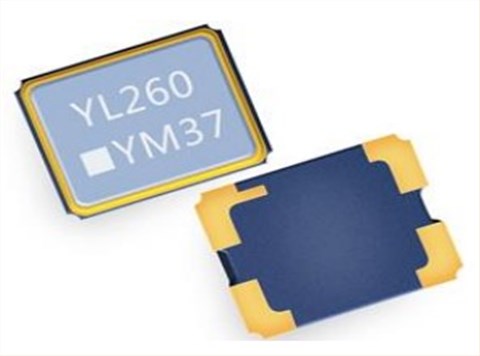

BXT-201(V),TCXO,2016mm,LiHom有源晶振,GPS模塊晶振，韓國進口晶振，Lihom力宏晶振，型號：BXT-201(V)系列晶振，頻率范圍：8MHz至52MHz，電源電壓：+1.7V~+3.3V。工作溫度范圍：-30℃至+85℃，小體積晶振尺寸：2.0x1.6x0.85mm，四腳貼片晶振，TCXO溫補晶體振蕩器，溫補晶振，有源晶振，石英晶振，熱敏晶振，石英晶體振蕩器，2016晶振，SMD晶振。具有超小型，輕薄型，低抖動，低功耗，低相位噪聲，低電壓，低耗能，低損耗等特點。應用程序：蜂窩電話（GSM、CDMA和WCDMA），GPS模塊晶振，WIBRO、DMB、PDA，中繼器等。

BXT-201(V),TCXO,2016mm,LiHom有源晶振,GPS模塊晶振,產品特點：

-2.0 x 1.6 x 0.85（最大）mm表面安裝石英晶體單元
-帶有熱敏電阻，石英晶體振蕩器
-優異的可靠性特性，如熱和機械沖擊
-不含鉛且滿足RoHs要求
-可進行回流焊接

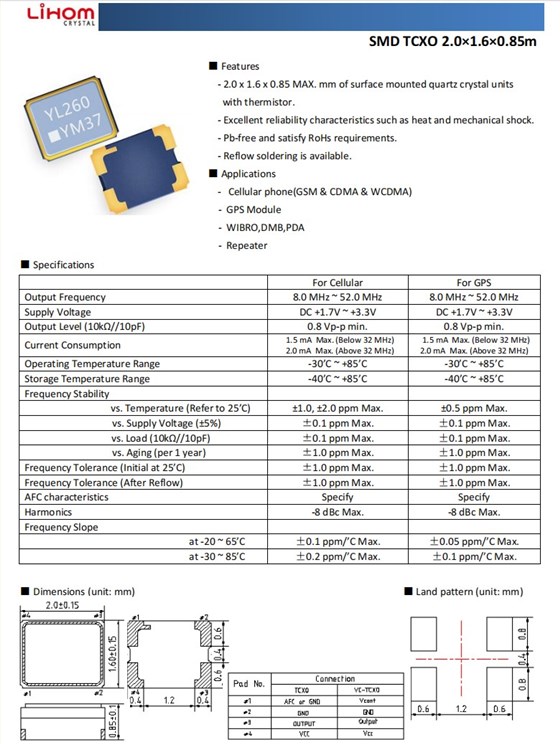

BXT-201(V),TCXO,2016mm,LiHom有源晶振,GPS模塊晶振,參數表

	For Cellular	For GPS
Output Frequency	8.0 MHz ~ 52.0 MHz	8.0 MHz ~ 52.0 MHz
Supply Voltage	DC +1.7V ~ +3.3V	DC +1.7V ~ +3.3V
Output Level (10k?//10pF)	0.8 Vp-pmin.	0.8 Vp-pmin.
Current Consumption	1.5 mAMax. (Below 32 MHz) 2.0 mAMax. (Above 32 MHz)	1.5 mAMax. (Below 32 MHz) 2.0 mAMax. (Above 32 MHz)
Operating Temperature Range	-30’C ~ +85’C	-30’C ~ +85’C
Storage Temperature Range	-40’C ~ +85’C	-40’C ~ +85’C
Frequency Stability
vs. Temperature (Refer to 25’C)	±1.0, ±2.0 ppm Max.	±0.5 ppm Max.
vs. Supply Voltage (±5%)	±0.1 ppm Max.	±0.1 ppm Max.
vs. Load (10k?//10pF)	±0.1 ppm Max.	±0.1 ppm Max.
vs. Aging (per 1 year)	±1.0 ppm Max.	±1.0 ppm Max.
Frequency Tolerance (Initial at 25’C)	±1.0 ppm Max.	±1.0 ppm Max.
Frequency Tolerance (After Reflow)	±1.0 ppm Max.	±1.0 ppm Max.
AFC characteristics	Specify	Specify
Harmonics	-8 dBc Max.	-8 dBc Max.
Frequency Slope
at -20 ~ 65’C	±0.1 ppm/’C Max.	±0.05 ppm/’C Max.
at -30 ~ 85’C	±0.2 ppm/’C Max.	±0.1 ppm/’C Max.
