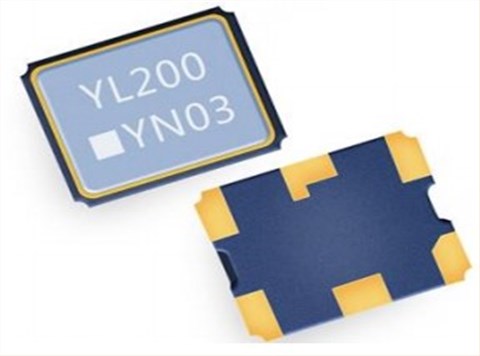

BXT-252(V),TCXO,2520mm,LiHom力宏晶振,SMD晶振，韓國進口晶振，Lihom力宏晶振，型號：BXT-252(V)系列晶振，頻率范圍：8MHz至52MHz，電源電壓：+1.7V~+3.3V。工作溫度范圍：-30℃至+85℃，小體積晶振尺寸：2.5x2.0x0.95mm，六腳貼片晶振，TCXO溫補晶振，溫補晶體振蕩器，石英晶振，有源晶振，熱敏晶振，石英晶體振蕩器，SMD晶振。具有超小型，輕薄型，低抖動，低功耗，低相位噪聲，低電源電壓，低耗能，低損耗等特點。應用程序：蜂窩電話（GSM、CDMA和WCDMA），GPS模塊晶振，WIBRO、DMB、PDA，中繼器等。

BXT-252(V),TCXO,2520mm,LiHom力宏晶振,SMD晶振,產品特點：

-2.5 x 2.0 x 0.95（最大）mm表面安裝石英晶體單元
帶有熱敏電阻，TCXO晶振
-優異的可靠性特性，如熱和機械沖擊
-不含鉛且滿足RoHs要求
-可進行回流焊接

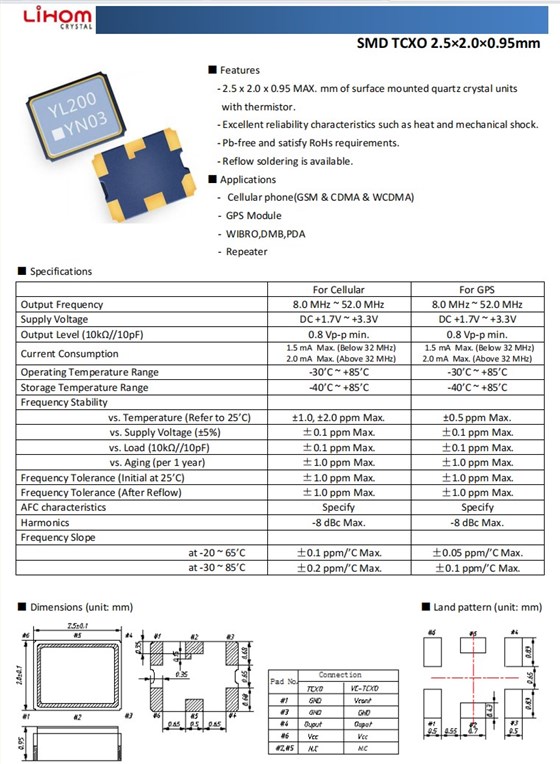

BXT-252(V),TCXO,2520mm,LiHom力宏晶振,SMD晶振,參數表

	For Cellular	For GPS
Output Frequency	8.0 MHz ~ 52.0 MHz	8.0 MHz ~ 52.0 MHz
Supply Voltage	DC +1.7V ~ +3.3V	DC +1.7V ~ +3.3V
Output Level (10k?//10pF)	0.8 Vp-pmin.	0.8 Vp-pmin.
Current Consumption	1.5 mAMax. (Below 32 MHz) 2.0 mAMax. (Above 32 MHz)	1.5 mAMax. (Below 32 MHz) 2.0 mAMax. (Above 32 MHz)
Operating Temperature Range	-30℃ ~ +85℃	-30℃ ~ +85℃
Storage Temperature Range	-40℃ ~ +85℃	-40℃ ~ +85℃
Frequency Stability
vs. Temperature (Refer to 25℃)	±1.0, ±2.0 ppm Max.	±0.5 ppm Max.
vs. Supply Voltage (±5%)	±0.1 ppm Max.	±0.1 ppm Max.
vs. Load (10k?//10pF)	±0.1 ppm Max.	±0.1 ppm Max.
vs. Aging (per 1 year)	±1.0 ppm Max.	±1.0 ppm Max.
Frequency Tolerance (Initial at 25℃)	±1.0 ppm Max.	±1.0 ppm Max.
Frequency Tolerance (After Reflow)	±1.0 ppm Max.	±1.0 ppm Max.
AFC characteristics	Specify	Specify
Harmonics	-8 dBc Max.	-8 dBc Max.
Frequency Slope
at -20 ~ 65℃	±0.1 ppm/℃ Max.	±0.05 ppm/℃ Max.
at -30 ~ 85℃	±0.2 ppm/℃ Max.	±0.1 ppm/℃ Max.
