Euroquartz推出新的薄型MEMS濾波器系列96SMF29A20

New Low Profile MEMS Filter Range Plus Shortform Filters Catalogue

Euroquartz Launch Their New Low Profile MEMS Filter Range Plus A New Shortform Filters Catalogue.

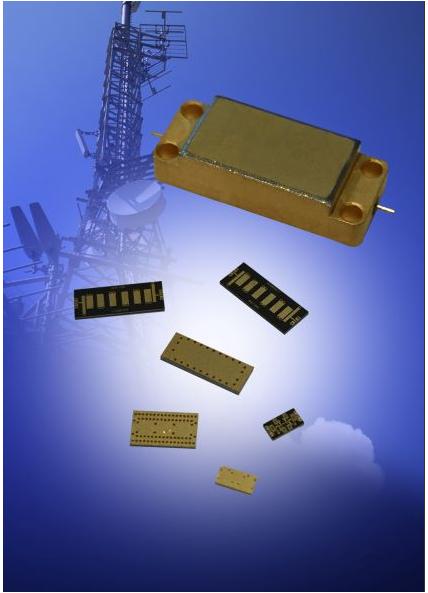

Frequency control specialist, Euroquartz has launched a new range of low profile MEMS (Micro ElectroMechanical System) filter products offering major benefits of small size and very low profile making them ideal for use in embedded applications. The company has also published a new four page shortform catalogue covering its new MEMS filters and traditional RF filter ranges.
Using the latest MEMS technology, it is possible to produce bandstop and bandpass filter products that offer a very low profile (≤0.5mm) solution. The advantages of Euroquartz MEMS filters are their small size offering high reliability and high performance, covering the range from 2 to 50GHz.
MEMS filter types available include bandpass, bandstop, lowpass, attenuator chip, time-delay line, substrate integrated waveguide (SIW) and micro-shielding.
Offering a low 1dB insertion loss with ≥30dB at 3.0 and 7.5GHz attenuation they are ideal for microwave communication equipment such as base stations, wireless transceiver systems and small size RF front-end requirements.
The new shortform catalogue provides basic specifications for a selection of the MEMS bandpass filters alongside discrete crystal filter designs, surface mount monolithic crystal filters and bandpass LC filter designs.
Euroquartz custom LC and microwave filters offer a broad selection of frequencies, topologies and packages ranging from audio to 3.0GHz and up to 200W in power. Topologies include low pass, band pass, high pass and band reject. Special characteristics such as IM distortion, phase and amplitude match etc. are optimised during manufacturing. LC filters are available in a variety of packages including SMD and are compatible with modern automated manufacturing processes.
Euroquartz also offers a wide range of cavity filters in band pass and notch types. A notch type filter attenuates a narrow band of frequencies while allowing all other frequencies to pass with only a slight loss. Band pass filters pass a narrow band of frequencies with very little loss while attenuating all other signals outside of the band. Cavity filters are available up to 960MHz with any type of customer-specific connector and are factory tuned to the frequencies requested.
Euroquartz is an independent UK-based manufacturer and supplier of quartz crystals, oscillators, filters and frequency-related products to the electronics manufacturing industry worldwide. The company is AS9100 registered and designs and manufactures a comprehensive range of frequency control components for a wide range of customers including major OEMs covering a broad spectrum of applications including military and aerospace, communications, general electronics, computing, control systems and petrochemical among many others.
