X1M0002310020,愛普生LVDS振蕩器,EG-2121CB晶振,6GWIFI應用晶振

頻率：200MHZ

尺寸：5.0*3.2mm

X1M0002310020,愛普生LVDS振蕩器,EG-2121CB晶振,6GWIFI應用晶振，尺寸5.0*3.2mm,頻率為200MHZ,支持輸出LVDS，LVDS輸出差分晶振，進口差分振蕩器，低抖動差分晶振，六腳差分晶振，低相位差分振蕩器，小體積差分晶振，低電壓差分振蕩器，200MHZ差分晶振，有源差分晶體振蕩器，無線通信差分晶振，無線模塊差分振蕩器，智能家居差分晶振，低相位差分晶振，6G網絡應用差分晶振，產品具備輕薄小，低電壓低相位的特點。

貼片差分晶振產品非常適合用于智能家居，無線通信設備，無線模塊，6G網絡應用，服務器，測試測量，儀器設備，小型設備等領域。X1M0002310020,愛普生LVDS振蕩器,EG-2121CB晶振,6GWIFI應用晶振.

訂購熱線：86-0755-27838351

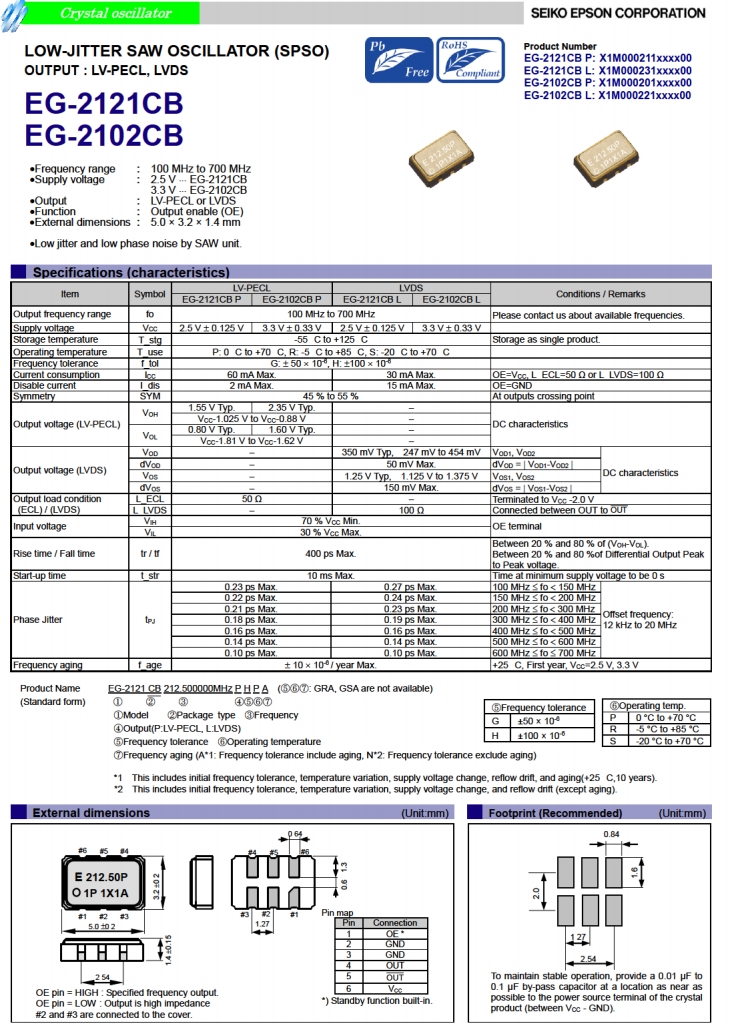

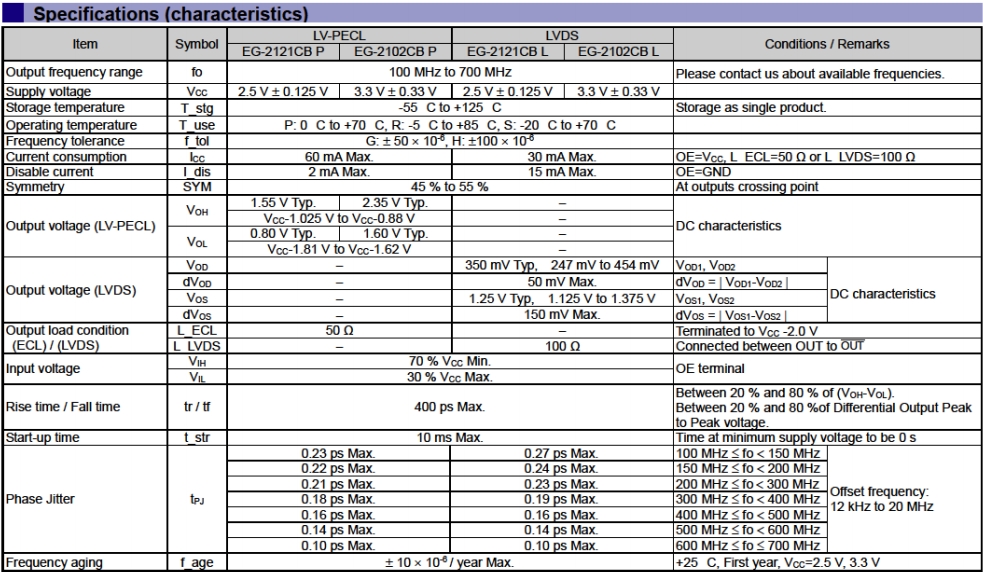

X1M0002310020,愛普生LVDS振蕩器,EG-2121CB晶振,6GWIFI應用晶振 參數表

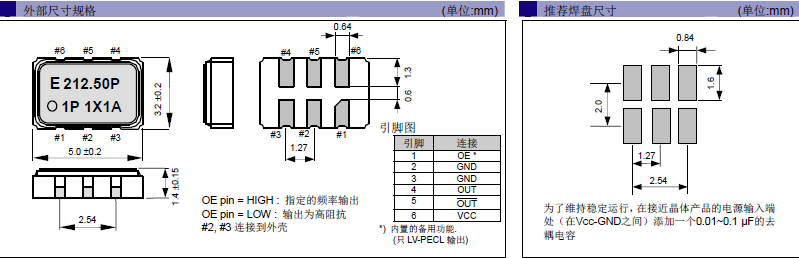

X1M0002310020,愛普生LVDS振蕩器,EG-2121CB晶振,6GWIFI應用晶振 尺寸圖

SPXO晶振產品特性：

小尺寸

支持輸出LVDS

低電壓電相位

無鉛環保

高精度

更多相關愛普生晶振型號

編碼	日產晶振品牌	型號	頻率	尺寸	輸出方式	電源電壓	工作溫度
X1G0042610107	愛普生晶振	SG5032VAN	153.600000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610108	愛普生晶振	SG5032VAN	307.200000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610109	愛普生晶振	SG5032VAN	614.400000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810001	愛普生晶振	SG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810002	愛普生晶振	SG7050VAN	125.006250 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810004	愛普生晶振	SG7050VAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810005	愛普生晶振	SG7050VAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810006	愛普生晶振	SG7050VAN	400.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810007	愛普生晶振	SG7050VAN	106.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810008	愛普生晶振	SG7050VAN	212.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810009	愛普生晶振	SG7050VAN	74.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810010	愛普生晶振	SG7050VAN	148.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810011	愛普生晶振	SG7050VAN	75.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810012	愛普生晶振	SG7050VAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810014	愛普生晶振	SG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810015	愛普生晶振	SG7050VAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810016	愛普生晶振	SG7050VAN	312.515625 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810017	愛普生晶振	SG7050VAN	161.132800 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810020	愛普生晶振	SG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810021	愛普生晶振	SG7050VAN	125.006250 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810023	愛普生晶振	SG7050VAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810024	愛普生晶振	SG7050VAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810025	愛普生晶振	SG7050VAN	400.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810026	愛普生晶振	SG7050VAN	106.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810027	愛普生晶振	SG7050VAN	212.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810028	愛普生晶振	SG7050VAN	74.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810029	愛普生晶振	SG7050VAN	148.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810030	愛普生晶振	SG7050VAN	75.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810031	愛普生晶振	SG7050VAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810032	愛普生晶振	SG7050VAN	155.520000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810033	愛普生晶振	SG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810034	愛普生晶振	SG7050VAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810035	愛普生晶振	SG7050VAN	312.515625 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810036	愛普生晶振	SG7050VAN	161.132800 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810038	愛普生晶振	SG7050VAN	700.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810039	愛普生晶振	SG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810040	愛普生晶振	SG7050VAN	125.006250 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810042	愛普生晶振	SG7050VAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810043	愛普生晶振	SG7050VAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810044	愛普生晶振	SG7050VAN	400.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810045	愛普生晶振	SG7050VAN	106.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810046	愛普生晶振	SG7050VAN	212.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810047	愛普生晶振	SG7050VAN	74.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810048	愛普生晶振	SG7050VAN	148.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810049	愛普生晶振	SG7050VAN	75.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810050	愛普生晶振	SG7050VAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810052	愛普生晶振	SG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810053	愛普生晶振	SG7050VAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810054	愛普生晶振	SG7050VAN	312.515625 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810055	愛普生晶振	SG7050VAN	161.132800 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810058	愛普生晶振	SG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810059	愛普生晶振	SG7050VAN	125.006250 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810061	愛普生晶振	SG7050VAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810062	愛普生晶振	SG7050VAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810063	愛普生晶振	SG7050VAN	400.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810064	愛普生晶振	SG7050VAN	106.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810065	愛普生晶振	SG7050VAN	212.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810066	愛普生晶振	SG7050VAN	74.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810067	愛普生晶振	SG7050VAN	148.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810068	愛普生晶振	SG7050VAN	75.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810069	愛普生晶振	SG7050VAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810071	愛普生晶振	SG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810072	愛普生晶振	SG7050VAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810073	愛普生晶振	SG7050VAN	312.515625 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810074	愛普生晶振	SG7050VAN	161.132800 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810079	愛普生晶振	SG7050VAN	50.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810080	愛普生晶振	SG7050VAN	68.750000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810083	愛普生晶振	SG7050VAN	50.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810084	愛普生晶振	SG7050VAN	68.750000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810087	愛普生晶振	SG7050VAN	50.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810088	愛普生晶振	SG7050VAN	68.750000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810091	愛普生晶振	SG7050VAN	50.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810092	愛普生晶振	SG7050VAN	68.750000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810096	愛普生晶振	SG7050VAN	148.350000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810102	愛普生晶振	SG7050VAN	98.304000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810103	愛普生晶振	SG7050VAN	80.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810104	愛普生晶振	SG7050VAN	114.285000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810105	愛普生晶振	SG7050VAN	250.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810106	愛普生晶振	SG7050VAN	350.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1M0001210001	愛普生晶振	EG-2103CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	3.000 to 3.600 V	-5 to 85 °C
X1M0001510002	愛普生晶振	EG-4101CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C
X1M0001510003	愛普生晶振	EG-4101CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C
X1M0001510004	愛普生晶振	EG-4101CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C
X1M0001510005	愛普生晶振	EG-4101CA	148.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C
X1M0001510006	愛普生晶振	EG-4101CA	240.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C
X1M0001510007	愛普生晶振	EG-4101CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C
X1M0001510008	愛普生晶振	EG-4101CA	148.351640 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C
X1M0001510009	愛普生晶振	EG-4101CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C
X1M0001810001	愛普生晶振	EG-4121CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1M0001810002	愛普生晶振	EG-4121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1M0001810003	愛普生晶振	EG-4121CA	148.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1M0001810004	愛普生晶振	EG-4121CA	375.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1M0001810005	愛普生晶振	EG-4121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1M0001810006	愛普生晶振	EG-4121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1M0002210002	愛普生晶振	EG-2102CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0002210003	愛普生晶振	EG-2102CB	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0002210004	愛普生晶振	EG-2102CB	266.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0002210005	愛普生晶振	EG-2102CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0002210006	愛普生晶振	EG-2102CB	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0002210007	愛普生晶振	EG-2102CB	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0002210008	愛普生晶振	EG-2102CB	148.351648 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0002210009	愛普生晶振	EG-2102CB	148.350000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0002210010	愛普生晶振	EG-2102CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0002210011	愛普生晶振	EG-2102CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0002310002	愛普生晶振	EG-2121CB	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310003	愛普生晶振	EG-2121CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310004	愛普生晶振	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310005	愛普生晶振	EG-2121CB	402.832000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310006	愛普生晶振	EG-2121CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	-20 to 70 °C
X1M0002310007	愛普生晶振	EG-2121CB	133.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310010	愛普生晶振	EG-2121CB	500.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310011	愛普生晶振	EG-2121CB	402.832031 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310013	愛普生晶振	EG-2121CB	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0002310014	愛普生晶振	EG-2121CB	441.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310015	愛普生晶振	EG-2121CB	625.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0002310016	愛普生晶振	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0002310017	愛普生晶振	EG-2121CB	644.531250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310018	愛普生晶振	EG-2121CB	322.265625 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310019	愛普生晶振	EG-2121CB	233.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310020	愛普生晶振	EG-2121CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310021	愛普生晶振	EG-2121CB	644.531250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002810003	愛普生晶振	EG-2103CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0002810004	愛普生晶振	EG-2103CB	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0002810006	愛普生晶振	EG-2103CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410004	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410005	愛普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410006	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410007	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410008	愛普生晶振	XG-2102CA	133.330000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410009	EPSON晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410010	愛普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410011	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410012	愛普生晶振	XG-2102CA	402.832000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410013	愛普生晶振	XG-2102CA	133.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410014	愛普生晶振	XG-2102CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410015	愛普生晶振	XG-2102CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410016	愛普生晶振	XG-2102CA	500.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410017	愛普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410018	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410019	愛普生晶振	XG-2102CA	133.333000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
