頻率：24.96MHZ
尺寸：2.5x2.0mm
7FE02496A00,DSO221SX傳感相機晶振,大真空CMOS輸出振蕩器，尺寸2.5x2.0mm，頻率24.96MHZ，支持輸出CMOS，日本KDS晶振，KDS水晶振蕩子，石英晶體振蕩器，石英有源晶振，有源晶體振蕩器，有源貼片振蕩器，2520mm有源晶振，SMD振蕩器，CMOS輸出晶振，低電壓有源晶振，低功耗有源晶振，低相位有源晶振，低抖動有源晶振，低相噪有源晶振，高性能有源晶振，車載電子有源晶振，毫米波雷達專用有源晶振，傳感相機有源晶振，儀器設備有源晶振，多媒體設備有源晶振，娛樂設備有源晶振，路由器專用有源晶振，具有低電壓低抖動的特點。
OSC晶振產品超級適合用于車載行駛安全類用途(毫米波雷達、傳感相機等)，儀器設備，多媒體設備，娛樂設備等應用.7FE02496A00,DSO221SX傳感相機晶振,大真空CMOS輸出振蕩器.
7FE02496A00,DSO221SX傳感相機晶振,大真空CMOS輸出振蕩器，尺寸2.5x2.0mm，頻率24.96MHZ，支持輸出CMOS，日本KDS晶振，KDS水晶振蕩子，石英晶體振蕩器，石英有源晶振，有源晶體振蕩器，有源貼片振蕩器，2520mm有源晶振，SMD振蕩器，CMOS輸出晶振，低電壓有源晶振，低功耗有源晶振，低相位有源晶振，低抖動有源晶振，低相噪有源晶振，高性能有源晶振，車載電子有源晶振，毫米波雷達專用有源晶振，傳感相機有源晶振，儀器設備有源晶振，多媒體設備有源晶振，娛樂設備有源晶振，路由器專用有源晶振，具有低電壓低抖動的特點。
OSC晶振產品超級適合用于車載行駛安全類用途(毫米波雷達、傳感相機等)，儀器設備，多媒體設備，娛樂設備等應用.7FE02496A00,DSO221SX傳感相機晶振,大真空CMOS輸出振蕩器.

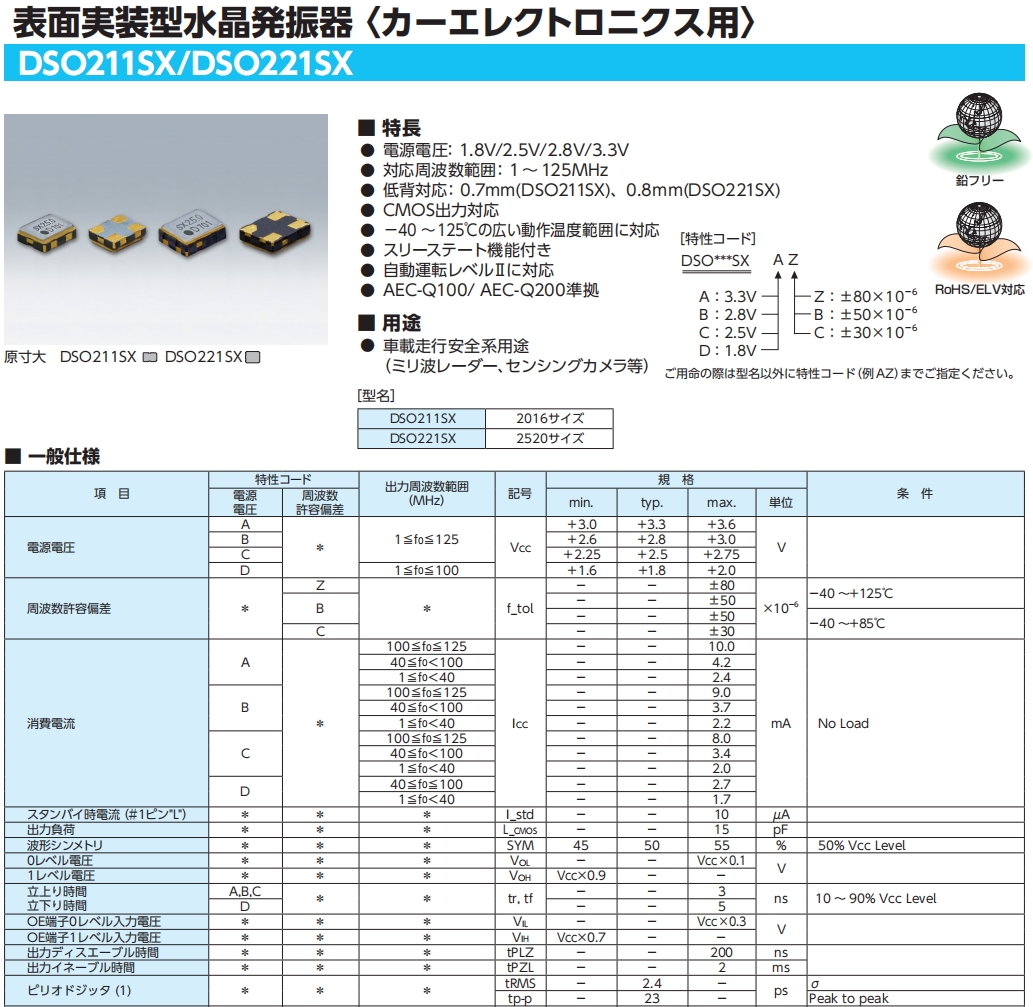

7FE02496A00,DSO221SX傳感相機晶振,大真空CMOS輸出振蕩器 參數表
| 項目 | 特性代碼 |
輸出頻率范圍 ( MHz ) |
符號 | 規格值 | 單位 | 條件 | ||||
|---|---|---|---|---|---|---|---|---|---|---|
|
電源 電壓 |
頻率 允許偏差 |
最小。 | typ | 最大。 | ||||||
| 電源電壓 | A | ＊ | 1≦fo≦125 | VCC | +3.0 | +3.3 | +3.6 | V | ||
| B | ＊ | +2.6 | +2.8 | +3.0 | ||||||
| C | ＊ | +2.25 | +2.5 | +2.75 | ||||||
| D | ＊ | 1≦fo≦100 | +1.6 | +1.8 | +2.0 | |||||
|
頻率允許偏差 (包括常溫偏差) |
＊ | A | ＊ | f_tol | - | - | ±100 | ×10-6 | -40~+125℃ | |
| Z | - | - | ±80 | |||||||
| B | - | - | ±50 | |||||||
| - | - | ±50 | -40~+85℃ | |||||||
| C | - | - | ±30 | |||||||
| 消耗電流 | A | ＊ | 100≦fo≦125 | ICC | - | - | 10.0 | mA | No Load | |
| 40≦fo<100 | - | - | 4.2 | |||||||
| 1≦fo<40 | - | - | 2.4 | |||||||
| B | 100≦fo≦125 | - | - | 9.0 | ||||||
| 40≦fo<100 | - | - | 3.7 | |||||||
| 1≦fo<40 | - | - | 2.2 | |||||||
| C | 100≦fo≦125 | - | - | 8.0 | ||||||
| 40≦fo<100 | - | - | 3.4 | |||||||
| 1≦fo<40 | - | - | 2.0 | |||||||
| D | 40≦fo≦100 | - | - | 2.7 | ||||||
| 1≦fo<40 | - | - | 1.7 | |||||||
| 待機時電流( #1針" l " ) | ＊ | ＊ | ＊ | I_std | - | - | 10 | μA | ||
| 輸出負載 | ＊ | ＊ | ＊ | L_CMOS | - | - | 15 | pF | ||
| 波形對稱 | ＊ | ＊ | ＊ | SYM | 45 | 50 | 55 | % | at 50% V抄送 | |
| 0電平電壓 | ＊ | ＊ | ＊ | VOL | - | - | VCC×0.1 | V | ||
| 1電平電壓 | VOH | VCC×0.9 | - | - | ||||||
|
上升時間 下降時間 |
a，b，c | ＊ | ＊ | tr，tf | - | - | 3 | ns | 10~90% VCC Level | |
| D | - | - | 5 | |||||||
| OE引腳0電平輸入電壓 | ＊ | ＊ | ＊ | VIL | - | - | VCC×0.3 | V | ||
| OE引腳1電平輸入電壓 | ＊ | ＊ | ＊ | VIH | VCC×0.7 | - | - | |||
| 輸出禁用時間 | ＊ | ＊ | ＊ | tPLZ | - | - | 200 | ns | ||
| 輸出使能時間 | ＊ | ＊ | ＊ | tPZL | - | - | 2 | ms | ||
| 句點抖動(1) | ＊ | ＊ | ＊ | tRMS | - | 2.4 | - | ps | σ | |
| tp-p | - | 23 | - | Peak to peak | ||||||
| 總抖動(1) | ＊ | ＊ | ＊ | tTL | - | 34 | - | ps | tDJ+n×tRJ n=14.1(BER=1×10-12) (2) | |
| 相位抖動 | ＊ | ＊ | 40≦fo≦125 | tpj | - | - | 1 | ps | fo offset:12kHz?20MHz | |
| 10≦fo<40 | fo offset:12kHz?5MHz | |||||||||
| 可靠性規格 | AEC-Q100/AEC-Q200 | |||||||||
| 包裝單位(1) | 3000pcs./reel(φ180 ) | |||||||||

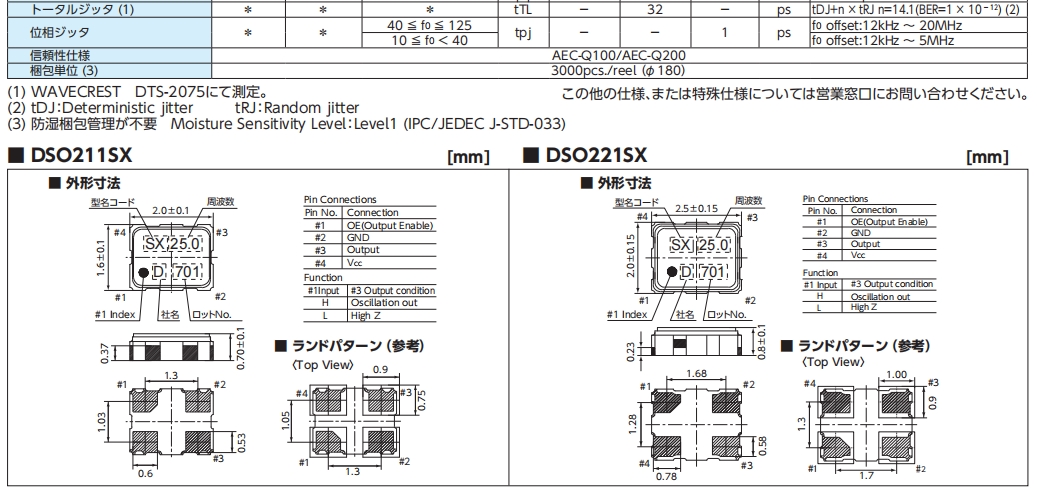

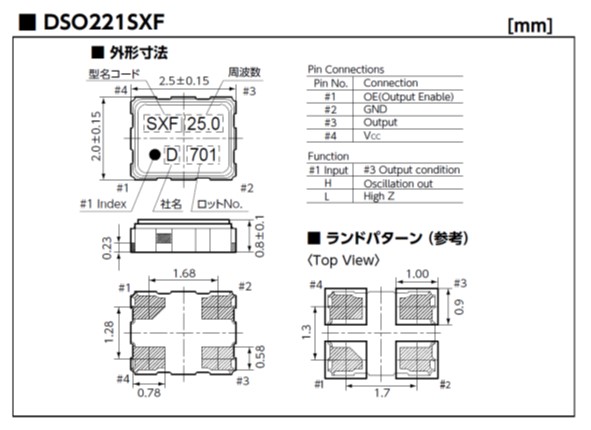

7FE02496A00,DSO221SX傳感相機晶振,大真空CMOS輸出振蕩器 尺寸圖
7FE02496A00,DSO221SX傳感相機晶振,大真空CMOS輸出振蕩器
產品特點：
電源電壓: 1.8V/2.5V/2.8V/3.3V
支持頻率范圍: 1~125MHz
矮型對應: 0.8mm
CMOS輸出有源晶振
適用于-40~125℃的廣闊工作溫度范圍
帶三態功能
支持自動駕駛ⅱ級
符合AEC-Q100/AEC-Q200標準
| 晶振廠家 | 原廠代碼 | 型號 | 尺寸 | 頻率 | 負載/電壓 | 精度 |
| KDS晶振 | 1N226000AB0M | DSX321G | 3225 | 26.000M | 8PF | 8PPM |
| KDS晶振 | 1N226000AB0J | DSX321G | 3225 | 26.000M | 11PF | 10PPM |
| KDS晶振 | 1C226000BE0D | DSX321G | 3225 | 26.000M | ||
| KDS晶振 | 1N227000AB0N | DSX321G | 3225 | 27.000M | ||
| KDS晶振 | 1C233333BC0G | DSX321G | 3225 | 33.333333M | ||
| KDS晶振 | 1N340000LA0B | DSX321G | 3225 | 40.000M | ||
| KDS晶振 | 1C340000LA0A | DSX321G | 3225 | 40.000M | 8PF | |
| KDS晶振 | 1C262400BK0A | DSX321G | 3225 | 62.4M | ||
| KDS晶振 | 1N227000EE0L | DSX321G | 3225 | 27.000M | 9PF | 50ppm |
| KDS晶振 | 1BASAMPLE | DSX321G | 3225 | 27.000M | 9PF | 50ppm |
| KDS晶振 | 1C227000BBAH | DSX321G | 3225 | 27.000M | 11PF | 12ppm |
| KDS晶振 | 1N227000BB0AK | DSX321G | 3225 | 27.000M | 11PF | 12PPM |
| KDS晶振 | 1C228322EE0D | DSX321G | 3225 | 28.322M | 10PF | 50PPM |
| KDS晶振 | 1N230000AB0C | DSX321G | 3225 | 30.000M | 10PF | 30PPM |
| KDS晶振 | 1C338400AA0B | DSX321G | 3225 | 38.400M | 10PF | 10PPM |
| KDS晶振 | 1C241600CDAA | DSX321G | 3225 | 41.6M | 10PF | 30PPM |
| KDS晶振 | 1C254000CC0C | DSX321G | 3225 | 54.000M | 10PF | 30PPM |
| KDS晶振 | 1N232000AA0N | DSX321G | 3225 | 32.000M | 12PF | |
| KDS晶振 | 1N240000AB0J | DSX321G | 3225 | 40.000M | 15PF | 15PPM |
| KDS晶振 | 1C240000AB0G | DSX321G | 3225 | 40.000M | 10PF | 10PPM |
| KDS晶振 | X4S013000DA1H-W | HSX421S | 4025 | 13.000M | 10PF | 20ppm |
| KDS晶振 | X1H013000B81H | HSX531S | 5032 | 13.000M | 8PF | 10ppm |
| KDS晶振 | 1C736864CC1A | DSX530GA | 5032 | 36.864M | 8PF | 25PPM |
| KDS晶振 | 1HX12288CD1A | DSX840GA | 8045 | 12.288M | 20PF | 30PPM |
| KDS晶振 | 1CX40000EE1O | DSX840GA | 8045 | 40.000M | 18PF | 50ppm |
| KDS晶振 | 1CW04000KK3C | DSX151GAL | 11.8*5.5 | 4.000M | ||
| KDS晶振 | 1CW08192EK3A | DSX151GAL | 11.8*5.5 | 8.192M | 15PF | 20ppm |
| KDS晶振 | CW08000EK3B | DSX151GAL | 11.8*5.5 | 8.000M | ||
| KDS晶振 | 1AJ039286A | SMD-49 | 3.928231M | |||
| KDS晶振 | 1AJ040003DJ | SMD-49 | 4.000M | |||
| KDS晶振 | 1AJ043324C | SMD-49 | 11*4.6 | 4.332M | 12PF | 20PPM |
| KDS晶振 | 1AJ073726AV | SMD-49 | 7.3728M | |||
| KDS晶振 | 1AJ099976A | SMD-49 | 9.9975M | |||
| KDS晶振 | 1AR11059CEB | SMD-49 | 11.0592M | 16PF | 30PPM | |
| KDS晶振 | 1AJ160006BL | SMD-49 | 16.000M | |||
| KDS晶振 | 1AJ16000EEL | SMD-49 | 16.000M | |||
| KDS晶振 | 1AJ160003D | SMD-49 | 16.000M | 30PPM | ||
| KDS晶振 | 1AJ17408AAGA | SMD-49 | 11*4.6 | 17.408M | 16PF | 50PPM |
| KDS晶振 | 1AJ240006AEA | SMD-49 | 11*4.6 | 24.000M | 16PF | 50PPM |
| KDS晶振 | 1AJ240006AK | SMD-49 | 11*4.6 | 24.000M | 16PF | 30PPM |
| KDS晶振 | 1AJ240006BB | SMD-49 | 11*4.6 | 24.000M | 16PF | 30PPM |
| KDS晶振 | 1AJ245765C | SMD-49 | 11*4.6 | 24.576M | 18PF | 30PPM |
| KDS晶振 | 1AR245766AZ | SMD-49 | 11*4.6 | 24.576M | 20PF | 30ppm |
| KDS晶振 | 1AR245766BE | SMD-49 | 11*4.6 | 24.576M | ||
| KDS晶振 | 1AJ250004B | SMD-49 | 11*4.6 | 25.000M | 20PF | 30PPM |
| KDS晶振 | 1AR270002GA | SMD-49 | 11*4.6 | 27.000M | 12.9PF | 20PPM |
| KDS晶振 | 1AR270002CG | SMD-49 | 11*4.6 | 27.000M | 10PF | 20PPM |
| KDS晶振 | 1AR270002CGA | SMD-49 | 11*4.6 | 27.000M | 10PF | 30PPM |
| KDS晶振 | 1AR270002EH | SMD-49 | 11*4.6 | 27.000M | 12PF | 20PPM |
| KDS晶振 | 1AV270002BA | SMD-49 | 11*4.6 | 27.000M | 16PF | 50PPM |
| KDS晶振 | 1AR270002CQ | SMD-49 | 11*4.6 | 27.000M | 10PF | 30ppm |
| KDS晶振 | 1AJ270002CH | SMD-49 | 11*4.6 | 27.000M | 10PF | 20ppm |
| KDS晶振 | 1AJ270002DT | SMD-49 | 11*4.6 | 27.000M | 12PF | 15ppm |
| KDS晶振 | 1AR304002A | SMD-49 | 11*4.6 | 30.400M | 12PF | 50ppm |
| KDS晶振 | 1AC112893EA | AT-49 | 11*4.6 | 11.2893M | 10PF | 20ppm |
| KDS晶振 | 1AC125821EA | AT-49 | 11*4.6 | 12.58291M | 8.8PF | 20ppm |
| KDS晶振 | 1AY289002DB | AT-49 | 11*4.6 | 28.900M | 12PF | 50PPM |
| KDS晶振 | SB103CE1MM | SINGLE | ||||
| KDS晶振 | 1JAAL0032768BAAX | MO1532 | 32.768K | |||
| KDS晶振 | 17CG03840A06 | DSR1612ATH | 1612 | 38.400M | 8PF | 10ppm |
| KDS晶振 | 1RAK38400CKA | DSR211STH | 2016 | 38.4M | 7pf | 12ppm |
| KDS晶振 | 1XZA032768AD19 | DSK321STD | 3225 | 32.768K | ||
| KDS晶振 | 7FG00003A03 | DSO1612AR | 1612 | 32.768KHZ | 3.3V | 20PPM |
| KDS晶振 | ZC08759 | DSO211AH | 2016 | 25.000M | 3.3V | 50ppm |
| KDS晶振 | 1XSF016000EH | DSO221SHF | 2520 | 16.000M | ||
| KDS晶振 | 1XSE012000AR58 | DSO321SR | 3225 | 12.000M | 3.3V | 50ppm |
| KDS晶振 | 7FE02496A00 | DSO221SX | 2520 | 24.96M | ||
| KDS晶振 | 1XSF033333ARA | DSO221SR | 2520 | 33.3333M | 100ppm | |
| KDS晶振 | 1XSE024000AW1 | DSO321SW | 3225 | 24.000M | ||
| KDS晶振 | 1XSE025000AR5 | DSO321SR | 3225 | 25.000M | ||
| KDS晶振 | 1XSE033333ARD | DSO321SR | 3225 | 33.3333M | ||
| KDS晶振 | 1XSE038702AR | DSO321SRAB | 3225 | 38.7024M | ||
| KDS晶振 | 1XSE050000ART | DSO321SR | 3225 | 50.000M | 100ppm | |
| KDS晶振 | 1XST156250AKM | DSO323SK | 3225 | 156.25M | 50PPM | |
| KDS晶振 | 1XSR025000AR25 | DSO751SR | 7050 | 25.000M | 3.3V | 50ppm |
| KDS晶振 | 1XSA050000AVW | DSO751SV | 7050 | 50.000M | 3.3V | 100ppm |
| KDS晶振 | ZC12456 | DSB211SDN | 2016 | 16.320M | 3.3V | 1.5ppm |
| KDS晶振 | 1XXD16367MAA | DSB211SDN | 2016 | 16.367667M | 3.3V | 1.5ppm |
