Skyworks廣播視頻晶振,Si515低抖動差分晶振,515BBA250M000BAG，尺寸5.0x3.2mm，頻率250MHZ，輸出邏輯LVDS，電壓3.3V，頻率穩定性20ppm,思佳訊壓控晶振，六腳差分晶振，差分晶振LVDS，貼片差分晶振，石英差分晶振，差分有源晶振，VCXO壓控晶振，壓控差分振蕩器，差分晶體振蕩器，貼片壓控振蕩器，有源壓控晶振，低功耗差分晶振，低損耗差分晶振，低電壓差分晶振，低相位差分晶振，低相噪差分晶振，低抖動差分晶振，高質量差分晶振，高性能差分晶振，廣播視頻專用差分晶振，電信差分晶振，交換機差分晶振，路由器差分晶振，ASIC時鐘生成差分晶振，具有低抖動低電壓高精度的特點。
OSC晶振產品很適合用于各個領域之中，特別適合用于廣播視頻，電信，交換機/路由器，FPGA/ASIC時鐘生成，娛樂設備，光通信等領域。Skyworks廣播視頻晶振,Si515低抖動差分晶振,515BBA250M000BAG.
Skyworks廣播視頻晶振,Si515低抖動差分晶振,515BBA250M000BAG 參數表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | |||||||||||||||||||
| Supply Voltage | VDD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | |||||||||||||||||||
| 2.5 V option | 2.25 | 2.5 | 2.75 | V | |||||||||||||||||||||
| Supply Current | IDD |
CMOS, 100 MHz, single-ended |
— | 24 | 29 | mA | |||||||||||||||||||
|
LVDS (output enabled) |
— | 22 | 26 | mA | |||||||||||||||||||||
|
LVPECL (output enabled) |
— | 42 | 46 | mA | |||||||||||||||||||||
|
HCSL (output enabled) |
— | 44 | 47 | mA | |||||||||||||||||||||
|
Tristate (output disabled) |
— | — | 22 | mA | |||||||||||||||||||||
| OE “1” Setting | VIH | See Note | 0.80 x VDD | — | — | V | |||||||||||||||||||
| OE “0” Setting | VIL | See Note | — | — | 0.20 x VDD | V | |||||||||||||||||||
|
OE Internal Pull-Up/ Pull-Down Resistor* |
RI | — | 45 | — | kΩ | ||||||||||||||||||||
| Operating Temperature | TA | –40 | — | 85 | oC | ||||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | |||||||||||||||||||
| Control Voltage Range | VC | 0.1 x VDD | VDD/2 | 0.9 x VDD | V | ||||||||||||||||||||
|
Control Voltage Tuning Slope (10 to 90% VDD) |
Kv |
Positive slope, ordering option |
60, 90, 120, 150 | ppm/V | |||||||||||||||||||||
| Kv Variation | Kv_var | — | — | ±10 | % | ||||||||||||||||||||
| Control Voltage Linearity | LVC | BSL | –5 | ±1 | +5 | % | |||||||||||||||||||
| Modulation Bandwidth | BW | — | 10 | — | kHz | ||||||||||||||||||||
| Vc Input Impedance | ZVC | — | 100 | — | kΩ | ||||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | |||||||||||||||||||
| Nominal Frequency | FO | CMOS, Dual CMOS | 0.1 | — | 212.5 | MHz | |||||||||||||||||||
| FO | LVDS/LVPECL/HCSL |
|
250 |
|
MHz | ||||||||||||||||||||
| Temperature Stability | ST | TA= –40 to +85oC | –20 | — | +20 | ppm | |||||||||||||||||||
| Aging | A | Frequency drift over 10 year life | — | — | ±8.5 | ppm | |||||||||||||||||||
| Minimum Absolute Pull Range | APR | Ordering option | ±30, ±50,±80, ±100 | ppm | |||||||||||||||||||||
| Startup Time | TSU |
Minimum VDDto output fre- quency (FO) within specification |
— | — | 10 | ms | |||||||||||||||||||
| Disable Time | TD | FO> 10 MHz | — | — | 5 | µs | |||||||||||||||||||
| FO< 10 MHz | 40 | µs | |||||||||||||||||||||||
| Enable Time | TE | FO> 10 MHz | — | — | 20 | µs | |||||||||||||||||||
| FO< 10 MHz | 60 | µs | |||||||||||||||||||||||

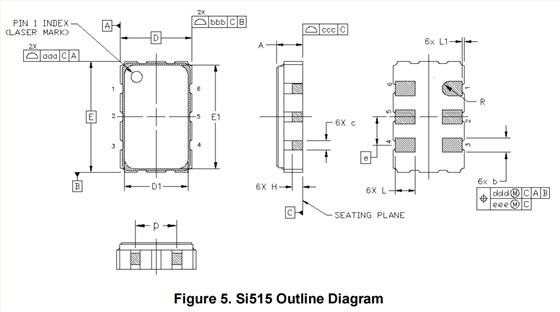

Skyworks廣播視頻晶振,Si515低抖動差分晶振,515BBA250M000BAG 尺寸圖
Skyworks廣播視頻晶振,Si515低抖動差分晶振,515BBA250M000BAG

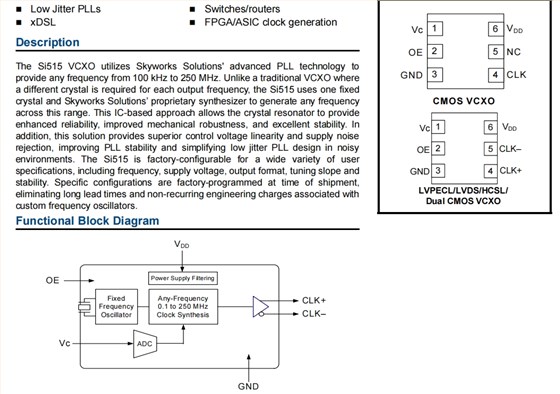

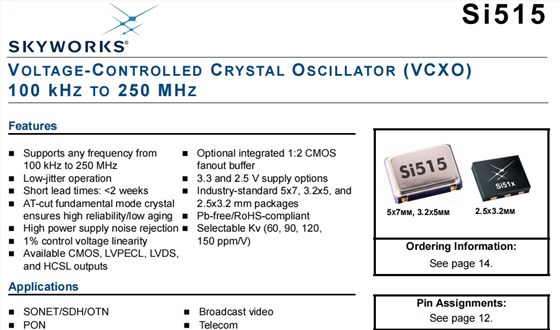

差分晶振產品特點：
支持來自的任何頻率100kHz至250MHz
低抖動操作
交付周期短：<2周
AT切基模晶體確保高可靠性/低老化
高電源噪聲抑制
1%控制電壓線性
可用CMOS、LVPECL、LVDS，和HCSL輸出
可選集成1:2 CMOS扇出緩存
3.3和2.5 V電源選項
行業標準5x7、3.2x5和2.5x3.2 mm包裝
無鉛/符合RoHS
可選擇的Kv（60、90、120，150 ppm/V）
| Mfr Part # | 晶振廠家 | Description | Series | Frequency | Output | Voltage - Supply |
| 515ABA10M0000BAGR | Skyworks有源晶振 | XTAL OSC VCXO 10.0000MHZ LVPECL | Si515 | 10 MHz | LVPECL | 3.3V |
| 515BBA10M0000BAGR | Skyworks有源晶振 | XTAL OSC VCXO 10.0000MHZ LVDS | Si515 | 10 MHz | LVDS | 3.3V |
| 515ABA10M0000BAG | Skyworks有源晶振 | XTAL OSC VCXO 10.0000MHZ LVPECL | Si515 | 10 MHz | LVPECL | 3.3V |
| 515BBA10M0000BAG | Skyworks有源晶振 | XTAL OSC VCXO 10.0000MHZ LVDS | Si515 | 10 MHz | LVDS | 3.3V |
| 515ACA77M7600AAGR | Skyworks有源晶振 | XTAL OSC VCXO 77.7600MHZ LVPECL | Si515 | 77.76 MHz | LVPECL | 3.3V |
| 515ACAM614400AAGR | Skyworks有源晶振 | XTAL OSC VCXO 6.1440MHZ LVPECL | Si515 | 6.144 MHz | LVPECL | 3.3V |
| 515BCA10M0000AAGR | Skyworks有源晶振 | XTAL OSC VCXO 10.0000MHZ LVDS | Si515 | 10 MHz | LVDS | 3.3V |
| 515BCB70M6560AAGR | Skyworks有源晶振 | XTAL OSC VCXO 70.6560MHZ LVDS | Si515 | 70.656 MHz | LVDS | 3.3V |
| 515BDA27M0000AAGR | Skyworks有源晶振 | XTAL OSC VCXO 27.0000MHZ LVDS | Si515 | 27 MHz | LVDS | 3.3V |
| 515BBA250M000BAGR | Skyworks有源晶振 | XTAL OSC VCXO 250.0000MHZ LVDS | Si515 | 250 MHz | LVDS | 3.3V |
| 515BCA250M000BAGR | Skyworks有源晶振 | XTAL OSC VCXO 250.0000MHZ LVDS | Si515 | 250 MHz | LVDS | 3.3V |
| 515ACA204M800AAGR | Skyworks有源晶振 | XTAL OSC VCXO 204.8000MHZ LVPECL | Si515 | 204.8 MHz | LVPECL | 3.3V |
| 515BBA250M000BAG | Skyworks有源晶振 | XTAL OSC VCXO 250.0000MHZ LVDS | Si515 | 250 MHz | LVDS | 3.3V |
| 515BCA250M000BAG | Skyworks有源晶振 | XTAL OSC VCXO 250.0000MHZ LVDS | Si515 | 250 MHz | LVDS | 3.3V |
| 515ADA131M072AAGR | Skyworks有源晶振 | XTAL OSC VCXO 131.0720MHZ LVPECL | Si515 | 131.072 MHz | LVPECL | 3.3V |
| 515ACA100M000BAGR | Skyworks有源晶振 | XTAL OSC VCXO 100.0000MHZ LVPECL | Si515 | 100 MHz | LVPECL | 3.3V |
| 515ACA61M4400BAGR | Skyworks有源晶振 | XTAL OSC VCXO 61.4400MHZ LVPECL | Si515 | 61.44 MHz | LVPECL | 3.3V |
| 515ACB78M0000BAGR | Skyworks有源晶振 | XTAL OSC VCXO 78.0000MHZ LVPECL | Si515 | 78 MHz | LVPECL | 3.3V |
| 515BAA125M000BAGR | Skyworks有源晶振 | XTAL OSC VCXO 125.0000MHZ LVDS | Si515 | 125 MHz | LVDS | 3.3V |
| 515BAB125M000BAGR | Skyworks有源晶振 | XTAL OSC VCXO 125.0000MHZ LVDS | Si515 | 125 MHz | LVDS | 3.3V |
| 515BBA125M000BAGR | Skyworks有源晶振 | XTAL OSC VCXO 125.0000MHZ LVDS | Si515 | 125 MHz | LVDS | 3.3V |
| 515BBB125M000BAGR | Skyworks有源晶振 | XTAL OSC VCXO 125.0000MHZ LVDS | Si515 | 125 MHz | LVDS | 3.3V |
| 515BCA122M880BAGR | Skyworks有源晶振 | XTAL OSC VCXO 122.8800MHZ LVDS | Si515 | 122.88 MHz | LVDS | 3.3V |
| 515BCA125M000BAGR | Skyworks有源晶振 | XTAL OSC VCXO 125.0000MHZ LVDS | Si515 | 125 MHz | LVDS | 3.3V |
| 515BCA27M0000BAGR | Skyworks有源晶振 | XTAL OSC VCXO 27.0000MHZ LVDS | Si515 | 27 MHz | LVDS | 3.3V |
| 515BDA26M0000BAGR | Skyworks有源晶振 | XTAL OSC VCXO 26.0000MHZ LVDS | Si515 | 26 MHz | LVDS | 3.3V |
| 515BDA27M0000BAGR | Skyworks有源晶振 | XTAL OSC VCXO 27.0000MHZ LVDS | Si515 | 27 MHz | LVDS | 3.3V |
| 515FBB125M000BAGR | Skyworks有源晶振 | XTAL OSC VCXO 125.0000MHZ LVDS | Si515 | 125 MHz | LVDS | 2.5V |
| 515FCA125M000BAGR | Skyworks有源晶振 | XTAL OSC VCXO 125.0000MHZ LVDS | Si515 | 125 MHz | LVDS | 2.5V |
| 515BBA122M880BAGR | Skyworks有源晶振 | XTAL OSCILLATOR | Si515 | 122.88 MHz | LVDS | 3.3V |
| 515BAA100M000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 100 MHz | LVDS | 3.3V |
| 515ACA27M0000BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 27 MHz | LVPECL | 3.3V |
| 515ACAM457000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 457 kHz | LVPECL | 3.3V |
| 515ACA100M000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 100 MHz | LVPECL | 3.3V |
| 515BCB100M000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 100 MHz | LVDS | 3.3V |
| 515ACA10M0000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 10 MHz | LVPECL | 3.3V |
| 515BCA122M880CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 122.88 MHz | LVDS | 3.3V |
| 515BCA24M0000BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 24 MHz | LVDS | 3.3V |
| 515ACA004723CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 24.545454 MHz | LVPECL | 3.3V |
| 515BCA10M0000BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 10 MHz | LVDS | 3.3V |
| 515ACA125M000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 125 MHz | LVPECL | 3.3V |
| 515FCB125M000BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 125 MHz | LVDS | 2.5V |
| 515ACA122M880CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 122.88 MHz | LVPECL | 3.3V |
| 515BCB27M0000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 27 MHz | LVDS | 3.3V |
| 515BCA100M000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 100 MHz | LVDS | 3.3V |
| 515BCB25M0000BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 25 MHz | LVDS | 3.3V |
| 515ACA204M800AAG | Skyworks有源晶振 | XTAL OSC VCXO 204.8000MHZ LVPECL | Si515 | 204.8 MHz | LVPECL | 3.3V |
| 515ACA156M250CAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 156.25 MHz | LVPECL | 3.3V |
| 515BCA156M250CAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 156.25 MHz | LVDS | 3.3V |
| 515BDA156M250CAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 156.25 MHz | LVDS | 3.3V |
| 515BCA148M500CAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 148.5 MHz | LVDS | 3.3V |
| 515BCA148M350CAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 148.35 MHz | LVDS | 3.3V |
| 515BAA004636BAG | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 167.33165 MHz | LVDS | 3.3V |
| 515BAA155M520CAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 155.52 MHz | LVDS | 3.3V |
| 515AAA174M687BAGR | Skyworks有源晶振 | XTAL OSC VCXO 174.6870MHZ LVPECL | Si515 | 174.687 MHz | LVPECL | 3.3V |
| 515AAA174M703BAGR | Skyworks有源晶振 | XTAL OSC VCXO 174.7030MHZ LVPECL | Si515 | 174.703 MHz | LVPECL | 3.3V |
| 515ABB212M500BAGR | Skyworks有源晶振 | XTAL OSC VCXO 212.5000MHZ LVPECL | Si515 | 212.5 MHz | LVPECL | 3.3V |
| 515ABB250M000BAGR | Skyworks有源晶振 | XTAL OSC VCXO 250.0000MHZ LVPECL | Si515 | 250 MHz | LVPECL | 3.3V |
| 515ACA250M000BAGR | Skyworks有源晶振 | XTAL OSC VCXO 250.0000MHZ LVPECL | Si515 | 250 MHz | LVPECL | 3.3V |
| 515BAA000123BAGR | Skyworks有源晶振 | XTAL OSC VCXO 123.0000KHZ LVDS | Si515 | 123 kHz | LVDS | 3.3V |
| 515BCA180M000BAGR | Skyworks有源晶振 | XTAL OSC VCXO 180.0000MHZ LVDS | Si515 | 180 MHz | LVDS | 3.3V |
| 515FBA180M000BAGR | Skyworks有源晶振 | XTAL OSC VCXO 180.0000MHZ LVDS | Si515 | 180 MHz | LVDS | 2.5V |
| 515FCA200M000BAGR | Skyworks有源晶振 | XTAL OSC VCXO 200.0000MHZ LVDS | Si515 | 200 MHz | LVDS | 2.5V |
| 515FCA212M500BAGR | Skyworks有源晶振 | XTAL OSC VCXO 212.5000MHZ LVDS | Si515 | 212.5 MHz | LVDS | 2.5V |
| 515ACA200M000BAGR | Skyworks有源晶振 | XTAL OSCILLATOR | Si515 | 200 MHz | LVPECL | 3.3V |
| 515ACA200M000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 200 MHz | LVPECL | 3.3V |
| 515ACA204M800CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 204.8 MHz | LVPECL | 3.3V |
| 515BCA240M000BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 240 MHz | LVDS | 3.3V |
| 515AAA200M000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 200 MHz | LVPECL | 3.3V |
| 515AAA161M132BAG | Skyworks有源晶振 | XTAL OSC VCXO 161.1320MHZ LVPECL | Si515 | 161.132 MHz | LVPECL | 3.3V |
| 515AAB156M250BAG | Skyworks有源晶振 | XTAL OSC VCXO 156.2500MHZ LVPECL | Si515 | 156.25 MHz | LVPECL | 3.3V |
| 515ABB155M520BAG | Skyworks有源晶振 | XTAL OSC VCXO 155.5200MHZ LVPECL | Si515 | 155.52 MHz | LVPECL | 3.3V |
| 515ACA000292BAG | Skyworks有源晶振 | XTAL OSC VCXO 292.0000KHZ LVPECL | Si515 | 292 kHz | LVPECL | 3.3V |
| 515ACB155M520BAG | Skyworks有源晶振 | XTAL OSC VCXO 155.5200MHZ LVPECL | Si515 | 155.52 MHz | LVPECL | 3.3V |
| 515BAA000108BAG | Skyworks有源晶振 | XTAL OSC VCXO 108.0000KHZ LVDS | Si515 | 108 kHz | LVDS | 3.3V |
| 515BAA155M520BAG | Skyworks有源晶振 | XTAL OSC VCXO 155.5200MHZ LVDS | Si515 | 155.52 MHz | LVDS | 3.3V |
| 515BAA156M250BAG | Skyworks有源晶振 | XTAL OSC VCXO 156.2500MHZ LVDS | Si515 | 156.25 MHz | LVDS | 3.3V |
