590AA350M000DG,Si590多媒體設備晶振,思佳訊LVPECL輸出晶振，尺寸7.0x5.0mm，頻率350MHZ，輸出邏輯LVPECL，電壓3.3V，頻率穩定性50ppm，Skyworks差分晶振，思佳訊有源振蕩器，歐美進口晶振，有源差分振蕩器，7050mm差分振蕩器，六腳差分晶振，LV-PECL差分晶振，差分晶體振蕩器，石英差分振蕩器，貼片差分晶振，高精度差分晶振，高頻差分振蕩器，低損耗差分振蕩器，低電壓差分振蕩器，低抖動差分晶振，低耗能差分晶振，低功耗差分晶振，低相位差分晶振，低相噪差分晶振，多媒體設備差分晶振，網絡設備差分晶振，儀器儀表差分晶振，游戲設備專用差分晶振，醫療產品差分晶振，交換機差分晶振，具有高精度低電壓的特點。
差分晶振產品可滿足不同應用程序的需求，比較適合用于多媒體設備，網絡設備，儀器儀表，游戲設備，醫療產品，交換機等領域。590AA350M000DG,Si590多媒體設備晶振,思佳訊LVPECL輸出晶振.
590AA350M000DG,Si590多媒體設備晶振,思佳訊LVPECL輸出晶振 參數表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||||||||||||||
| Supply Voltage1 | VDD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | ||||||||||||||||||||
| 2.5 V option | 2.25 | 2.5 | 2.75 | |||||||||||||||||||||||
| 1.8 V option | 1.71 | 1.8 | 1.89 | |||||||||||||||||||||||
| Supply Current | IDD |
Output enabled LVPECL CML LVDS CMOS |
— — — — |
110 100 90 80 |
125 110 100 90 |
mA | ||||||||||||||||||||
| Tristate mode | — | 60 | 75 | |||||||||||||||||||||||
| Output Enable (OE)2 | VIH | 0.75 x VDD | — | — | V | |||||||||||||||||||||
| VIL | — | — | 0.5 | |||||||||||||||||||||||
| Operating Temperature Range | TA | –40 | — | 85 | ºC | |||||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||||||||||||||
| Nominal Frequency1,2 | fO | LVPECL/LVDS/CML |
|
350 |
|
MHz | ||||||||||||||||||||
| CMOS | 10 | — | 160 | |||||||||||||||||||||||
| Initial Accuracy | fi |
Measured at +25 °C at time of shipping |
— | ±1.5 | — | ppm | ||||||||||||||||||||
| Total Stability | Note 3, second option code “D” | ±20 | ppm | |||||||||||||||||||||||
| Note 3, second option code “C” | ±30 | ppm | ||||||||||||||||||||||||
| Note 4, second option code “B” | — | — | ±50 | ppm | ||||||||||||||||||||||
| Note 4, second option code “A” | — | — | ±100 | ppm | ||||||||||||||||||||||
| Temperature Stability | second option code “D” | — | — | ±7 | ppm | |||||||||||||||||||||
| second option code “C” | ±20 | ppm | ||||||||||||||||||||||||
| second option code “B” | ±25 | ppm | ||||||||||||||||||||||||
| second option code “A” | — | — | ±50 | ppm | ||||||||||||||||||||||
| Powerup Time5 | tOSC | — | — | 10 | ms | |||||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||||||||||||||
| LVPECL Output Option1 | VO | mid-level | VDD– 1.42 | VDD– 1.25 | V | |||||||||||||||||||||
| VOD | swing (diff) | 1.1 | 1.9 | VPP | ||||||||||||||||||||||
| VSE | swing (single-ended) | 0.55 | 0.95 | VPP | ||||||||||||||||||||||
| LVDS Output Option2 | VO | mid-level | 1.125 | 1.20 | 1.275 | V | ||||||||||||||||||||
| VOD | swing (diff) | 0.5 | 0.7 | 0.9 | VPP | |||||||||||||||||||||
| CML Output Option2 | VO | 2.5/3.3 V option mid-level | — | VDD– 1.30 | — | V | ||||||||||||||||||||
| 1.8 V option mid-level | — | VDD– 0.36 | — | |||||||||||||||||||||||
| VOD | 2.5/3.3 V option swing (diff) | 1.10 | 1.50 | 1.90 | VPP | |||||||||||||||||||||
| 1.8 V option swing (diff) | 0.35 | 0.425 | 0.50 | |||||||||||||||||||||||
| CMOS Output Option3 | VOH | 0.8 x VDD | — | VDD | V | |||||||||||||||||||||
| VOL | — | — | 0.4 | |||||||||||||||||||||||
| Rise/Fall time (20/80%) | tR,tF | LVPECL/LVDS/CML | — | — | 350 | ps | ||||||||||||||||||||
| CMOS with CL= 15 pF | — | 2 | — | ns | ||||||||||||||||||||||
| Symmetry (duty cycle) | SYM |
LVPECL:VDD– 1.3 V (diff) LVDS:1.25 V (diff) CMOS:VDD/2 |
45 | — | 55 | % | ||||||||||||||||||||

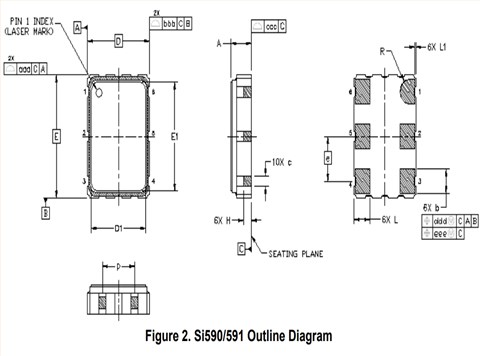

590AA350M000DG,Si590多媒體設備晶振,思佳訊LVPECL輸出晶振 尺寸圖
590AA350M000DG,Si590多媒體設備晶振,思佳訊LVPECL輸出晶振

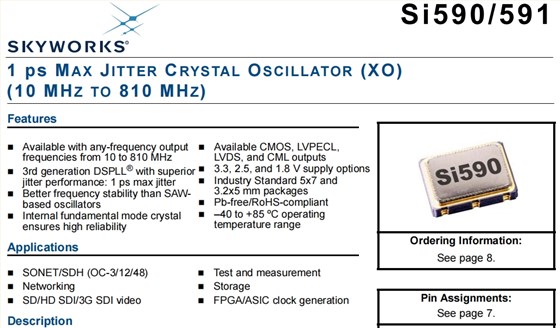

六腳差分晶振產品特點：
可用于任何頻率輸出頻率從10到810兆赫
具有卓越性能的第三代DSPLL®抖動性能：最大抖動1 ps
比基于SAW的振蕩器具有更好的頻率穩定性
內部基模晶體確保高可靠性
可用的CMOS、LVPECL、LVDS和CML輸出
3.3、2.5和1.8 V電源選項
行業標準5x7和3.2x5 mm包裝
無鉛/符合RoHS
–40至+85ºC運行溫度范圍
| Mfr Part # | Mfr | Description | Series | Frequency | Output | Voltage - Supply |
| 590AB155M520DGR | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ LVPECL | Si590 | 155.52 MHz | LVPECL | 3.3V |
| 590AB164M355DGR | Skyworks有源晶振 | XTAL OSC XO 164.3550MHZ LVPECL | Si590 | 164.355 MHz | LVPECL | 3.3V |
| 590AB172M500DGR | Skyworks有源晶振 | XTAL OSC XO 172.5000MHZ LVPECL | Si590 | 172.5 MHz | LVPECL | 3.3V |
| 590AB200M000DGR | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVPECL | Si590 | 200 MHz | LVPECL | 3.3V |
| 590BB133M000DGR | Skyworks有源晶振 | XTAL OSC XO 133.0000MHZ LVDS SMD | Si590 | 133 MHz | LVDS | 3.3V |
| 590BB148M350DGR | Skyworks有源晶振 | XTAL OSC XO 148.3500MHZ LVDS SMD | Si590 | 148.35 MHz | LVDS | 3.3V |
| 590BB148M500DGR | Skyworks有源晶振 | XTAL OSC XO 148.5000MHZ LVDS SMD | Si590 | 148.5 MHz | LVDS | 3.3V |
| 590BB156M250DGR | Skyworks晶振 | XTAL OSC XO 156.2500MHZ LVDS SMD | Si590 | 156.25 MHz | LVDS | 3.3V |
| 590BB200M000DGR | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVDS SMD | Si590 | 200 MHz | LVDS | 3.3V |
| 590FB156M250DGR | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVDS SMD | Si590 | 156.25 MHz | LVDS | 2.5V |
| 590FA172M642DGR | Skyworks有源晶振 | XTAL OSC XO 172.6420MHZ LVDS SMD | Si590 | 172.642 MHz | LVDS | 2.5V |
| 590FA173M371DGR | Skyworks有源晶振 | XTAL OSC XO 173.3710MHZ LVDS SMD | Si590 | 173.371 MHz | LVDS | 2.5V |
| 590MA148M500DGR | Skyworks有源晶振 | XTAL OSC XO 148.5000MHZ LVPECL | Si590 | 148.5 MHz | LVPECL | 3.3V |
| 590AD000338DGR | Skyworks有源晶振 | XTAL OSC XO 338.0000KHZ LVPECL | Si590 | 338 kHz | LVPECL | 3.3V |
| 590AD142M675DGR | Skyworks有源晶振 | XTAL OSC XO 142.6750MHZ LVPECL | Si590 | 142.675 MHz | LVPECL | 3.3V |
| 590MD142M675DGR | Skyworks有源晶振 | XTAL OSC XO 142.6750MHZ LVPECL | Si590 | 142.675 MHz | LVPECL | 3.3V |
| 590AB70M6560DG | Skyworks有源晶振 | XTAL OSC XO 70.6560MHZ LVPECL | Si590 | 70.656 MHz | LVPECL | 3.3V |
| 590AB100M000DG | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVPECL | Si590 | 100 MHz | LVPECL | 3.3V |
| 590AB125M000DG | Skyworks有源晶振 | XTAL OSC XO 125.0000MHZ LVPECL | Si590 | 125 MHz | LVPECL | 3.3V |
| 590AB20M0000DG | Skyworks有源晶振 | XTAL OSC XO 20.0000MHZ LVPECL | Si590 | 20 MHz | LVPECL | 3.3V |
| 590AB25M0000DG | Skyworks有源晶振 | XTAL OSC XO 25.0000MHZ LVPECL | Si590 | 25 MHz | LVPECL | 3.3V |
| 590AB27M0000DG | Skyworks有源晶振 | XTAL OSC XO 27.0000MHZ LVPECL | Si590 | 27 MHz | LVPECL | 3.3V |
| 590AB29M7000DG | Skyworks有源晶振 | XTAL OSC XO 29.7000MHZ LVPECL | Si590 | 29.7 MHz | LVPECL | 3.3V |
| 590AB30M0000DG | Skyworks有源晶振 | XTAL OSC XO 30.0000MHZ LVPECL | Si590 | 30 MHz | LVPECL | 3.3V |
| 590BB100M000DG | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | Si590 | 100 MHz | LVDS | 3.3V |
| 590BB120M000DG | Skyworks有源晶振 | XTAL OSC XO 120.0000MHZ LVDS SMD | Si590 | 120 MHz | LVDS | 3.3V |
| 590BB122M880DG | Skyworks有源晶振 | XTAL OSC XO 122.8800MHZ LVDS SMD | Si590 | 122.88 MHz | LVDS | 3.3V |
| 590BB125M000DG | Skyworks有源晶振 | XTAL OSC XO 125.0000MHZ LVDS SMD | Si590 | 125 MHz | LVDS | 3.3V |
| 590BB50M0000DG | Skyworks有源晶振 | XTAL OSC XO 50.0000MHZ LVDS SMD | Si590 | 50 MHz | LVDS | 3.3V |
| 590BB92M4000DG | Skyworks有源晶振 | XTAL OSC XO 92.4000MHZ LVDS SMD | Si590 | 92.4 MHz | LVDS | 3.3V |
| 590EB25M0000DG | Skyworks有源晶振 | XTAL OSC XO 25.0000MHZ LVPECL | Si590 | 25 MHz | LVPECL | 2.5V |
| 590FB100M000DG | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | Si590 | 100 MHz | LVDS | 2.5V |
| 590FB122M880DG | Skyworks有源晶振 | XTAL OSC XO 122.8800MHZ LVDS SMD | Si590 | 122.88 MHz | LVDS | 2.5V |
| 590FB125M000DG | Skyworks有源晶振 | XTAL OSC XO 125.0000MHZ LVDS SMD | Si590 | 125 MHz | LVDS | 2.5V |
| 590FB50M0000DG | Skyworks有源晶振 | XTAL OSC XO 50.0000MHZ LVDS SMD | Si590 | 50 MHz | LVDS | 2.5V |
| 590MB125M000DG | Skyworks有源晶振 | XTAL OSC XO 125.0000MHZ LVPECL | Si590 | 125 MHz | LVPECL | 3.3V |
| 590SB25M0000DG | Skyworks有源晶振 | XTAL OSC XO 25.0000MHZ LVDS SMD | Si590 | 25 MHz | LVDS | 2.5V |
| 590AA306M250DG | Skyworks有源晶振 | XTAL OSC XO 306.2500MHZ LVPECL | Si590 | 306.25 MHz | LVPECL | 3.3V |
| 590AA340M000DG | Skyworks有源晶振 | XTAL OSC XO 340.0000MHZ LVPECL | Si590 | 340 MHz | LVPECL | 3.3V |
| 590AA350M000DG | Skyworks有源晶振 | XTAL OSC XO 350.0000MHZ LVPECL | Si590 | 350 MHz | LVPECL | 3.3V |
| 590BA300M000DG | Skyworks有源晶振 | XTAL OSC XO 300.0000MHZ LVDS SMD | Si590 | 300 MHz | LVDS | 3.3V |
| 590BA350M000DG | Skyworks有源晶振 | XTAL OSC XO 350.0000MHZ LVDS SMD | Si590 | 350 MHz | LVDS | 3.3V |
| 590FA350M000DG | Skyworks有源晶振 | XTAL OSC XO 350.0000MHZ LVDS SMD | Si590 | 350 MHz | LVDS | 2.5V |
| 590NA000243DG | Skyworks有源晶振 | XTAL OSC XO 333.3333MHZ LVDS SMD | Si590 | 333.3333 MHz | LVDS | 3.3V |
| 590FA800M000DG | Skyworks有源晶振 | XTAL OSC XO 800.0000MHZ LVDS SMD | Si590 | 800 MHz | LVDS | 2.5V |
| 590AA306M250DGR | Skyworks有源晶振 | XTAL OSC XO 306.2500MHZ LVPECL | Si590 | 306.25 MHz | LVPECL | 3.3V |
| 590AA340M000DGR | Skyworks有源晶振 | XTAL OSC XO 340.0000MHZ LVPECL | Si590 | 340 MHz | LVPECL | 3.3V |
| 590AA350M000DGR | Skyworks有源晶振 | XTAL OSC XO 350.0000MHZ LVPECL | Si590 | 350 MHz | LVPECL | 3.3V |
| 590BA300M000DGR | Skyworks有源晶振 | XTAL OSC XO 300.0000MHZ LVDS SMD | Si590 | 300 MHz | LVDS | 3.3V |
| 590BA350M000DGR | Skyworks有源晶振 | XTAL OSC XO 350.0000MHZ LVDS SMD | Si590 | 350 MHz | LVDS | 3.3V |
| 590FA350M000DGR | Skyworks有源晶振 | XTAL OSC XO 350.0000MHZ LVDS SMD | Si590 | 350 MHz | LVDS | 2.5V |
| 590NA000243DGR | Skyworks有源晶振 | XTAL OSC XO 333.3333MHZ LVDS SMD | Si590 | 333.3333 MHz | LVDS | 3.3V |
| 590BA273M000DGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED | Si590 | 273 MHz | LVDS | 3.3V |
