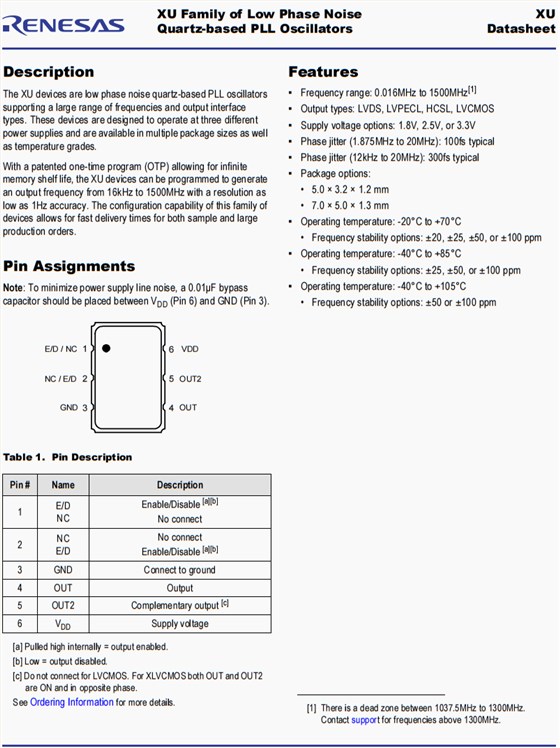

XUL735200.000000I,RenesasElectronics,瑞薩差分晶振，XU器件是低相位噪聲石英基鎖相環有源晶體振蕩器，支持大范圍的頻率和輸出接口類型。這些器件設計用于在三種不同的電源下工作，并提供多種封裝尺寸和溫度等級。憑借獲得專利的一次性程序(OTP)，允許無限的存儲保質期，XU設備可以編程產生從16kHz到1500MHz的輸出頻率，分辨率低至1Hz精度。該系列設備的配置能力允許樣品和大型生產訂單的快速交付時間。進口晶振，石英晶振，瑞薩晶振，有源晶振，六腳晶振，貼片晶振，高品質晶振，差分晶振，LVDS晶振，高精度晶振，低損耗晶振，航空航天晶振。

Renesas瑞薩晶振,XUP535125.000JS6I8,XU差分振蕩器,6G發射器晶振參數表

Symbol	Parameter	Test Condition	Minimum	Typical	Maximum	Units
F	輸出頻率范圍	LVDS.	0.016		1500	MHz
		LVPECL, HCSL.	0.016		670
		LVCMOS.	0.016		167
	頻率穩定度	Temperature = -20°C to +70°C.	-20 -25 -50 -100		+20 +25 +50 +100	ppm
		Temperature = -40°C to +85°C.	-25 -50 -100		+25 +50 +100	ppm
		Temperature = -40°C to +105°C.	-50 -100		+50 +100	ppm
	輸出負載	LVDS.		100		Ω
		LVPECL.		50
		HCSL.		50
		LVCMOS.		15		pF
TST	啟動時間	Output valid time after VDDmeets minimum specified level.			10	ms
tR	輸出上升時間	LVDS.		275	380	ps
		LVPECL.			400
		HCSL.			330
		LVCMOS.			3	ns
tF	輸出下降時間	LVDS.		275	380	ps
		LVPECL.			400
		HCSL.			330
		LVCMOS.			3	ns
ODC	輸出時鐘工作周期	LVDS.	45		55	%
		LVPECL.	45		55
		LVPECL.	40		60
		HCSL.	45		55
		LVCMOS.	45		55
		LVCMOS.	40		60
TOE	輸出啟用/禁用時間				100	ns

更多相關Renesas晶振型號

Renesas原廠編碼	生產商品牌	型號	頻率	輸出	電源電壓	頻率穩定度	工作溫度
XUL535100.000000I	Renesas晶振	XU	100 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C
XUL516100.000000I	Renesas晶振	XU	100 MHz	LVDS	1.8V	±25ppm	-40°C ~ 85°C
XUN535100.000000I	Renesas晶振	XU	100 MHz	HCSL	3.3V	±50ppm	-40°C ~ 85°C
XUL536100.000000I	Renesas晶振	XU	100 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
XUL536125.000000I	Renesas晶振	XU	125 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
XUL536156.250000I	Renesas晶振	XU	156.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
XUH518027.120000X	Renesas晶振	XU	27.12 MHz	HCMOS	1.8V	±20ppm	-20°C ~ 70°C
XUH538024.576000X	Renesas晶振	XU	24.576 MHz	HCMOS	3.3V	±20ppm	-20°C ~ 70°C
XUH738016.125000X	Renesas晶振	XU	16.125 MHz	HCMOS	3.3V	±20ppm	-20°C ~ 70°C
XUH738044.736000X	Renesas晶振	XU	44.736 MHz	HCMOS	3.3V	±20ppm	-20°C ~ 70°C
XUH518033.333333X	Renesas晶振	XU	33.333333 MHz	HCMOS	1.8V	±20ppm	-20°C ~ 70°C
XUH738072.000000X	Renesas晶振	XU	72 MHz	HCMOS	3.3V	±20ppm	-20°C ~ 70°C
XUH738022.579200X	Renesas晶振	XU	22.5792 MHz	HCMOS	3.3V	±20ppm	-20°C ~ 70°C
XUH538027.000000X	Renesas晶振	XU	27 MHz	HCMOS	3.3V	±20ppm	-20°C ~ 70°C
XUH538022.579200X	Renesas晶振	XU	22.5792 MHz	HCMOS	3.3V	±20ppm	-20°C ~ 70°C
XUH728025.000000X	Renesas晶振	XU	25 MHz	HCMOS	2.5V	±20ppm	-20°C ~ 70°C
XUH538013.000000X	Renesas晶振	XU	13 MHz	HCMOS	3.3V	±20ppm	-20°C ~ 70°C
XUH728016.125000X	Renesas晶振	XU	16.125 MHz	HCMOS	2.5V	±20ppm	-20°C ~ 70°C
XUH538067.108864X	Renesas晶振	XU	67.108864 MHz	HCMOS	3.3V	±20ppm	-20°C ~ 70°C
XUH538125.000000X	Renesas晶振	XU	125 MHz	HCMOS	3.3V	±20ppm	-20°C ~ 70°C
XUH535004.000000X	Renesas晶振	XU	4 MHz	LVCMOS	3.3V	±50ppm	-20°C ~ 70°C
XUH515045.125000I	Renesas晶振	XU	45.125 MHz	LVCMOS	1.8V	±50ppm	-40°C ~ 85°C
XUH525125.000000I	Renesas晶振	XU	125 MHz	LVCMOS	2.5V	±50ppm	-40°C ~ 85°C
XUH516033.333300I	Renesas晶振	XU	33.3333 MHz	LVCMOS	1.8V	±25ppm	-40°C ~ 85°C
XUH536090.000000I	Renesas晶振	XU	90 MHz	LVCMOS	3.3V	±25ppm	-40°C ~ 85°C
XUH536005.000000I8	Renesas晶振	XU	5 MHz	LVCMOS	3.3V	±25ppm	-40°C ~ 85°C
XUL530039.000000X	Renesas晶振	XU	39 MHz	LVDS	3.3V	±100ppm	-20°C ~ 70°C
XUH516012.000000I	Renesas晶振	XU	12 MHz	LVCMOS	1.8V	±25ppm	-40°C ~ 85°C
XUH515100.000000K	Renesas晶振	XU	100 MHz	LVCMOS	1.8V	±50ppm	-40°C ~ 105°C
XUH535008.000000K	Renesas晶振	XU	8 MHz	LVCMOS	3.3V	±50ppm	-40°C ~ 105°C
XUH535025.000000K	Renesas晶振	XU	25 MHz	LVCMOS	3.3V	±50ppm	-40°C ~ 105°C
XUL515644.530000I	Renesas晶振	XU	644.53 MHz	LVDS	1.8V	±50ppm	-40°C ~ 85°C
XUL526644.530000I	Renesas晶振	XU	644.53 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C
XUH738020.000000X	Renesas晶振	XU	20 MHz	HCMOS	3.3V	±20ppm	-20°C ~ 70°C
XUH538010.000000X	Renesas晶振	XU	10 MHz	HCMOS	3.3V	±20ppm	-20°C ~ 70°C
XUH538020.000000X	Renesas晶振	XU	20 MHz	HCMOS	3.3V	±20ppm	-20°C ~ 70°C
XUH538040.000000X	Renesas晶振	XU	40 MHz	HCMOS	3.3V	±20ppm	-20°C ~ 70°C
XUH535003.686000I	Renesas晶振	XU	3.686 MHz	LVCMOS	3.3V	±50ppm	-40°C ~ 85°C
XUH510100.000000X	Renesas晶振	XU	100 MHz	HCMOS	1.8V	±100ppm	-20°C ~ 70°C
XUH535000.127700K	Renesas晶振	XU	127.7 kHz	HCMOS	3.3V	±50ppm	-40°C ~ 105°C
XUH535000.050000X	Renesas晶振	XU	50 kHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C
XUH515020.000000K	Renesas晶振	XU	20 MHz	HCMOS	1.8V	±50ppm	-40°C ~ 105°C
XUH535025.000000X	Renesas晶振	XU	25 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C
XUH535100.000000X	Renesas晶振	XU	100 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C
XUH535000.192000X	Renesas晶振	XU	192 kHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C
XUH730049.700000X	Renesas晶振	XU	49.7 MHz	HCMOS	3.3V	±100ppm	-20°C ~ 70°C
XUL535644.531250I	Renesas晶振	XU	644.53125 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C
XUH535017.177600X	Renesas晶振	XU	17.1776 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C
XUH535048.000000X	Renesas晶振	XU	48 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C
XUH510133.333000X	Renesas晶振	XU	133.333 MHz	HCMOS	1.8V	±100ppm	-20°C ~ 70°C
XUH535000.042000X	Renesas晶振	XU	42 kHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C
XUH535024.000000X	Renesas晶振	XU	24 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C
XUH535012.000000X	Renesas晶振	XU	12 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C
XUH525010.000000X	Renesas晶振	XU	10 MHz	HCMOS	2.5V	±50ppm	-20°C ~ 70°C
XUH535000.044000X	Renesas晶振	XU	44 kHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C
XUH535000.096000X	Renesas晶振	XU	96 kHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C
XUH525024.000000X	Renesas晶振	XU	24 MHz	HCMOS	2.5V	±50ppm	-20°C ~ 70°C
XUH530000.460800X	Renesas晶振	XU	460.8 kHz	HCMOS	3.3V	±100ppm	-20°C ~ 70°C
XUH530000.032768X	Renesas晶振	XU	32.768 kHz	LVCMOS	3.3V	±100ppm	-20°C ~ 70°C
XUH518090.000000X	Renesas晶振	XU	90 MHz	LVCMOS	1.8V	±20ppm	-20°C ~ 70°C
XUL535075.000000I	Renesas晶振	XU	75 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C
XUH518033.000000X	Renesas晶振	XU	33 MHz	LVCMOS	1.8V	±20ppm	-20°C ~ 70°C
XUH518124.000000X	Renesas晶振	XU	124 MHz	LVCMOS	1.8V	±20ppm	-20°C ~ 70°C
XUN535100.000000X	Renesas晶振	XU	100 MHz	HCSL	3.3V	±50ppm	-20°C ~ 70°C
XUH516125.000000I	Renesas晶振	XU	125 MHz	HCMOS	1.8V	±25ppm	-40°C ~ 85°C
XUM520125.000000X	Renesas晶振	XU	125 MHz	LVDS	2.5V	±100ppm	-20°C ~ 70°C
XUP535024.576000X	Renesas晶振	XU	24.576 MHz	LVPECL	3.3V	±50ppm	-20°C ~ 70°C
XUH526024.000000I	Renesas晶振	XU	24 MHz	HCMOS	2.5V	±25ppm	-40°C ~ 85°C
XUP535100.000000X	Renesas晶振	XU	100 MHz	LVPECL	3.3V	±50ppm	-20°C ~ 70°C
XUL525100.000000X	Renesas晶振	XU	100 MHz	LVDS	2.5V	±50ppm	-20°C ~ 70°C
XUH526016.384000I	Renesas晶振	XU	16.384 MHz	HCMOS	2.5V	±25ppm	-40°C ~ 85°C
XUH536100.000000I	Renesas晶振	XU	100 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
XUP535075.000000X	Renesas晶振	XU	75 MHz	LVPECL	3.3V	±50ppm	-20°C ~ 70°C
XUO535027.000000X	Renesas晶振	XU	27 MHz	HCSL	3.3V	±50ppm	-20°C ~ 70°C
XUH516033.333333I	Renesas晶振	XU	33.333333 MHz	HCMOS	1.8V	±25ppm	-40°C ~ 85°C
XUH516024.000000I	Renesas晶振	XU	24 MHz	LVCMOS	1.8V	±25ppm	-40°C ~ 85°C
XUH516026.000000I	Renesas晶振	XU	26 MHz	LVCMOS	1.8V	±25ppm	-40°C ~ 85°C
XUH516031.250000I	Renesas晶振	XU	31.25 MHz	LVCMOS	1.8V	±25ppm	-40°C ~ 85°C
XUH535133.300000I	Renesas晶振	XU	133.3 MHz	LVCMOS	3.3V	±50ppm	-40°C ~ 85°C
XUH516000.032768I	Renesas晶振	XU	32.768 kHz	LVCMOS	1.8V	±25ppm	-40°C ~ 85°C
XUL535156.250000I	Renesas晶振	XU	156.25 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C
XUH515033.000000K	Renesas晶振	XU	33 MHz	LVCMOS	1.8V	±50ppm	-40°C ~ 105°C
XUH510025.000000K	Renesas晶振	XU	25 MHz	LVCMOS	1.8V	±100ppm	-40°C ~ 105°C
XUL538750.000000X	Renesas晶振	XU	750 MHz	LVDS	3.3V	±20ppm	-20°C ~ 70°C
XUL510125.000000I	Renesas晶振	XU	125 MHz	LVDS	1.8V	±100ppm	-40°C ~ 85°C
XUH538033.000000X	Renesas晶振	XU	33 MHz	LVCMOS	3.3V	±20ppm	-20°C ~ 70°C
XUH518001.843200X	Renesas晶振	XU	1.8432 MHz	LVCMOS	1.8V	±20ppm	-20°C ~ 70°C
XUX515024.000000I	Renesas晶振	XU	24 MHz	HCMOS, LVCMOS	1.8V	±50ppm	-40°C ~ 85°C
XUL538098.304000X	Renesas晶振	XU	98.304 MHz	LVDS	3.3V	±20ppm	-20°C ~ 70°C
XUH518031.250000X	Renesas晶振	XU	31.25 MHz	LVCMOS	1.8V	±20ppm	-20°C ~ 70°C
XUH536025.000000I	Renesas晶振	XU	25 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
XUH536033.333330I	Renesas晶振	XU	33.33333 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
XUH536030.000000I	Renesas晶振	XU	30 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
XUH536025.001250I	Renesas晶振	XU	25.00125 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
XUH735148.500000I	Renesas晶振	XU	148.5 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
XUH516100.000000I	Renesas晶振	XU	100 MHz	HCMOS	1.8V	±25ppm	-40°C ~ 85°C
XUH536025.600000I	Renesas晶振	XU	25.6 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
XUH526000.828000I	Renesas晶振	XU	828 kHz	HCMOS	2.5V	±25ppm	-40°C ~ 85°C
XUH736025.000000I	Renesas晶振	XU	25 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
XUH536033.333300I	Renesas晶振	XU	33.3333 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
XUH516030.000000I	Renesas晶振	XU	30 MHz	HCMOS	1.8V	±25ppm	-40°C ~ 85°C
XUH536125.000000I	Renesas晶振	XU	125 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
XUH536050.000000I	Renesas晶振	XU	50 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
XUH715133.330000I	Renesas晶振	XU	133.33 MHz	HCMOS	1.8V	±50ppm	-40°C ~ 85°C
XUH716125.000000I	Renesas晶振	XU	125 MHz	HCMOS	1.8V	±25ppm	-40°C ~ 85°C
XUH536000.032768I	Renesas晶振	XU	32.768 kHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
XUH536000.050000I	Renesas晶振	XU	50 kHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
XUH536010.000000I	Renesas晶振	XU	10 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
XUH515160.000000I	Renesas晶振	XU	160 MHz	HCMOS	1.8V	±50ppm	-40°C ~ 85°C
XUH535156.250000I	Renesas晶振	XU	156.25 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
XUH516026.214400I	Renesas晶振	XU	26.2144 MHz	HCMOS	1.8V	±25ppm	-40°C ~ 85°C
XUH536020.000000I	Renesas晶振	XU	20 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
XUH516120.000000X	Renesas晶振	XU	120 MHz	HCMOS	1.8V	±25ppm	-20°C ~ 70°C
XUH535000.034133I	Renesas晶振	XU	34.133 kHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
XUH516025.000000X	Renesas晶振	XU	25 MHz	HCMOS	1.8V	±25ppm	-20°C ~ 70°C
XUM516156.250000I	Renesas晶振	XU	156.25 MHz	LVDS	1.8V	±25ppm	-40°C ~ 85°C
XUL538161.132813X	Renesas晶振	XU	161.132813 MHz	LVDS	3.3V	±20ppm	-20°C ~ 70°C
XUH526110.000000I	Renesas晶振	XU	110 MHz	LVCMOS	2.5V	±25ppm	-40°C ~ 85°C
XUH530000.500000I	Renesas晶振	XU	500 kHz	HCMOS	3.3V	±100ppm	-40°C ~ 85°C
XUH515100.000000I	Renesas晶振	XU	100 MHz	HCMOS	1.8V	±50ppm	-40°C ~ 85°C
XUH535000.100000I	Renesas晶振	XU	100 kHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
XUH525050.000000I	Renesas晶振	XU	50 MHz	HCMOS	2.5V	±50ppm	-40°C ~ 85°C
XUH515025.000000I	Renesas晶振	XU	25 MHz	HCMOS	1.8V	±50ppm	-40°C ~ 85°C
XUH535156.257000X	Renesas晶振	XU	156.257 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C
XUH515028.636360I	Renesas晶振	XU	28.63636 MHz	HCMOS	1.8V	±50ppm	-40°C ~ 85°C
XUH525025.000000I	Renesas晶振	XU	25 MHz	HCMOS	2.5V	±50ppm	-40°C ~ 85°C
XUH536025.001250X	Renesas晶振	XU	25.00125 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C
XUH515125.000000I	Renesas晶振	XU	125 MHz	HCMOS	1.8V	±50ppm	-40°C ~ 85°C
