6G以太網晶振\XFP536156.250000I\瑞薩LVPECL晶振，尺寸5.0x3.2mm，頻率156.25MHZ，電壓3.3V，輸出邏輯LVPECL，LVPECL差分貼片晶振，LVPECL差分輸出晶振，LV-PECL差分晶振，LVPECL差分晶體振蕩器，有源貼片晶振，OSC差分晶振，低耗能差分晶振，低電壓差分振蕩器，低功耗差分晶振，低抖動差分晶振，低相位差分振蕩器，低相噪差分晶振，156.25MHZ差分振蕩器，儀器設備差分晶振，6G以太網差分晶振，無線設備差分振蕩器，6G路由器專用差分晶振，小型設備專用差分晶振.

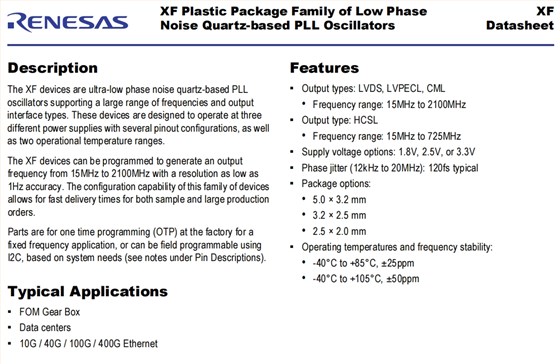

XF差分貼片晶振是基于石英的超低相位噪聲PLL支持大范圍頻率和輸出的振蕩器接口類型。這些設備設計為在三具有多種引腳輸出配置的不同電源作為兩個操作溫度范圍。XF設備可以編程以生成輸出頻率從15MHz到2100MHz，分辨率低至1Hz精度。該系列設備的配置功能允許快速交付樣品和大批量生產訂單。6G以太網晶振\XFP536156.250000I\瑞薩LVPECL晶振.

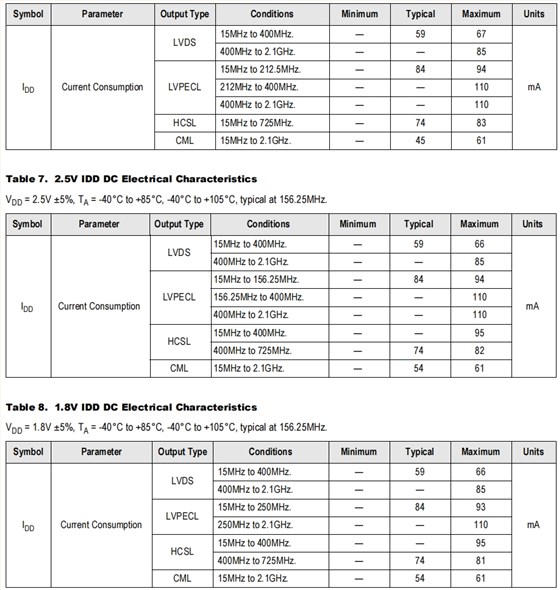

6G以太網晶振\XFP536156.250000I\瑞薩LVPECL晶振參數表

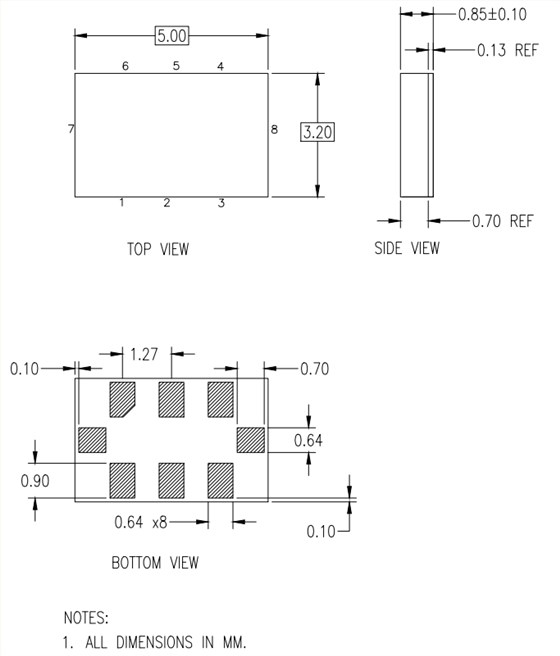

6G以太網晶振\XFP536156.250000I\瑞薩LVPECL晶振 尺寸圖
5032晶振產品特性：
輸出類型：LVDS、LVPECL、CML
頻率范圍：15MHz至2100MHz
輸出類型：HCSL
頻率范圍：15MHz至725MHz
電源電壓選項：1.8V、2.5V或3.3V
相位抖動（12kHz至20MHz）：典型值為120fs
程序包選項：
5.0×3.2毫米
3.2×2.5毫米
2.5×2.0毫米
工作溫度和頻率穩定性：
-40°C至+85°C，±25ppm
-40°C至+105°C，±50ppm
更多相關Renesas晶振型號
| Mfr Part # | Mfr | Description | Series | Frequency | Output | Voltage - Supply |
| XFC236156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ CML SMD | XFC | 156.25 MHz | CML | 3.3V |
| XFP236625.000000I | Renesas晶振 | XTAL OSC XO 625.0000MHZ LVPECL | XFP | 625 MHz | LVPECL | 3.3V |
| XFP236312.500000I | Renesas晶振 | XTAL OSC XO 312.5000MHZ LVPECL | XFP | 312.5 MHz | LVPECL | 3.3V |
| XFP536625.000000I | Renesas晶振 | 625.000000 MHZ 3.3VDC LVPECL 503 | XF | 625 MHz | LVPECL | 3.3V |
| XFN516100.000000I | Renesas晶振 | 100.000000 MHZ 1.8VDC HCSL 5032 | XF | 100 MHz | HCSL | 1.8V |
| XFL526125.000000I | Renesas晶振 | 125.000000 MHZ 2.5VDC LVDS 5032 | XF | 125 MHz | LVDS | 2.5V |
| XFP236156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ LVPECL | XFP | 156.25 MHz | LVPECL | 3.3V |
| XFL235837.500000K | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 837.5 MHz | LVDS | 3.3V |
| XFP235156.250000K | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 156.25 MHz | LVPECL | 3.3V |
| XFN336100.000000I | Renesas晶振 | 100.000000 MHZ 3.3VDC HCSL 3225 | XF | 100 MHz | HCSL | 3.3V |
| XFP336312.500000I | renesas瑞薩晶振 | 312.500000 MHZ 3.3VDC LVPECL 322 | XF | 312.5 MHz | LVPECL | 3.3V |
| XFL336156.250000I | Renesas晶振 | 156.250000 MHZ 3.3VDC LVDS 3225 | XF | 156.25 MHz | LVDS | 3.3V |
| XFP236148.500000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 148.5 MHz | LVPECL | 3.3V |
| XFN236100.000000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 100 MHz | HCSL | 3.3V |
| XFL516100.000000I | Renesas晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | XF | 100 MHz | LVDS | 1.8V |
| XFL536125.000000I | Renesas晶振 | XTAL OSC XO 125.0000MHZ LVDS SMD | XF | 125 MHz | LVDS | 3.3V |
| XFL336032.768000I | Renesas晶振 | XTAL OSC XO 32.7680MHZ LVDS SMD | XF | 32.768 MHz | LVDS | 3.3V |
| XFL316125.000000I | Renesas晶振 | XTAL OSC XO 125.0000MHZ LVDS SMD | XF | 125 MHz | LVDS | 1.8V |
| XFP526156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ LVPECL | XF | 156.25 MHz | LVPECL | 2.5V |
| XFP536025.000000I | Renesas晶振 | XTAL OSC XO 25.0000MHZ LVPECL | XF | 25 MHz | LVPECL | 3.3V |
| XFL336333.330000I | Renesas晶振 | XTAL OSC XO 333.3300MHZ LVDS SMD | XF | 333.33 MHz | LVDS | 3.3V |
| XFL336032.000000I | Renesas晶振 | XTAL OSC XO 32.0000MHZ LVDS SMD | XF | 32 MHz | LVDS | 3.3V |
| XFL526032.000000I | Renesas晶振 | XTAL OSC XO 32.0000MHZ LVDS SMD | XF | 32 MHz | LVDS | 2.5V |
| XFL336333.333333I | Renesas晶振 | XTAL OSC XO 333.333333MHZ LVDS | XF | 333.333333 MHz | LVDS | 3.3V |
| XFL336125.000000I | Renesas晶振 | XTAL OSC XO 125.0000MHZ LVDS SMD | XF | 125 MHz | LVDS | 3.3V |
| XFL516500.000000I | Renesas晶振 | XTAL OSC XO 500.0000MHZ LVDS SMD | XF | 500 MHz | LVDS | 1.8V |
| XFL316300.000000I | Renesas晶振 | XTAL OSC XO 300.0000MHZ LVDS SMD | XF | 300 MHz | LVDS | 1.8V |
| XFL336148.425824I | Renesas晶振 | XTAL OSC XO 148.425824MHZ LVDS | XF | 148.425824 MHz | LVDS | 3.3V |
| XFL336161.132812I | Renesas晶振 | XTAL OSC XO 161.132812MHZ LVDS | XF | 161.132812 MHz | LVDS | 3.3V |
| XFP336161.132812I | Renesas晶振 | XTAL OS XO 161.132812MHZ LVPECL | XF | 161.132812 MHz | LVPECL | 3.3V |
| XFL536026.000000I | Renesas晶振 | XTAL OSC XO 26.0000MHZ LVDS SMD | XF | 26 MHz | LVDS | 3.3V |
| XFL536100.000000I | Renesas晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | XF | 100 MHz | LVDS | 3.3V |
| XFL336096.000000I | Renesas晶振 | XTAL OSC XO 96.0000MHZ LVDS SMD | XF | 96 MHz | LVDS | 3.3V |
| XFL336048.000000I | Renesas晶振 | XTAL OSC XO 48.0000MHZ LVDS SMD | XF | 48 MHz | LVDS | 3.3V |
| XFL336333.333000I | Renesas晶振 | XTAL OSC XO 333.3330MHZ LVDS SMD | XF | 333.333 MHz | LVDS | 3.3V |
| XFP536156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ LVPECL | XF | 156.25 MHz | LVPECL | 3.3V |
| XFL336450.000000I | Renesas晶振 | XTAL OSC XO 450.0000MHZ LVDS SMD | XF | 450 MHz | LVDS | 3.3V |
| XFC516025.000000I | Renesas晶振 | XTAL OSC XO 25.0000MHZ CML SMD | XF | 25 MHz | CML | 1.8V |
| XFL316270.000000I | Renesas晶振 | XTAL OSC XO 270.0000MHZ LVDS SMD | XF | 270 MHz | LVDS | 1.8V |
| XFL336025.000000I | Renesas晶振 | XTAL OSC XO 25.0000MHZ LVDS SMD | XF | 25 MHz | LVDS | 3.3V |
| XFL236644.531250I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 644.53125 MHz | LVDS | 3.3V |
| XFP216025.000000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 25 MHz | LVPECL | 1.8V |
| XFL236830.078125I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 830.078125 MHz | LVDS | 3.3V |
| XFL226156.250000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 156.25 MHz | LVDS | 2.5V |
| XFL236156.250000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 156.25 MHz | LVDS | 3.3V |
| XFN236156.250000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 156.25 MHz | HCSL | 3.3V |
| XFN216100.000000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 100 MHz | HCSL | 1.8V |
| XFL236108.000000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 108 MHz | LVDS | 3.3V |
| XFL216156.250000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 156.25 MHz | LVDS | 1.8V |
| XFP236161.132812I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 161.132812 MHz | LVPECL | 3.3V |
| XFP226156.250000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 156.25 MHz | LVPECL | 2.5V |
| XFP216625.000000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 625 MHz | LVPECL | 1.8V |
| XFL236148.500000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 148.5 MHz | LVDS | 3.3V |
| XFN216161.132812I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 161.132812 MHz | HCSL | 1.8V |
| XFP216156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ LVPECL | XF | 156.25 MHz | LVPECL | 1.8V |
| XFN236025.000000I | Renesas晶振 | XTAL OSC XO 25.0000MHZ HCSL SMD | XF | 25 MHz | HCSL | 3.3V |
| XFC226156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ CML SMD | XF | 156.25 MHz | CML | 2.5V |
| XFL226026.000000I | Renesas晶振 | XTAL OSC XO 26.0000MHZ LVDS SMD | XF | 26 MHz | LVDS | 2.5V |
| XFL216625.000000I | Renesas晶振 | XTAL OSC XO 625.0000MHZ LVDS SMD | XF | 625 MHz | LVDS | 1.8V |
| XFL216397.770000I | Renesas晶振 | XTAL OSC XO 397.7700MHZ LVDS SMD | XF | 397.77 MHz | LVDS | 1.8V |
| XFL216078.125000I | Renesas晶振 | XTAL OSC XO 78.1250MHZ LVDS SMD | XF | 78.125 MHz | LVDS | 1.8V |
| XFC216837.500000I | Renesas晶振 | XTAL OSC XO 837.5000MHZ CML SMD | XF | 837.5 MHz | CML | 1.8V |
| XFL536040.000000I | Renesas晶振 | XTAL OSC XO 40.0000MHZ LVDS SMD | XF | 40 MHz | LVDS | 3.3V |
| XFP336048.000000I | Renesas晶振 | XTAL OSC XO 48.0000MHZ LVPECL | XF | 48 MHz | LVPECL | 3.3V |
| XFL516156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ LVDS SMD | XF | 156.25 MHz | LVDS | 1.8V |
