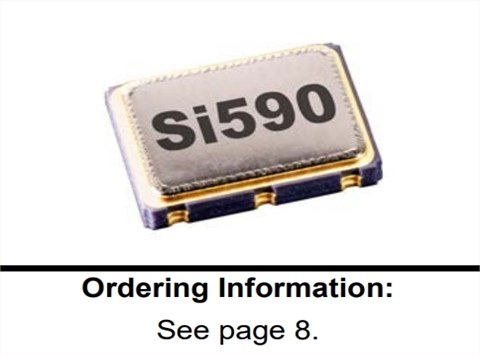

590DA156M250DG,Si590,Silicon測量晶振,156.25MHZ,7050mm,有源晶體振蕩器,歐美有源晶振,OSC晶振,有源貼片晶振,六腳有源晶振,XO時鐘晶體振蕩器,7050mm有源振蕩器,156.25MHZ晶振,尺寸7.0×5.0mm,頻率156.25MHZ,電壓3.3V,頻率穩定性±50ppm,低電壓晶振,高可靠晶振,低相位晶振,低相噪晶振,網絡晶振,測試測量晶振,數字視頻晶振,ASIC時鐘生成晶振.
590DA156M250DG,Si590,Silicon測量晶振,156.25MHZ,7050mm特點:
可用于任何頻率輸出頻率從10到810兆赫
具有卓越性能的第三代DSPLL®抖動性能：最大抖動1 ps
比基于SAW的振蕩器具有更好的頻率穩定性.,內部基模晶體確保高可靠性
有源晶體振蕩器可用的CMOS、LVPECL、LVDS和CML輸出
3.3、2.5和1.8 V電源選項,行業標準5x7和3.2x5 mm包裝
無鉛/符合RoHS,–40至+85ºC運行溫度范圍
590DA156M250DG,Si590,Silicon測量晶振,156.25MHZ,7050mm 參數表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||||||||||||||
| Supply Voltage1 | VDD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | ||||||||||||||||||||
| 2.5 V option | 2.25 | 2.5 | 2.75 | |||||||||||||||||||||||
| 1.8 V option | 1.71 | 1.8 | 1.89 | |||||||||||||||||||||||
| Supply Current | IDD |
Output enabled LVPECL CML LVDS CMOS |
— — — — |
110 100 90 80 |
125 110 100 90 |
mA | ||||||||||||||||||||
| Tristate mode | — | 60 | 75 | |||||||||||||||||||||||
| Output Enable (OE)2 | VIH | 0.75 x VDD | — | — | V | |||||||||||||||||||||
| VIL | — | — | 0.5 | |||||||||||||||||||||||
| Operating Temperature Range | TA | –40 | — | 85 | ºC | |||||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||||||||||||||
| Nominal Frequency1,2 | fO | LVPECL/LVDS/CML | 10 | — | 810 | MHz | ||||||||||||||||||||
| CMOS | 10 | — | 160 | |||||||||||||||||||||||
| Initial Accuracy | fi |
Measured at +25 °C at time of shipping |
— | ±1.5 | — | ppm | ||||||||||||||||||||
| Total Stability | Note 3, second option code “D” | ±20 | ppm | |||||||||||||||||||||||
| Note 3, second option code “C” | ±30 | ppm | ||||||||||||||||||||||||
| Note 4, second option code “B” | — | — | ±50 | ppm | ||||||||||||||||||||||
| Note 4, second option code “A” | — | — | ±100 | ppm | ||||||||||||||||||||||
| Temperature Stability | second option code “D” | — | — | ±7 | ppm | |||||||||||||||||||||
| second option code “C” | ±20 | ppm | ||||||||||||||||||||||||
| second option code “B” | ±25 | ppm | ||||||||||||||||||||||||
| second option code “A” | — | — | ±50 | ppm | ||||||||||||||||||||||
| Powerup Time5 | tOSC | — | — | 10 | ms | |||||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||||||||||||||
| Nominal Frequency1,2 | fO | LVPECL/LVDS/CML | 10 | — | 810 | MHz | ||||||||||||||||||||
| CMOS | 10 | — | 160 | |||||||||||||||||||||||
| Initial Accuracy | fi |
Measured at +25 °C at time of shipping |
— | ±1.5 | — | ppm | ||||||||||||||||||||
| Total Stability | Note 3, second option code “D” | ±20 | ppm | |||||||||||||||||||||||
| Note 3, second option code “C” | ±30 | ppm | ||||||||||||||||||||||||
| Note 4, second option code “B” | — | — | ±50 | ppm | ||||||||||||||||||||||
| Note 4, second option code “A” | — | — | ±100 | ppm | ||||||||||||||||||||||
| Temperature Stability | second option code “D” | — | — | ±7 | ppm | |||||||||||||||||||||
| second option code “C” | ±20 | ppm | ||||||||||||||||||||||||
| second option code “B” | ±25 | ppm | ||||||||||||||||||||||||
| second option code “A” | — | — | ±50 | ppm | ||||||||||||||||||||||
| Powerup Time5 | tOSC | — | — | 10 | ms | |||||||||||||||||||||
590DA156M250DG,Si590,Silicon測量晶振,156.25MHZ,7050mm尺寸圖
| Manufacturer Part Number原廠代碼 | Manufacturer品牌 | Series型號 | Frequency 頻率 | Voltage - Supply電壓 | Frequency Stability頻率穩定度 |
| 531BB125M000DG | Silicon Labs | Si531 | 125MHz | 3.3V | ±20ppm |
| 531FB200M000DG | Silicon振蕩器 | Si531 | 200MHz | 2.5V | ±20ppm |
| 531FC250M000DG | Silicon振蕩器 | Si531 | 250MHz | 2.5V | ±7ppm |
| 531FB125M000DG | Silicon振蕩器 | Si531 | 125MHz | 2.5V | ±20ppm |
| 531BC000110DG | Silicon振蕩器 | Si531 | 148.35165MHz | 3.3V | ±7ppm |
| 535FB125M000DG | Silicon振蕩器 | Si535 | 125MHz | 2.5V | ±20ppm |
| 531BC200M000DG | Silicon振蕩器 | Si531 | 200MHz | 3.3V | ±7ppm |
| 531BC250M000DG | Silicon振蕩器 | Si531 | 250MHz | 3.3V | ±7ppm |
| 531BC125M000DG | Silicon振蕩器 | Si531 | 125MHz | 3.3V | ±7ppm |
| 531FB106M250DG | Silicon振蕩器 | Si531 | 106.25MHz | 2.5V | ±20ppm |
| 531AC156M250DG | Silicon振蕩器 | Si531 | 156.25MHz | 3.3V | ±7ppm |
| 531AC200M000DG | Silicon振蕩器 | Si531 | 200MHz | 3.3V | ±7ppm |
| 531BC148M500DG | Silicon振蕩器 | Si531 | 148.5MHz | 3.3V | ±7ppm |
| 531BC156M250DG | Silicon振蕩器 | Si531 | 156.25MHz | 3.3V | ±7ppm |
| 531AC125M000DG | Silicon振蕩器 | Si531 | 125MHz | 3.3V | ±7ppm |
| 531FC125M000DG | Silicon振蕩器 | Si531 | 125MHz | 2.5V | ±7ppm |
| 531FC156M250DG | Silicon振蕩器 | Si531 | 156.25MHz | 2.5V | ±7ppm |
| 531FC148M500DG | Silicon振蕩器 | Si531 | 148.5MHz | 2.5V | ±7ppm |
| 531AC155M520DG | Silicon振蕩器 | Si531 | 155.52MHz | 3.3V | ±7ppm |
| 531BC155M520DG | Silicon振蕩器 | Si531 | 155.52MHz | 3.3V | ±7ppm |
| 531FC200M000DG | Silicon振蕩器 | Si531 | 200MHz | 2.5V | ±7ppm |
| 531AC000110DG | Silicon振蕩器 | Si531 | 148.35165MHz | 3.3V | ±7ppm |
| 531AC148M500DG | Silicon振蕩器 | Si531 | 148.5MHz | 3.3V | ±7ppm |
| 535EB156M250DG | Silicon振蕩器 | Si535 | 156.25MHz | 2.5V | ±20ppm |
| 590AB70M6560DG | Silicon振蕩器 | Si590 | 70.656MHz | 3.3V | ±25ppm |
| 590FA200M000DG | Silicon振蕩器 | Si590 | 200MHz | 2.5V | ±50ppm |
| 590DA156M250DG | Silicon振蕩器 | Si590 | 156.25MHz | 3.3V | ±50ppm |
| 531AC125M000DGR | Silicon振蕩器 | Si531 | 125MHz | 3.3V | ±7ppm |
| 531BC125M000DGR | Silicon振蕩器 | Si531 | 125MHz | 3.3V | ±7ppm |
| 531EC125M000DGR | Silicon振蕩器 | Si531 | 125MHz | 2.5V | ±7ppm |
| 531FC125M000DGR | Silicon振蕩器 | Si531 | 125MHz | 2.5V | ±7ppm |
| 531AC106M250DGR | Silicon振蕩器 | Si531 | 106.25MHz | 3.3V | ±7ppm |
| 531BC106M250DGR | Silicon振蕩器 | Si531 | 106.25MHz | 3.3V | ±7ppm |
| 531EC106M250DGR | Silicon振蕩器 | Si531 | 106.25MHz | 2.5V | ±7ppm |
| 531FC106M250DGR | Silicon振蕩器 | Si531 | 106.25MHz | 2.5V | ±7ppm |
| 531FC25M0000DGR | Silicon振蕩器 | Si531 | 25MHz | 2.5V | ±7ppm |
| 531AC155M520DGR | Silicon振蕩器 | Si531 | 155.52MHz | 3.3V | ±7ppm |
| 531AC156M250DGR | Silicon振蕩器 | Si531 | 156.25MHz | 3.3V | ±7ppm |
| 531BC155M520DGR | Silicon振蕩器 | Si531 | 155.52MHz | 3.3V | ±7ppm |
| 531BC156M250DGR | Silicon振蕩器 | Si531 | 156.25MHz | 3.3V | ±7ppm |
| 531EC155M520DGR | Silicon振蕩器 | Si531 | 155.52MHz | 2.5V | ±7ppm |
| 531EC156M250DGR | Silicon振蕩器 | Si531 | 156.25MHz | 2.5V | ±7ppm |
| 531FC155M520DGR | Silicon振蕩器 | Si531 | 155.52MHz | 2.5V | ±7ppm |
| 531FC156M250DGR | Silicon振蕩器 | Si531 | 156.25MHz | 2.5V | ±7ppm |
| 531AC187M500DGR | Silicon振蕩器 | Si531 | 187.5MHz | 3.3V | ±7ppm |
| 531BC187M500DGR | Silicon振蕩器 | Si531 | 187.5MHz | 3.3V | ±7ppm |
| 531EC187M500DGR | Silicon晶振 | Si531 | 187.5MHz | 2.5V | ±7ppm |
| 531FC187M500DGR | Silicon振蕩器 | Si531 | 187.5MHz | 2.5V | ±7ppm |
| 531AC000110DGR | Silicon振蕩器 | Si531 | 148.35165MHz | 3.3V | ±7ppm |
| 531AC148M500DGR | Silicon振蕩器 | Si531 | 148.5MHz | 3.3V | ±7ppm |
| 531AC200M000DGR | Silicon振蕩器 | Si531 | 200MHz | 3.3V | ±7ppm |
| 531BC000110DGR | Silicon振蕩器 | Si531 | 148.35165MHz | 3.3V | ±7ppm |
| 531BC148M500DGR | Silicon振蕩器 | Si531 | 148.5MHz | 3.3V | ±7ppm |
| 531BC200M000DGR | Silicon振蕩器 | Si531 | 200MHz | 3.3V | ±7ppm |
| 531EC000110DGR | Silicon振蕩器 | Si531 | 148.35165MHz | 2.5V | ±7ppm |
| 531EC148M500DGR | Silicon振蕩器 | Si531 | 148.5MHz | 2.5V | ±7ppm |
| 531EC200M000DGR | Silicon振蕩器 | Si531 | 200MHz | 2.5V | ±7ppm |
| 531FC000110DGR | Silicon振蕩器 | Si531 | 148.35165MHz | 2.5V | ±7ppm |
| 531FC148M500DGR | Silicon振蕩器 | Si531 | 148.5MHz | 2.5V | ±7ppm |
| 531FC200M000DGR | Silicon振蕩器 | Si531 | 200MHz | 2.5V | ±7ppm |
| 531AC312M500DGR | Silicon振蕩器 | Si531 | 312.5MHz | 3.3V | ±7ppm |
| 531BC312M500DGR | Silicon振蕩器 | Si531 | 312.5MHz | 3.3V | ±7ppm |
| 531EC312M500DGR | Silicon振蕩器 | Si531 | 312.5MHz | 2.5V | ±7ppm |
| 531FC312M500DGR | Silicon振蕩器 | Si531 | 312.5MHz | 2.5V | ±7ppm |
| 531AC250M000DGR | Silicon振蕩器 | Si531 | 250MHz | 3.3V | ±7ppm |
| 531AC311M040DGR | Silicon振蕩器 | Si531 | 311.04MHz | 3.3V | ±7ppm |
| 531AC622M080DGR | Silicon振蕩器 | Si531 | 622.08MHz | 3.3V | ±7ppm |
| 531BC250M000DGR | Silicon振蕩器 | Si531 | 250MHz | 3.3V | ±7ppm |
| 531BC311M040DGR | Silicon振蕩器 | Si531 | 311.04MHz | 3.3V | ±7ppm |
| 531BC622M080DGR | Silicon振蕩器 | Si531 | 622.08MHz | 3.3V | ±7ppm |
| 531EC250M000DGR | Silicon振蕩器 | Si531 | 250MHz | 2.5V | ±7ppm |
| 531EC311M040DGR | Silicon振蕩器 | Si531 | 311.04MHz | 2.5V | ±7ppm |
| 531EC622M080DGR | Silicon振蕩器 | Si531 | 622.08MHz | 2.5V | ±7ppm |
| 531FC250M000DGR | Silicon振蕩器 | Si531 | 250MHz | 2.5V | ±7ppm |
| 531FC311M040DGR | Silicon振蕩器 | Si531 | 311.04MHz | 2.5V | ±7ppm |
| 531FC622M080DGR | Silicon振蕩器 | Si531 | 622.08MHz | 2.5V | ±7ppm |
| 531AA640M000BG | Silicon振蕩器 | Si531 | 640MHz | 3.3V | ±50ppm |
