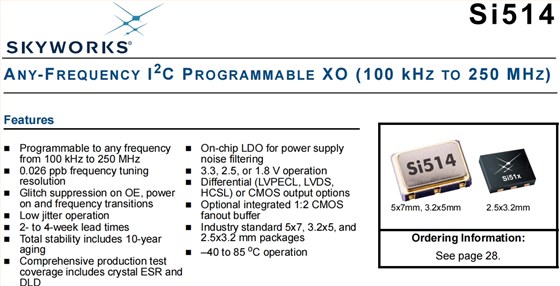

Si514,514GBB000118AAG,156.25MHZ,7050mm,Silicon小封裝振蕩器特點:
可編程到任何頻率從100kHz到250MHz
00.026 ppb頻率調諧決議
OOE上的閃光抑制，電源on和頻率轉換
低抖動操作，2到4周的交付周期,總體穩定性包括10年變老
綜合生產試驗，覆蓋范圍包括晶體ESR和DLD
用于電源的片上LDO噪聲濾波
3.3、2.5或1.8 V操作，差分（LVPECL、LVDS、HCSL）或CMOS輸出選項
可選集成1:2 CMOS扇出緩存有源晶振

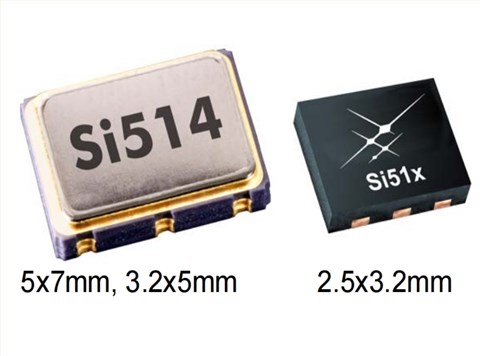

行業標準5x7、3.2x5和2.5x3.2 mm包裝,–40至85℃操作
Si514,514GBB000118AAG,156.25MHZ,7050mm,Silicon小封裝振蕩器 參數表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||
| Supply Voltage | VDD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | ||||||||
| 2.5 V option | 2.25 | 2.5 | 2.75 | V | ||||||||||
| 1.8 V option | 1.71 | 1.8 | 1.89 | V | ||||||||||
| Supply Current | IDD |
CMOS, 100 MHz, single-ended |
— | 21 | 26 | mA | ||||||||
|
LVDS (output enabled) |
— | 19 | 23 | mA | ||||||||||
|
LVPECL (output enabled) |
— | 39 | 43 | mA | ||||||||||
|
HCSL (output enabled) |
— | 41 | 44 | mA | ||||||||||
|
Tristate (output disabled) |
— | — | 18 | mA | ||||||||||
| Operating Temperature | TA | –40 | — | 85 | oC | |||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||
| SDA, SCL Input Voltage High | VIH | 0.80 x VDD | — | — | V | |||||||||
| SDA, SCL Input Voltage Low | VIL | — | — | 0.20 x VDD | V | |||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||
|
Programmable Frequency Range |
FO | CMOS, Dual CMOS | 0.1 | — | 212.5 | MHz | ||||||||
| FO | LVDS/LVPECL/HCSL | 0.1 | — | 250 | MHz | |||||||||
|
Frequency Reprogramming Resolution |
MRES | — | 0.026 | — | ppb | |||||||||
|
Frequency Range for Small Frequency Change (Continuous Glitchless Output) |
From center frequency | –1000 | — | +1000 | ppm | |||||||||
|
Settling time for Small Frequency Change |
<±1000 ppm from center frequency |
— | — | 100 | µs | |||||||||
|
Settling time for Large Frequency Change (Out- put Squelched during Fre- quency Transition) |
>±1000 ppm from center frequency |
— | — | 10 | ms | |||||||||
| Total Stability* | Frequency Stability Grade C | –30 | — | +30 | ppm | |||||||||
| Frequency Stability Grade B | –50 | — | +50 | ppm | ||||||||||
| Frequency Stability Grade A | –100 | — | +100 | ppm | ||||||||||
| Temperature Stability | Frequency Stability Grade C | –20 | — | +20 | ppm | |||||||||
| Frequency Stability Grade B | –25 | — | +25 | ppm | ||||||||||
| Frequency Stability Grade A | –50 | — | +50 | ppm | ||||||||||
| Startup Time | TSU |
Minimum VDDuntil output frequency (FO) within specification |
— | — | 10 | ms | ||||||||
| Disable Time | TD | FO< 10 MHz | — | — | 40 | µs | ||||||||
| FO>10 MHz | — | — | 5 | µs | ||||||||||
| Enable Time | TE | FO< 10 MHz | — | — | 60 | µs | ||||||||
| FO>10 MHz | — | — | 20 | µs | ||||||||||

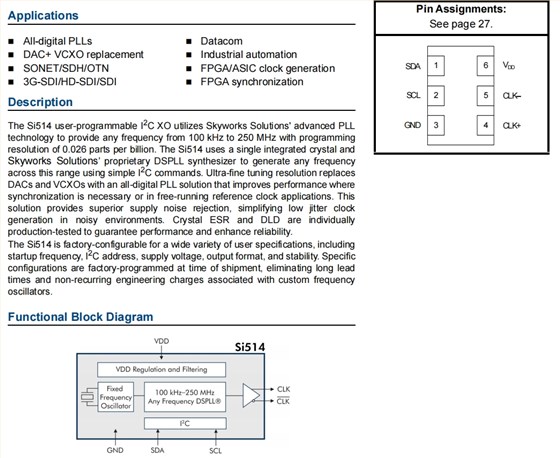

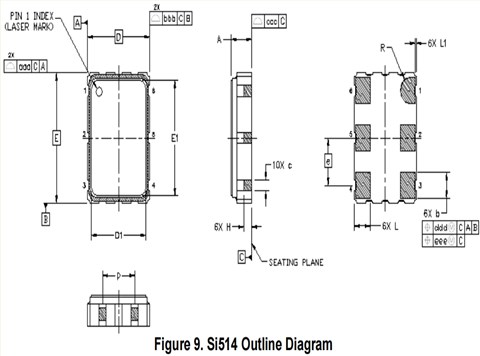

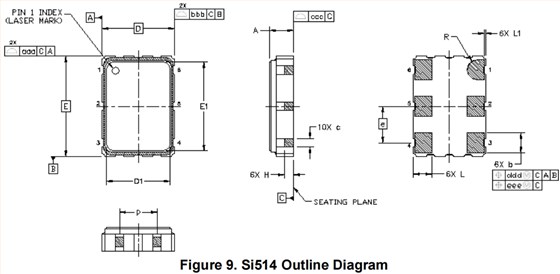

Si514,514GBB000118AAG,156.25MHZ,7050mm,Silicon小封裝振蕩器尺寸圖
