XO-53000H無線模塊晶振,XO-53331HST-LF-45.000MHz,KVG低電壓振蕩器，尺寸2.5x2.0mm，頻率45MHZ德國進口晶振，KVG有源晶振，2520mm有源晶振，OSC貼片晶振，石英有源晶振，石英晶體振蕩器，SMD振蕩器，有源晶體振蕩器，石英振蕩子，時鐘振蕩器，無線模塊有源晶振，室外基站有源晶振，無線路由器有源晶振，小型設備有源晶振，北斗定位有源晶振，測試設備有源晶振，儀器儀表有源晶振，低電壓有源晶振，低抖動有源晶振，低損耗有源晶振，低功耗有源晶振，高性能有源晶振，高品質有源晶振，低相噪有源晶振，具有高性能低功耗的特點。
OSC晶振產品特別適合用于無線模塊，室外基站，無線路由器，小型設備，北斗定位，測試設備，儀器儀表等領域。XO-53000H無線模塊晶振,XO-53331HST-LF-45.000MHz,KVG低電壓振蕩器.

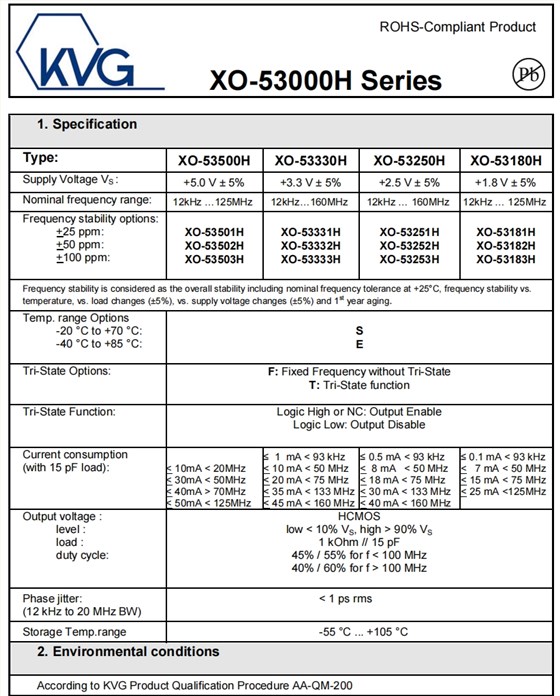

XO-53000H無線模塊晶振,XO-53331HST-LF-45.000MHz,KVG低電壓振蕩器 參數表
| Type: | XO-53500H | XO-53330H | XO-53250H | XO-53180H | ||||||||||||
| Supply Voltage VS: | +5.0 V ± 5% | +3.3 V ± 5% | +2.5 V ± 5% | +1.8 V ± 5% | ||||||||||||
| Nominal frequency range: | 12kHz …125MHz | 12kHz…160MHz | 12kHz …160MHz | 12kHz …125MHz | ||||||||||||
|
Frequency stability options: +25 ppm: +50 ppm: +100 ppm: |
XO-53501H XO-53502H XO-53503H |
XO-53331H XO-53332H XO-53333H |
XO-53251H XO-53252H XO-53253H |
XO-53181H XO-53182H XO-53183H |
||||||||||||
|
Frequency stability is considered as the overall stability including nominal frequency tolerance at +25°C, frequency stability vs. temperature, vs. load changes (±5%), vs. supply voltage changes (±5%) and 1styear aging. |
||||||||||||||||
|
Temp. range Options -20 °C to +70 °C: -40 °C to +85 °C: |
S E |
|||||||||||||||
| Tri-State Options: |
F:Fixed Frequency without Tri-State T:Tri-State function |
|||||||||||||||
| Tri-State Function: |
Logic High or NC: Output Enable Logic Low: Output Disable |
|||||||||||||||
|
Current consumption (with 15 pF load): |
<10mA < 20MHz <30mA < 50MHz <40mA > 70MHz < 50mA < 125MHz |
≤1mA < 93 kHz <10 mA < 50 MHz <20 mA < 75 MHz <35 mA < 133 MHz < 45 mA < 160 MHz |
≤ 0.5 mA < 93 kHz <8 mA< 50 MHz <18 mA < 75 MHz <30 mA < 133 MHz < 40 mA < 160 MHz |
≤ 0.1 mA < 93 kHz <7 mA < 50 MHz <15 mA < 75 MHz <25 mA <125MHz |
||||||||||||
|
Output voltage : level : load : duty cycle: |
HCMOS low < 10% VS, high > 90% VS 1 kOhm // 15 pF 45% / 55% for f < 100 MHz 40% / 60% for f > 100 MHz |
|||||||||||||||
|
Phase jitter: (12 kHz to 20 MHz BW) |
< 1 ps rms | |||||||||||||||
| Storage Temp.range | -55 °C ... +105 °C | |||||||||||||||

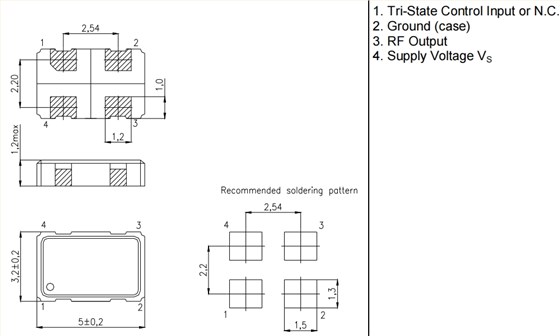

XO-53000H無線模塊晶振,XO-53331HST-LF-45.000MHz,KVG低電壓振蕩器 尺寸圖
XO-53000H無線模塊晶振,XO-53331HST-LF-45.000MHz,KVG低電壓振蕩器
石英晶振產品特點：
尺寸2.5x2.0mm
符合RoHS標準且無鉛
低抖動低電壓
