C3291-24.000,Crystek四腳貼片晶振,24MHz,低相位噪聲晶振，美國Crystek晶振，瑞斯克晶振，型號：C32xx系列晶振，編碼：C3291-24.000，頻率：24.000MHz，頻率穩定性：±25ppm，工作溫度范圍：0℃至+70℃，工作電壓為：5.0V，小體積晶振尺寸：7.0x5.0mm，四腳貼片晶振，有源晶振，石英晶振，石英晶體振蕩器，時鐘振蕩器，HCMOS輸出晶振。具有超小型，輕薄型，高性能，高品質等特點。應用于：通訊設備晶振，數字視頻，存儲區域網絡，寬帶接入晶振，以太網、千兆以太網等應用。
進口晶振型號C32xx是一個1.544MHz到100.000MHz的HCMOS時鐘振蕩器，工作電壓5.0V。該振蕩器利用基本或高Q第三泛音晶體設計，提供非常低的抖動和相位噪聲。輸出信號中沒有子諧波。

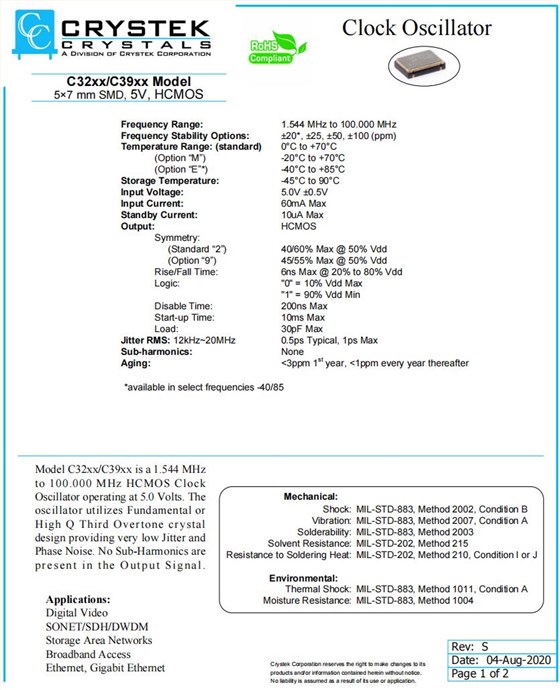

C3291-24.000,Crystek四腳貼片晶振,24MHz,低相位噪聲晶振,參數表
| Frequency Range: | 24.000MHz |
| Frequency Stability Options: | ±20*, ±25, ±50, ±100 (ppm) |
| Temperature Range: (standard) | 0°C to +70°C |
| (Option “M”) | -20°C to +70°C |
| (Option “E”*) | -40°C to +85°C |
| Storage Temperature: | -45°C to 90°C |
| Input Voltage: | 5.0V ±0.5V |
| Input Current: | 60mA Max |
| Standby Current: | 10uA Max |
| Output: | HCMOS |
| Symmetry: | |
| (Standard “2”) | 40/60% Max @ 50% Vdd |
| (Option “9”) | 45/55% Max @ 50% Vdd |
| Rise/Fall Time: | 6ns Max @ 20% to 80% Vdd |
| Logic: | "0" = 10% Vdd Max |
| "1" = 90% Vdd Min | |
| Disable Time: | 200ns Max |
| Start-up Time: | 10ms Max |
| Load: | 30pF Max |
| Jitter RMS: 12kHz~20MHz | 0.5ps Typical, 1ps Max |
| Sub-harmonics: | None |
| Aging: | <3ppm 1styear, <1ppm every year thereafter |

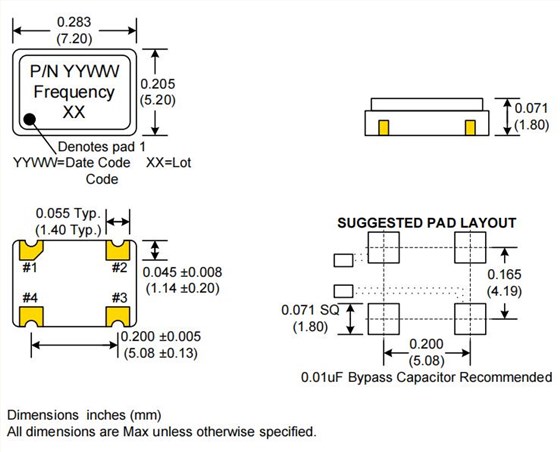

C3291-24.000,Crystek四腳貼片晶振,24MHz,低相位噪聲晶振,尺寸圖
| 進口貼片晶振 | 品牌 | 型號 | 類型 | 頻率 | 頻率穩定度 |
| C3291-1.544 | Crystek晶振 | C3291 | XO (Standard) | 1.544MHz | ±25ppm |
| C3291-1.843200 | Crystek晶振 | C3291 | XO (Standard) | 1.8432MHz | ±25ppm |
| C3291-10.000 | Crystek晶振 | C3291 | XO (Standard) | 10MHz | ±25ppm |
| C3291-12.000 | Crystek晶振 | C3291 | XO (Standard) | 12MHz | ±25ppm |
| C3291-12.288 | Crystek晶振 | C3291 | XO (Standard) | 12.288MHz | ±25ppm |
| C3291-12.352 | Crystek晶振 | C3291 | XO (Standard) | 12.352MHz | ±25ppm |
| C3291-14.318180 | Crystek晶振 | C3291 | XO (Standard) | 14.31818MHz | ±25ppm |
| C3291-15.360 | Crystek晶振 | C3291 | XO (Standard) | 15.36MHz | ±25ppm |
| C3291-16.000 | Crystek晶振 | C3291 | XO (Standard) | 16MHz | ±25ppm |
| C3291-16.384 | Crystek晶振 | C3291 | XO (Standard) | 16.384MHz | ±25ppm |
| C3291-18.432 | Crystek晶振 | C3291 | XO (Standard) | 18.432MHz | ±25ppm |
| C3291-19.440 | Crystek晶振 | C3291 | XO (Standard) | 19.44MHz | ±25ppm |
| C3291-2.048 | Crystek晶振 | C3291 | XO (Standard) | 2.048MHz | ±25ppm |
| C3291-20.000 | Crystek晶振 | C3291 | XO (Standard) | 20MHz | ±25ppm |
| C3291-20.480 | Crystek晶振 | C3291 | XO (Standard) | 20.48MHz | ±25ppm |
| C3291-24.000 | Crystek晶振 | C3291 | XO (Standard) | 24MHz | ±25ppm |
| C3291-24.704 | Crystek晶振 | C3291 | XO (Standard) | 24.704MHz | ±25ppm |
| C3291-25.000 | Crystek晶振 | C3291 | XO (Standard) | 25MHz | ±25ppm |
| C3291-3.686400 | Crystek晶振 | C3291 | XO (Standard) | 3.6864MHz | ±25ppm |
| C3291-30.000 | Crystek晶振 | C3291 | XO (Standard) | 30MHz | ±25ppm |
| C3291-32.000 | Crystek晶振 | C3291 | XO (Standard) | 32MHz | ±25ppm |
| C3291-32.768 | Crystek晶振 | C3291 | XO (Standard) | 32.768MHz | ±25ppm |
| C3291-33.000 | Crystek晶振 | C3291 | XO (Standard) | 33MHz | ±25ppm |
| C3291-33.333 | Crystek晶振 | C3291 | XO (Standard) | 33.333MHz | ±25ppm |
| C3291-35.000 | Crystek晶振 | C3291 | XO (Standard) | 35MHz | ±25ppm |
| C3291-4.000 | Crystek晶振 | C3291 | XO (Standard) | 4MHz | ±25ppm |
| C3291-40.000 | 7050晶振 | C3291 | XO (Standard) | 40MHz | ±25ppm |
| C3291-44.736 | Crystek晶振 | C3291 | XO (Standard) | 44.736MHz | ±25ppm |
| C3291-45.000 | Crystek晶振 | C3291 | XO (Standard) | 45MHz | ±25ppm |
| C3291-49.152 | Crystek晶振 | C3291 | XO (Standard) | 49.152MHz | ±25ppm |
| C3291-50.000 | Crystek晶振 | C3291 | XO (Standard) | 50MHz | ±25ppm |
| C3291-51.840 | Crystek晶振 | C3291 | XO (Standard) | 51.84MHz | ±25ppm |
| C3291-6.176 | Crystek晶振 | C3291 | XO (Standard) | 6.176MHz | ±25ppm |
| C3291-7.372800 | Crystek晶振 | C3291 | XO (Standard) | 7.3728MHz | ±25ppm |
| C3291-8.000 | Crystek晶振 | C3291 | XO (Standard) | 8MHz | ±25ppm |
| CE3291-1.544 | Crystek晶振 | C3291 | XO (Standard) | 1.544MHz | ±25ppm |
| CE3291-1.843200 | Crystek晶振 | C3291 | XO (Standard) | 1.8432MHz | ±25ppm |
| CE3291-10.000 | Crystek晶振 | C3291 | XO (Standard) | 10MHz | ±25ppm |
| CE3291-12.000 | Crystek晶振 | C3291 | XO (Standard) | 12MHz | ±25ppm |
| CE3291-12.288 | Crystek晶振 | C3291 | XO (Standard) | 12.288MHz | ±25ppm |
| CE3291-12.352 | Crystek晶振 | C3291 | XO (Standard) | 12.352MHz | ±25ppm |
| CE3291-14.318180 | Crystek晶振 | C3291 | XO (Standard) | 14.31818MHz | ±25ppm |
| CE3291-15.360 | Crystek晶振 | C3291 | XO (Standard) | 15.36MHz | ±25ppm |
| CE3291-16.000 | Crystek晶振 | C3291 | XO (Standard) | 16MHz | ±25ppm |
| CE3291-16.384 | Crystek晶振 | C3291 | XO (Standard) | 16.384MHz | ±25ppm |
| CE3291-18.432 | Crystek晶振 | C3291 | XO (Standard) | 18.432MHz | ±25ppm |
| CE3291-19.440 | Crystek晶振 | C3291 | XO (Standard) | 19.44MHz | ±25ppm |
| CE3291-2.048 | Crystek晶振 | C3291 | XO (Standard) | 2.048MHz | ±25ppm |
| CE3291-20.000 | Crystek晶振 | C3291 | XO (Standard) | 20MHz | ±25ppm |
| CE3291-20.480 | Crystek晶振 | C3291 | XO (Standard) | 20.48MHz | ±25ppm |
| CE3291-24.000 | Crystek晶振 | C3291 | XO (Standard) | 24MHz | ±25ppm |
| CE3291-24.704 | Crystek晶振 | C3291 | XO (Standard) | 24.704MHz | ±25ppm |
| CE3291-25.000 | Crystek晶振 | C3291 | XO (Standard) | 25MHz | ±25ppm |
| CE3291-3.686400 | Crystek晶振 | C3291 | XO (Standard) | 3.6864MHz | ±25ppm |
| CE3291-30.000 | Crystek晶振 | C3291 | XO (Standard) | 30MHz | ±25ppm |
| CE3291-32.000 | Crystek晶振 | C3291 | XO (Standard) | 32MHz | ±25ppm |
| CE3291-32.768 | Crystek晶振 | C3291 | XO (Standard) | 32.768MHz | ±25ppm |
| CE3291-33.000 | Crystek晶振 | C3291 | XO (Standard) | 33MHz | ±25ppm |
| CE3291-33.333 | Crystek晶振 | C3291 | XO (Standard) | 33.333MHz | ±25ppm |
| CE3291-35.000 | Crystek晶振 | C3291 | XO (Standard) | 35MHz | ±25ppm |
| CE3291-4.000 | Crystek晶振 | C3291 | XO (Standard) | 4MHz | ±25ppm |
| CE3291-40.000 | Crystek晶振 | C3291 | XO (Standard) | 40MHz | ±25ppm |
| CE3291-6.176 | Crystek晶振 | C3291 | XO (Standard) | 6.176MHz | ±25ppm |
| CE3291-7.372800 | Crystek晶振 | C3291 | XO (Standard) | 7.3728MHz | ±25ppm |
| CE3291-8.000 | Crystek晶振 | C3291 | XO (Standard) | 8MHz | ±25ppm |
| C3291-60.000 | Crystek晶振 | C3291 | XO (Standard) | 60MHz | ±25ppm |
| C3291-64.000 | Crystek晶振 | C3291 | XO (Standard) | 64MHz | ±25ppm |
| C3291-66.666600 | Crystek晶振 | C3291 | XO (Standard) | 66.6666MHz | ±25ppm |
| CE3291-44.736 | Crystek晶振 | C3291 | XO (Standard) | 44.736MHz | ±25ppm |
| CE3291-45.000 | Crystek晶振 | C3291 | XO (Standard) | 45MHz | ±25ppm |
| CE3291-49.152 | Crystek晶振 | C3291 | XO (Standard) | 49.152MHz | ±25ppm |
| C3291-75.000 | Crystek晶振 | C3291 | XO (Standard) | 75MHz | ±25ppm |
| CE3291-50.000 | Crystek晶振 | C3291 | XO (Standard) | 50MHz | ±25ppm |
| CE3291-51.840 | Crystek晶振 | C3291 | XO (Standard) | 51.84MHz | ±25ppm |
| CE3291-60.000 | Crystek晶振 | C3291 | XO (Standard) | 60MHz | ±25ppm |
| CE3291-64.000 | Crystek晶振 | C3291 | XO (Standard) | 64MHz | ±25ppm |
| CE3291-66.666600 | Crystek晶振 | C3291 | XO (Standard) | 66.6666MHz | ±25ppm |
| CE3291-75.000 | Crystek晶振 | C3291 | XO (Standard) | 75MHz | ±25ppm |
| C3291-80.000 | Crystek晶振 | C3291 | XO (Standard) | 80MHz | ±25ppm |
| CE3291-80.000 | Crystek晶振 | C3291 | XO (Standard) | 80MHz | ±25ppm |
| C3291-100.000 | Crystek晶振 | C3291 | XO (Standard) | 100MHz | ±25ppm |
| C3291-106.250 | Crystek晶振 | C3291 | XO (Standard) | 106.25MHz | ±25ppm |
| CE3291-100.000 | Crystek晶振 | C3291 | XO (Standard) | 100MHz | ±25ppm |
| CE3291-106.250 | Crystek晶振 | C3291 | XO (Standard) | 106.25MHz | ±25ppm |
