7FE02496A00,DSO221SX傳感相機晶振,大真空CMOS輸出振蕩器 參數表
| 項目 | 特性代碼 |
輸出頻率范圍 ( MHz ) |
符號 | 規格值 | 單位 | 條件 | ||||
|---|---|---|---|---|---|---|---|---|---|---|
|
電源 電壓 |
頻率 允許偏差 |
最小。 | typ | 最大。 | ||||||
| 電源電壓 | A | ＊ | 1≦fo≦125 | VCC | +3.0 | +3.3 | +3.6 | V | ||
| B | ＊ | +2.6 | +2.8 | +3.0 | ||||||
| C | ＊ | +2.25 | +2.5 | +2.75 | ||||||
| D | ＊ | 1≦fo≦100 | +1.6 | +1.8 | +2.0 | |||||
|
頻率允許偏差 (包括常溫偏差) |
＊ | A | ＊ | f_tol | - | - | ±100 | ×10-6 | -40~+125℃ | |
| Z | - | - | ±80 | |||||||
| B | - | - | ±50 | |||||||
| - | - | ±50 | -40~+85℃ | |||||||
| C | - | - | ±30 | |||||||
| 消耗電流 | A | ＊ | 100≦fo≦125 | ICC | - | - | 10.0 | mA | No Load | |
| 40≦fo<100 | - | - | 4.2 | |||||||
| 1≦fo<40 | - | - | 2.4 | |||||||
| B | 100≦fo≦125 | - | - | 9.0 | ||||||
| 40≦fo<100 | - | - | 3.7 | |||||||
| 1≦fo<40 | - | - | 2.2 | |||||||
| C | 100≦fo≦125 | - | - | 8.0 | ||||||
| 40≦fo<100 | - | - | 3.4 | |||||||
| 1≦fo<40 | - | - | 2.0 | |||||||
| D | 40≦fo≦100 | - | - | 2.7 | ||||||
| 1≦fo<40 | - | - | 1.7 | |||||||
| 待機時電流( #1針" l " ) | ＊ | ＊ | ＊ | I_std | - | - | 10 | μA | ||
| 輸出負載 | ＊ | ＊ | ＊ | L_CMOS | - | - | 15 | pF | ||
| 波形對稱 | ＊ | ＊ | ＊ | SYM | 45 | 50 | 55 | % | at 50% V抄送 | |
| 0電平電壓 | ＊ | ＊ | ＊ | VOL | - | - | VCC×0.1 | V | ||
| 1電平電壓 | VOH | VCC×0.9 | - | - | ||||||
|
上升時間 下降時間 |
a，b，c | ＊ | ＊ | tr，tf | - | - | 3 | ns | 10~90% VCCLevel | |
| D | - | - | 5 | |||||||
| OE引腳0電平輸入電壓 | ＊ | ＊ | ＊ | VIL | - | - | VCC×0.3 | V | ||
| OE引腳1電平輸入電壓 | ＊ | ＊ | ＊ | VIH | VCC×0.7 | - | - | |||
| 輸出禁用時間 | ＊ | ＊ | ＊ | tPLZ | - | - | 200 | ns | ||
| 輸出使能時間 | ＊ | ＊ | ＊ | tPZL | - | - | 2 | ms | ||
| 句點抖動(1) | ＊ | ＊ | ＊ | tRMS | - | 2.4 | - | ps | σ | |
| tp-p | - | 23 | - | Peak to peak | ||||||
| 總抖動(1) | ＊ | ＊ | ＊ | tTL | - | 34 | - | ps | tDJ+n×tRJ n=14.1(BER=1×10-12) (2) | |
| 相位抖動 | ＊ | ＊ | 40≦fo≦125 | tpj | - | - | 1 | ps | fo offset:12kHz?20MHz | |
| 10≦fo<40 | fo offset:12kHz?5MHz | |||||||||
| 可靠性規格 | AEC-Q100/AEC-Q200 | |||||||||
| 包裝單位(1) | 3000pcs./reel(φ180 ) | |||||||||

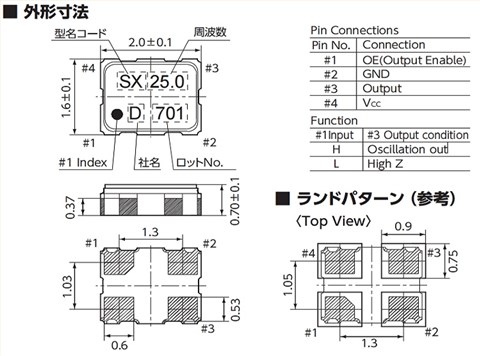

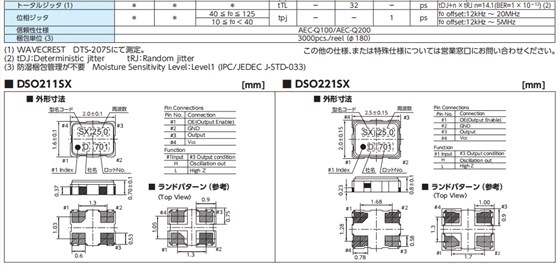

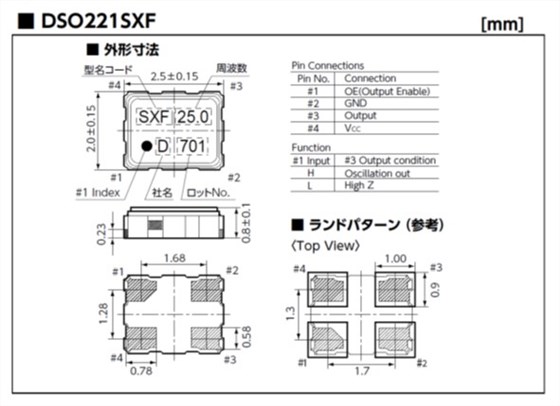

7FE02496A00,DSO221SX傳感相機晶振,大真空CMOS輸出振蕩器 尺寸圖

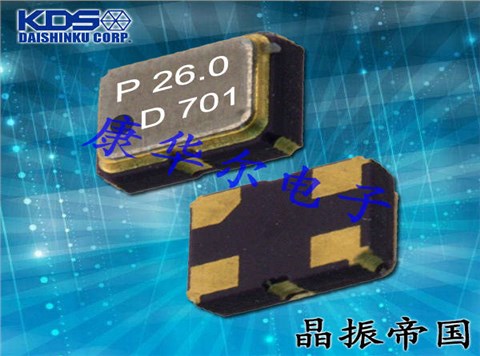

7FE02496A00,DSO221SX傳感相機晶振,大真空CMOS輸出振蕩器

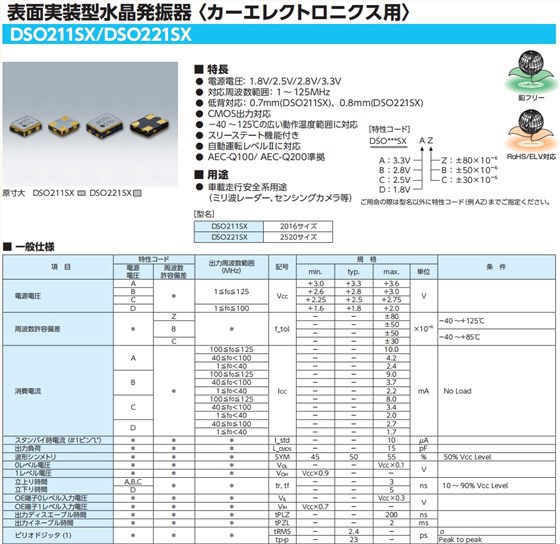

產品特點：
電源電壓: 1.8V/2.5V/2.8V/3.3V
支持頻率范圍: 1~125MHz
矮型對應: 0.8mm
CMOS輸出有源晶振
適用于-40~125℃的廣闊工作溫度范圍
帶三態功能
支持自動駕駛ⅱ級
符合AEC-Q100/AEC-Q200標準
