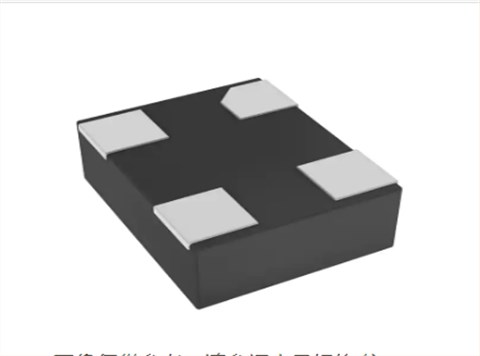

DSC1033BE1-050.0000,Microchip可編程振蕩器,5032mm,DSC1033，尺寸5.0x3.2mm，頻率50MHZ，歐美進口晶振，SMD晶體振蕩器，可編程振蕩器，有源晶體振蕩器，有源貼片晶振，SMD振蕩器，5032mm有源晶振，50MHZ有源振蕩器，四腳有源晶振，工業級有源晶振，便攜式設備有源晶振，測試測量有源晶振，室外基站有源晶振，低損耗有源晶振，低功耗有源晶振，低電壓有源晶振，低抖動有源晶振，低相位有源晶振，低相噪有源晶振，具有低抖動低電壓的特點。

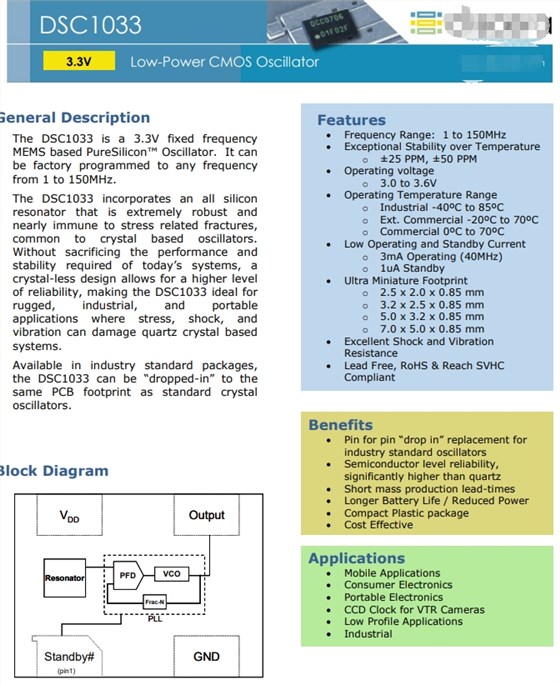

DSC1033是3.3V固定頻率MEMS基于PureSsilicon™振蕩器?？梢允枪S編程為從1到的任何頻率150MHz。DSC1033 OSC晶振包含全硅諧振器非常堅固，幾乎對應力相關骨折免疫，常見于基于晶體的振蕩器。在不犧牲當今所需的性能和穩定性系統，無晶體設計允許更高級別的可靠性，使DSC1033適用于堅固耐用、工業級和便攜式應力、沖擊和振動的應用會損壞基于石英晶體的系統。DSC1033BE1-050.0000,Microchip可編程振蕩器,5032mm,DSC1033.
DSC1033BE1-050.0000,Microchip可編程振蕩器,5032mm,DSC1033 參數表
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit | |||||||||||||||||||||||||
| Frequency | f0 | Single Frequency |
|
50 |
|
MHz | |||||||||||||||||||||||||
|
Frequency Tolerance Option 1 Option 2 Option 3 |
Δf |
-40°C to +85°C -20°C to +70°C 0°C to +70°C |
±25,±50 ±25,±50 ±25,±50 |
ppm | |||||||||||||||||||||||||||
| Supply Current, no load | IDD |
CL=0p RL=∞ T=25° C |
1 to 40MHz 40 to 80MHz 80 to 125MHz 125 to 150MHz |
3 4 5 6 |
10 | mA | |||||||||||||||||||||||||
| Supply Current, standby | IDD | T=25°C | 1.0 | uA | |||||||||||||||||||||||||||
|
Output Logic Levels Output logic high Output logic low |
VOH VOL |
CL=15pF |
0.8*VDD - |
- 0.2*VDD |
Volts | ||||||||||||||||||||||||||
|
Output Transition time Rise Time Fall Time |
tR tF |
CL=15pF; T=25°C 20%/80%*VDD |
1.3 1.3 |
2 2 |
ns | ||||||||||||||||||||||||||
| Output Startup Time2 | tSU | T=25°C | 1.5 | 3 | ms | ||||||||||||||||||||||||||
| Output Disable Time | tDA | 20 | 100 | ns | |||||||||||||||||||||||||||
| Output Duty Cycle | SYM | 45 | 55 | % | |||||||||||||||||||||||||||
|
Input Logic Levels Input logic high Input logic low |
VIH VIL |
0.75*VDD - |
- 0.25* VDD |
Volts | |||||||||||||||||||||||||||
| Jitter, Cycle to Cycle | JCC | F = 100MHz3 | 95 | ps | |||||||||||||||||||||||||||

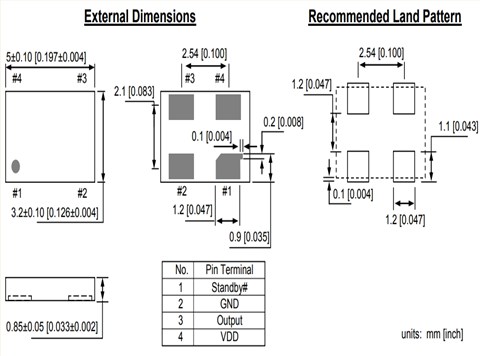

DSC1033BE1-050.0000,Microchip可編程振蕩器,5032mm,DSC1033尺寸圖
DSC1033BE1-050.0000,Microchip可編程振蕩器,5032mm,DSC1033
有源晶振產品特點：
頻率范圍：1至150MHz
卓越的溫度穩定性
±25 PPM，±50 PPM
工作電壓
3.0至3.6V
工作溫度范圍
工業-40ºC至85ºC
外部商用-20ºC至70ºC
商用0ºC至70ºC
低工作和備用電流
3mA工作（40MHz）
1uA待機
超小型占地面積
2.5 x 2.0 x 0.85毫米
3.2 x 2.5 x 0.85毫米
5.0 x 3.2 x 0.85毫米
7.0 x 5.0 x 0.85毫米
卓越的沖擊和振動反對
無鉛、RoHS和Reach SVHC
| Manufacturer Part Number原廠代碼 | 歐美晶振品牌 | Series型號 | Type 類型 | Frequency 頻率 | Voltage - Supply電壓 |
| DSC1121CI2-025.0000 | Microchip振蕩器 | DSC1121 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V |
| DSC1121BI2-025.0007 | Microchip振蕩器 | DSC1121 | MEMS (Silicon) | 25.0007MHz | 2.25 V ~ 3.6 V |
| DSC1121AE2-025.0000 | Microchip振蕩器 | DSC1121 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V |
| DSC1101CI1-025.0000 | Microchip振蕩器 | DSC1101 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V |
| DSC1001CC1-008.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 8MHz | 1.8 V ~ 3.3 V |
| DSC1101DL1-027.0000 | Microchip振蕩器 | DSC1101 | MEMS (Silicon) | 27MHz | 2.25 V ~ 3.6 V |
| DSC1001CE1-066.6666 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 66.6666MHz | 1.8 V ~ 3.3 V |
| DSC1001CE1-019.2000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 19.2MHz | 1.8 V ~ 3.3 V |
| DSC1033CE2-022.5792 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 22.5792MHz | 3.3V |
| DSC1001DI1-004.9152 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 4.9152MHz | 1.8 V ~ 3.3 V |
| DSC1033AE1-024.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 24MHz | 3.3V |
| DSC1001AC1-027.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 27MHz | 1.8 V ~ 3.3 V |
| DSC1033CE2-074.2500 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 74.25MHz | 3.3V |
| DSC1033BE1-050.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 50MHz | 3.3V |
| DSC1001AC1-008.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 8MHz | 1.7 V ~ 3.6 V |
| DSC1033DI1-048.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 48MHz | 3.3V |
| DSC1001DI1-012.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 12MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-048.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 48MHz | 1.8 V ~ 3.3 V |
| DSC1033DI1-064.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 64MHz | 3.3V |
| DSC1033DI1-025.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 25MHz | 3.3V |
| DSC1033CI1-008.1920 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 8.192MHz | 3.3V |
| DSC1033DI1-050.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 50MHz | 3.3V |
| DSC1033DI1-024.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 24MHz | 3.3V |
| DSC1033DI1-016.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 16MHz | 3.3V |
| DSC1001DI1-020.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V |
| DSC1001CI1-025.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V |
| DSC1033BI2-027.1200 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 27.12MHz | 3.3V |
| DSC1001DI1-032.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 32MHz | 1.8 V ~ 3.3 V |
| DSC1033DI1-029.4912 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 29.4912MHz | 3.3V |
| DSC1001AE1-027.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 27MHz | 1.8 V ~ 3.3 V |
| DSC1001AE1-014.3182 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 14.3182MHz | 1.8 V ~ 3.3 V |
| DSC1001AE1-024.5761 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 24.5761MHz | 1.8 V ~ 3.3 V |
| DSC1001AE1-054.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 54MHz | 1.8 V ~ 3.3 V |
| DSC1001AE1-003.6864 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 3.6864MHz | 1.8 V ~ 3.3 V |
| DSC1001BE2-010.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 10MHz | 1.8 V ~ 3.3 V |
| DSC1001AE1-055.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 55MHz | 1.8 V ~ 3.3 V |
| DSC1033CI1-001.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 1MHz | 3.3V |
| DSC1004AI2-001.0000 | Microchip振蕩器 | DSC1004 | MEMS (Silicon) | 1MHz | 1.8 V ~ 3.3 V |
| DSC1001CI1-003.6864 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 3.6864MHz | 1.7 V ~ 3.6 V |
| DSC1001DI1-038.4000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 38.4MHz | 1.7 V ~ 3.6 V |
| DSC1001AI2-064.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 64MHz | 1.8 V ~ 3.3 V |
| DSC1001BI1-048.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 48MHz | 1.8 V ~ 3.3 V |
| DSC1001CI2-001.9521 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 1.9521MHz | 1.8 V ~ 3.3 V |
| DSC1001CI2-010.4857 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 10.4857MHz | 1.8 V ~ 3.3 V |
| DSC1001CI2-008.1920 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 8.192MHz | 1.8 V ~ 3.3 V |
| DSC1001AI1-033.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 33MHz | 1.8 V ~ 3.3 V |
| DSC1001BI1-010.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 10MHz | 1.8 V ~ 3.3 V |
| DSC1001BI1-020.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V |
| DSC1001BI1-024.5760 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 24.576MHz | 1.8 V ~ 3.3 V |
| DSC1001BI1-027.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 27MHz | 1.8 V ~ 3.3 V |
| DSC1001BI2-014.3181 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 14.3181MHz | 1.8 V ~ 3.3 V |
| DSC1001BI2-014.7456 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 14.7456MHz | 1.8 V ~ 3.3 V |
| DSC1001BI2-016.3840 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 16.384MHz | 1.8 V ~ 3.3 V |
| DSC1001BI2-040.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 40MHz | 1.8 V ~ 3.3 V |
| DSC1001AI2-001.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 1MHz | 1.8 V ~ 3.3 V |
| DSC1001BI1-024.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V |
| DSC1001BI1-025.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V |
| DSC1001BI2-012.5000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 12.5MHz | 1.8 V ~ 3.3 V |
| DSC1001BI1-040.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 40MHz | 1.8 V ~ 3.3 V |
| DSC1001BI1-050.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 50MHz | 1.8 V ~ 3.3 V |
| DSC1001BI2-024.5760 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 24.576MHz | 1.8 V ~ 3.3 V |
| DSC1003DI2-100.0000 | Microchip振蕩器 | DSC1003 | MEMS (Silicon) | 100MHz | 1.8 V ~ 3.3 V |
| DSC1033BI1-025.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 25MHz | 3.3V |
| DSC1001BI2-005.5296 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 5.5296MHz | 1.8 V ~ 3.3 V |
| DSC1001CI2-049.1520 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 49.152MHz | 1.7 V ~ 3.6 V |
| DSC1001BI2-025.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V |
| DSC1001CI2-025.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V |
| DSC1001CE2-012.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 12MHz | 1.8 V ~ 3.3 V |
| DSC1001DI2-045.1584 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 45.1584MHz | 1.8 V ~ 3.3 V |
| DSC1001DI2-049.1520 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 49.152MHz | 1.8 V ~ 3.3 V |
