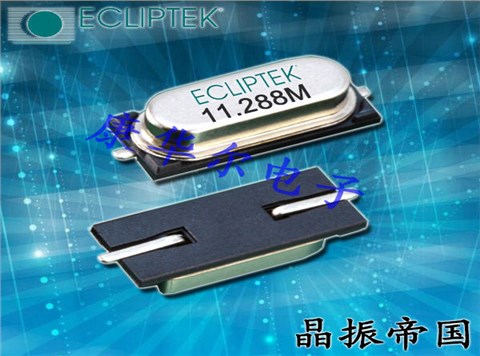

E1SAA12-30.000M TR,Ecliptek石英晶體諧振器,橢圓形晶振，美國進口晶振，Ecliptek晶振，日蝕晶振，型號：E1S系列石英晶體，編碼為：E1SAA12-30.000M TR，頻率：30MHz，負載電容：12pF，工作溫度范圍：0℃至+70℃，頻率穩定性：±100ppm，頻率容差：±50ppm，小體積晶振尺寸：13.3x4.85x3.2mm封裝，兩腳貼片晶振，無源晶振，石英晶振，石英晶體諧振器，橢圓形晶振，無鉛晶振。應用于：移動通訊晶振，車載電子晶振，藍牙晶振，物聯網晶振，醫療設備晶振，智能家居等應用。

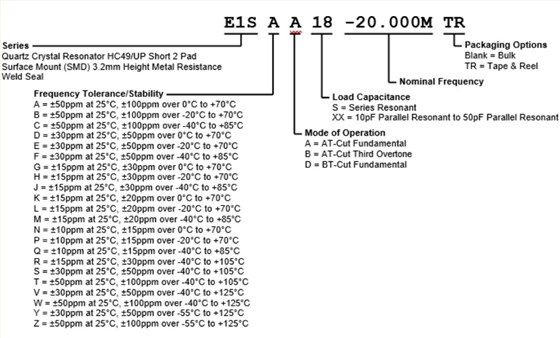

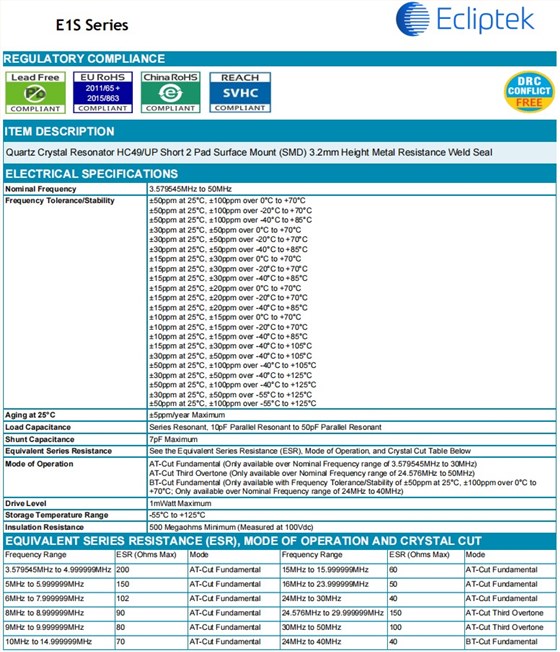

E1SAA12-30.000M TR,Ecliptek石英晶體諧振器,橢圓形晶振,參數表
Nominal Frequency
30 MHz
Frequency Tolerance/Stability
±50ppm at 25°C, ±100ppm over 0°C to +70°C
±50ppm at 25°C, ±100ppm over -20°C to +70°C
±50ppm at 25°C, ±100ppm over -40°C to +85°C
±30ppm at 25°C, ±50ppm over 0°C to +70°C
±30ppm at 25°C, ±50ppm over -20°C to +70°C
±30ppm at 25°C, ±50ppm over -40°C to +85°C
±15ppm at 25°C, ±30ppm over 0°C to +70°C
±15ppm at 25°C, ±30ppm over -20°C to +70°C
±15ppm at 25°C, ±30ppm over -40°C to +85°C
±15ppm at 25°C, ±20ppm over 0°C to +70°C
±15ppm at 25°C, ±20ppm over -20°C to +70°C
±15ppm at 25°C, ±20ppm over -40°C to +85°C
±10ppm at 25°C, ±15ppm over 0°C to +70°C
±10ppm at 25°C, ±15ppm over -20°C to +70°C
±10ppm at 25°C, ±15ppm over -40°C to +85°C
±15ppm at 25°C, ±30ppm over -40°C to +105°C
±30ppm at 25°C, ±50ppm over -40°C to +105°C
±50ppm at 25°C, ±100ppm over -40°C to +105°C
±30ppm at 25°C, ±50ppm over -40°C to +125°C
±50ppm at 25°C, ±100ppm over -40°C to +125°C
±30ppm at 25°C, ±50ppm over -55°C to +125°C
±50ppm at 25°C, ±100ppm over -55°C to +125°C
Aging at 25°C
±5ppm/year Maximum
Load Capacitance
Series Resonant, 10pF Parallel Resonant to 50pF Parallel Resonant
Shunt Capacitance
7pF Maximum
Equivalent Series Resistance
See the Equivalent Series Resistance (ESR), Mode of Operation, and Crystal Cut Table Below
Mode of Operation
AT-Cut Fundamental (Only available over Nominal Frequency range of 3.579545MHz to 30MHz)
AT-Cut Third Overtone (Only available over Nominal Frequency range of 24.576MHz to 50MHz)
BT-Cut Fundamental (Only available with Frequency Tolerance/Stability of ±50ppm at 25°C, ±100ppm over 0°C to+70°C; Only available over Nominal Frequency range of 24MHz to 40MHz)
Drive Level
1mWatt Maximum
Storage Temperature Range
-55°C to +125°C
Insulation Resistance
500 Megaohms Minimum (Measured at 100Vdc)

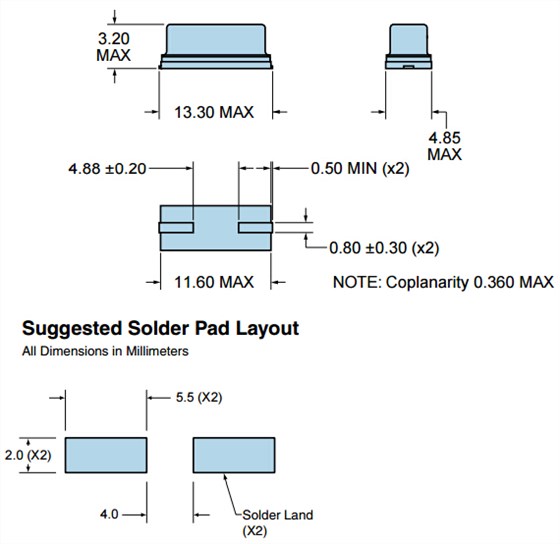

E1SAA12-30.000M TR,Ecliptek石英晶體諧振器,橢圓形晶振,尺寸圖
| 產品編碼 | 晶振廠家 | 型號 | 頻率 | 負載電容 |
| E1SAA12-24.000M | Ecliptek晶振 | E1S | 24 MHz | 12 pF |
| E1SAA12-24.000M TR | Ecliptek晶振 | E1S | 24 MHz | 12 pF |
| E1SAA12-30.000M TR | Ecliptek晶振 | E1S | 30 MHz | 12 pF |
| E1SAA18-12.000M | Ecliptek晶振 | E1S | 12 MHz | 18 pF |
| E1SAA18-16.000M TR | Ecliptek晶振 | E1S | 16 MHz | 18 pF |
| E1SAA18-24.000M TR | Ecliptek晶振 | E1S | 24 MHz | 18 pF |
| E1SAA18-25.000M TR | Ecliptek晶振 | E1S | 25 MHz | 18 pF |
| E1SAA20-5.000M TR | Ecliptek晶振 | E1S | 5 MHz | 20 pF |
| E1SBA18-16.000M TR | Ecliptek晶振 | E1S | 16 MHz | 18 pF |
| E1SBA18-25.000M TR | Ecliptek晶振 | E1S | 25 MHz | 18 pF |
| E1SBA18-27.000M TR | Ecliptek晶振 | E1S | 27 MHz | 18 pF |
| E1SBA18-3.6864M TR | Ecliptek晶振 | E1S | 3.6864 MHz | 18 pF |
| E1SBA18-7.3728M TR | Ecliptek晶振 | E1S | 7.3728 MHz | 18 pF |
| E1SBA18-8.000M TR | Ecliptek晶振 | E1S | 8 MHz | 18 pF |
| E1SBA20-12.000M | Ecliptek晶振 | E1S | 12 MHz | 20 pF |
| E1SBA20-12.000M TR | Ecliptek晶振 | E1S | 12 MHz | 20 pF |
| E1SCA12-24.000M | Ecliptek晶振 | E1S | 24 MHz | 12 pF |
| E1SCA12-3.6864M TR | Ecliptek晶振 | E1S | 3.6864 MHz | 12 pF |
| E1SCA18-14.7456M TR | Ecliptek晶振 | E1S | 14.7456 MHz | 18 pF |
| E1SCA18-20.000M TR | Ecliptek晶振 | E1S | 20 MHz | 18 pF |
| E1SCA18-3.6864M TR | Ecliptek晶振 | E1S | 3.6864 MHz | 18 pF |
| E1SCA18-4.000M TR | Ecliptek晶振 | E1S | 4 MHz | 18 pF |
| E1SCA18-7.3728M TR | Ecliptek晶振 | E1S | 7.3728 MHz | 18 pF |
| E1SCA18-8.000M TR | Ecliptek晶振 | E1S | 8 MHz | 18 pF |
| E1SCA32-12.000M | Ecliptek晶振 | E1S | 12 MHz | 32 pF |
| E1SDA12-25.000M TR | Ecliptek晶振 | E1S | 25 MHz | 12 pF |
| E1SDA18-24.576M | Ecliptek晶振 | E1S | 24.576 MHz | 18 pF |
| E1SDA18-25.000M TR | Ecliptek晶振 | E1S | 25 MHz | 18 pF |
| E1SEA18-12.000M TR | Ecliptek晶振 | E1S | 12 MHz | 18 pF |
| E1SEA18-25.000M | Ecliptek晶振 | E1S | 25 MHz | 18 pF |
| E1SEA18-28.6363M TR | Ecliptek晶振 | E1S | 28.6363 MHz | 18 pF |
| E1SEA18-3.6864M | Ecliptek晶振 | E1S | 3.6864 MHz | 18 pF |
