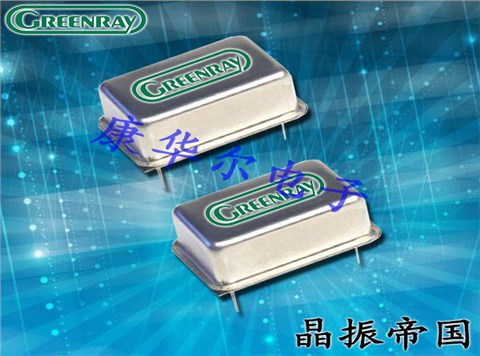

T1220-N58-3.3-LG-19.20MHz-LF,Greenray晶振,6G無線通信晶振,溫補振蕩器，尺寸為，頻率為19.2MHZ，有源晶體振蕩器，石英晶體振蕩器，OSC晶振，低相位振蕩器，TCXO溫補晶振，低相噪晶振，低電壓振蕩器，高品質晶振，格林雷工業的T1220 TCXO提供類似OCXO的頻率和溫度穩定性性能在一個更小的，堅固的包裝。此外，T1220在一個較寬的溫度范圍內執行和低功耗。
OSC晶振產品主要應用：電信，高沖擊電子產品，移動無線電，移動儀器，機載通信，無線通信，微波接收器等領域。T1220-N58-3.3-LG-19.20MHz-LF,Greenray晶振,6G無線通信晶振,溫補振蕩器.
T1220-N58-3.3-LG-19.20MHz-LF,Greenray晶振,6G無線通信晶振,溫補振蕩器 參數表
| FrequencyCharacteristics | |||||||||||||||||||
| Parameter | Conditions | Min | Typical | Max | Units | OrderingCode | |||||||||||||
| Nominal Frequency |
CMOS Squarewave Clipped Sinewave |
10 | 50 | MHz |
T1220 T1221 |
||||||||||||||
|
Frequency Stability (other stability available) |
-20°C to +70°C | ± 50 | ppb | N58 | |||||||||||||||
| -40°C to +85°C | ± 100 | ppb | T17 | ||||||||||||||||
| Aging |
1styear, after 14 days of operation |
± 0.5 | ppm | ||||||||||||||||
| Acceleration Sensitivity | (note 1) | 2.5 | ppb/g | SD | |||||||||||||||
| 0.7 | ppb/g | LG | |||||||||||||||||
| Frequency vs Voltage | For a 5% change | ± 0.1 | ppm | ||||||||||||||||
| Frequency vs Load | For a 10% change | ± 0.1 | ppm | ||||||||||||||||
|
Electronic Frequency Control |
EFC = 0 to VDD Positive slope |
± 7 | ppm | ||||||||||||||||
| Warm-up time | Within ± 1 ppm | 10 | msec | ||||||||||||||||
| PhaseNoisePerformance | |||||||||||||||||||
| Parameter |
FrequencyOffset (Hz) |
Min | Typical | Max | Units | ||||||||||||||
|
Phase Noise (static) @ 10 MHz nominal Frequency |
10 | --90 | dBc/Hz | ||||||||||||||||
| 100 | --120 | dBc/Hz | |||||||||||||||||
| 1k | --140 | dBc/Hz | |||||||||||||||||
| 10 k | --150 | dBc/Hz | |||||||||||||||||
| 100 k | --155 | dBc/Hz | |||||||||||||||||
| DCSupply | |||||||||||||||||||
| Parameter | Conditions | Min | Typical | Max | Units | OrderingCode | |||||||||||||
| Supply Voltage (VDD) | 3.0 | 3.3 | 3.6 | VDC | 3.3 | ||||||||||||||
| 4.75 | 5.0 | 5.25 | VDC | 5.0 | |||||||||||||||
| Supply Current | 25 | mA | |||||||||||||||||
| RFOutputs:ClippedSineandCMOS | |||||||||||||||||||
| Parameter | Conditions | Min | Typical | Max | Units | OrderingCode | |||||||||||||
| CMOSOutput | T1220 | ||||||||||||||||||
| Load | CMOS | 15 | pF | ||||||||||||||||
| Level | 15 pF load, 3.3V |
+2.8 “1” level |
+0.2 “0” level |
V | |||||||||||||||
| 15 pF load, 5.0V |
+4.5 “1” level |
+0.2 “0” level |
V | ||||||||||||||||
| Symmetry | CMOS | 50 | 60 | % | |||||||||||||||
| ClippedSineOutput | T1221 | ||||||||||||||||||
| Load | 10 pF//10 k? | ||||||||||||||||||
| Level | +0.8V | V p-p | |||||||||||||||||

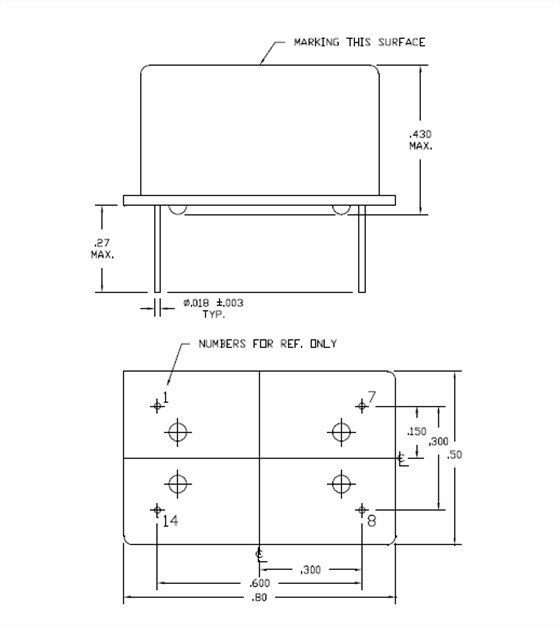

T1220-N58-3.3-LG-19.20MHz-LF,Greenray晶振,6G無線通信晶振,溫補振蕩器尺寸圖

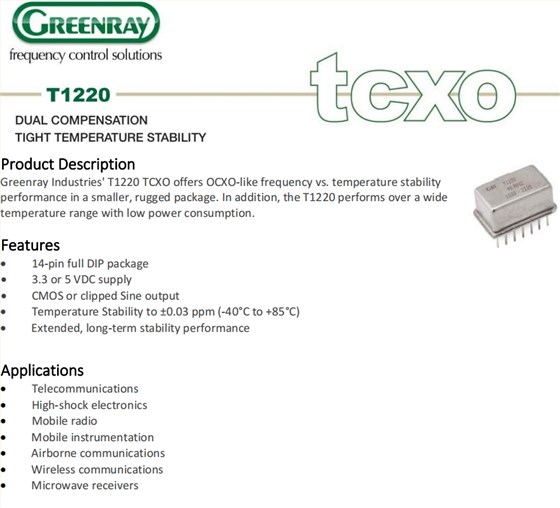

歐美晶振產品特征：
14針全DIP封裝
3.3或5 VDC供電
CMOS或截波正弦輸出
溫度穩定性為±0.03 ppm(-40°C至+85°C)
延長，長期穩定的性能
更多相關的美國Greenray晶振,請咨詢我們
