頻率：200MHZ
尺寸：7.0×5.0mm
Si591視聽設備晶振,591BC200M000DG,思佳訊SMD差分晶振，尺寸7.0x5.0mm，頻率200MHZ，輸出邏輯LVDS，電壓3.3V，頻率穩定性20ppm，Skyworks差分晶振，思佳訊LVDS有源振蕩器，六腳差分振蕩器，貼片差分晶振，7050mm差分晶振，有源差分振蕩器，差分晶振LVDS，差分晶體振蕩器，石英差分振蕩器，低電壓差分晶振，低耗能差分晶振，高精度差分晶振，高頻差分振蕩器，低損耗差分振蕩器，低抖動差分晶振，低功耗差分晶振，低相位差分晶振，低相噪差分晶振，視聽設備差分晶振，北斗導航差分晶振，儀器儀表差分晶振，無線模塊專用差分晶振，測試測量差分晶振，交換機差分晶振，衛星通信專用差分晶振，具有低抖動低相位的特點。
貼片差分晶振產品比較適合用于視聽設備，北斗導航，儀器儀表，無線模塊，測試測量，交換機，衛星通信等領域.Si591視聽設備晶振,591BC200M000DG,思佳訊SMD差分晶振.
Si591視聽設備晶振,591BC200M000DG,思佳訊SMD差分晶振，尺寸7.0x5.0mm，頻率200MHZ，輸出邏輯LVDS，電壓3.3V，頻率穩定性20ppm，Skyworks差分晶振，思佳訊LVDS有源振蕩器，六腳差分振蕩器，貼片差分晶振，7050mm差分晶振，有源差分振蕩器，差分晶振LVDS，差分晶體振蕩器，石英差分振蕩器，低電壓差分晶振，低耗能差分晶振，高精度差分晶振，高頻差分振蕩器，低損耗差分振蕩器，低抖動差分晶振，低功耗差分晶振，低相位差分晶振，低相噪差分晶振，視聽設備差分晶振，北斗導航差分晶振，儀器儀表差分晶振，無線模塊專用差分晶振，測試測量差分晶振，交換機差分晶振，衛星通信專用差分晶振，具有低抖動低相位的特點。
貼片差分晶振產品比較適合用于視聽設備，北斗導航，儀器儀表，無線模塊，測試測量，交換機，衛星通信等領域.Si591視聽設備晶振,591BC200M000DG,思佳訊SMD差分晶振.
Si591視聽設備晶振,591BC200M000DG,思佳訊SMD差分晶振 參數表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||||||||||||||
| Supply Voltage1 | V DD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | ||||||||||||||||||||
| 2.5 V option | 2.25 | 2.5 | 2.75 | |||||||||||||||||||||||
| 1.8 V option | 1.71 | 1.8 | 1.89 | |||||||||||||||||||||||
| Supply Current | IDD |
Output enabled LVPECL CML LVDS CMOS |
— — — — |
110 100 90 80 |
125 110 100 90 |
mA | ||||||||||||||||||||
| Tristate mode | — | 60 | 75 | |||||||||||||||||||||||
| Output Enable (OE)2 | VIH | 0.75 x V DD | — | — | V | |||||||||||||||||||||
| VIL | — | — | 0.5 | |||||||||||||||||||||||
| Operating Temperature Range | TA | –40 | — | 85 | ºC | |||||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||||||||||||||
| Nominal Frequency1,2 | fO | LVPECL/LVDS/CML |
|
200 |
|
MHz | ||||||||||||||||||||
| CMOS | 10 | — | 160 | |||||||||||||||||||||||
| Initial Accuracy | fi |
Measured at +25 °C at time of shipping |
— | ±1.5 | — | ppm | ||||||||||||||||||||
| Total Stability | Note 3, second option code “D” | ±20 | ppm | |||||||||||||||||||||||
| Note 3, second option code “C” | ±30 | ppm | ||||||||||||||||||||||||
| Note 4, second option code “B” | — | — | ±50 | ppm | ||||||||||||||||||||||
| Note 4, second option code “A” | — | — | ±100 | ppm | ||||||||||||||||||||||
| Temperature Stability | second option code “D” | — | — | ±7 | ppm | |||||||||||||||||||||
| second option code “C” | ±20 | ppm | ||||||||||||||||||||||||
| second option code “B” | ±25 | ppm | ||||||||||||||||||||||||
| second option code “A” | — | — | ±50 | ppm | ||||||||||||||||||||||
| Powerup Time5 | tOSC | — | — | 10 | ms | |||||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||||||||||||||
| LVPECL Output Option1 | VO | mid-level | V DD – 1.42 | V DD – 1.25 | V | |||||||||||||||||||||
| VOD | swing (diff) | 1.1 | 1.9 | VPP | ||||||||||||||||||||||
| VSE | swing (single-ended) | 0.55 | 0.95 | VPP | ||||||||||||||||||||||
| LVDS Output Option2 | VO | mid-level | 1.125 | 1.20 | 1.275 | V | ||||||||||||||||||||
| VOD | swing (diff) | 0.5 | 0.7 | 0.9 | VPP | |||||||||||||||||||||
| CML Output Option2 | VO | 2.5/3.3 V option mid-level | — | V DD – 1.30 | — | V | ||||||||||||||||||||
| 1.8 V option mid-level | — | V DD – 0.36 | — | |||||||||||||||||||||||
| VOD | 2.5/3.3 V option swing (diff) | 1.10 | 1.50 | 1.90 | VPP | |||||||||||||||||||||
| 1.8 V option swing (diff) | 0.35 | 0.425 | 0.50 | |||||||||||||||||||||||
| CMOS Output Option3 | V OH | 0.8 x V DD | — | V DD | V | |||||||||||||||||||||
| VOL | — | — | 0.4 | |||||||||||||||||||||||
| Rise/Fall time (20/80%) | tR,t F | LVPECL/LVDS/CML | — | — | 350 | ps | ||||||||||||||||||||
| CMOS with CL= 15 pF | — | 2 | — | ns | ||||||||||||||||||||||
| Symmetry (duty cycle) | SYM |
LVPECL: V DD – 1.3 V (diff) LVDS: 1.25 V (diff) CMOS: V DD/2 |
45 | — | 55 | % | ||||||||||||||||||||

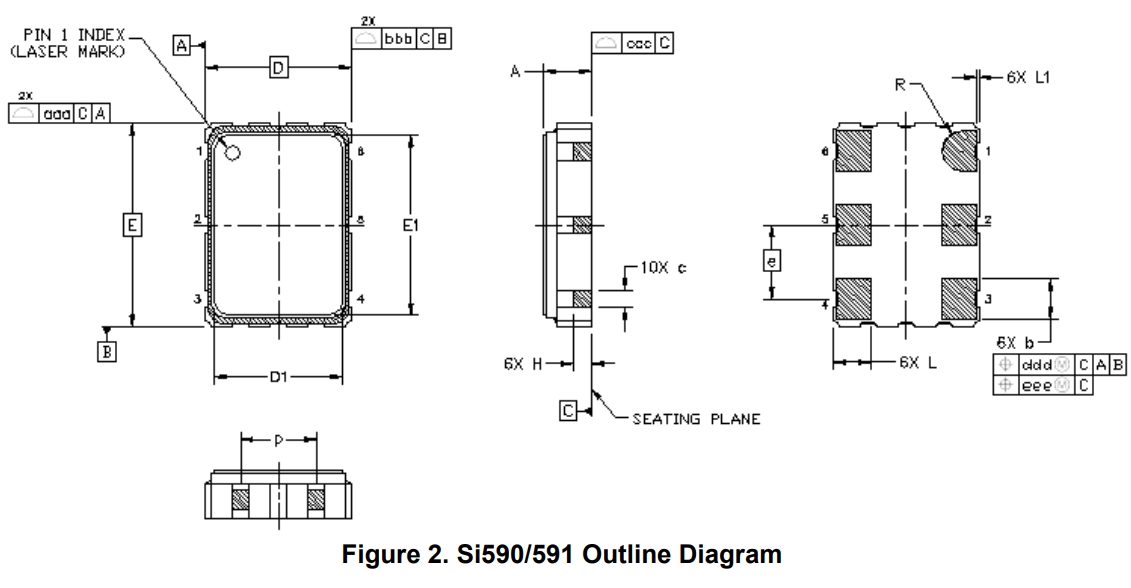

Si591視聽設備晶振,591BC200M000DG,思佳訊SMD差分晶振 尺寸圖
Si591視聽設備晶振,591BC200M000DG,思佳訊SMD差分晶振

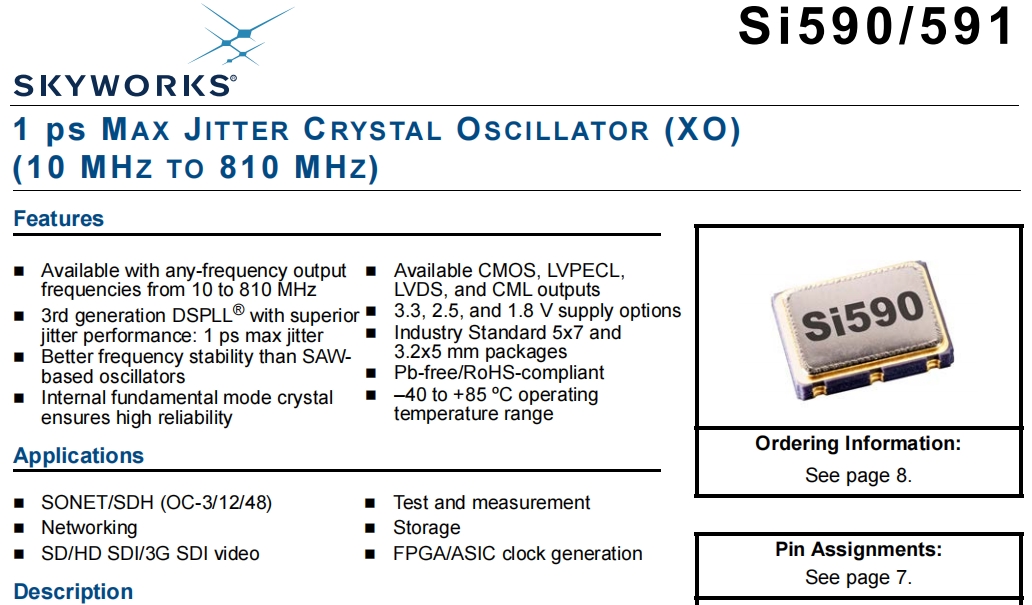

OSC晶振產品特點：
可用于任何頻率輸出頻率從10到810兆赫
具有卓越性能的第三代DSPLL®抖動性能：最大抖動1 ps
比基于SAW的振蕩器具有更好的頻率穩定性
內部基模晶體確保高可靠性
可用的CMOS、LVPECL、LVDS和CML輸出
3.3、2.5和1.8 V電源選項
行業標準5x7和3.2x5 mm包裝
無鉛/符合RoHS
–40至+85ºC運行溫度范圍
| Mfr Part # | 歐美晶振 | Description | Series | Frequency | Output | Voltage - Supply |
| 591EC148M550DG | Skyworks有源晶振 | XTAL OSC XO 148.5500MHZ LVPECL | Si591 | 148.55 MHz | LVPECL | 2.5V |
| 591EC155M520DG | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ LVPECL | Si591 | 155.52 MHz | LVPECL | 2.5V |
| 591EC156M250DG | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVPECL | Si591 | 156.25 MHz | LVPECL | 2.5V |
| 591FC148M500DG | Skyworks有源晶振 | XTAL OSC XO 148.5000MHZ LVDS SMD | Si591 | 148.5 MHz | LVDS | 2.5V |
| 591FC150M000DG | Skyworks有源晶振 | XTAL OSC XO 150.0000MHZ LVDS SMD | Si591 | 150 MHz | LVDS | 2.5V |
| 591FC156M250DG | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVDS SMD | Si591 | 156.25 MHz | LVDS | 2.5V |
| 591FC200M000DG | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVDS SMD | Si591 | 200 MHz | LVDS | 2.5V |
| 591FD114M285DG | Skyworks有源晶振 | XTAL OSC XO 114.2850MHZ LVDS SMD | Si591 | 114.285 MHz | LVDS | 2.5V |
| 591MC156M250DG | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVPECL | Si591 | 156.25 MHz | LVPECL | 3.3V |
| 591MD53M1250DG | Skyworks有源晶振 | XTAL OSC XO 53.1250MHZ LVPECL | Si591 | 53.125 MHz | LVPECL | 3.3V |
| 591MD62M5000DG | Skyworks有源晶振 | XTAL OSC XO 62.5000MHZ LVPECL | Si591 | 62.5 MHz | LVPECL | 3.3V |
| 591NC156M250DG | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVDS SMD | Si591 | 156.25 MHz | LVDS | 3.3V |
| 591RC160M000DG | Skyworks有源晶振 | XTAL OSC XO 160.0000MHZ LVPECL | Si591 | 160 MHz | LVPECL | 2.5V |
| 591AC000278DG | Skyworks有源晶振 | XTAL OSCILLATOR | Si591 | 156.253906 MHz | LVPECL | 3.3V |
| 591FD125M000DG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 125 MHz | LVDS | 2.5V |
| 591BD72M0000DG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 72 MHz | LVDS | 3.3V |
| 591FG156M250DG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 156.25 MHz | LVDS | 2.5V |
| 591EG200M000DG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 200 MHz | LVPECL | 2.5V |
| 591FG200M000DG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 200 MHz | LVDS | 2.5V |
| 591AG135M000DG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 135 MHz | LVPECL | 3.3V |
| 591FG150M000DG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 150 MHz | LVDS | 2.5V |
| 591AG156M250DG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 156.25 MHz | LVPECL | 3.3V |
| 591BD48M0000DG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 48 MHz | LVDS | 3.3V |
| 591AC000106DG | Skyworks有源晶振 | XTAL OSC XO 106.0000KHZ LVPECL | Si591 | 106 kHz | LVPECL | 3.3V |
| 591AC000211DG | Skyworks有源晶振 | XTAL OSC XO 211.0000KHZ LVPECL | Si591 | 211 kHz | LVPECL | 3.3V |
| 591AC143M360DG | Skyworks有源晶振 | XTAL OSC XO 143.3600MHZ LVPECL | Si591 | 143.36 MHz | LVPECL | 3.3V |
| 591AC150M000DG | Skyworks有源晶振 | XTAL OSC XO 150.0000MHZ LVPECL | Si591 | 150 MHz | LVPECL | 3.3V |
| 591AC155M520DG | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ LVPECL | Si591 | 155.52 MHz | LVPECL | 3.3V |
| 591AC156M250DG | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVPECL | Si591 | 156.25 MHz | LVPECL | 3.3V |
| 591AD25M0000DG | Skyworks有源晶振 | XTAL OSC XO 25.0000MHZ LVPECL | Si591 | 25 MHz | LVPECL | 3.3V |
| 591AD62M5000DG | Skyworks有源晶振 | XTAL OSC XO 62.5000MHZ LVPECL | Si591 | 62.5 MHz | LVPECL | 3.3V |
| 591AD74M1758DG | Skyworks有源晶振 | XTAL OSC XO 74.1758MHZ LVPECL | Si591 | 74.1758 MHz | LVPECL | 3.3V |
| 591AD74M2500DG | Skyworks有源晶振 | XTAL OSC XO 74.2500MHZ LVPECL | Si591 | 74.25 MHz | LVPECL | 3.3V |
| 591BC000244DG | Skyworks有源晶振 | XTAL OSC XO 244.0000KHZ LVDS SMD | Si591 | 244 kHz | LVDS | 3.3V |
| 591BC148M500DG | Skyworks有源晶振 | XTAL OSC XO 148.5000MHZ LVDS SMD | Si591 | 148.5 MHz | LVDS | 3.3V |
| 591BC156M250DG | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVDS SMD | Si591 | 156.25 MHz | LVDS | 3.3V |
| 591BC166M000DG | Skyworks有源晶振 | XTAL OSC XO 166.0000MHZ LVDS SMD | Si591 | 166 MHz | LVDS | 3.3V |
| 591BC200M000DG | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVDS SMD | Si591 | 200 MHz | LVDS | 3.3V |
| 591BD100M000DG | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | Si591 | 100 MHz | LVDS | 3.3V |
| 591BD122M880DG | Skyworks有源晶振 | XTAL OSC XO 122.8800MHZ LVDS SMD | Si591 | 122.88 MHz | LVDS | 3.3V |
| 591BD125M000DG | Skyworks有源晶振 | XTAL OSC XO 125.0000MHZ LVDS SMD | Si591 | 125 MHz | LVDS | 3.3V |
| 591BD20M0000DG | Skyworks有源晶振 | XTAL OSC XO 20.0000MHZ LVDS SMD | Si591 | 20 MHz | LVDS | 3.3V |
| 591BD25M0000DG | Skyworks有源晶振 | XTAL OSC XO 25.0000MHZ LVDS SMD | Si591 | 25 MHz | LVDS | 3.3V |
| 591BD66M6670DG | Skyworks有源晶振 | XTAL OSC XO 66.6670MHZ LVDS SMD | Si591 | 66.667 MHz | LVDS | 3.3V |
| 591NA500M000DG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED | Si591 | 500 MHz | LVDS | 3.3V |
| 591AD000391DGR | Skyworks有源晶振 | XTAL OSC XO 391.0000KHZ LVPECL | Si591 | 391 kHz | LVPECL | 3.3V |
| 591AD004636DGR | Skyworks有源晶振 | XTAL OSC XO 4.6360MHZ LVPECL SMD | Si591 | 4.636 MHz | LVPECL | 3.3V |
| 591AD148M500DGR | Skyworks有源晶振 | XTAL OSC XO 148.5000MHZ LVPECL | Si591 | 148.5 MHz | LVPECL | 3.3V |
| 591AD150M000DGR | Skyworks有源晶振 | XTAL OSC XO 150.0000MHZ LVPECL | Si591 | 150 MHz | LVPECL | 3.3V |
| 591AD152M520DGR | Skyworks有源晶振 | XTAL OSC XO 152.5200MHZ LVPECL | Si591 | 152.52 MHz | LVPECL | 3.3V |
| 591AD155M520DGR | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ LVPECL | Si591 | 155.52 MHz | LVPECL | 3.3V |
| 591AD156M250DGR | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVPECL | Si591 | 156.25 MHz | LVPECL | 3.3V |
| 591AD156M254DGR | Skyworks有源晶振 | XTAL OSC XO 156.2540MHZ LVPECL | Si591 | 156.254 MHz | LVPECL | 3.3V |
| 591AD165M000DGR | Skyworks有源晶振 | XTAL OSC XO 165.0000MHZ LVPECL | Si591 | 165 MHz | LVPECL | 3.3V |
| 591AD165M254DGR | Skyworks有源晶振 | XTAL OSC XO 165.2540MHZ LVPECL | Si591 | 165.254 MHz | LVPECL | 3.3V |
| 591BD000285DGR | Skyworks有源晶振 | XTAL OSC XO 170.678278MHZ LVDS | Si591 | 170.678278 MHz | LVDS | 3.3V |
| 591BD000292DGR | Skyworks有源晶振 | XTAL OSC XO 292.0000KHZ LVDS SMD | Si591 | 292 kHz | LVDS | 3.3V |
| 591BD148M500DGR | Skyworks有源晶振 | XTAL OSC XO 148.5000MHZ LVDS SMD | Si591 | 148.5 MHz | LVDS | 3.3V |
| 591BD155M520DGR | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ LVDS SMD | Si591 | 155.52 MHz | LVDS | 3.3V |
| 591BD156M250DGR | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVDS SMD | Si591 | 156.25 MHz | LVDS | 3.3V |
| 591BD160M000DGR | Skyworks有源晶振 | XTAL OSC XO 160.0000MHZ LVDS SMD | Si591 | 160 MHz | LVDS | 3.3V |
| 591BD200M000DGR | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVDS SMD | Si591 | 200 MHz | LVDS | 3.3V |
| 591BD210M000DGR | Skyworks有源晶振 | XTAL OSC XO 210.0000MHZ LVDS SMD | Si591 | 210 MHz | LVDS | 3.3V |
| 591FD147M456DGR | Skyworks有源晶振 | XTAL OSC XO 147.4560MHZ LVDS SMD | Si591 | 147.456 MHz | LVDS | 2.5V |
| 591FD148M500DGR | Skyworks有源晶振 | XTAL OSC XO 148.5000MHZ LVDS SMD | Si591 | 148.5 MHz | LVDS | 2.5V |
| 591FD200M000DGR | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVDS SMD | Si591 | 200 MHz | LVDS | 2.5V |
| 591ND166M667DGR | Skyworks有源晶振 | XTAL OSC XO 166.6670MHZ LVDS SMD | Si591 | 166.667 MHz | LVDS | 3.3V |
| 591FD156M250DGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 156.25 MHz | LVDS | 2.5V |
| 591FD004691DGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 127.221875 MHz | LVDS | 2.5V |
| 591SD156M250DGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 156.25 MHz | LVDS | 2.5V |
| 591FB000127DGR | Skyworks有源晶振 | XTAL OSC XO 127.0000KHZ LVDS SMD | Si591 | 127 kHz | LVDS | 2.5V |
| 591AB250M000DG | Skyworks有源晶振 | XTAL OSC XO 250.0000MHZ LVPECL | Si591 | 250 MHz | LVPECL | 3.3V |
| 591AB307M200DG | Skyworks有源晶振 | XTAL OSC XO 307.2000MHZ LVPECL | Si591 | 307.2 MHz | LVPECL | 3.3V |
| 591AB312M500DG | Skyworks有源晶振 | XTAL OSC XO 312.5000MHZ LVPECL | Si591 | 312.5 MHz | LVPECL | 3.3V |
| 591AB340M000DG | Skyworks有源晶振 | XTAL OSC XO 340.0000MHZ LVPECL | Si591 | 340 MHz | LVPECL | 3.3V |
| 591AB345M000DG | Skyworks有源晶振 | XTAL OSC XO 345.0000MHZ LVPECL | Si591 | 345 MHz | LVPECL | 3.3V |
| 591AB360M000DG | Skyworks有源晶振 | XTAL OSC XO 360.0000MHZ LVPECL | Si591 | 360 MHz | LVPECL | 3.3V |
| 591BB250M000DG | Skyworks有源晶振 | XTAL OSC XO 250.0000MHZ LVDS SMD | Si591 | 250 MHz | LVDS | 3.3V |
| 591BB275M000DG | Skyworks有源晶振 | XTAL OSC XO 275.0000MHZ LVDS SMD | Si591 | 275 MHz | LVDS | 3.3V |
| 591BB295M000DG | Skyworks晶振 | XTAL OSC XO 295.0000MHZ LVDS SMD | Si591 | 295 MHz | LVDS | 3.3V |
| 591BB312M500DG | Skyworks有源晶振 | XTAL OSC XO 312.5000MHZ LVDS SMD | Si591 | 312.5 MHz | LVDS | 3.3V |
| 591BB360M000DG | Skyworks有源晶振 | XTAL OSC XO 360.0000MHZ LVDS SMD | Si591 | 360 MHz | LVDS | 3.3V |
| 591FB266M666DG | Skyworks有源晶振 | XTAL OSC XO 266.6660MHZ LVDS SMD | Si591 | 266.666 MHz | LVDS | 2.5V |
| 591FB270M000DG | Skyworks有源晶振 | XTAL OSC XO 270.0000MHZ LVDS SMD | Si591 | 270 MHz | LVDS | 2.5V |
| 591FB312M500DG | Skyworks有源晶振 | XTAL OSC XO 312.5000MHZ LVDS SMD | Si591 | 312.5 MHz | LVDS | 2.5V |
| 591FB320M000DG | Skyworks有源晶振 | XTAL OSC XO 320.0000MHZ LVDS SMD | Si591 | 320 MHz | LVDS | 2.5V |
| 591FB400M000DG | Skyworks有源晶振 | XTAL OSC XO 400.0000MHZ LVDS SMD | Si591 | 400 MHz | LVDS | 2.5V |
| 591MB400M000DG | Skyworks有源晶振 | XTAL OSC XO 400.0000MHZ LVPECL | Si591 | 400 MHz | LVPECL | 3.3V |
| 591NB270M000DG | Skyworks有源晶振 | XTAL OSC XO 270.0000MHZ LVDS SMD | Si591 | 270 MHz | LVDS | 3.3V |
| 591AB250M000DGR | Skyworks有源晶振 | XTAL OSC XO 250.0000MHZ LVPECL | Si591 | 250 MHz | LVPECL | 3.3V |
| 591AB307M200DGR | Skyworks有源晶振 | XTAL OSC XO 307.2000MHZ LVPECL | Si591 | 307.2 MHz | LVPECL | 3.3V |
550AM250M000DGR,Si550壓控差分晶振,Skyworks北斗導航晶振，尺寸7.0x5.0mm，頻率250MHZ，輸出邏輯LVPECL，電壓3.3V，頻率穩定性20ppm，思佳訊差分振蕩器，Skyworks有源晶振，LVPECL輸出壓控晶振，LVPECL差分晶振，六腳差分晶振，7050mm壓控振蕩器，貼片差分晶振，壓控晶體振蕩器，石英差分晶振，壓控差分晶振，有源差分振蕩器，差分晶體振蕩器，高頻差分振蕩器，高性能差分晶振，低電壓差分晶振，低抖動差分晶振，低損耗差分振蕩器，低電壓差分振蕩器，低耗能差分晶振，低功耗差分晶振，低相噪差分晶振，北斗模塊專用晶振，無線模塊差分晶振，智能家居差分晶振，網絡設備差分晶振，光學模塊差分晶振，儀器設備差分晶振，血壓計差分晶振，具有低抖動低功耗的特點。
7050貼片差分晶振產品被廣泛應用于各個領域之中，比較常用北斗模塊，無線模塊，智能家居，網絡設備，光學模塊，儀器設備，血壓計等領域.550AM250M000DGR,Si550壓控差分晶振,Skyworks北斗導航晶振.
