頻率：20MHZ
尺寸：2.0x1.6mm
CO2016智能穿戴晶振,CO2016-20.000-3.3-50-T-TR,Raltron有源晶振，尺寸2.0x1.6mm，頻率20MHZ，電壓3.3V，支持輸出CMOS，美國拉隆晶振，歐美進口晶振，2016mm有源晶振，時鐘晶體振蕩器，有源貼片晶振，有源石英振蕩器，石英晶體振蕩器，CMOS輸出晶振，高性能有源晶振，高品質有源晶振，低功耗有源晶振，低耗能有源晶振，低電壓有源晶振，低相位有源晶振，智能穿戴專用有源晶振，移動通信有源晶振，物聯網有源晶振，光通訊有源晶振，便攜式設備有源晶振，多媒體設備有源晶振，具有低功耗高品質的特點，OSC晶振產品比較適合用于智能穿戴，移動通信，物聯網，光通訊，便攜式設備，多媒體設備等應用領域。CO2016智能穿戴晶振,CO2016-20.000-3.3-50-T-TR,Raltron有源晶振.
CO2016智能穿戴晶振,CO2016-20.000-3.3-50-T-TR,Raltron有源晶振 參數表
| PARAMETER | VALUE | ||||||||||||||||||
| Nominal Frequency | 20MHZ | ||||||||||||||||||
| Operating Temperature Range |
-20°C ~ +70°C Standard -40°C ~ +85?C Extended |
||||||||||||||||||
| Frequency Stability * | ±20 ppm, ±25 ppm, ±30 ppm, ±50 ppm | ||||||||||||||||||
| Storage Temperature Range | -55°C to +125°C | ||||||||||||||||||
| Supply Voltage (Vcc) | 1.8 V, 3.3 V, 5.0 V | ||||||||||||||||||
| Supply Current | 240 µA max | ||||||||||||||||||
|
Output CMOS |
Symmetry | 40% to 60% at 50% Vdd (45% to 55% Available) | |||||||||||||||||
| Rise / Fall Time | 200 ns max at 10% to 90% Vdd | ||||||||||||||||||
| Logic “0” Level | Vcc x 0.1 V max | ||||||||||||||||||
| Logic “1” Level | Vcc x 0.9 V min | ||||||||||||||||||
| Load | 15 pF max | ||||||||||||||||||
| Enable / Disable Function |
Pin 1: High or Open >> Output enabled Pin 3 Pin 1: Low >> Output disabled (High impedance) |
||||||||||||||||||
| Start-up Time | 10 ms max | ||||||||||||||||||

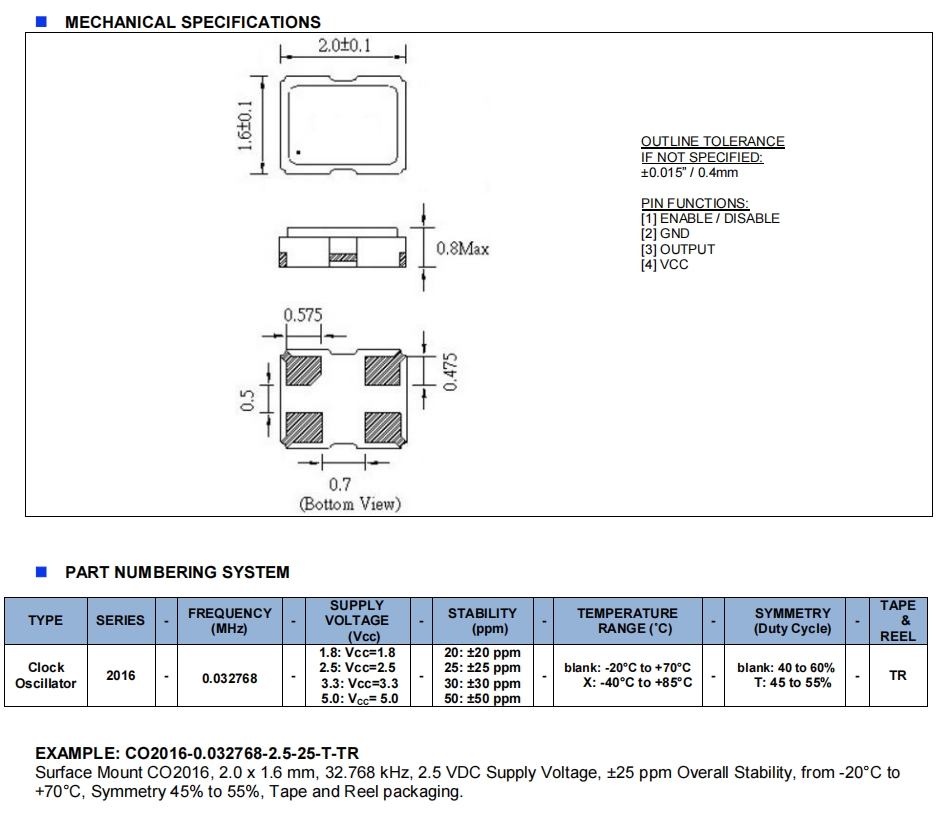

CO2016智能穿戴晶振,CO2016-20.000-3.3-50-T-TR,Raltron有源晶振 尺寸圖
CO2016智能穿戴晶振,CO2016-20.000-3.3-50-T-TR,Raltron有源晶振
OscillatorCrystal產品特點：
支持比較寬的頻率
CMOS輸出
電源電壓1.8~5.0 V
低電流消耗類型
低相位噪聲
| 元器件詳情 | 包裝 | Oscillator Type | Operating Frequency | Frequency Stability | Supply Voltage |
| 盒裝 | 32MHz | ±100ppm | 5V | ||
| CO13100-32.000-EXT | |||||
| Raltron | |||||
| CO13 系列 32 MHz 13.21 x 13.21 mm 5 V ±100 ppm 通孔 時鐘振蕩器 | |||||
| 管裝 | 40MHz | ±100ppm | 5V | ||
| CO19050-40.000-T | |||||
| Raltron | |||||
| CO1 Series 40 MHz 5 V ±100 ppm -20°C TO +70°C Thru-Hole HCMOS Clock Oscillator | |||||
| 卷盤 | 20MHz | ±50ppm | 3.3V | ||
| CO2016-20.000-3.3-50-T-TR | |||||
| Raltron | |||||
| CO2016 系列 2 x 1.6 mm 20 MHz 3.3 V ±50 ppm 表面貼裝 時鐘振蕩器 | |||||
| 卷盤 | 25MHz | ±50ppm | 3.3V | ||
| CO2016-25.000-3.3-50-T-TR | |||||
| Raltron | |||||
| CO2016 系列 2 x 1.6 mm 25 MHz 3.3 V ±50 ppm 表面貼裝 時鐘振蕩器 | |||||
| 卷盤 | 50MHz | ±50ppm | 3.3V | ||
| CO2016-50.000-3.3-50-T-TR | |||||
| Raltron | |||||
| CO2016 系列 2 x 1.6 mm 50 MHz 3.3 V ±50 ppm 表面貼裝 時鐘振蕩器 | |||||
| 卷盤 | 25MHz | ±20ppm | 3.3V | ||
| CO4302-25.000-EXT-T-T | |||||
| Raltron | |||||
| CO4 Series 25 MHz 3.3 V ±20 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | |||||
| 卷盤 | 40MHz | ±20ppm | 3.3V | ||
| CO4302-40.000-T-EXT-TR | |||||
| Raltron | |||||
| CO43 系列 40 MHz ±20 ppm -40 至 +85°C 嚴格對稱 標準貼裝 時鐘 振蕩器 | |||||
| 卷盤 | 11.184MHz | ±25ppm | 3.3V | ||
| CO43025-11.184-TR | |||||
| Raltron | |||||
| CO43025 系列 11.184 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面貼裝 振蕩器 | |||||
| 卷盤 | 12.96MHz | ±25ppm | 3.3V | ||
| CO43025-12.960-TR | |||||
| Raltron | |||||
| CO43025 系列 12.960 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面貼裝 振蕩器 | |||||
| 盒裝 | 14.3182MHz | ±25ppm | 3.3V | ||
| CO43025-14.31818-T | |||||
| Raltron | |||||
| CO43025 系列 14.31818 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面貼裝 振蕩器 | |||||
| 卷盤 | 14.3182MHz | ±25ppm | 3.3V | ||
| CO43025-14.31818-T-TR | |||||
| Raltron | |||||
| CO4 Series 14.31818 MHz 3.3 V ±25 ppm -20°C TO +70°C SMT CMOS Clock Oscillator | |||||
| 卷盤 | 16.384MHz | ±25ppm | 3.3V | ||
| CO43025-16.384-T-TR | |||||
| Raltron | |||||
| CO43025 系列 16.384 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面貼裝 振蕩器 | |||||
| 卷盤 | 20MHz | ±25ppm | 3.3V | ||
| CO43025-20.000-EXT-T-TR | |||||
| Raltron | |||||
| CO43025 系列 20 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面貼裝 擴展型 振蕩器 | |||||
| 卷盤 | 24.576MHz | ±25ppm | 3.3V | ||
| CO43025-24.576-T-TR | |||||
| Raltron | |||||
| CO43 Series 24.576 MHz 7 x 5 mm 3.3 V ±25 ppm Surface Mount Clock Oscillator | |||||
| 卷盤 | 24.704MHz | ±25ppm | 3.3V | ||
| CO43025-24.704-EXT-T | |||||
| Raltron | |||||
| CO43 Series 24.704 MHz 7 x 5 mm 3.3 V ±25 ppm Surface Mount Clock Oscillator | |||||
| 卷盤 | 25MHz | ±25ppm | 3.3V | ||
| CO43025-25.000-T-TR | |||||
| Raltron | |||||
| CO43 Series 25 MHz 7 x 5 mm 3.3 V ±25 ppm Surface Mount Clock Oscillator | |||||
| 卷盤 | |||||
| CO43025-32.000-EXT-T-TR | |||||
| Raltron | |||||
| CO4 Series 32 MHz 3.3 V ±25 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | |||||
| 卷盤 | 25MHz | ±25ppm | 3.3V | ||
| CO43025S-25.000-EXT-TR | |||||
| Raltron晶振 | |||||
| CO43025 系列 25 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面貼裝 擴展型 振蕩器 | |||||
| 卷盤 | 27MHz | ±25ppm | 3.3V | ||
| CO43025S-27.000-T-TR- L30 | |||||
| Raltron | |||||
| CO43 Series 27 MHz 7 x 5 mm 3.3 V ±25 ppm Surface Mount Clock Oscillator | |||||
| 卷盤 | 1.8432MHz | ±50ppm | 3.3V | ||
| CO4305-1.8432MHZ-T | |||||
| Raltron | |||||
| CO43 Series 1.8432 MHz 7 x 5 mm 3.3 V ±50 ppm Surface Mount Clock Oscillator | |||||
| 卷盤 | 10MHz | ±50ppm | 3.3V | ||
| CO4305-10.000-T-TR | |||||
| Raltron | |||||
| CO4 Series 10 MHz 3.3 V ±50 ppm -20°C TO +70°C SMT CMOS Clock Oscillator | |||||
| 卷盤 | 11.0592MHz | ±50ppm | 3.3V | ||
| CO4305-11.0592MHZ-T | |||||
| Raltron | |||||
| CO4 Series 11.0592 MHz 3.3 V ±50 ppm -20°C TO +70°C SMT CMOS Clock Oscillator | |||||
| 剪切卷帶 | 11.2896MHz | ±50ppm | 3.3V | ||
| CO4305-11.2896-EXT-T-TR | |||||
| Raltron | |||||
| CO43 Series 11.2896 MHz ±50 ppm -40 to +85°C Tight Symmetry SMT Clock Oscillator | |||||
| 卷盤 | 16MHz | ±50ppm | 3.3V | ||
| CO4305-16.000-EXT-TR | |||||
| Raltron | |||||
| C043 系列 16 MHz ± 50 ppm 7 x 5 mm 3.3 V 表面貼裝 時鐘振蕩器 | |||||
| 卷盤 | 2.048MHz | ±50ppm | 3.3V | ||
| CO4305-2.048-T-TR | |||||
| Raltron | |||||
| CO43 系列 2.048 MHz 7 x 5 mm 3.3 V ±50 ppm 表面貼裝 時鐘振蕩器 | |||||
| 卷盤 | 20MHz | ±50ppm | 3.3V | ||
| CO4305-20.000-T-TR | |||||
| Raltron | |||||
| CO43 系列 20 MHz 7 x 5 mm 3.3 V ±50 ppm 表面貼裝 時鐘振蕩器 | |||||
| 卷盤 | 22.118MHz | ±50ppm | 3.3V | ||
| CO4305-22.118-EXT-TR | |||||
| Raltron | |||||
| CO4 Series 22.118 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | |||||
| 卷盤 | 22.118MHz | ±50ppm | 3.3V | ||
| CO4305-22.118M-EXT | |||||
| Raltron | |||||
| CO43 系列 22.118 MHz 7 x 5 mm 3.3 V ±100 ppm 表面貼裝 時鐘振蕩器 | |||||
| 卷盤 | 24MHz | ±50ppm | 3.3V | ||
| CO4305-24.000-T-TR | |||||
| Raltron | |||||
| CO43 系列 24 MHz 7 x 5 mm 3.3 V ±100 ppm 表面貼裝 時鐘振蕩器 | |||||
| 卷盤 | 24MHz | ±50ppm | 3.3V | ||
| CO4305-24.000-TR | |||||
| Raltron | |||||
| CO43 系列 24 MHz 7 x 5 mm 3.3 V ±100 ppm 表面貼裝 時鐘振蕩器 | |||||
| 卷盤 | 24.576MHz | ±50ppm | 3.3V | ||
| CO4305-24.576-EXT-T-T | |||||
| Raltron | |||||
| CO4 Series 24.576 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | |||||
| 卷盤 | 24.576MHz | ±50ppm | 3.3V | ||
| CO4305-24.576-EXT-TR-L30 | |||||
| Raltron | |||||
| CO43 Series 24.576 MHz 7 x 5 mm 3.3 V ±50 ppm Surface Mount Clock Oscillator | |||||
| 卷盤 | 25MHz | ±50ppm | 3.3V | ||
| CO4305-25.000-EXT-TR | |||||
| Raltron | |||||
| CO4 Series 25 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | |||||
| 卷盤 | 25MHz | ±50ppm | 3.3V | ||
| CO4305-25.000-EXT-TR-L30 | |||||
| Raltron | |||||
| CO4 Series 25 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | |||||
| 卷盤 | 25MHz | ±50ppm | 3.3V | ||
| CO4305-25.000-TR | |||||
| Raltron | |||||
| CO4305 系列 25 MHz 50 ppm 3.3 V -10 至 70°C 表面貼裝 振蕩器 | |||||
| 卷盤 | 25MHz | ±50ppm | 3.3V | ||
| CO4305-25.000T-TR | |||||
| Raltron | |||||
| CO43 Series 25 MHz 7 x 5 mm 3.3 V ±50 ppm Surface Mount Clock Oscillator | |||||
| 卷盤 | 28.224MHz | ±50ppm | 3.3V | ||
| CO4305-28.224-EXT-TR | |||||
| Raltron | |||||
| CO43 Series 28.224 MHz 7 x 5 mm 3.3 V ±50 ppm Surface Mount Clock Oscillator |
