頻率：155.52MHZ
尺寸：7.0×5.0mm
CS9TVH-155.52,CS9時鐘振蕩器,拉隆無線路由器晶振，尺寸7.0×5.0mm，頻率155.52MHZ，電壓3.3V，支持輸出LVPECL，美國Raltron晶振，拉隆有源晶振，歐美進口晶振，石英差分振蕩器，石英晶體振蕩器，7050mm有源晶振，六腳差分晶振，LV-PECL差分晶振，差分晶體振蕩器，OSC差分晶振，低電壓差分晶振，低功耗差分晶振，低相位差分晶振，低相噪差分晶振，低耗能差分晶振，無線路由器專用差分晶振，服務器差分晶振，移動通信差分晶振，智能家居差分晶振，物聯網差分晶振，具有低相位相噪的特點。
差分晶振產品很適合用于無線路由器，服務器，移動通信，智能家居，物聯網等領域。CS9TVH-155.52,CS9時鐘振蕩器,拉隆無線路由器晶振.
CS9TVH-155.52,CS9時鐘振蕩器,拉隆無線路由器晶振，尺寸7.0×5.0mm，頻率155.52MHZ，電壓3.3V，支持輸出LVPECL，美國Raltron晶振，拉隆有源晶振，歐美進口晶振，石英差分振蕩器，石英晶體振蕩器，7050mm有源晶振，六腳差分晶振，LV-PECL差分晶振，差分晶體振蕩器，OSC差分晶振，低電壓差分晶振，低功耗差分晶振，低相位差分晶振，低相噪差分晶振，低耗能差分晶振，無線路由器專用差分晶振，服務器差分晶振，移動通信差分晶振，智能家居差分晶振，物聯網差分晶振，具有低相位相噪的特點。
差分晶振產品很適合用于無線路由器，服務器，移動通信，智能家居，物聯網等領域。CS9TVH-155.52,CS9時鐘振蕩器,拉隆無線路由器晶振.

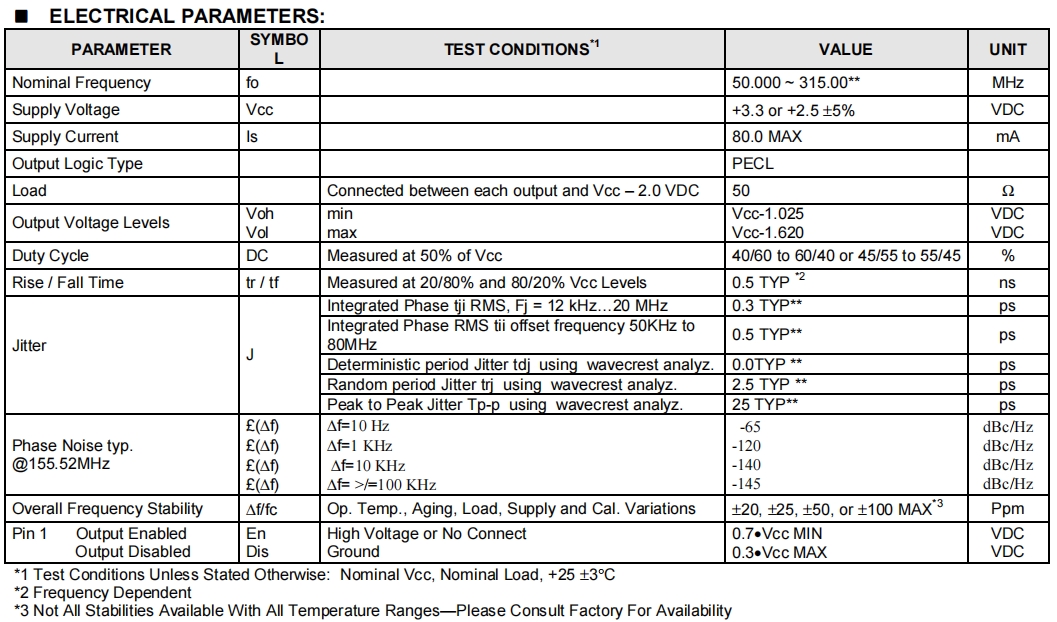

CS9TVH-155.52,CS9時鐘振蕩器,拉隆無線路由器晶振 參數表
| PARAMETER |
SYMBO L |
TEST CONDITIONS*1 | VALUE | UNIT | |||||||
| Nominal Frequency | fo | 155.520** | MHz | ||||||||
| Supply Voltage | Vcc | +3.3 or +2.5 ±5% | VDC | ||||||||
| Supply Current | Is | 80.0 MAX | mA | ||||||||
| Output Logic Type | PECL | ||||||||||
| Load | Connected between each output and Vcc – 2.0 VDC | 50 | Ω | ||||||||
| Output Voltage Levels |
Voh Vol |
min max |
Vcc-1.025 Vcc-1.620 |
VDC VDC |
|||||||
| Duty Cycle | DC | Measured at 50% of Vcc | 40/60 to 60/40 or 45/55 to 55/45 | % | |||||||
| Rise / Fall Time | tr / tf | Measured at 20/80% and 80/20% Vcc Levels | 0.5 TYP *2 | ns | |||||||
| Jitter | J | Integrated Phase tji RMS, Fj = 12 kHz…20 MHz | 0.3 TYP** | ps | |||||||
|
Integrated Phase RMS tii offset frequency 50KHz to 80MHz |
0.5 TYP** | ps | |||||||||
| Deterministic period Jitter tdj using wavecrest analyz. | 0.0TYP ** | ps | |||||||||
| Random period Jitter trj using wavecrest analyz. | 2.5 TYP ** | ps | |||||||||
| Peak to Peak Jitter Tp-p using wavecrest analyz. | 25 TYP** | ps | |||||||||
|
Phase Noise typ. @155.52MHz |
£(Δf) £(Δf) £(Δf) £(Δf) |
Δf=10 Hz Δf=1 KHz Δf=10 KHz Δf= >/=100 KHz |
-65 -120 -140 -145 |
dBc/Hz dBc/Hz dBc/Hz dBc/Hz |
|||||||
| Overall Frequency Stability | Δf/fc | Op. Temp., Aging, Load, Supply and Cal. Variations | ±20, ±25, ±50, or ±100 MAX*3 | Ppm | |||||||
|
Pin 1 Output Enabled Output Disabled |
En Dis |
High Voltage or No Connect Ground |
0.7.Vcc MIN 0.3.Vcc MAX |
VDC VDC |
|||||||

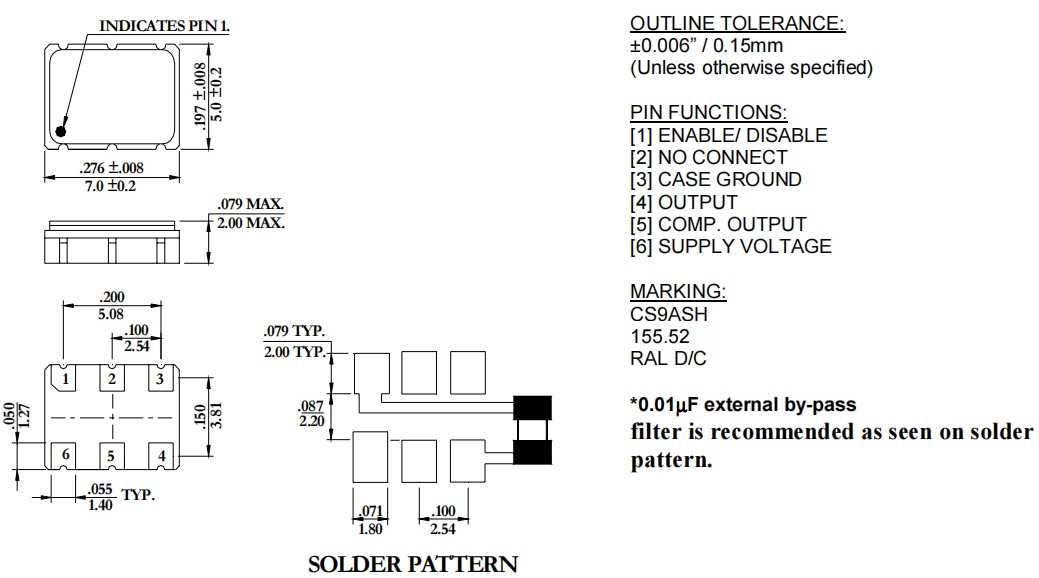

CS9TVH-155.52,CS9時鐘振蕩器,拉隆無線路由器晶振 尺寸圖
CS9TVH-155.52,CS9時鐘振蕩器,拉隆無線路由器晶振

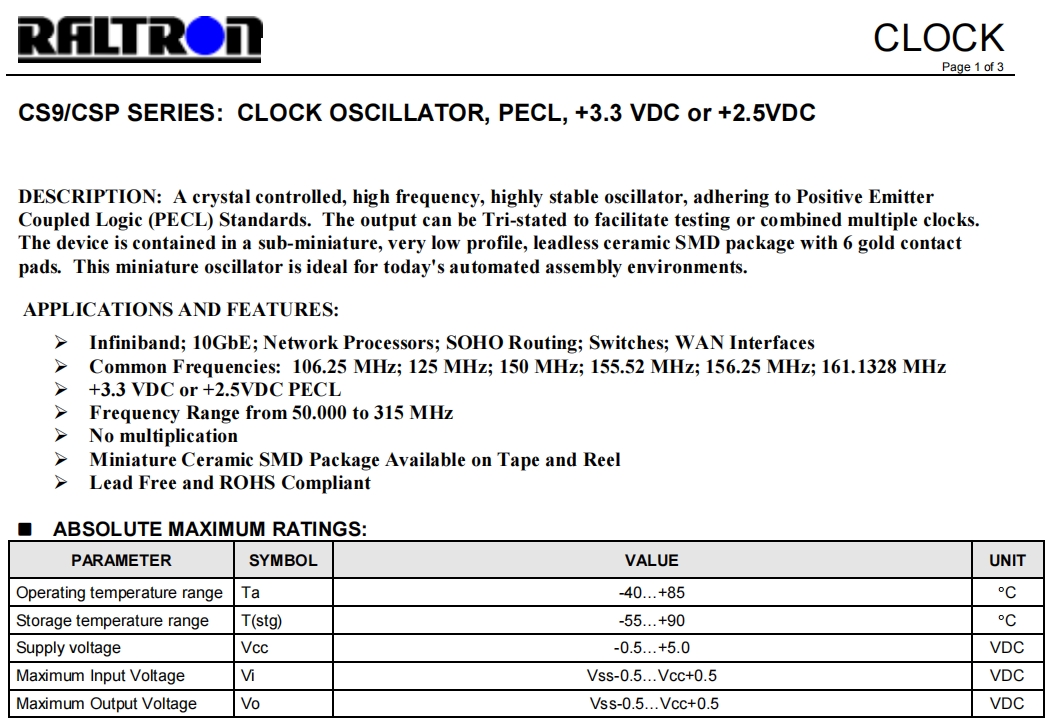

差分貼片晶振產品特點：
Infiniband；10GbE；網絡處理器；SOHO路由；開關；WAN接口
“常用頻率：106.25 MHz；125 MHz；150 MHz；155.52 MHz；156.25 MHz；161.1328 MHz
“+3.3 VDC或+2.5 VDC PECL
“頻率范圍從50.000到315 MHz
“沒有乘法
“微型陶瓷SMD封裝可用于磁帶和卷軸
“無鉛且符合ROHS
| 元器件詳情 | 包裝 | Oscillator Type | Operating Frequency | Frequency Stability | Supply Voltage |
| 管裝 | 16MHz | ±100ppm | 5V | ||
| CO6100-16.000MHZ | |||||
| Raltron | |||||
| CO6 Series 16 MHz 5 V ±100 ppm 0°C TO +70°C Thru-Hole HCMOS Clock Oscillator | |||||
| 管裝 | 3.6864MHz | ±100ppm | 5V | ||
| CO6100-3.6864 | |||||
| Raltron | |||||
| CO6100 系列 3.6864 MHz ±100 ppm 5 V 0°C 至 +70°C 通孔 振蕩器 | |||||
| 管裝 | 32MHz | ±100ppm | 5V | ||
| CO6100-32.000MHZ | |||||
| Raltron | |||||
| CO6 Series 32 MHz 5 V ±100 ppm 0°C TO +70°C Thru-Hole HCMOS Clock Oscillator | |||||
| 管裝 | 40MHz | ±100ppm | 5V | ||
| CO6100-40.000 | |||||
| Raltron | |||||
| CO6 系列 40 MHz 20.8 x 13.2 mm 5 V ±100 ppm 通孔 時鐘振蕩器 | |||||
| 管裝 | 48MHz | ±100ppm | 5V | ||
| CO6100-48.000 | |||||
| Raltron | |||||
| CO6 系列 48 MHz 20.8 x 13.2 mm 5 V ±100 ppm 通孔 時鐘振蕩器 | |||||
| 管裝 | 5MHz | ±100ppm | 5V | ||
| CO6100-5.000-T | |||||
| Raltron | |||||
| CO6 系列 5 MHz 20.8 x 13.2 mm 5 V ±100 ppm 通孔 時鐘振蕩器 | |||||
| 卷盤 | 28.6364MHz | ±50ppm | 1.8V | ||
| COM11805-28.63636-EXT-T-TR | |||||
| Raltron | |||||
| COM118 系列 28.63636 MHZ (3.2 X 2.5 mm) 50ppm 表面貼裝 振蕩器 | |||||
| 卷盤 | 24MHz | ±25ppm | 3.3V | ||
| COM13025-24.000-EXT-T-TR | |||||
| Raltron | |||||
| COM1 Series 24 MHz 3.3 V ±25 ppm -40°C TO +85°C SMT Clock Oscillator | |||||
| 卷盤 | 27MHz | ±25ppm | 3.3V | ||
| COM13025-25.000-EXT-T-TR | |||||
| Raltron | |||||
| COM1 Series 25 MHz 3.3 V ±25 ppm -40°C TO +85°C SMT Clock Oscillator | |||||
| 卷盤 | 24MHz | ±25ppm | 3.3V | ||
| COM13025-27.000-EXT-T-TR | |||||
| Raltron | |||||
| COM1 Series 27 MHz 3.3 V ±25 ppm -40°C TO +85°C SMT Clock Oscillator | |||||
| 卷盤 | 25MHz | ±50ppm | 3.3V | ||
| COM1305-25.000-EXT-T-TR | |||||
| Raltron | |||||
| COM1 系列 25 MHz 3.3 V ±50 ppm 表面貼裝 晶體振蕩器 | |||||
| 卷盤 | 25MHz | ±50ppm | 3.3V | ||
| COM1305-25.000-T-TR | |||||
| Raltron | |||||
| COM1 Series 25 MHz 3.2 x 2.5 mm 3.3V ±50 ppm Surface Mount Crystal Oscillator | |||||
| 卷盤 | 48MHz | ±50ppm | 3.3V | ||
| COM1305-48.000-EXT-TR | |||||
| Raltron | |||||
| COM1 Series 48 MHz 3.2 x 2.5 mm 3.3V ±50 ppm Surface Mount Crystal Oscillator | |||||
| 卷盤 | 50MHz | ±50ppm | 3.3V | ||
| COM1305-50.000-EXT-T | |||||
| Raltron | |||||
| COM1 Series 50 MHz 3.2 x 2.5 mm 3.3V ±50 ppm Surface Mount Crystal Oscillator | |||||
| 剪切卷帶 | 50MHz | ±50ppm | 3.3V | ||
| COM1305-50.000-EXT-T-TR | |||||
| Raltron | |||||
| COM1 系列 3.2 x 2.5 mm 50 MHz ±50 ppm 3.3 V -40 至 +85°C 表面貼裝 時鐘晶體振蕩器 | |||||
| 卷盤 | 50MHz | ±50ppm | 3.3V | ||
| COM1305-50.000-EXT-T-TR | |||||
| Raltron | |||||
| COM1 系列 3.2 x 2.5 mm 50 MHz ±50 ppm 3.3 V -40 至 +85°C 表面貼裝 時鐘振蕩器 | |||||
| 卷盤 | 27MHz | ±30ppm | 3.3V | ||
| COM2303-27.000-TR | |||||
| Raltron | |||||
| COM2 Series 27 MHz 3.3 V ±30 ppm -10°C TO +70°C SMT Clock Oscillator | |||||
| 卷盤 | 20MHz | ±50ppm | 5V | ||
| COM2505-20.000-TR | |||||
| Raltron | |||||
| COM2 Series 20 MHz 5 x 3.2 mm 3.3 V ±50 ppm Surface Mount Crystal Oscillator | |||||
| 卷盤 | 48MHz | ±100ppm | 5V | ||
| COM2510-48.000-TR | |||||
| Raltron | |||||
| CO2520 Series 48 MHz 5 V ±100 ppm -10°C TO +70°C SMT HCMOS Clock Oscillator | |||||
| 帶狀包裝 | 25MHz | ±50ppm | 3.3V | ||
| CS4TVH-25.000 | |||||
| Raltron | |||||
| CS4 Series 25 MHz 7 x 5 mm 3.3 V ±50 ppm Surface Mount Clock Oscillator | |||||
| 卷盤 | 125MHz | ±20ppm | 3.3V | ||
| CS9420A-LZ-125.000 | |||||
| Raltron | |||||
| CS9 系列 125 MHz 7 x 5 mm 3.3 V ±25 ppm 表面貼裝 時鐘振蕩器 | |||||
| 剪切卷帶 | 155.52MHz | ±50ppm | 3.3V | ||
| CS9TVH-155.52 | |||||
| Raltron | |||||
| CS9 系列 155.52 MHz 7 x 5 mm 3.3 V ±20 ppm 表面貼裝 時鐘振蕩器 | |||||
| 卷盤 | 53.125MHz | ±50ppm | 2.5V | ||
| CSPTVH-53.125 | |||||
| Raltron | |||||
| Clock Series 53.125 MHz 2.5V ±50 ppm -40°C TO +85°C SMT LVPECL Clock Oscillator | |||||
| 卷盤 | 74.25MHz | ±50ppm | 2.5V | ||
| CSPTVH-74.25MHZ | |||||
| Raltron | |||||
| Clock Series 74.25 MHz 2.5V ±50 ppm -40°C TO +85°C SMT LVPECL Clock Oscillator | |||||
| 盒裝 | 20MHz | ±0.05ppm | 3.3V | ||
| OX2114A-D3-5-20.000-3.3 | |||||
| Raltron | |||||
| OCXO 2000 系列 20 MHz -40°C 至 +85°C 5.25 V ±0.3 ppm 振蕩器 | |||||
| 盒裝 | 40MHz | ±0.05ppm | 3.3V | ||
| OX2114A-D3-5-40.000-3.3 | |||||
| Raltron | |||||
| OCXO 2000 系列 40 MHz -40°C 至 +85°C 5.25 V ±0.3 ppm 振蕩器 |
