康華爾電子成立至今已有20多年,是國內數一數二的晶振廠家0755-27838351,專業研發生產銷售石英晶振,32.768K晶振,石英晶體諧振器,貼片晶振,SAW濾波器等.采用無鉛環保材料生產,具有精度穩定,小體積,重量輕等特點.國產晶振就選康華爾電子,質量好,精度高,價格優勢.
康華爾電子多年來在競爭激烈的市場中,以技術占領市場,以質量贏得客戶,是國內口碑極高的晶振供應商.并且憑借自身的努力代理臺灣進口晶振多個品牌,TXC晶振,鴻星晶振,加高晶振,亞陶晶振等.康華爾電子所提供的臺產晶振,均符合德國ROHS環保指令,具有高質量,高可靠使用特性,咨詢選購熱線0755-27838351.
日本進口晶振在國內口碑一流,高端智能產品使用晶振大都會選擇日產晶振作為首選.康華爾電子憑借自身的努力同時代理KDS晶振,愛普生晶振,精工晶體,京瓷晶振等品牌.所代理石英晶振,石英晶體振蕩器,貼片晶體均符合歐盟ROHS環保要求,具有高精度,高品質,低插損,耐高溫等特點.
康華爾電子是國內優秀的歐美進口晶振供貨商0755-27838351,多年來憑借自身的努力,獲得CTS晶振,FOX晶振,Sitime晶振,瑞康晶振等代理權限.所代理進口晶振,歐美晶振均符合歐盟ROHS環保指令,并且獲得ISO國際質量管理體系認證.市場常用進口晶振封裝型號康華爾電子均有備貨,可免費提供現貨樣品以及晶振技術解決方案.
32.768K是晶振頻率中最容易讓人記住的數字,32.768K晶振素來有時鐘晶振的稱謂,只要跟數字顯示以及時間相關的產品都少不了一款32.768K晶振.根據不同的產品需求主要分為圓柱晶振和32.768K貼片晶振.常見封裝有2x6,3x8,7.0x1.5,3.2x1.5,2.0x1.2等體積.康華爾電子提供各種32.768K晶振,音叉表晶,價格優質,咨詢熱線0755-27838351.
有源晶振是一款自身帶有電源電壓功能的石英晶體振蕩器,并且有多種電壓供選擇,比如有1.8V,2.5V,3.3V,3.8V,5V等高速自動安裝和高溫回流焊設計,Optionable待機輸出三態輸出功能,電源電壓范圍：1.8V~5 V,高穩定性,低抖動,低功耗,主要應用領域:無線通訊,高端智能手機,平板筆記本WLAN,藍牙,數碼相機,DSL和其他IT產品的晶振應用,三態功能,PC和LCDM等高端數碼領域,符合RoHS/無鉛.
您所不知的時鐘振蕩器CO13100-32.000-EXT溫度敏感性小知識，高科技在不斷發展，創新型產品也為高科技貢獻自身的力量，為了更好的適應市場的變化，Raltron利用自身的核心技術開發具備成本效益，性能出色的產品，其中引人為傲編碼CO13100-32.000-EXT，尺寸為20.8*13.2mm，頻率為CO13系列，電壓為5 V，頻率穩定性±100ppm，時鐘振蕩器，有源晶體振蕩器產品特性標準8和14針包裝，公差和穩定性為±25ppm，低成本，3.3伏可選.
| 元器件詳情 | 包裝 | Oscillator Type | Operating Frequency | Frequency Stability | Supply Voltage | Operating Temp Range |
| 管裝 | 39.3216MHz | ±100ppm | 5V | 0°C to 70°C | ||
| CO1100-39.3216-T | ||||||
| Raltron | ||||||
| CO1100 系列 39.3216 MHz 100 ppm 0° C至+70° C 時鐘振蕩器 | ||||||
| 散裝 | 4.9152MHz | ±100ppm | 5V | 0°C to 70°C | ||
| CO1100-4.9152MHZ | ||||||
| Raltron | ||||||
| CO1 Series 4.9152 MHz 20.8 x 13.2 mm 5 V ±100 ppm Through Hole Clock Oscillator | ||||||
| 托盤 | 4.9152MHz | ±100ppm | 5V | -20°C to +70°C | ||
| CO1100-4.9152MHZ-40 | ||||||
| Raltron | ||||||
| CO1 Series 4.9152 MHz 5 V ±100 ppm -20°C TO +70°C Thru-Hole TTL Clock Oscillator | ||||||
| 盒裝 | 40MHz | ±100ppm | 5V | 0°C to 70°C | ||
| CO1100-40.000MHZ | ||||||
| Raltron | ||||||
| CO1 Series 40 MHz 20.8 x 13.2 mm 5 V ±100 ppm Through Hole Clock Oscillator | ||||||
| 管裝 | 7.77773MHz | ±100ppm | 5V | -40°C to +85°C | ||
| CO1100-7.777728MHZ-40 | ||||||
| Raltron | ||||||
| CO1 Series 7.7777 MHz 5 V ±100 ppm -40°C TO +85°C Thru-Hole TTL Clock Oscillator | ||||||
| 管裝 | 70MHz | ±100ppm | 5V | 0°C to 70°C | ||
| CO1100-70.000 | ||||||
| Raltron | ||||||
| CO1 Series 70 MHz 20.8 x 13.2 mm 5 V ±100 ppm Through Hole Clock Oscillator | ||||||
| 剪切卷帶 | 20MHz | ±50ppm | 5V | -40°C to +85°C | ||
| CO12050-20.000-EXT | ||||||
| Raltron | ||||||
| CO1 Series 20.00 MHz 5 V ±50 ppm -40°C TO +85°C Thru-Hole HCMOS Clock Oscillator | ||||||
| 管裝 | 20MHz | ±50ppm | 5V | -40°C to +85°C | ||
| CO12050-20.000-EXT | ||||||
| Raltron | ||||||
| CO1 Series 20.00 MHz 5 V ±50 ppm -40°C TO +85°C Thru-Hole HCMOS Clock Oscillator | ||||||
| 盒裝 | 14.3182MHz | ±100ppm | 5V | 0°C to 70°C | ||
| CO12100-14.31818MHZ | ||||||
| Raltron | ||||||
| CO12 Series 14.31818 MHz 13.21x13.21mm 5 V ±100ppm Through Hole Clock Oscillator | ||||||
| 袋裝 | 48MHz | ±100ppm | 5V | -20°C to +70°C | ||
| CO12100-48.000 | ||||||
| Raltron | ||||||
| CO1 Series 48.0 MHz 5 V ±100 ppm -20°C TO +70°C Thru-Hole HCMOS 有源晶振 | ||||||
| 盒裝 | 32MHz | ±100ppm | 5V | -40°C to +85°C | ||
| CO13100-32.000-EXT | ||||||
| Raltron | ||||||
| CO13 系列 32 MHz 13.21 x 13.21 mm 5 V ±100 ppm 通孔 時鐘振蕩器 | ||||||
| 管裝 | 40MHz | ±100ppm | 5V | -20°C to +70°C | ||
| CO19050-40.000-T | ||||||
| Raltron | ||||||
| CO1 Series 40 MHz 5 V ±100 ppm -20°C TO +70°C Thru-Hole HCMOS Clock Oscillator | ||||||
| 卷盤 | 20MHz | ±50ppm | 3.3V | -10°C to +70°C | ||
| CO2016-20.000-3.3-50-T-TR | ||||||
| Raltron | ||||||
| CO2016 系列 2 x 1.6 mm 20 MHz 3.3 V ±50 ppm 表面貼裝 時鐘振蕩器 | ||||||
| 卷盤 | 25MHz | ±50ppm | 3.3V | -10°C to +70°C | ||
| CO2016-25.000-3.3-50-T-TR | ||||||
| Raltron | ||||||
| CO2016 系列 2 x 1.6 mm 25 MHz 3.3 V ±50 ppm 表面貼裝 時鐘振蕩器 | ||||||
| 卷盤 | 50MHz | ±50ppm | 3.3V | -10°C to +70°C | ||
| CO2016-50.000-3.3-50-T-TR | ||||||
| Raltron | ||||||
| CO2016 系列 2 x 1.6 mm 50 MHz 3.3 V ±50 ppm 表面貼裝 時鐘振蕩器 | ||||||
| 卷盤 | 25MHz | ±20ppm | 3.3V | -40°C to +85°C | ||
| CO4302-25.000-EXT-T-T | ||||||
| Raltron | ||||||
| CO4 Series 25 MHz 3.3 V ±20 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盤 | 40MHz | ±20ppm | 3.3V | -40°C to +85°C | ||
| CO4302-40.000-T-EXT-TR | ||||||
| Raltron | ||||||
| CO43 系列 40 MHz ±20 ppm -40 至 +85°C 嚴格對稱 標準貼裝 時鐘 振蕩器 | ||||||
| 卷盤 | 11.184MHz | ±25ppm | 3.3V | -20°C to +70°C | ||
| CO43025-11.184-TR | ||||||
| Raltron | ||||||
| CO43025 系列 11.184 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面貼裝 振蕩器 | ||||||
| 卷盤 | 12.96MHz | ±25ppm | 3.3V | -10°C to +70°C | ||
| CO43025-12.960-TR | ||||||
| Raltron | ||||||
| CO43025 系列 12.960 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面貼裝 振蕩器 | ||||||
| 盒裝 | 14.3182MHz | ±25ppm | 3.3V | -10°C to +70°C | ||
| CO43025-14.31818-T | ||||||
| Raltron | ||||||
| CO43025 系列 14.31818 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面貼裝 振蕩器 | ||||||
| 卷盤 | 14.3182MHz | ±25ppm | 3.3V | -20°C to +70°C | ||
| CO43025-14.31818-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 14.31818 MHz 3.3 V ±25 ppm -20°C TO +70°C SMT CMOS Clock Oscillator | ||||||
| 卷盤 | 16.384MHz | ±25ppm | 3.3V | -20°C to +70°C | ||
| CO43025-16.384-T-TR | ||||||
| Raltron | ||||||
| CO43025 系列 16.384 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面貼裝 振蕩器 | ||||||
| 卷盤 | 20MHz | ±25ppm | 3.3V | -40°C to +85°C | ||
| CO43025-20.000-EXT-T-TR | ||||||
| Raltron | ||||||
| CO43025 系列 20 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面貼裝 擴展型 振蕩器 | ||||||
| 卷盤 | 24.576MHz | ±25ppm | 3.3V | -10°C to +70°C | ||
| CO43025-24.576-T-TR | ||||||
| Raltron | ||||||
| CO43 Series 24.576 MHz 7 x 5 mm 3.3 V ±25 ppm Surface Mount Clock Oscillator | ||||||
| 卷盤 | 24.704MHz | ±25ppm | 3.3V | -40°C to +85°C | ||
| CO43025-24.704-EXT-T | ||||||
| Raltron | ||||||
| CO43 Series 24.704 MHz 7 x 5 mm 3.3 V ±25 ppm Surface Mount Clock Oscillator | ||||||
| 卷盤 | 25MHz | ±25ppm | 3.3V | -10°C to +70°C | ||
| CO43025-25.000-T-TR | ||||||
| Raltron | ||||||
| CO43 Series 25 MHz 7 x 5 mm 3.3 V ±25 ppm Surface Mount Clock Oscillator | ||||||
| 卷盤 | ||||||
| CO43025-32.000-EXT-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 32 MHz 3.3 V ±25 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盤 | 25MHz | ±25ppm | 3.3V | -40°C to +85°C | ||
| CO43025S-25.000-EXT-TR | ||||||
| Raltron | ||||||
| CO43025 系列 25 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面貼裝 擴展型 振蕩器 | ||||||
| 卷盤 | 27MHz | ±25ppm | 3.3V | -20°C to +70°C | ||
| CO43025S-27.000-T-TR- L30 | ||||||
| Raltron | ||||||
| CO43 Series 27 MHz 7 x 5 mm 3.3 V ±25 ppm Surface Mount Clock Oscillator | ||||||
| 卷盤 | 1.8432MHz | ±50ppm | 3.3V | -10°C to +70°C | ||
| CO4305-1.8432MHZ-T | ||||||
| Raltron | ||||||
| CO43 Series 1.8432 MHz 7 x 5 mm 3.3 V ±50 ppm Surface Mount Clock Oscillator | ||||||
| 卷盤 | 10MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4305-10.000-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 10 MHz 3.3 V ±50 ppm -20°C TO +70°C SMT CMOS Clock Oscillator | ||||||
| 卷盤 | 11.0592MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4305-11.0592MHZ-T | ||||||
| Raltron | ||||||
| CO4 Series 11.0592 MHz 3.3 V ±50 ppm -20°C TO +70°C SMT CMOS Clock Oscillator |

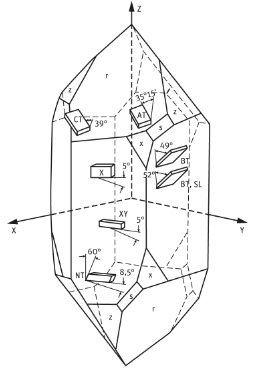

在左側，您可以看到不同的切割角度選項。
您所不知的時鐘振蕩器CO13100-32.000-EXT溫度敏感性小知識，溫度靈敏度是三次拋物線的函數。在SPXO晶體振蕩器切割過程中，即使是單角秒范圍內的最小誤差也會導致曲線圍繞拐點旋轉。這惡化了后續應用所需溫度范圍內的溫度靈敏度。在坯件的制造過程中，由于可能的最大制造精度，完美的切割角度只能在有限的范圍內實現。因此，制造的毛坯必須根據它們的偏差進行分類，并根據它們的精度用于合適的晶體。
