E1SAA12-30.000M TR,Ecliptek石英晶體諧振器,橢圓形晶振

頻率：30MHz

尺寸：13.3x4.85x3.2mm

E1SAA12-30.000M TR,Ecliptek石英晶體諧振器,橢圓形晶振，美國進口晶振，Ecliptek晶振，日蝕晶振，型號：E1S系列石英晶體，編碼為：E1SAA12-30.000M TR，頻率：30MHz，負載電容：12pF，工作溫度范圍：0℃至+70℃，頻率穩定性：±100ppm，頻率容差：±50ppm，小體積晶振尺寸：13.3x4.85x3.2mm封裝，兩腳貼片晶振，無源晶振，石英晶振，石英晶體諧振器，橢圓形晶振，無鉛晶振。應用于：移動通訊晶振，車載電子晶振，藍牙晶振，物聯網晶振，醫療設備晶振，智能家居等應用。

訂購熱線：86-0755-27838351

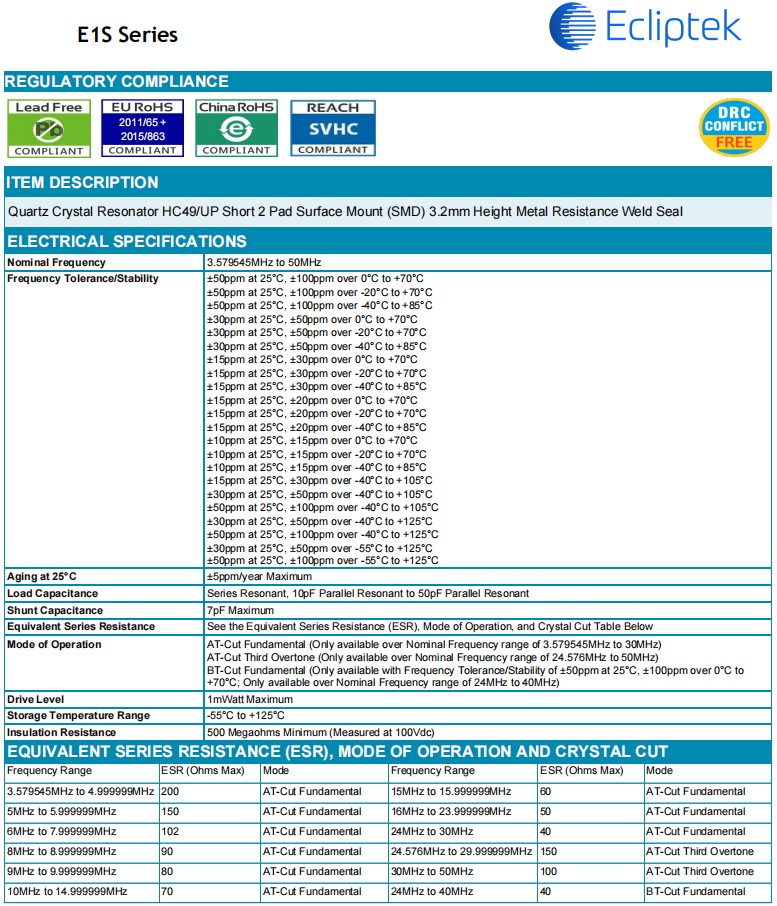

E1SAA12-30.000M TR,Ecliptek石英晶體諧振器,橢圓形晶振,參數表

Nominal Frequency		30 MHz
Frequency Tolerance/Stability		±50ppm at 25°C, ±100ppm over 0°C to +70°C ±50ppm at 25°C, ±100ppm over -20°C to +70°C ±50ppm at 25°C, ±100ppm over -40°C to +85°C ±30ppm at 25°C, ±50ppm over 0°C to +70°C ±30ppm at 25°C, ±50ppm over -20°C to +70°C ±30ppm at 25°C, ±50ppm over -40°C to +85°C ±15ppm at 25°C, ±30ppm over 0°C to +70°C ±15ppm at 25°C, ±30ppm over -20°C to +70°C ±15ppm at 25°C, ±30ppm over -40°C to +85°C ±15ppm at 25°C, ±20ppm over 0°C to +70°C ±15ppm at 25°C, ±20ppm over -20°C to +70°C ±15ppm at 25°C, ±20ppm over -40°C to +85°C ±10ppm at 25°C, ±15ppm over 0°C to +70°C ±10ppm at 25°C, ±15ppm over -20°C to +70°C ±10ppm at 25°C, ±15ppm over -40°C to +85°C ±15ppm at 25°C, ±30ppm over -40°C to +105°C ±30ppm at 25°C, ±50ppm over -40°C to +105°C ±50ppm at 25°C, ±100ppm over -40°C to +105°C ±30ppm at 25°C, ±50ppm over -40°C to +125°C ±50ppm at 25°C, ±100ppm over -40°C to +125°C ±30ppm at 25°C, ±50ppm over -55°C to +125°C ±50ppm at 25°C, ±100ppm over -55°C to +125°C
Aging at 25°C		±5ppm/year Maximum
Load Capacitance		Series Resonant, 10pF Parallel Resonant to 50pF Parallel Resonant
Shunt Capacitance		7pF Maximum
Equivalent Series Resistance		See the Equivalent Series Resistance (ESR), Mode of Operation, and Crystal Cut Table Below
Mode of Operation		AT-Cut Fundamental (Only available over Nominal Frequency range of 3.579545MHz to 30MHz) AT-Cut Third Overtone (Only available over Nominal Frequency range of 24.576MHz to 50MHz) BT-Cut Fundamental (Only available with Frequency Tolerance/Stability of ±50ppm at 25°C, ±100ppm over 0°C to +70°C; Only available over Nominal Frequency range of 24MHz to 40MHz)
Drive Level		1mWatt Maximum
Storage Temperature Range		-55°C to +125°C
Insulation Resistance		500 Megaohms Minimum (Measured at 100Vdc)

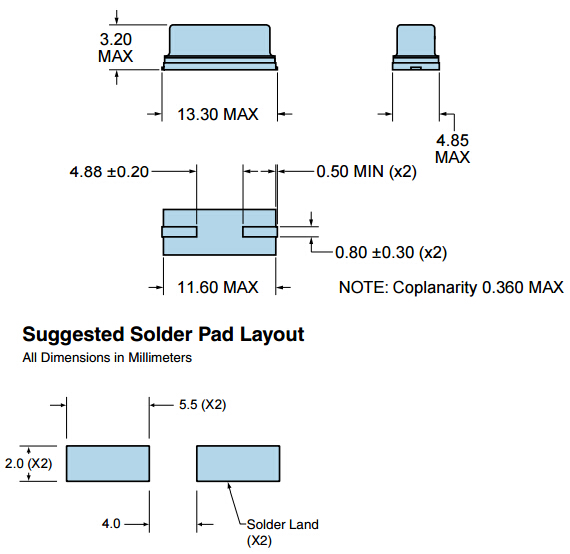

E1SAA12-30.000M TR,Ecliptek石英晶體諧振器,橢圓形晶振,尺寸圖

產品編碼	晶振廠家	型號	頻率	負載電容
E1SAA12-24.000M	Ecliptek晶振	E1S	24 MHz	12 pF
E1SAA12-24.000M TR	Ecliptek晶振	E1S	24 MHz	12 pF
E1SAA12-30.000M TR	Ecliptek晶振	E1S	30 MHz	12 pF
E1SAA18-12.000M	Ecliptek晶振	E1S	12 MHz	18 pF
E1SAA18-16.000M TR	Ecliptek晶振	E1S	16 MHz	18 pF
E1SAA18-24.000M TR	Ecliptek晶振	E1S	24 MHz	18 pF
E1SAA18-25.000M TR	Ecliptek晶振	E1S	25 MHz	18 pF
E1SAA20-5.000M TR	Ecliptek晶振	E1S	5 MHz	20 pF
E1SBA18-16.000M TR	Ecliptek晶振	E1S	16 MHz	18 pF
E1SBA18-25.000M TR	Ecliptek晶振	E1S	25 MHz	18 pF
E1SBA18-27.000M TR	Ecliptek晶振	E1S	27 MHz	18 pF
E1SBA18-3.6864M TR	Ecliptek晶振	E1S	3.6864 MHz	18 pF
E1SBA18-7.3728M TR	Ecliptek晶振	E1S	7.3728 MHz	18 pF
E1SBA18-8.000M TR	Ecliptek晶振	E1S	8 MHz	18 pF
E1SBA20-12.000M	Ecliptek晶振	E1S	12 MHz	20 pF
E1SBA20-12.000M TR	Ecliptek晶振	E1S	12 MHz	20 pF
E1SCA12-24.000M	Ecliptek晶振	E1S	24 MHz	12 pF
E1SCA12-3.6864M TR	Ecliptek晶振	E1S	3.6864 MHz	12 pF
E1SCA18-14.7456M TR	Ecliptek晶振	E1S	14.7456 MHz	18 pF
E1SCA18-20.000M TR	Ecliptek晶振	E1S	20 MHz	18 pF
E1SCA18-3.6864M TR	Ecliptek晶振	E1S	3.6864 MHz	18 pF
E1SCA18-4.000M TR	Ecliptek晶振	E1S	4 MHz	18 pF
E1SCA18-7.3728M TR	Ecliptek晶振	E1S	7.3728 MHz	18 pF
E1SCA18-8.000M TR	Ecliptek晶振	E1S	8 MHz	18 pF
E1SCA32-12.000M	Ecliptek晶振	E1S	12 MHz	32 pF
E1SDA12-25.000M TR	Ecliptek晶振	E1S	25 MHz	12 pF
E1SDA18-24.576M	Ecliptek晶振	E1S	24.576 MHz	18 pF
E1SDA18-25.000M TR	Ecliptek晶振	E1S	25 MHz	18 pF
E1SEA18-12.000M TR	Ecliptek晶振	E1S	12 MHz	18 pF
E1SEA18-25.000M	Ecliptek晶振	E1S	25 MHz	18 pF
E1SEA18-28.6363M TR	Ecliptek晶振	E1S	28.6363 MHz	18 pF
E1SEA18-3.6864M	Ecliptek晶振	E1S	3.6864 MHz	18 pF
