頻率：50MHz
尺寸：7.0x5.0mm

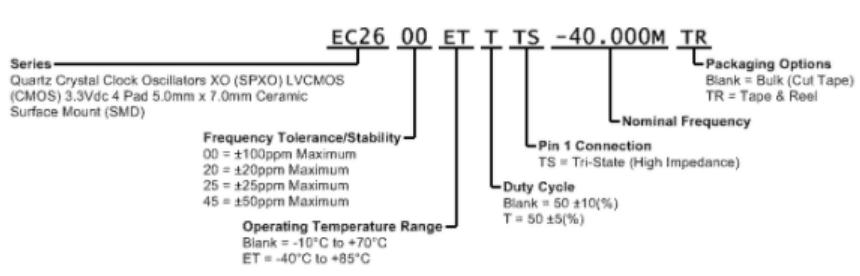

EC2600ETTTS-50.000M TR,7050mm,EC26,Ecliptek有源晶振，美國進口晶振，Ecliptek晶振，日蝕晶振，型號：EC26系列晶振，編碼為：EC2600ETTTS-50.000M TR，頻率：50MHz，電壓：3.3V，頻率穩定性：±100ppm，CMOS輸出晶振，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：7.0x5.0mm，四腳貼片晶振，7050石英晶體振蕩器，石英晶振，有源晶振。具有超小型，輕薄型，耐熱及耐環境等特點。應用于：通訊設備晶振，汽車電子晶振，無線網絡晶振，導航儀晶振，物聯網等應用。

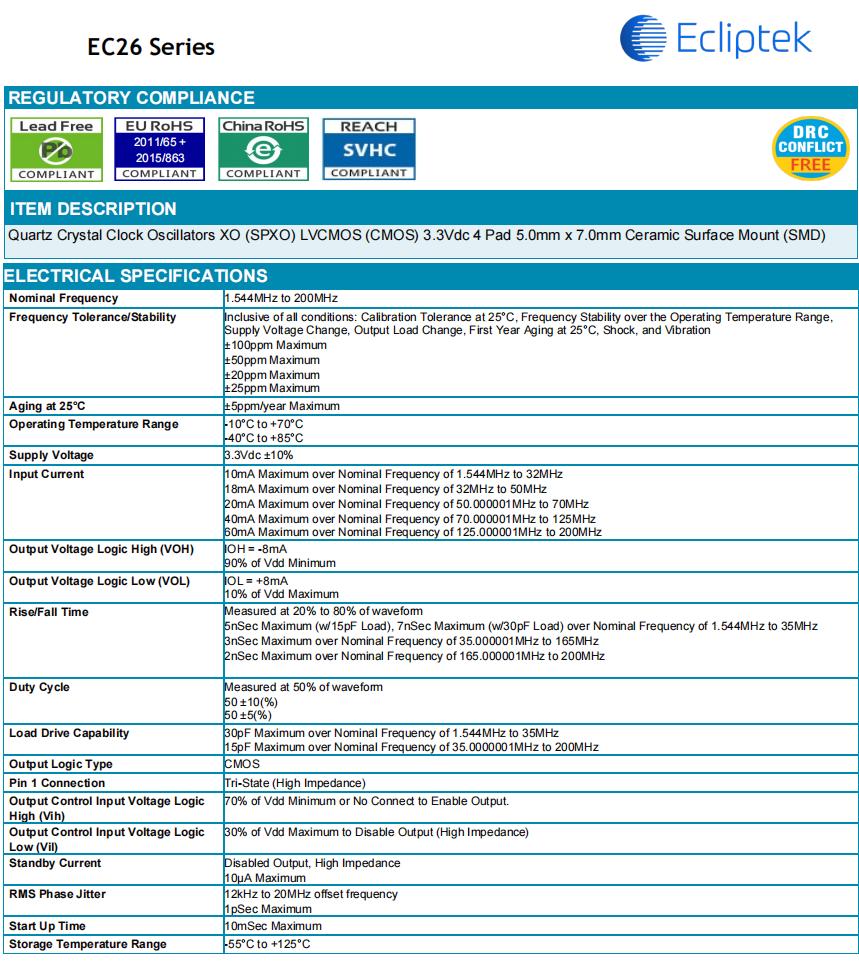

EC2600ETTTS-50.000M TR,7050mm,EC26,Ecliptek有源晶振,參數表
Nominal Frequency
50.000 MHz
Frequency Tolerance/Stability
Inclusive of all conditions: Calibration Tolerance at 25°C, Frequency Stability over the Operating Temperature Range,
Supply Voltage Change, Output Load Change, First Year Aging at 25°C, Shock, and Vibration
±100ppm Maximum
±50ppm Maximum
±20ppm Maximum
±25ppm Maximum
Aging at 25°C
±5ppm/year Maximum
Operating Temperature Range
- 10°C to +70°C
-40°C to +85°C
Supply Voltage
3.3Vdc ±10%
Input Current
10mA Maximum over Nominal Frequency of 1.544MHz to 32MHz
18mA Maximum over Nominal Frequency of 32MHz to 50MHz
20mA Maximum over Nominal Frequency of 50.000001MHz to 70MHz
40mA Maximum over Nominal Frequency of 70.000001MHz to 125MHz
60mA Maximum over Nominal Frequency of 125.000001MHz to 200MHz
Output Voltage Logic High (VOH)
IOH = -8mA
90% of Vdd Minimum
Output Voltage Logic Low (VOL)
IOL = +8mA
10% of Vdd Maximum
Rise/Fall Time
Measured at 20% to 80% of waveform
5nSec Maximum (w/15pF Load), 7nSec Maximum (w/30pF Load) over Nominal Frequency of 1.544MHz to 35MHz
3nSec Maximum over Nominal Frequency of 35.000001MHz to 165MHz
2nSec Maximum over Nominal Frequency of 165.000001MHz to 200MHz
Duty Cycle
Measured at 50% of waveform
50 ±10(%)
50 ±5(%)
Load Drive Capability
30pF Maximum over Nominal Frequency of 1.544MHz to 35MHz
15pF Maximum over Nominal Frequency of 35.0000001MHz to 200MHz
Output Logic Type
CMOS
Pin 1 Connection
Tri-State (High Impedance)
Output Control Input Voltage Logic
High (Vih)
70% of Vdd Minimum or No Connect to Enable Output.
Output Control Input Voltage Logic
Low (Vil)
30% of Vdd Maximum to Disable Output (High Impedance)
Standby Current
Disabled Output, High Impedance
10µA Maximum
RMS Phase Jitter
12kHz to 20MHz offset frequency
1pSec Maximum
Start Up Time
10mSec Maximum
Storage Temperature Range
-55°C to +125°C

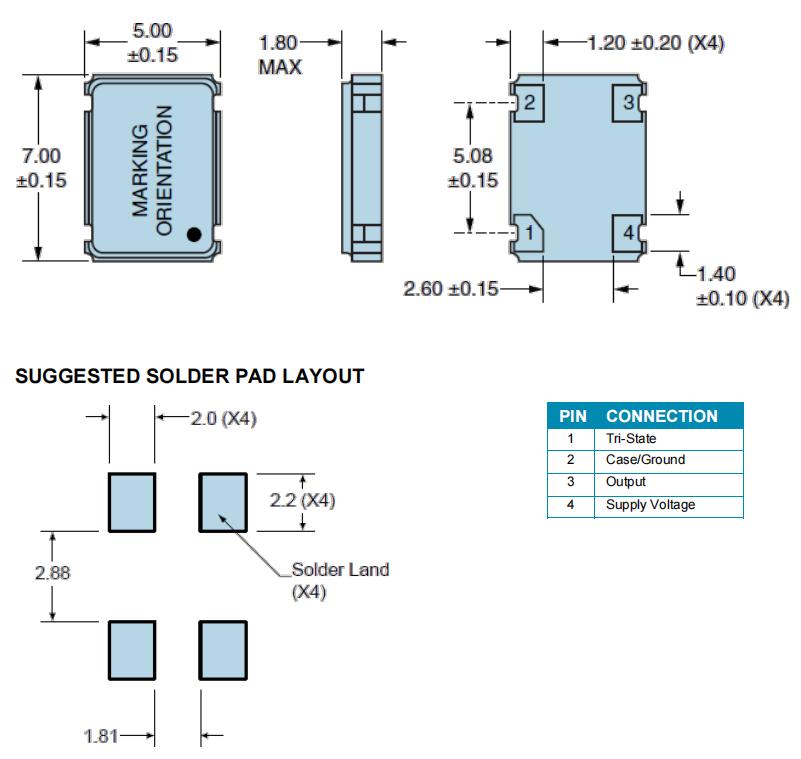

EC2600ETTTS-50.000M TR,7050mm,EC26,Ecliptek有源晶振,尺寸圖
| 產品編碼 | 晶振廠家 | 型號 | 頻率 | 長 | 寬 | 高 |
| EC2600ETTS-14.318M | Ecliptek晶振 | EC26 | 14.318 MHz | 7mm | 5mm | 1.6mm |
| EC2600ETTS-14.7456M | Ecliptek晶振 | EC26 | 14.7456 MHz | 7mm | 5mm | 1.6mm |
| EC2600ETTS-14.7456M TR | Ecliptek晶振 | EC26 | 14.7456 MHz | 7mm | 5mm | 1.6mm |
| EC2600ETTS-16.000M | Ecliptek晶振 | EC26 | 16 MHz | 7mm | 5mm | 1.6mm |
| EC2600ETTS-16.384M TR | Ecliptek晶振 | EC26 | 16.384 MHz | 7mm | 5mm | 1.6mm |
| EC2600ETTS-33.000M | Ecliptek晶振 | EC26 | 33 MHz | 7mm | 5mm | 1.6mm |
| EC2600ETTS-33.000M TR | Ecliptek晶振 | EC26 | 33 MHz | 7mm | 5mm | 1.6mm |
| EC2600ETTS-66.666M TR | Ecliptek晶振 | EC26 | 66.666 MHz | 7mm | 5mm | 1.6mm |
| EC2600ETTTS-10.000M | Ecliptek晶振 | EC26 | 10 MHz | 7mm | 5mm | 1.6mm |
| EC2600ETTTS-12.000M TR | Ecliptek晶振 | EC26 | 12 MHz | 7mm | 5mm | 1.6mm |
| EC2600ETTTS-50.000M TR | Ecliptek晶振 | EC26 | 50 MHz | 7mm | 5mm | 1.6mm |
| EC2600ETTTS-64.000M | Ecliptek晶振 | EC26 | 64 MHz | 7mm | 5mm | 1.6mm |
| EC2600ETTTS-7.3728M | Ecliptek晶振 | EC26 | 7.3728 MHz | 7mm | 5mm | 1.6mm |
| EC2600TS-1.8432M TR | Ecliptek晶振 | EC26 | 1.8432 MHz | 7mm | 5mm | 1.6mm |
| EC2600TS-11.0592M TR | Ecliptek晶振 | EC26 | 11.0592 MHz | 7mm | 5mm | 1.6mm |
| EC2600TS-120.000M | Ecliptek晶振 | EC26 | 120 MHz | 7mm | 5mm | 1.6mm |
| EC2600TS-120.000M TR | Ecliptek晶振 | EC26 | 120 MHz | 7mm | 5mm | 1.6mm |
| EC2600TS-15.000M TR | 日蝕晶振 | EC26 | 15 MHz | 7mm | 5mm | 1.6mm |
| EC2600TS-19.440M | Ecliptek晶振 | EC26 | 19.44 MHz | 7mm | 5mm | 1.6mm |
| EC2600TS-200.000M TR | Ecliptek晶振 | EC26 | 200 MHz | 7mm | 5mm | 1.6mm |
| EC2600TS-24.576M TR | Ecliptek晶振 | EC26 | 24.576 MHz | 7mm | 5mm | 1.6mm |
| EC2600TS-25.000M | Ecliptek晶振 | EC26 | 25 MHz | 7mm | 5mm | 1.6mm |
| EC2600TS-25.000M TR | Ecliptek晶振 | EC26 | 25 MHz | 7mm | 5mm | 1.6mm |
| EC2600TS-33.000M TR | Ecliptek晶振 | EC26 | 33 MHz | 7mm | 5mm | 1.6mm |
| EC2600TS-40.000M | Ecliptek晶振 | EC26 | 40 MHz | 7mm | 5mm | 1.6mm |
| EC2600TS-40.000M TR | Ecliptek晶振 | EC26 | 40 MHz | 7mm | 5mm | 1.6mm |
| EC2600TS-48.000M TR | Ecliptek晶振 | EC26 | 48 MHz | 7mm | 5mm | 1.6mm |
| EC2600TS-5.000M TR | Ecliptek晶振 | EC26 | 5 MHz | 7mm | 5mm | 1.6mm |
| EC2600TS-50.000M | Ecliptek晶振 | EC26 | 50 MHz | 7mm | 5mm | 1.6mm |
| EC2600TS-50.000M TR | Ecliptek晶振 | EC26 | 50 MHz | 7mm | 5mm | 1.6mm |
| EC2600TS-66.000M TR | Ecliptek晶振 | EC26 | 66 MHz | 7mm | 5mm | 1.6mm |
| EC2600TS-75.000M | Ecliptek晶振 | EC26 | 75 MHz | 7mm | 5mm | 1.6mm |
