當前位置：首頁 » 日產晶振 » 愛普生晶振 » X1E0002510056,52MHz,1612mm,FA-118T,9pF,±15ppm,穿戴設備晶振

prevnext

X1E0002510056,52MHz,1612mm,FA-118T,9pF,±15ppm,穿戴設備晶振

頻率：52MHz

尺寸：1.6x1.2mm

X1E0002510056,52MHz,1612mm,FA-118T,9pF,±15ppm,穿戴設備晶振，日本進口晶振，EPSON愛普生晶振，型號FA-118T，編碼為X1E0002510056，頻率為：52MHz，是一款小體積晶振尺寸1.6x1.2x0.35mm封裝，四腳貼片晶振，石英晶振，無源晶振，石英晶體諧振器，無鉛環保晶振，超小型晶振，輕薄型晶振，FA-118T已經作為通信模塊的參考時鐘商業化，它需要高精度，作為無線通信的時鐘，以及需要微型化應用的微型計算機（TWS（真無線立體聲）、智能手表等）。使用多年培育的高精度加工技術創造的產品有助于提高客戶系統的性能，應用于：消費電子晶振，智能家居晶振，工業應用，小型通信模塊晶振，可穿戴設備晶振，單片機晶振，時鐘模塊晶振，小型便捷式設備，智能手機晶振，數碼電子等應用。

訂購熱線：86-0755-27838351

X1E0002510056,52MHz,1612mm,FA-118T,9pF,±15ppm,穿戴設備晶振,參數表

型號	FA-118T 規格說明			用于 RF 參考用于時鐘條件
額定頻率范圍	f_nom	24.000 MHz ~ 54.000 MHz		基頻
				請聯系我們以便獲取其它可用頻率的相關信息
儲存溫度范圍	T_stg	-40 °C ~ +125 °C		裸存
工作溫度范圍	T_use	-40 °C ~ +85 °C
激勵功率	DL	100 mW Max.	200 mW Max.	推薦: 1 mW ~ 100 mW
頻率公差	f_tol	±10x10-6 *1	±30x10-6	+25 °C 對于超出標準的規格說明，請聯系我們以便獲取相關信息
（標準）
頻率溫度特征	f_tem	±12x10-6 *1	±30x10-6	-20 °C ~ +75 °C 對于超出標準的規格說明，請聯系我們以便獲取相關信息
（標準）
負載電容	CL	6 pF ~ ¥		可指定
串聯電阻（ESR）	R1	如下表所示		-20 °C ~ +75 °C
頻率老化	f_age	±1x10-6 / year Max.	±5x10-6 / year Max.	+25 °C, 第一年

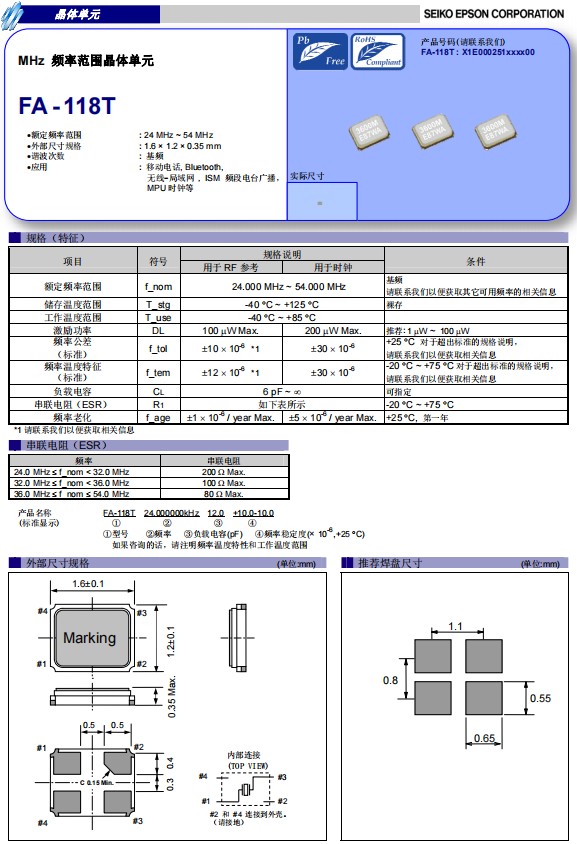

X1E0002510056,52MHz,1612mm,FA-118T,9pF,±15ppm,穿戴設備晶振,尺寸圖

貼片石英晶振	尺寸	型號	頻率	負載	頻率 @+25°C
X1E0002510009	1.6 x 1.2 x 0.35mm	FA-118T	27.120000 MHz	10 pF	+/-30 ppm
X1E0002510011	1.6 x 1.2 x 0.35mm	FA-118T	26.000000 MHz	8 pF	+/-10 ppm
X1E0002510013	1.6 x 1.2 x 0.35mm	FA-118T	27.120000 MHz	10 pF	+/-50 ppm
X1E0002510014	1.6 x 1.2 x 0.35mm	FA-118T	26.000000 MHz	9 pF	+/-10 ppm
X1E0002510016	1.6 x 1.2 x 0.35mm	FA-118T	37.400000 MHz	16 pF	+/-10 ppm
X1E0002510017	1.6 x 1.2 x 0.35mm	FA-118T	37.400000 MHz	16 pF	+/-10 ppm
X1E0002510031	1.6 x 1.2 x 0.35mm	FA-118T	37.400000 MHz	16 pF	+/-7 ppm
X1E0002510032	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	10 pF	+/-10 ppm
X1E0002510034	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	9 pF	+/-30 ppm
X1E0002510035	1.6 x 1.2 x 0.35mm	FA-118T	30.000000 MHz	8 pF	+/-20 ppm
X1E0002510046	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	12 pF	+/-10 ppm
X1E0002510050	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	9 pF	+/-10 ppm
X1E0002510056	1.6 x 1.2 x 0.35mm	FA-118T	52.000000 MHz	9 pF	+/-15 ppm
X1E0002510057	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	7 pF	+/-30 ppm
X1E0002510058	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	8 pF	+/-15 ppm
X1E0002510059	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	8 pF	+/-10 ppm
X1E0002510060	1.6 x 1.2 x 0.35mm	FA-118T	48.000000 MHz	10 pF	+/-30 ppm
X1E0002510064	1.6 x 1.2 x 0.35mm	FA-118T	26.000000 MHz	12 pF	+/-10 ppm
X1E0002510068	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	8 pF	+/-30 ppm
X1E0002510069	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	10 pF	+/-30 ppm
X1E0002510071	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	12 pF	+/-8 ppm
X1E0002510075	1.6 x 1.2 x 0.35mm	FA-118T	26.000000 MHz	8 pF	+/-10 ppm
X1E0002510077	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	9 pF	+/-10 ppm
X1E0002510078	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	7 pF	+/-10 ppm
X1E0002510079	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	9 pF	+/-10 ppm
X1E0002510080	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	6 pF	+/-10 ppm
X1E0002510086	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	8 pF	+/-20 ppm
X1E0002510092	1.6 x 1.2 x 0.35mm	FA-118T	27.000000 MHz	10 pF	+/-30 ppm
X1E0002510093	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	8 pF	+/-30 ppm
X1E0002510100	1612貼片晶振	FA-118T	27.120000 MHz	9 pF	+/-10 ppm
X1E0002510102	1.6 x 1.2 x 0.35mm	FA-118T	50.000000 MHz	8 pF	+/-30 ppm
X1E0002510104	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	10 pF	+/-20 ppm
X1E0002510110	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	12.5 pF	+/-30 ppm
X1E0002510111	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	10 pF	+/-50 ppm
X1E0002510113	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	8 pF	+/-10 ppm
X1E0002510121	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	8 pF	+/-10 ppm
X1E0002510123	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	9 pF	+/-10 ppm
X1E0002510126	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	7 pF	+/-30 ppm
X1E0002510136	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	8 pF	+/-15 ppm
X1E0002510138	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	6 pF	+/-10 ppm
X1E0002510141	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	8 pF	+/-20 ppm
X1E0002510144	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	20 pF	+/-30 ppm
X1E0002510145	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	20 pF	+/-30 ppm
X1E0002510148	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	8 pF	+/-10 ppm
X1E0002510150	1.6 x 1.2 x 0.35mm	FA-118T	38.400000 MHz	20 pF	+/-10 ppm
X1E0002510152	1.6 x 1.2 x 0.35mm	FA-118T	48.000000 MHz	8 pF	+/-10 ppm
X1E0002510153	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	8 pF	+/-10 ppm
X1E0002510154	1.6 x 1.2 x 0.35mm	FA-118T	50.000000 MHz	12 pF	+/-30 ppm
X1E0002510155	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	9 pF	+/-30 ppm
X1E0002510157	1.6 x 1.2 x 0.35mm	FA-118T	26.000000 MHz	8 pF	+/-10 ppm
X1E0002510158	1.6 x 1.2 x 0.35mm	FA-118T	50.000000 MHz	12 pF	+/-10 ppm
X1E0002510159	1.6 x 1.2 x 0.35mm	FA-118T	48.000000 MHz	8 pF	+/-15 ppm
X1E0002510160	1.6 x 1.2 x 0.35mm	FA-118T	30.000000 MHz	4 pF	+/-70 ppm
X1E0002510161	1.6 x 1.2 x 0.35mm	FA-118T	37.400000 MHz	8 pF	+/-10 ppm
X1E0002510166	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	10 pF	+/-10 ppm
X1E0002510169	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	10 pF	+/-50 ppm
X1E0002510033	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	10 pF	+/-30 ppm
X1E0002510065	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	10 pF	+/-10 ppm
X1E0002510099	1.6 x 1.2 x 0.35mm	FA-118T	48.000000 MHz	6 pF	+/-30 ppm
X1E0002510134	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	8 pF	+/-10 ppm
X1E0002510190	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	12 pF	+/-10 ppm
X1E0002510197	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	6 pF	+/-10 ppm
X1E0002510201	1.6 x 1.2 x 0.35mm	FA-118T	38.400000 MHz	8 pF	+/-10 ppm
X1E0002510212	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	6 pF	+/-10 ppm
X1E0002510215	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	6 pF	+/-20 ppm
X1E0002510219	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	10 pF	+/-10 ppm

X1E0002510056 52MHz 1612mm FA-118T 9pF ±15ppm 穿戴設備晶振

采購：X1E0002510056,52MHz,1612mm,FA-118T,9pF,±15ppm,穿戴設備晶振

*聯系人：
*手機：
公司名稱：
郵箱：
電話：
地址：
*采購意向：
*驗證碼：
