頻率：32MHZ
尺寸：1.2*1.0mm
FA1210AN|X1E0004110012數據手冊|32MHZ|-30~+85℃|1210mm，尺寸為1210mm,頻率為32MHZ,工作溫度為-30~+85℃,日本進口晶振,愛普生晶振,無源貼片晶振,貼片石英晶振，石英晶體諧振器,小體積晶振,SMD晶體，智能音箱晶振，數字健康應用晶振，平板電腦晶振，工業物聯網晶振，儀表專用晶振，無線通信晶振，可穿戴設備晶振，X1E0004110010無源晶體。
石英晶體產品主要應用范圍：可穿戴設備、智能音箱、數字健康，智能手機、平板電腦、個人電腦，一般消費電子/電器，工業物聯網，儀表，照明/建筑監控，支持無線通信:，BLE, BT, NFC, Zigbee, Wi-Fi等，以及廣泛應用LoRa、NB-IoT、SigFox等.FA1210AN|X1E0004110012數據手冊|32MHZ|-30~+85℃|1210mm.
FA1210AN|X1E0004110012數據手冊|32MHZ|-30~+85℃|1210mm，尺寸為1210mm,頻率為32MHZ,工作溫度為-30~+85℃,日本進口晶振,愛普生晶振,無源貼片晶振,貼片石英晶振，石英晶體諧振器,小體積晶振,SMD晶體，智能音箱晶振，數字健康應用晶振，平板電腦晶振，工業物聯網晶振，儀表專用晶振，無線通信晶振，可穿戴設備晶振，X1E0004110010無源晶體。
石英晶體產品主要應用范圍：可穿戴設備、智能音箱、數字健康，智能手機、平板電腦、個人電腦，一般消費電子/電器，工業物聯網，儀表，照明/建筑監控，支持無線通信:，BLE, BT, NFC, Zigbee, Wi-Fi等，以及廣泛應用LoRa、NB-IoT、SigFox等.FA1210AN|X1E0004110012數據手冊|32MHZ|-30~+85℃|1210mm.

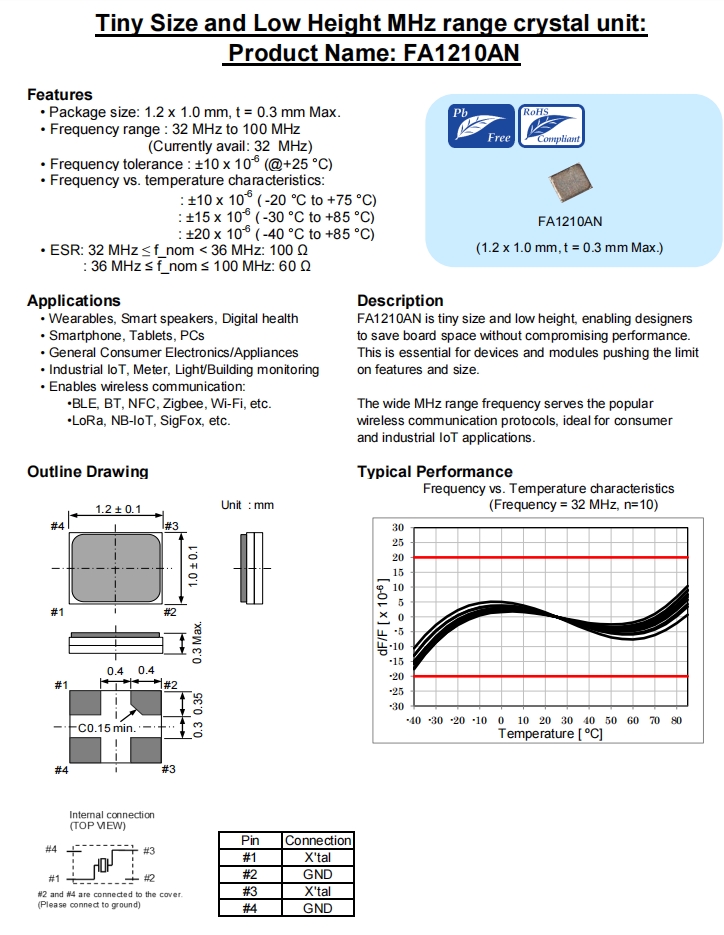

FA1210AN|X1E0004110012數據手冊|32MHZ|-30~+85℃|1210mm 參數表
| Item | Symbol | Specifications | Unit | Conditions / Remarks | |||||||||||||||||||||||||||||||
| Min. | Typ. | Max. | |||||||||||||||||||||||||||||||||
| Nominal frequency range | f_nom | 32.000 | - | 100.000 | MHz | ||||||||||||||||||||||||||||||
| 32.0 | Currently avail frequency | ||||||||||||||||||||||||||||||||||
| Frequency tolerance | f_tol | - 10.0 | - | +10.0 | x10-6 |
+25 °C ± 3 °C DL = 10 μW Does not include frequency aging |
|||||||||||||||||||||||||||||
| Motional resistance (ESR) | R1 | Table 1. | Ω |
π circuit IEC 60444-2 T_use = Operating temperature range DL = 10 μW |
|||||||||||||||||||||||||||||||
| Shunt capacitance | C0 | - | - | 1.0 | pF |
π circuit and Network Analyzer |
|||||||||||||||||||||||||||||
|
Frequency vs. temperature characteristics |
f_tem | Table 2. | x10-6 | Reference at +25 °C ± 3 °C | |||||||||||||||||||||||||||||||
| Load capacitance | CL | 6 | - | 8 | pF | Please specify | |||||||||||||||||||||||||||||
| Isolation resistance | IR | 500 | - | - | MΩ | ||||||||||||||||||||||||||||||
| Frequency aging | f_age | Table 3. | x10-6 | +25°C , First year | |||||||||||||||||||||||||||||||
| Item | Symbol | Rating value | Unit | Note | |||||||||||||||||||||||||||||||
| Min. | Typ. | Max. | |||||||||||||||||||||||||||||||||
| Storage temperature range | T_stg | --40 | - | +125 | °C |
Satisfy environmental characteristics specifications |
|||||||||||||||||||||||||||||
| Item | Symbol | Rating value | Unit | Note | |||||||||||||||||||||||||||||||
| Min. | Typ. | Max. | |||||||||||||||||||||||||||||||||
| Operating temperature range | T_use | --40 | - |
+85 (+105) |
°C |
Please contact Epson about T_use > +85 °C |
|||||||||||||||||||||||||||||
| Level of drive | DL | 0.01 | 10 | 100 | μW | Recommended:10 μW | |||||||||||||||||||||||||||||

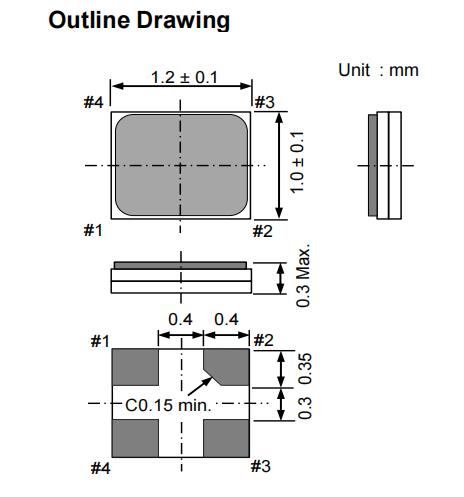

FA1210AN|X1E0004110012數據手冊|32MHZ|-30~+85℃|1210mm 尺寸圖

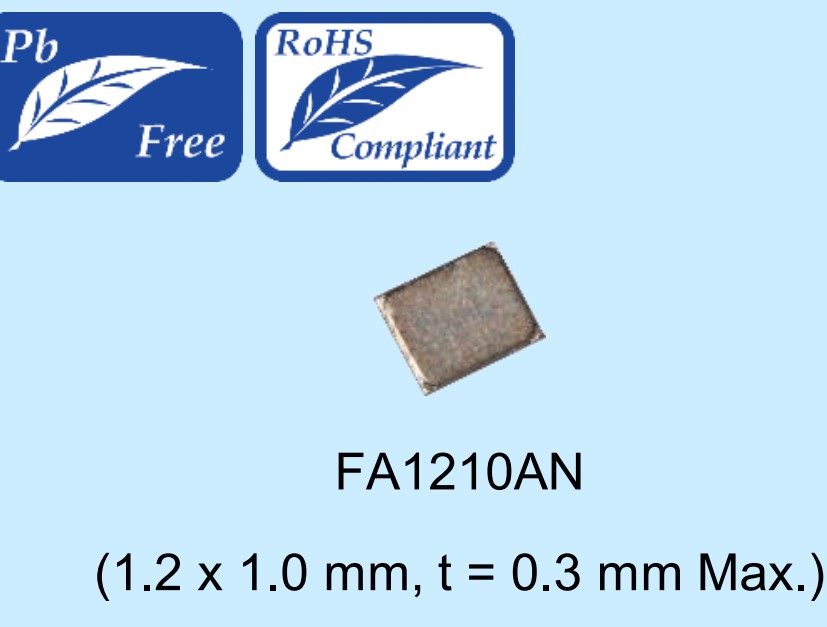

X1E0004110012晶振 特點
FA1210AN體積小，高度低，使設計人員在不影響性能的情況下節省電路板空間。這對于推動極限的設備和模塊至關重要在功能和大小上。
•包裝尺寸:1.2x1.0mm, t =0.3mmMax。
•頻率范圍:32mhz~100mhz
(目前有效:32MHz)
•頻率公差:±10x10-6(@+25°C)
•頻率與溫度特性:
:±10×10-6(-20°C至+75°C)
:±15 ×10-6(-30°C至+85°C)
:±20 ×10-6(-40°C至+85°C)
•ESR: 32MHz≤f_nom < 36MHz: 100Ω
: 36mhz≤f_nom≤100mhz: 60Ω
更多相關愛普生晶振型號
| 編碼 | LxWxH/尺寸 | Model/型號 | Frequency/頻率 | CL Value/負載 | Freq.tol./頻率 @+25°C | Oper. Temper. Range/工作溫度 |
| X1E0003510019 | 2 x 1.6 x 0.5mm | FA2016AN | 27.000000 MHz | 10 pF | +/-30 ppm | -20 to +70 °C |
| X1E0003510020 | 2 x 1.6 x 0.5mm | FA2016AN | 27.120000 MHz | 8 pF | +/-15 ppm | -30 to +70 °C |
| X1E0003510021 | 2 x 1.6 x 0.5mm | FA2016AN | 30.000000 MHz | 10 pF | +/-30 ppm | -30 to +75 °C |
| X1E0003510022 | 2 x 1.6 x 0.5mm | FA2016AN | 32.000000 MHz | 10 pF | +/-10 ppm | -40 to +85 °C |
| X1E0003510023 | 2 x 1.6 x 0.5mm | FA2016AN | 37.400000 MHz | 9 pF | +/-10 ppm | -30 to +85 °C |
| X1E0003510024 | 2 x 1.6 x 0.5mm | FA2016AN | 38.400000 MHz | 8 pF | +/-10 ppm | -20 to +75 °C |
| X1E0003510025 | 2 x 1.6 x 0.5mm | FA2016AN | 40.000000 MHz | 8 pF | +/-10 ppm | -20 to +75 °C |
| X1E0003510026 | 2 x 1.6 x 0.5mm | FA2016AN | 48.000000 MHz | 8 pF | +/-30 ppm | -30 to +85 °C |
| X1E0003510027 | 2 x 1.6 x 0.5mm | FA2016AN | 48.000000 MHz | 10 pF | +/-10 ppm | -20 to +75 °C |
| X1E0003510028 | 2 x 1.6 x 0.5mm | FA2016AN | 50.000000 MHz | 7 pF | +/-10 ppm | -20 to +75 °C |
| X1E0003510029 | 2 x 1.6 x 0.5mm | FA2016AN | 52.000000 MHz | 10 pF | +/-10 ppm | -20 to +75 °C |
| X1E0003510030 | 2 x 1.6 x 0.5mm | FA2016AN | 54.000000 MHz | 6 pF | +/-10 ppm | -20 to +75 °C |
| X1E0003510033 | 2 x 1.6 x 0.5mm | FA2016AN | 38.400000 MHz | 10 pF | +/-10 ppm | -20 to +70 °C |
| X1E0003510038 | 2 x 1.6 x 0.5mm | FA2016AN | 27.120000 MHz | 8 pF | +/-15 ppm | -20 to +85 °C |
| X1E0003510044 | 2 x 1.6 x 0.5mm | FA2016AN | 49.152000 MHz | 6 pF | +/-20 ppm | -20 to +70 °C |
| X1E0003510049 | 2 x 1.6 x 0.5mm | FA2016AN | 26.000000 MHz | 12 pF | +/-10 ppm | -40 to +85 °C |
| X1E0003510050 | 2 x 1.6 x 0.5mm | FA2016AN | 32.000000 MHz | 12 pF | +/-10 ppm | -40 to +85 °C |
| X1E0003510052 | 2 x 1.6 x 0.5mm | FA2016AN | 38.400000 MHz | 10 pF | +/-20 ppm | -20 to +95 °C |
| X1E0003510059 | 2 x 1.6 x 0.5mm | FA2016AN | 25.000000 MHz | 16 pF | +/-30 ppm | -40 to +85 °C |
| X1E0003510060 | 2 x 1.6 x 0.5mm | FA2016AN | 26.000000 MHz | 9 pF | +/-10 ppm | -20 to +75 °C |
| X1E0003510062 | 2 x 1.6 x 0.5mm | FA2016AN | 25.000000 MHz | 10 pF | +/-10 ppm | -20 to +75 °C |
| X1E0003510063 | 2 x 1.6 x 0.5mm | FA2016AN | 27.120000 MHz | 10 pF | +/-10 ppm | -20 to +70 °C |
| X1E0003510064 | 2 x 1.6 x 0.5mm | FA2016AN | 30.000000 MHz | 10 pF | +/-10 ppm | -20 to +75 °C |
| X1E0003510065 | 2 x 1.6 x 0.5mm | FA2016AN | 24.000000 MHz | 6 pF | +/-30 ppm | -20 to +75 °C |
| X1E0003510066 | 2 x 1.6 x 0.5mm | FA2016AN | 32.000000 MHz | 6 pF | +/-20 ppm | -20 to +75 °C |
| X1E0003510067 | 2 x 1.6 x 0.5mm | FA2016AN | 50.000000 MHz | 8 pF | +/-10 ppm | -20 to +75 °C |
| X1E0003510068 | 2 x 1.6 x 0.5mm | FA2016AN | 50.000000 MHz | 8 pF | +/-10 ppm | -20 to +70 °C |
| X1E0003510069 | 2 x 1.6 x 0.5mm | FA2016AN | 25.000000 MHz | 6 pF | +/-10 ppm | -40 to +105 °C |
| X1E0003510070 | 2 x 1.6 x 0.5mm | FA2016AN | 26.000000 MHz | 10 pF | +/-10 ppm | -30 to +85 °C |
| X1E0003510071 | 2 x 1.6 x 0.5mm | FA2016AN | 27.000000 MHz | 8 pF | +/-30 ppm | -30 to +85 °C |
| X1E0003510073 | 2 x 1.6 x 0.5mm | FA2016AN | 38.400000 MHz | 10 pF | +/-10 ppm | -40 to +105 °C |
| X1E0003510074 | 2 x 1.6 x 0.5mm | FA2016AN | 32.000000 MHz | 8 pF | +/-10 ppm | -20 to +75 °C |
| X1E0003510075 | 2 x 1.6 x 0.5mm | FA2016AN | 24.000000 MHz | 12 pF | +/-10 ppm | -30 to +85 °C |
| X1E0004110008 | 1.2 x 1 x 0.3mm | FA1210AN | 32.000000 MHz | 8 pF | +/-10 ppm | -20 to +70 °C |
| X1E0004110010 | 1.2 x 1 x 0.3mm | FA1210AN | 32.000000 MHz | 8 pF | +/-10 ppm | -30 to +75 °C |
| X1E0004110012 | 1.2 x 1 x 0.3mm | FA1210AN | 32.000000 MHz | 8 pF | +/-10 ppm | -40 to +85 °C |
| X1E0004110014 | 1.2 x 1 x 0.3mm | FA1210AN | 32.000000 MHz | 6 pF | +/-10 ppm | -40 to +85 °C |
