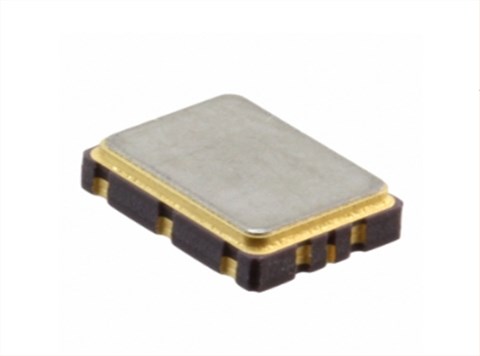

Si549低功耗晶振/549BACB000148ACG/6G發射器晶振/Skyworks有源貼片晶振，尺寸7.0×5.0mm，頻率24.576MHZ，歐美差分晶振，進口差分晶體振蕩器，LVDS輸出晶振，高性能差分晶振，六腳差分晶振，貼片差分晶振，7050mm差分晶振，OSC有源差分晶振，有源貼片差分晶振，XO時鐘振蕩器，24.5760MHZ差分晶振，LVDS差分晶振，SMD差分晶振，低電壓差分振蕩器，低電流差分晶振，交換機差分晶振，低功耗差分晶振，藍牙模塊差分晶振，智能家居差分晶振，網絡設備差分晶振，無線應用差分晶振，通訊差分晶振，光模塊差分晶振，測量設備差分振蕩器，便攜式設備差分晶振，具有高質量低功耗的特點。
Si549 Ultra系列™ 振蕩器采用Skyworks Solutions的先進技術第四代DSPLL®技術，提供超低抖動、低相位任何輸出頻率的噪聲時鐘。該設備通過用戶編程簡單的I2C命令，提供從0.2到1500 MHz的任何頻率＜1ppb分辨率，并在整數和在其工作范圍內的分數頻率。Si549差分晶振LVDS提供了出色的可靠性和頻率穩定性以及有保證的老化性能。片上電源濾波提供業界領先的電源噪聲抑制，簡化了在噪聲系統中生成低抖動時鐘的任務使用開關模式電源。Si549具有顯著的簡化的供應鏈，使Skyworks能夠運送自定義頻率樣品在收到訂單后1-2周。Si549低功耗晶振/549BACB000148ACG/6G發射器晶振/Skyworks有源貼片晶振.
Si549低功耗晶振/549BACB000148ACG/6G發射器晶振/Skyworks有源貼片晶振 參數表
| Parameter | Symbol | Test Condition/Comment | Min | Typ | Max | Unit | ||||||||||||||||||||||||||||||||||||||
| Temperature Range | TA | –40 | 85 | ºC | ||||||||||||||||||||||||||||||||||||||||
| Frequency Range | FCLK | LVPECL, LVDS, CML | 0.2 | — | 1500 | MHz | ||||||||||||||||||||||||||||||||||||||
| HCSL | 0.2 | — | 400 | MHz | ||||||||||||||||||||||||||||||||||||||||
| CMOS, Dual CMOS | 0.2 | 250 | MHz | |||||||||||||||||||||||||||||||||||||||||
| Supply Voltage | V DD | 3.3 V | 3.135 | 3.3 | 3.465 | V | ||||||||||||||||||||||||||||||||||||||
| 2.5 V | 2.375 | 2.5 | 2.625 | V | ||||||||||||||||||||||||||||||||||||||||
| 1.8 V | 1.71 | 1.8 | 1.89 | V | ||||||||||||||||||||||||||||||||||||||||
| Supply Current | IDD | LVPECL (output enabled) | 107 | 153 | mA | |||||||||||||||||||||||||||||||||||||||
| LVDS/CML (output enabled) | — | 83 | 121 | mA | ||||||||||||||||||||||||||||||||||||||||
| HCSL (output enabled) | 86 | 126 | mA | |||||||||||||||||||||||||||||||||||||||||
| HCSL-Fast (output enabled) | — | 94 | 138 | mA | ||||||||||||||||||||||||||||||||||||||||
| CMOS (output enabled) | 87 | 127 | mA | |||||||||||||||||||||||||||||||||||||||||
| Dual CMOS (output enabled) | — | 92 | 141 | mA | ||||||||||||||||||||||||||||||||||||||||
| Tristate Hi-Z (output disabled) | 73 | 112 | mA | |||||||||||||||||||||||||||||||||||||||||
| Temperature Stability | Frequency stability Grade A | –20 | — | 20 | ppm | |||||||||||||||||||||||||||||||||||||||
| Frequency stability Grade B | –10 | 10 | ppm | |||||||||||||||||||||||||||||||||||||||||
| Frequency stability Grade C | –7 | — | 7 | ppm | ||||||||||||||||||||||||||||||||||||||||
| Total Stability1 | F STAB | Frequency stability Grade A | –50 | 50 | ppm | |||||||||||||||||||||||||||||||||||||||
| Frequency stability Grade B | –25 | — | 25 | ppm | ||||||||||||||||||||||||||||||||||||||||
| Frequency stability Grade C | –20 | 20 | ppm | |||||||||||||||||||||||||||||||||||||||||
|
Rise/Fall Time (20% to 80% VPP) |
TR/TF | LVPECL/LVDS/CML | — | — | 350 | ps | ||||||||||||||||||||||||||||||||||||||
|
CMOS / Dual CMOS (CL= 5 pF) |
— | 0.5 | 1.5 | ns | ||||||||||||||||||||||||||||||||||||||||
| HCSL, FCLK>50 MHz | — | — | 550 | ps | ||||||||||||||||||||||||||||||||||||||||
| HCSL-Fast, FCLK>50 MHz | — | — | 275 | ps | ||||||||||||||||||||||||||||||||||||||||
| Duty Cycle | DC | All formats | 45 | — | 55 | % | ||||||||||||||||||||||||||||||||||||||
|
Output Enable (OE), Frequency Select (FS0, FS1)2 |
VIH | 0.7 × VDD | V | |||||||||||||||||||||||||||||||||||||||||
| VIL | — | — | 0.3 × VDD | V | ||||||||||||||||||||||||||||||||||||||||
| TD | Output Disable Time, FCLK>10 MHz | — | — | 3 | µs | |||||||||||||||||||||||||||||||||||||||
| TE | Output Enable Time, FCLK>10 MHz | — | — | 20 | µs | |||||||||||||||||||||||||||||||||||||||
| T FS | Settling Time after FS Change | 10 | ms | |||||||||||||||||||||||||||||||||||||||||
| Powerup Time | tOSC |
Time from 0.9 × VDDuntil output fre- quency (FCLK) within spec |
— | — | 10 | ms | ||||||||||||||||||||||||||||||||||||||

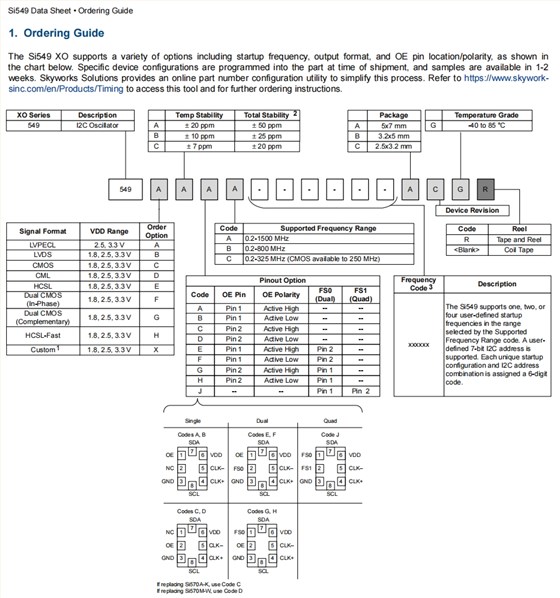

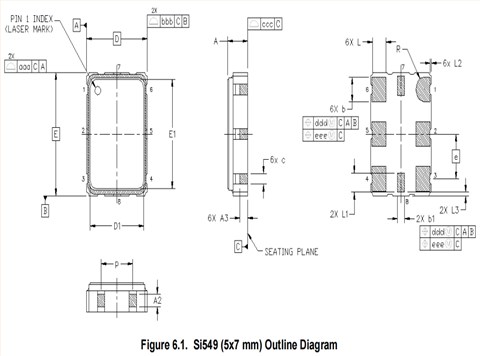

Si549低功耗晶振/549BACB000148ACG/6G發射器晶振/Skyworks有源貼片晶振 尺寸圖
OSC晶振產品特性:
I2C可編程至0.2至1500MHz，分辨率<1ppb
超低抖動：95 fs典型RMS（12kHz–20MHz）
最多配置4針可選啟動頻率
I2C接口支持100 kbps、400 kbps和1Mbps（快速模式+）
出色的PSNR和電源抗擾度：–80dBc類型
3.3 V、2.5 V和1.8 V VDD電源操作
相同的零件號
LVPECL、LVDS、CML、HCSL、CMOS和Dual CMOS輸出選項
2.5x3.2、3.2x5、5x7 mm封裝選項
樣品可用，交付周期為1-2周
