CT20M38.4000F10V13-100,CT20M熱敏晶振,NKG晶體,38.4MHZ,2016mm特點:
SMD晶振內置熱敏電阻100k?用于溫度測量。
非常適合與具有內置溫度的IC一起使用補償振蕩器電路。
高度可靠的封裝尺寸2.0 x 1.6 x 0.7mm，帶4個墊片。

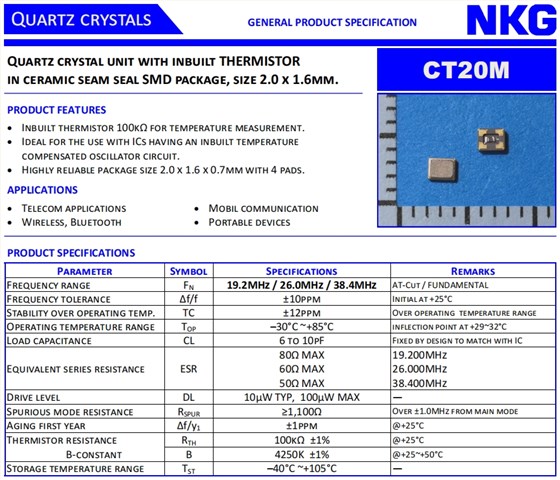

CT20M38.4000F10V13-100,CT20M熱敏晶振,NKG晶體,38.4MHZ,2016mm 參數表
| Parameter | Symbol | Specifications | Remarks | |||||||||
| Frequency range | FN | 38.4MHz | AT-Cut / FUNDAMENTAL | |||||||||
| Frequency tolerance | Δf/f | ±10ppm | Initial at +25°C | |||||||||
| Stability over operating temp. | TC | ±12ppm | Over operatingtemperature range | |||||||||
| Operating temperature range | TOP | –30°C ~+85°C | inflection point at +29~32°C | |||||||||
| Load capacitance | CL | 6 to 10pF | Fixed by design to match with IC | |||||||||
| Equivalent series resistance | ESR |
80Ω MAX 60Ω MAX 50Ω MAX |
19.200MHz 26.000MHz 38.400MHz |
|||||||||
| Drive level | DL | 10µW TYP,100µW MAX | — | |||||||||
| Spurious mode resistance | RSPUR | ≥1,100? | Over ±1.0MHz from main mode | |||||||||
| Aging first year | Δf/y1 | ±1ppm | @+25°C | |||||||||
|
Thermistor resistance B-constant |
RTH | 100k?±1% | @+25°C | |||||||||
| B | 4250K±1% | @+25~+50°C | ||||||||||
| Storage temperature range | TST | –40°C ~+105°C | — | |||||||||

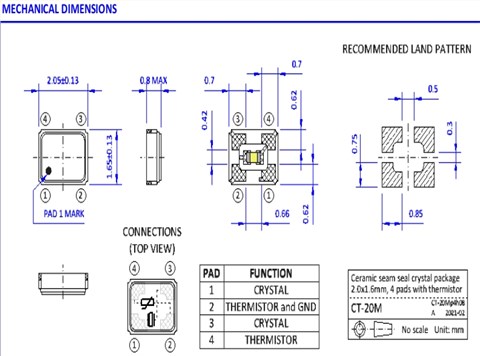

CT20M38.4000F10V13-100,CT20M熱敏晶振,NKG晶體,38.4MHZ,2016mm尺寸圖
