SMX-2C電信設備晶振,6035mm無源晶振,石英通兩腳貼片晶振，尺寸6.0x3.5mm，頻率范圍10~65MHZ，QuartzCom無源晶振，瑞士進口晶振，瑞士石英通晶振，貼片無源晶體，兩腳貼片晶振，SMD晶振，無源晶振，陶瓷晶振，無源貼片晶振，水晶振動子，陶瓷諧振器，6035mm貼片晶振，輕薄型晶體，環保晶振，電信設備晶振，數字音頻專用晶振，汽車應用晶振，儀器設備晶振，多媒體設備晶振，家電電視晶振，無線網絡晶振，便攜式設備晶振，低損耗晶振，低功耗晶振，高性能晶振，高質量晶振，具有高性能低功耗的特點。
SMD晶振產品可快速滿足各大應用場景，好比電信設備，數字音頻，汽車應用，儀器設備，多媒體設備，家電電視，無線網絡，便攜式設備等領域.SMX-2C電信設備晶振,6035mm無源晶振,石英通兩腳貼片晶振.

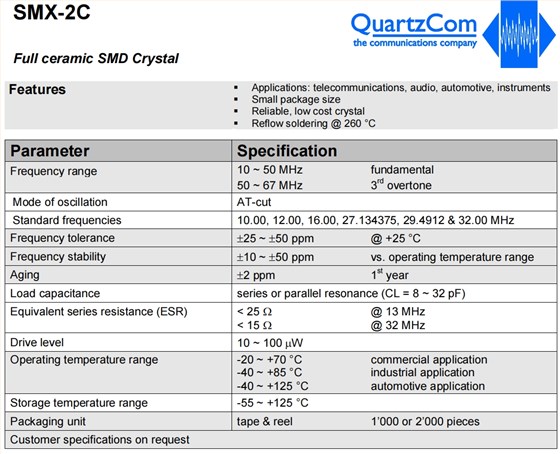

SMX-2C電信設備晶振,6035mm無源晶振,石英通兩腳貼片晶振 參數表
| Parameter | Specification | |||||
| Frequency range |
10 ~ 50 MHz 50 ~ 67 MHz |
fundamental 3rdovertone |
||||
| Mode of oscillation | AT-cut | |||||
| Standard frequencies | 10.00, 12.00, 16.00, 27.134375, 29.4912 & 32.00 MHz | |||||
| Frequency tolerance | 土25 ~土50 ppm@ +25 °C | |||||
| Frequency stability | 土10 ~土50 ppmvs. operating temperature range | |||||
| Aging | 土2 ppm | 1st | year | |||
| Load capacitance | series or parallel resonance (CL = 8 ~ 32 pF) | |||||
| Equivalent series resistance (ESR) |
< 25Ω < 15Ω |
@ 13 MHz @ 32 MHz |
||||
| Drive level | 10 ~ 100μW | |||||
| Operating temperature range |
-20 ~ +70 °C -40 ~ +85 °C -40 ~ +125 °C |
commercial application industrial application automotive application |
||||
| Storage temperature range | -55 ~ +125 °C | |||||
| Packaging unit | tape & reel1’000 or 2’000 pieces | |||||
| Customer specifications on request | ||||||

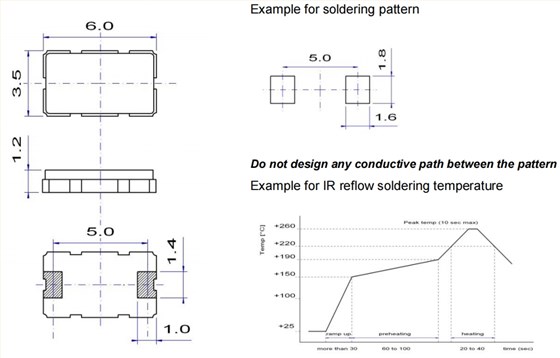

SMX-2C電信設備晶振,6035mm無源晶振,石英通兩腳貼片晶振 尺寸圖
SMX-2C電信設備晶振,6035mm無源晶振,石英通兩腳貼片晶振
產品特點：
小包裝尺寸
可靠、低成本的陶瓷晶體
回流焊@260°C
