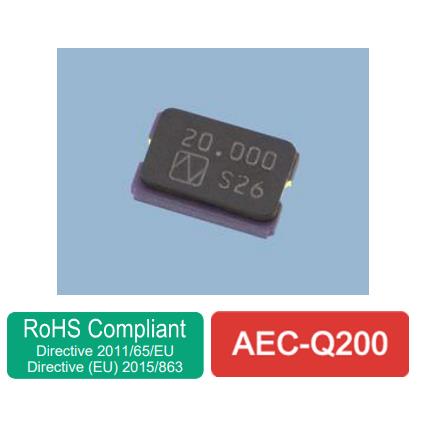

頻率：20MHZ
尺寸：5.0*3.2mm
NX5032GA-20.000000MHZ-LN-CD-1|20MHZ|50ppm|汽車設備,尺寸為5032mm,頻率為20MHZ,頻率穩定度為50ppm,日本進口晶振,SMD晶振,無源晶體,陶瓷晶振,兩腳貼片晶振,NDK晶振,音叉諧振器，水晶振動子，汽車設備專用晶振，儀器儀表無源晶振，無線網絡晶振，通訊產品專用晶振，低損耗晶振，高性能晶振，無源貼片晶振，NX5032GA-48.000000MHZ-LN-CD-1晶振，NX5032GA-27M-STD-CSK-4晶振。
日產晶振產品主要應用領域：無線設備，網絡電子，智能產品，儀器儀表，汽車設備等領域。NX5032GA-20.000000MHZ-LN-CD-1|20MHZ|50ppm|汽車設備.
NX5032GA-20.000000MHZ-LN-CD-1|20MHZ|50ppm|汽車設備,尺寸為5032mm,頻率為20MHZ,頻率穩定度為50ppm,日本進口晶振,SMD晶振,無源晶體,陶瓷晶振,兩腳貼片晶振,NDK晶振,音叉諧振器，水晶振動子，汽車設備專用晶振，儀器儀表無源晶振，無線網絡晶振，通訊產品專用晶振，低損耗晶振，高性能晶振，無源貼片晶振，NX5032GA-48.000000MHZ-LN-CD-1晶振，NX5032GA-27M-STD-CSK-4晶振。
日產晶振產品主要應用領域：無線設備，網絡電子，智能產品，儀器儀表，汽車設備等領域。NX5032GA-20.000000MHZ-LN-CD-1|20MHZ|50ppm|汽車設備.
NX5032GA-20.000000MHZ-LN-CD-1|20MHZ|50ppm|汽車設備 參數表
| 參數 | SYM. | Electrical Spec. | Notes | ||||||||||||||||||
| min | typ | max | Units | ||||||||||||||||||
| 標稱頻率 | fnom | 8 | - | 40 | MHz | --- | |||||||||||||||
| 泛音的順序 | - | Fundamental | - | --- | |||||||||||||||||
| 頻率公差 | - | --50 | - | +50 | ×10-6 | @ +25°C | |||||||||||||||
| 頻率和穩定度特點 | - | --150 | - | +150 | ×10-6 | 參考溫度應為+25°C | |||||||||||||||
| 等效電阻 | - | - | - | *1 | ? |
* 1。參見表1 (pi網絡/系列) |
|||||||||||||||
| 負載電容 | CL | - | 8 | - | pF | PI-network | |||||||||||||||
| 驅動級別 | - | - | 10 | 500 | µW | --- | |||||||||||||||
| 工作溫度范圍 | Topr | --40 | - | +150 | °C | --- | |||||||||||||||
| 儲存溫度范圍 | Tstr | --40 | - | +150 | °C | --- | |||||||||||||||
| 絕緣電阻 | - | 500 | - | - | M? |
當終端對終端和終端對 蓋板在DC100V±15V下通電。 |
|||||||||||||||
| 氣密性 | - | - | - | 3.0×10-9 | Pa m3/s | --- | |||||||||||||||

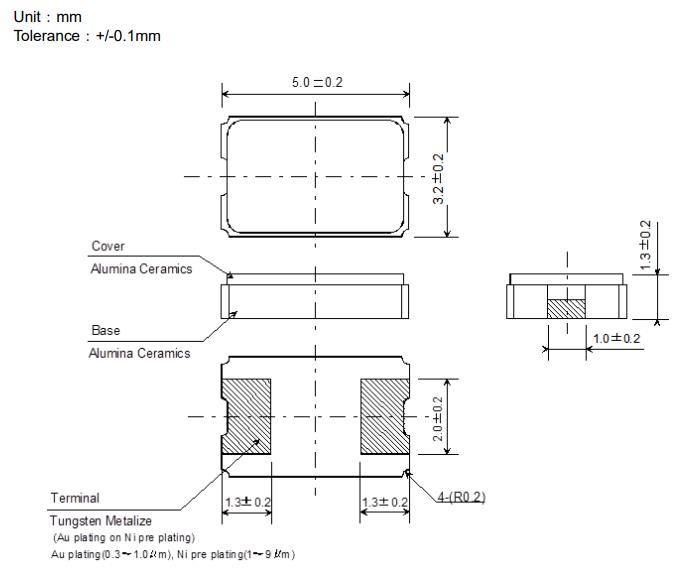

NX5032GA-20.000000MHZ-LN-CD-1|20MHZ|50ppm|汽車設備 尺寸圖 包裝圖

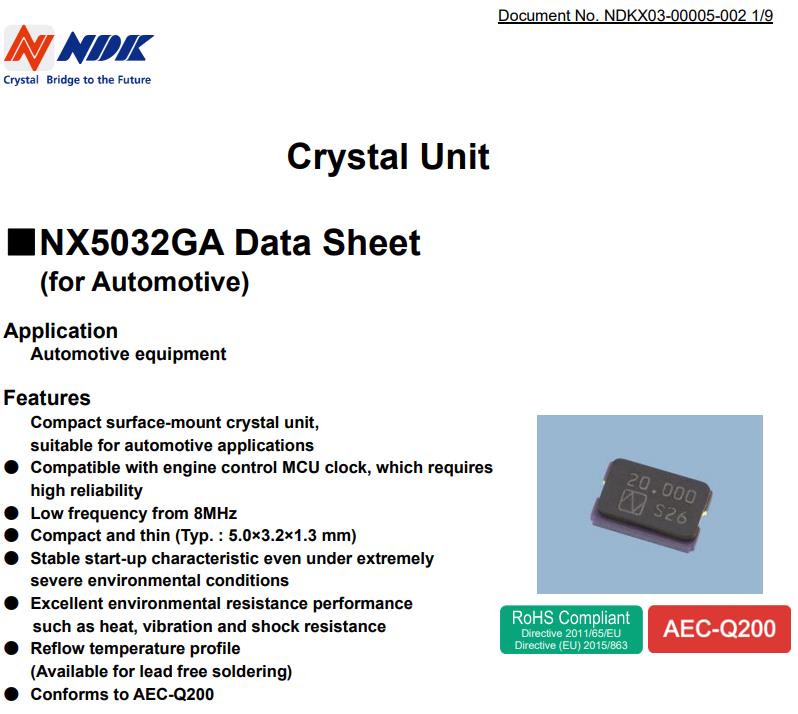

NX5032GA-20.000000MHZ-LN-CD-1|晶振 特性
緊湊的表面貼裝晶體單元，
適用于汽車應用
●兼容發動機控制MCU時鐘，這需要高可靠性
●8MHz以內的低頻
●緊湊、薄(型)。: 5.0×3.2×1.3 mm)
●即使在極端高壓下，啟動特性也穩定惡劣的環境條件
●優異的耐環境性能如耐熱、耐振動、耐沖擊
●回流溫度曲線
(可進行無鉛焊接)
●符合AEC-Q200標準
更多有關NDK晶振型號
| 原廠編碼 | 廠家 | 型號 | 系列 | 頻率 | 頻率穩定度 |
| NX5032GA-24.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 24MHz | ±50ppm |
| NX5032GA-25.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 25MHz | ±50ppm |
| NX5032GA-27.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 27MHz | ±50ppm |
| NX5032GA-16.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 16MHz | ±50ppm |
| NX5032GA-10.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 10MHz | ±50ppm |
| NX5032GA-12.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 12MHz | ±50ppm |
| NX5032GA-48.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 48MHz | ±50ppm |
| NX5032GA-16.384000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 16.384MHz | ±50ppm |
| NX5032GA-20.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 20MHz | ±50ppm |
| NX5032GA-32.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 32MHz | ±50ppm |
| NX5032GA-27M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 27MHz | ±30ppm |
| NX5032GA-12.288M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 12.288MHz | ±30ppm |
| NX5032GA-14.31818M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 14.31818MHz | ±30ppm |
| NX5032GA-25.000M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 25MHz | ±30ppm |
| NX5032GA-12MHZ-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 12MHz | ±30ppm |
| NX5032GA-10.000M-STD-CSU-1 | NDK晶振 | NX5032GA | MHz Crystal | 10MHz | ±150ppm |
| NX5032GA-20.000M-STD-CSU-2 | NDK晶振 | NX5032GA | MHz Crystal | 20MHz | ±150ppm |
| NX5032GA-12.000M-STD-CSU-2 | NDK晶振 | NX5032GA | MHz Crystal | 12MHz | ±150ppm |
| NX5032GA-20.000M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 20MHz | ±30ppm |
| NX5032GA-13.56M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 13.56MHz | ±30ppm |
| NX5032GA-12.288000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 12.288MHz | ±50ppm |
| NX5032GA-16MHZ-STD-CSK-8 | NDK晶振 | NX5032GA | MHz Crystal | 16MHz | ±50ppm |
| NX5032GA-16MHZ-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 16MHz | ±30ppm |
| NX5032GA- 9.84375M-STD-CSU-1 | NDK晶振 | NX5032GA | MHz Crystal | 9.84375MHz | ±150ppm |
| NX5032GA-10.000M-STD-CSK-3 | NDK晶振 | NX5032GA | MHz Crystal | 10MHz | ±30ppm |
| NX5032GA-30.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 30MHz | ±50ppm |
| NX5032GA-40.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 40MHz | ±50ppm |
| NX5032GA-12MHZ-STD-CSK-8 | NDK晶振 | NX5032GA | MHz Crystal | 12MHz | ±50ppm |
| NX5032GA-16.000M-STD-CSU-2 | NDK晶振 | NX5032GA | MHz Crystal | 16MHz | ±150ppm |
| NX5032GA-8.000M-STD-CSU-1 | NDK晶振 | NX5032GA | MHz Crystal | 8MHz | ±150ppm |
| NX5032GA-13.560000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 13.56MHz | ±50ppm |
| NX5032GA-11.0592M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 11.0592MHz | ±30ppm |
| NX5032GA-30.000M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 30MHz | ±30ppm |
| NX5032GA-24.000M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 24MHz | ±30ppm |
| NX5032GA-40.000M-STD-CSU-2 | NDK晶振 | NX5032GA | MHz Crystal | 40MHz | ±150ppm |
| NX5032GA -13.56M-STD-CSU-2 | NDK晶振 | NX5032GA | MHz Crystal | 13.56MHz | ±150ppm |
