頻率：156.250MHz
尺寸：5.0x3.2x1.17mm
Renesas差分貼片晶振,XPP526156.250000I,航空電子晶振，歐美進口晶振，Renesas瑞薩電子晶振，XP系列晶振，編碼為：XPP526156.250000I，頻率為：156.250MHz，小體積晶振尺寸：5.0x3.2x1.17mm封裝，8墊腳貼片晶振，LVPECL輸出差分晶體振蕩器，石英晶體振蕩器，石英晶振，SMD晶振，有源晶振，電壓3.3V。具有超小型，輕薄型，低抖動，低功耗，低電源電壓，低相位噪聲，高精度，高性能，高品質等特點。應用于：移動通訊設備，物聯網，無線網絡，藍牙模塊，路由器，交換機，以太網，光纖通道，汽車電子，醫療設備，安防設備，智能家居等應用。

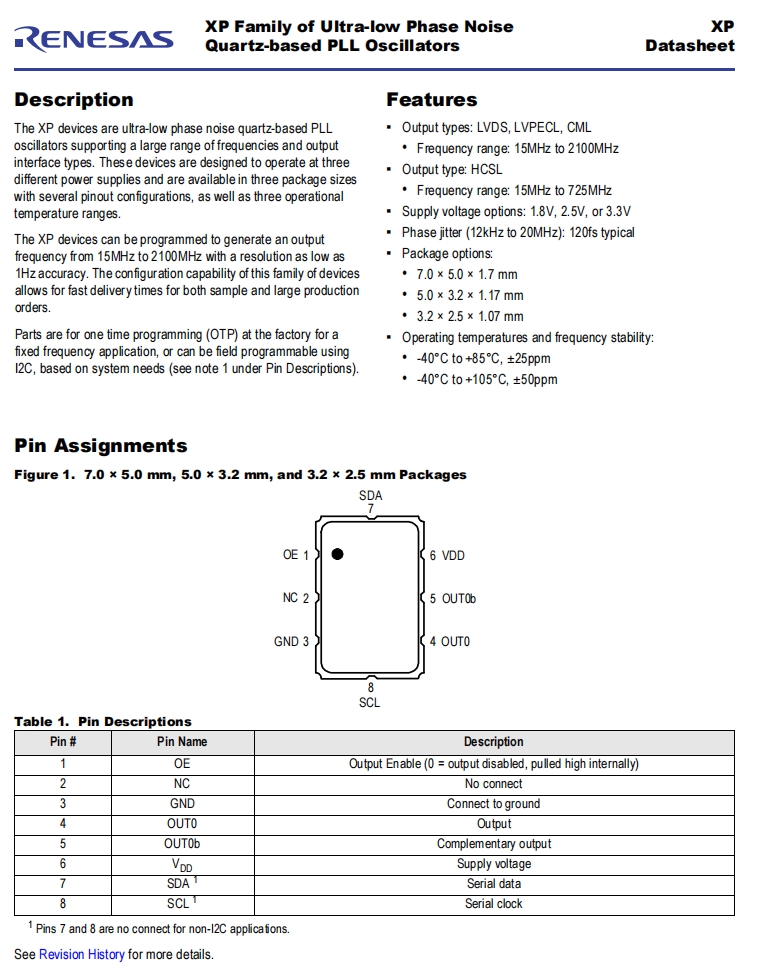

XP系列差分晶振是超低相位噪聲的基于石英的PLL振蕩器，支持大范圍的頻率和輸出接口類型。這些設備被設計為操作在三種不同的電源供應，并可在三種包裝尺寸與幾種針形配置，以及三種操作溫度范圍。XP設備可以通過編程產生從15MHz到2100MHz的輸出頻率，分辨率低至1Hz的精度。該系列設備的配置能力允許樣品和大型生產訂單的快速交付時間。

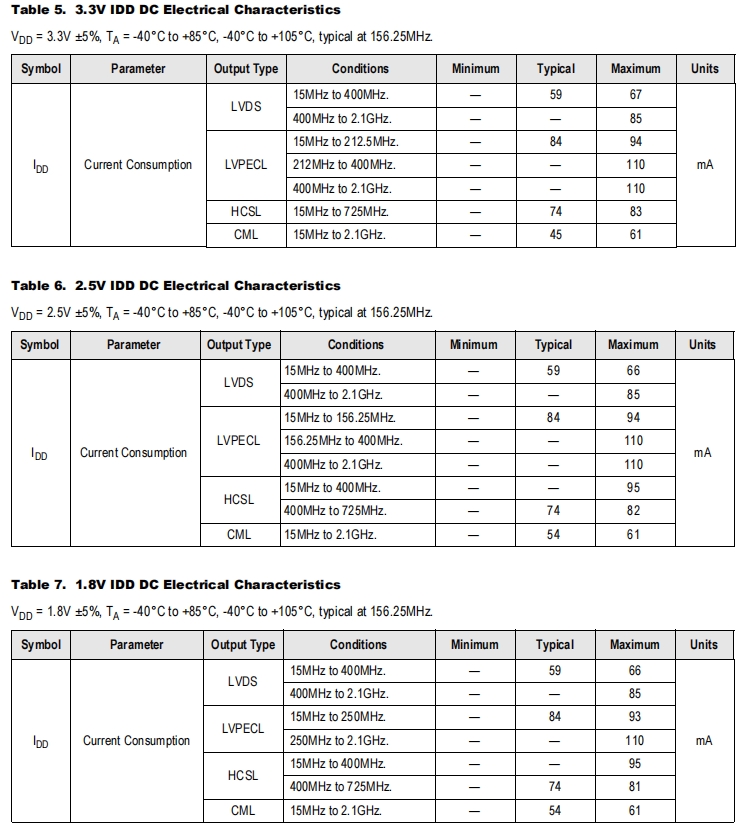

Renesas差分貼片晶振,XPP526156.250000I,航空電子晶振,參數表
Parameter
Test Condition
Minimum
Typical
Maximum
Units
Output Frequency Range
LVDS, LVPECL, CML.
—
156.250
MHz
HCSL.
15
—
725
Frequency Stability
Temperature = -40°C to +85°C.
—
—
±25
ppm
Temperature = -40°C to +105°C.
—
—
±50
ppm
Frequency Tolerance (25°C)
Temperature = 25°C.
-15
±10
-15
ppm
Aging (1st year)
TA = 25°C.
—
—
±3
ppm
Aging (10 years)
TA = 25°C.
—
—
±10
ppm
Output Load
LVDS.
Differential.
—
100
—
Ω
LVPECL.
VDD - 2.0V.
—
50
—
HCSL.
To GND.
—
50
—
Start-up Time
Output valid time after VDD meets minimum specified level.
—
5
—
ms
Output Rise Time
LVDS.
20% – 80%,
156.25MHz
—
299
400
ps
LVPECL.
—
287
400
HCSL.
—
306
400
CML
—
301
400
Output Fall Time
LVDS.
20% – 80%,
156.25MHz
—
279
400
ps
LVPECL.
—
274
400
HCSL.
—
284
400
CML
—
279
400
Output Clock Duty Cycle
LVDS.
156.25MHz
48
—
52
%
LVPECL.
156.25MHz
48
—
52
HCSL.
156.25MHz
48
—
52
CML
156.25MHz
48
—
52
Output Enable/Disable Time
—
—
—
1
—
ms
Renesas差分貼片晶振,XPP526156.250000I,航空電子晶振,尺寸圖
Renesas差分貼片晶振,XPP526156.250000I,航空電子晶振
產品特點：
輸出類型：LVDS、LVPECL、CML
頻率范圍：15MHz至2100MHz
輸出類型：HCSL
頻率范圍：15MHz至725MHz
電源電壓選項：1.8V、2.5V或3.3V
相位抖動（12kHz至20MHz）：典型值為120fs
程序包選項：
7.0×5.0×1.7mm
5.0×3.2×1.17mm有源晶振
3.2×2.5×1.07mm
工作溫度和頻率穩定性：
-40°C至+85°C，±25ppm
-40°C至+105°C，±50ppm
| 編碼 | 晶振廠家 | 描述 | 系列 | 頻率 | 輸出 | 電壓 |
| XPP736625.000000I | Renesas晶振 | 0625.000000MHZ 3.3VDC LVPECL 705 | XPP | 625 MHz | LVPECL | 3.3V |
| XPP736156.250000I | Renesas晶振 | 0156.250000MHZ 3.3VDC LVPECL 705 | XPP | 156.25 MHz | LVPECL | 3.3V |
| XPP736312.500000I | Renesas晶振 | 0312.500000MHZ 3.3VDC LVPECL 705 | XPP | 312.5 MHz | LVPECL | 3.3V |
| XPP336100.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPP | 100 MHz | LVPECL | 3.3V |
| XPP736161.132812I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 161.132812 MHz | LVPECL | 3.3V |
| XPP736125.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 125 MHz | LVPECL | 3.3V |
| XPP316156.250000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPP | 156.25 MHz | LVPECL | 1.8V |
| XPP736212.500000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 212.5 MHz | LVPECL | 3.3V |
| XPP736156.253906I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 156.253906 MHz | LVPECL | 3.3V |
| XPP736175.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 175 MHz | LVPECL | 3.3V |
| XPP736100.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 100 MHz | LVPECL | 3.3V |
| XPP736106.250000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 106.25 MHz | LVPECL | 3.3V |
| XPP735156.250005I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 156.250005 MHz | LVPECL | 3.3V |
| XPP736122.880000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 122.88 MHz | LVPECL | 3.3V |
| XPP736124.992000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 124.992 MHz | LVPECL | 3.3V |
| XPP736200.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 200 MHz | LVPECL | 3.3V |
| XPP526156.250000I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XPP | 156.25 MHz | LVPECL | 2.5V |
| XPP726212.500000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 212.5 MHz | LVPECL | 2.5V |
| XPP736250.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 250 MHz | LVPECL | 3.3V |
| XPP726312.510900I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 312.5109 MHz | LVPECL | 2.5V |
| XPP736915.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 915 MHz | LVPECL | 3.3V |
| XPP336830.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPP | 830 MHz | LVPECL | 3.3V |
| XPP336156.253906I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPP | 156.253906 MHz | LVPECL | 3.3V |
| XPP336250.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPP | 250 MHz | LVPECL | 3.3V |
| XPP736161.132580I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 161.13258 MHz | LVPECL | 3.3V |
| XPP726445.500000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 445.5 MHz | LVPECL | 2.5V |
| XPP726160.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 160 MHz | LVPECL | 2.5V |
| XPP336312.500000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPP | 312.5 MHz | LVPECL | 3.3V |
| XPP516625.000000I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XPP | 625 MHz | LVPECL | 1.8V |
| XPP336050.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPP | 50 MHz | LVPECL | 3.3V |
| XPP336207.500000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPP | 207.5 MHz | LVPECL | 3.3V |
| XPP726312.500000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 312.5 MHz | LVPECL | 2.5V |
| XPP336040.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPP | 40 MHz | LVPECL | 3.3V |
| XPP336A00.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPP | 1 GHz | LVPECL | 3.3V |
| XPP736159.375000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 159.375 MHz | LVPECL | 3.3V |
| XPP536161.132812I | 貼片晶振 | XTAL OS XO 161.132812MHZ LVPECL | XPP | 161.132812 MHz | LVPECL | 3.3V |
| XPP726156.257813I | Renesas晶振 | XTAL OS XO 156.257813MHZ LVPECL | XPP | 156.257813 MHz | LVPECL | 2.5V |
| XPP726100.000000I | Renesas晶振 | XTAL OSC XO 100.0000MHZ LVPECL | XPP | 100 MHz | LVPECL | 2.5V |
| XPP526155.520000I | Renesas晶振 | XTAL OSC XO 155.5200MHZ LVPECL | XPP | 155.52 MHz | LVPECL | 2.5V |
| XPP516100.000000I | Renesas晶振 | XTAL OSC XO 100.0000MHZ LVPECL | XPP | 100 MHz | LVPECL | 1.8V |
| XPP536156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ LVPECL | XPP | 156.25 MHz | LVPECL | 3.3V |
| XPP726127.500000I | Renesas晶振 | XTAL OSC XO 127.5000MHZ LVPECL | XPP | 127.5 MHz | LVPECL | 2.5V |
| XPP526150.000000I | Renesas晶振 | XTAL OSC XO 150.0000MHZ LVPECL | XPP | 150 MHz | LVPECL | 2.5V |
| XPP736A00.000000I | Renesas晶振 | XTAL OSC XO 1.0000GHZ LVPECL SMD | XPP | 1 GHz | LVPECL | 3.3V |
| XPP535156.25000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ LVPECL | XPP | 156.25 MHz | LVPECL | 3.3V |
| XPP726445.500001I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 445.500001 MHz | LVPECL | 2.5V |
| XPP735245.760000K | Renesas晶振 | XTAL OSC XO 245.7600MHZ LVPECL | XPP | 245.76 MHz | LVPECL | 3.3V |
| XPP535312.500000K | Renesas晶振 | XTAL OSC XO 312.5000MHZ LVPECL | XPP | 312.5 MHz | LVPECL | 3.3V |
| XPP735100.000000K | Renesas晶振 | XTAL OSC XO 100.0000MHZ LVPECL | XPP | 100 MHz | LVPECL | 3.3V |
| XPP735156.250000K | Renesas晶振 | XTAL OSC XO 156.2500MHZ LVPECL | XPP | 156.25 MHz | LVPECL | 3.3V |
| XPP73Q122.880000I | Renesas晶振 | XPP73Q122.88000 PROGRAMMABLE XO | XPP | - | - | - |
| XPP736045.158400I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 45.1584 MHz | LVPECL | 3.3V |
| XPP736050.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 50 MHz | LVPECL | 3.3V |
| XPP736155.520000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 155.52 MHz | LVPECL | 3.3V |
| XPP736133.333000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 133.333 MHz | LVPECL | 3.3V |
| XPP735050.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 50 MHz | LVPECL | 3.3V |
| XPP736049.152000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 49.152 MHz | LVPECL | 3.3V |
| XPP736150.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 150 MHz | LVPECL | 3.3V |
| XPP735156.250000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 156.25 MHz | LVPECL | 3.3V |
| XPP336156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ LVPECL | XPP | 156.25 MHz | LVPECL | 3.3V |
| XPP336156.250000K | Renesas晶振 | XTAL OSC XO 156.2500MHZ LVPECL | XPP | 156.25 MHz | LVPECL | 3.3V |
| XPP336037.125000I | Renesas晶振 | XTAL OSC XO 37.1250MHZ LVPECL | XPP | 37.125 MHz | LVPECL | 3.3V |
| XPP326125.000000I | Renesas晶振 | XTAL OSC XO 125.0000MHZ LVPECL | XPP | 125 MHz | LVPECL | 2.5V |
| XPP536500.000000I | Renesas晶振 | XTAL OSC XO 500.0000MHZ LVPECL | XPP | 500 MHz | LVPECL | 3.3V |
| XPP536312.500000I | Renesas晶振 | XTAL OSC XO 312.5000MHZ LVPECL | XPP | 312.5 MHz | LVPECL | 3.3V |
| XPP726156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ LVPECL | XPP | 156.25 MHz | LVPECL | 2.5V |
| XPP536625.000000I | Renesas晶振 | XTAL OSC XO 625.0000MHZ LVPECL | XPP | 625 MHz | LVPECL | 3.3V |
| XPP736705.024000I | Renesas晶振 | XTAL OSC XO 705.0240MHZ LVPECL | XPP | 705.024 MHz | LVPECL | 3.3V |
| XPP726500.000000I | Renesas晶振 | XTAL OSC XO 500.0000MHZ LVPECL | XPP | 500 MHz | LVPECL | 2.5V |
| XPP726120.000000I | Renesas晶振 | XTAL OSC XO 120.0000MHZ LVPECL | XPP | 120 MHz | LVPECL | 2.5V |
| XPP33CA00.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPP | 1 GHz | LVPECL | 3.3V |
| XPP52C156.250000I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XPP | 156.25 MHz | LVPECL | 2.5V |
| XPP33IA00.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPP | 1 GHz | LVPECL | 3.3V |
| XPP736248.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 248 MHz | LVPECL | 3.3V |
| XPP535156.250000K | Renesas晶振 | XTAL OSC XO 156.2500MHZ LVPECL | XPP | 156.25 MHz | LVPECL | 3.3V |
| XPP73Q156.250000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 156.25 MHz | LVPECL | 3.3V |
| XPP73Q100.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPP | 100 MHz | LVPECL | 3.3V |
| XPP335026.000000K | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPP | 26 MHz | LVPECL | 3.3V |
| XPP325156.250000K | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPP | 156.25 MHz | LVPECL | 2.5V |
| XPP335156.250000K | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPP | 156.25 MHz | LVPECL | 3.3V |
| XPP335054.000000K | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPP | 54 MHz | LVPECL | 3.3V |
