頻率：32.768KHZ
尺寸：1.6x1.0mm
松圖1610晶體,SWS11212D48-32.768K,SWS112,32.768KHZ，尺寸1.6x1.0mm，頻率32.768KHZ，Suntsu小封裝晶振，32.768KHZ音叉晶體，歐美無源晶體，1610mm高性能晶振，32.768K晶振，無源貼片晶振，無源晶振，石英SMD晶體，低功耗晶振，低耗能晶振，低損耗晶振，低老化晶振，高品質晶振，實時時鐘晶振，小家電晶振，智能手表晶振，藍牙耳機晶振，小型設備晶振，測試測量晶振，儀器儀表晶振，無線通信晶振，具備超高的耐壓性能，32.768K時鐘晶振產品被廣泛應用各個領域之中，特別適合用于實時時鐘，小家電，智能手表，藍牙耳機，小型設備，測試測量，儀器儀表，無線通信等應用。松圖1610晶體,SWS11212D48-32.768K,SWS112,32.768KHZ.

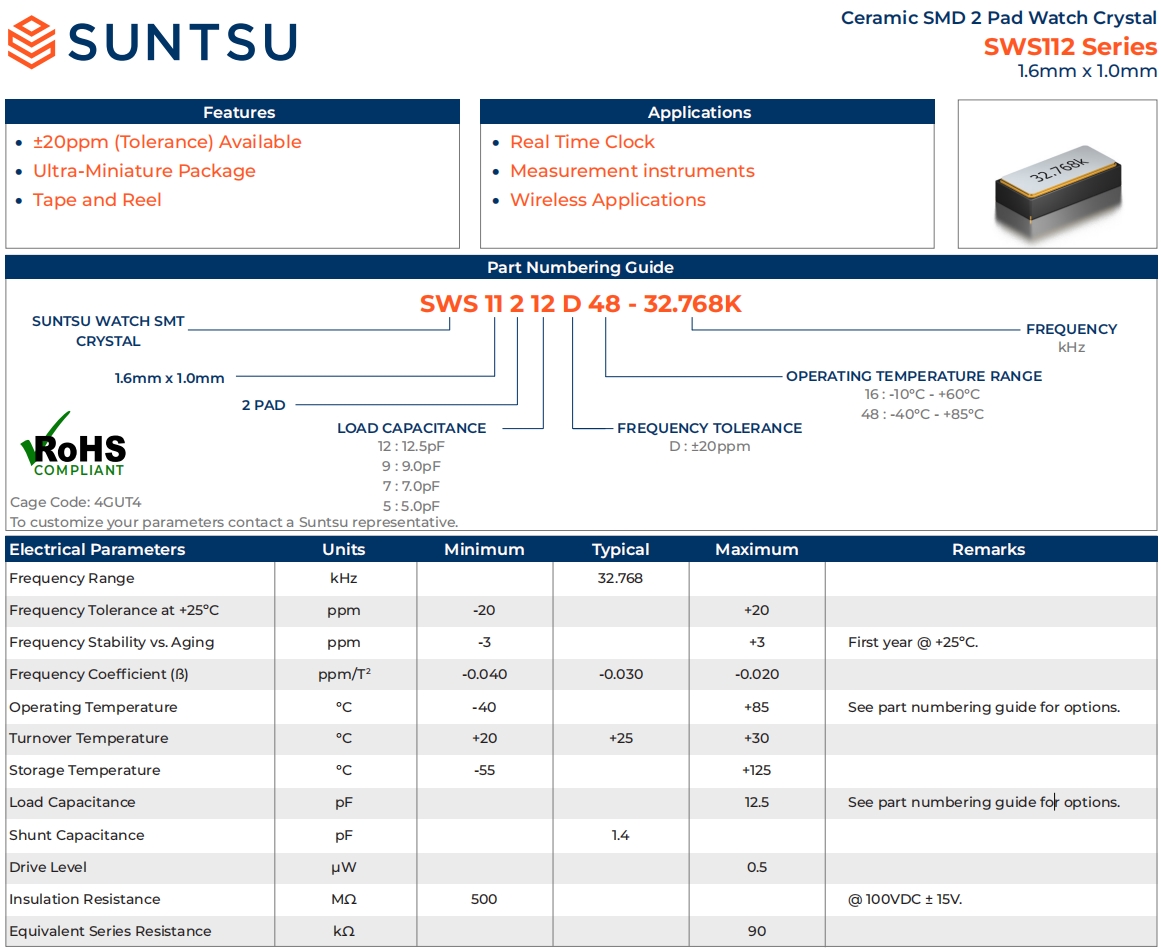

松圖1610晶體,SWS11212D48-32.768K,SWS112,32.768KHZ 參數表
Electrical Parameters Units Minimum Typical Maximum Remarks
Frequency Range
kHz
32.768
Frequency Tolerance at +25ºC
ppm
-20
+20
Frequency Stability vs. Aging
ppm
-3
+3
First year @ +25ºC.
Frequency Coefficient (?)
ppm/T2
-0.040
-0.030
-0.020
Operating Temperature
°C
-40
+85
See part numbering guide for options.
Turnover Temperature
°C
+20
+25
+30
Storage Temperature
°C
-55
+125
Load Capacitance
pF
12.5
See part numbering guide for options.
Shunt Capacitance
pF
1.4
Drive Level
µW
0.5
Insulation Resistance
M?
500
@ 100VDC ± 15V.
Equivalent Series Resistance
k?
90
松圖1610晶體,SWS11212D48-32.768K,SWS112,32.768KHZ 尺寸圖
松圖1610晶體,SWS11212D48-32.768K,SWS112,32.768KHZ
32.768K晶振產品特點：
±20ppm（公差）可用
超小型封裝
磁帶和卷軸
| Part Number | Package Size | Load Cap. | Freq. Tolerance | Operating Temp. | Frequency |
| SWS11212D16-32.768K | 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS11212D48-32.768K | 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS1127D48-32.768K | 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 7pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS1129D16-32.768K | 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS1129D48-32.768K | 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS14412D48A-32.768K | 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS14412D48B-32.768K | 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS1446D48A-32.768K | 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal | 6pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS1446D48B-32.768K | 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal | 6pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS1449D48A-32.768K | 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal | 9pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS21212D48-32.768K | 2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS2129F48-32.768K | 2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±10ppm | -40℃ - +85℃ | 32.768K |
| SWS31212D16-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS31212D48-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS3126D16-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 6pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS3126D48-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 6pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS3127D16-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 7pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS3127D48-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 7pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS3129D16-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS3129D48-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS41212D16-32.768K | 4.1X1.5 CERAMIC SMD晶振 (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS41212D48-32.768K | 4.1X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS51212D16-32.768K | 4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS5127D16-32.768K | 4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal | 7pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS5129D16-32.768K | 4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS61412D48-32.768K | 6.9X1.4 PLASTIC SMD (4 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS83412D16-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 12.5pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS83412D48-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS8346D16-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 6pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS8346D48-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 6pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS8347D16-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 7pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS8347D48-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 7pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS8349D16-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 9pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS8349D48-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 9pF | ±20ppm | -40℃ - +85℃ | 32.768K |
