頻率：24.000MHz
尺寸：3.2x2.5x0.9mm

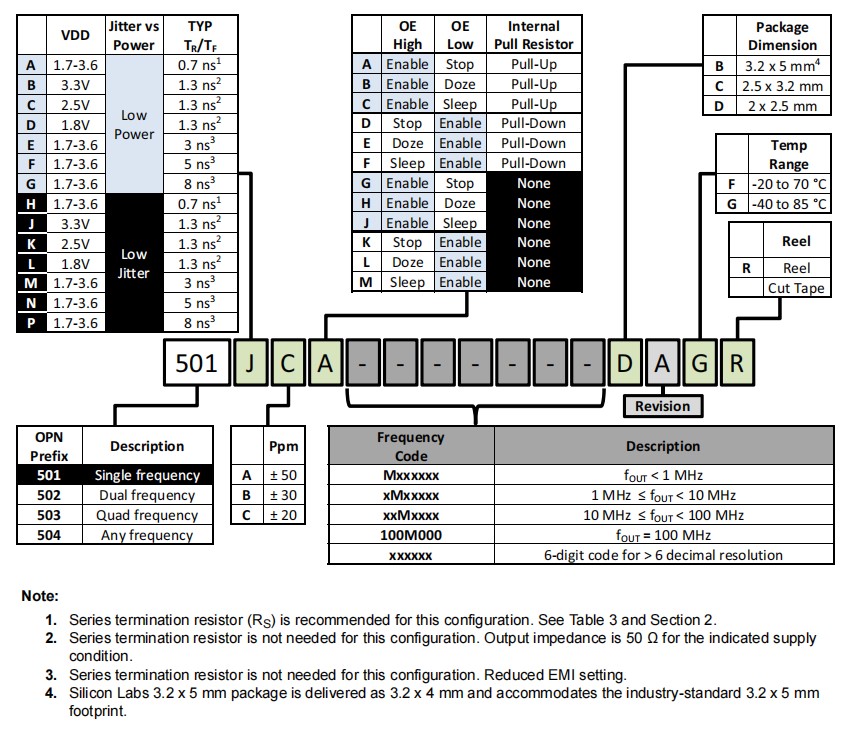

501JCA24M0000CAF,Si501,3225mm,24MHz,Silicon晶振，美國進口晶振，Silicon晶振，型號：Si501，編碼為：501JCA24M0000CAF，電壓：3.3V，精度：±20ppm，頻率：24.000MHz，小體積晶振尺寸：3.2x2.5x0.9mm封裝，工作溫度范圍：-20℃至+70℃，四腳貼片晶振，有源晶振，石英晶振，石英晶體振蕩器。具有超小型，輕薄型，高精度，高性能，高品質等特點。應用程序：存儲（SATA/SAS/PCIe），通用處理器，工業控制器，嵌入式控制器，機控制，流量控制，辦公室/家庭自動化，IP攝像頭/監控，顯示和控制面板，戶外電子設備，多功能打印機等。
Si501 CMEMS振蕩器系列為傳統的石英晶體振蕩器提供了單片的，基于mems的IC替代品。硅實驗室的CMEMS技術將標準CMOS+MEMS結合在一個單片IC集成電路中，提供集成、高質量和高可靠性的振蕩器。每個設備都經過工廠測試和配置，以保證其在電壓、工藝、溫度、沖擊、振動和老化等方面的性能。

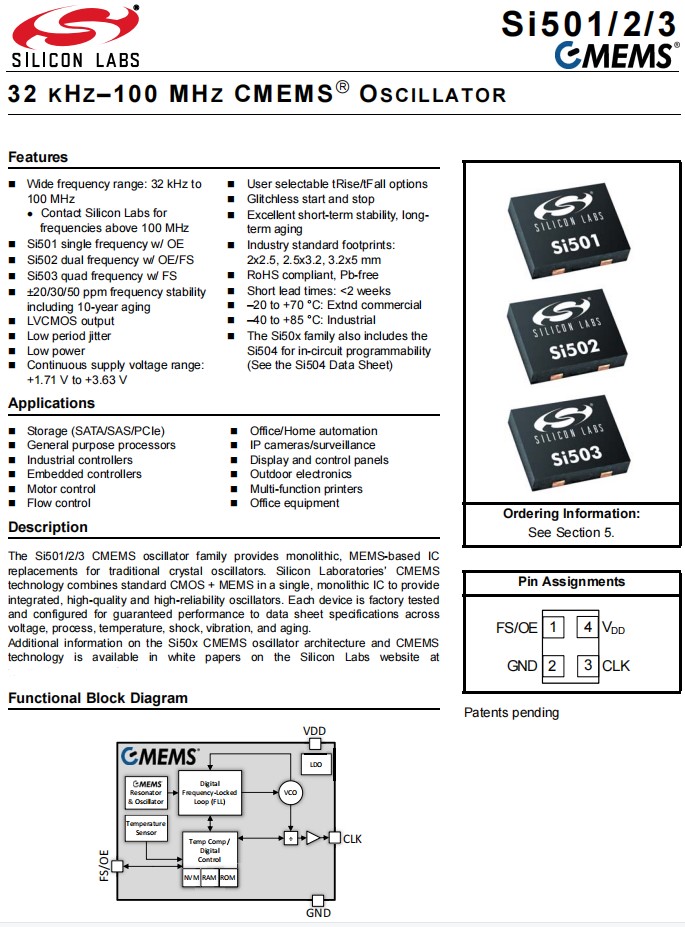

501JCA24M0000CAF,Si501,3225mm,24MHz,Silicon晶振,產品特點：
501JCA24M0000CAF,Si501,3225mm,24MHz,Silicon晶振,參數表
Parameter
Symbol
Test Condition
Min
Typ
Max
Unit
Frequency
Range
FCLK
24.000
MHz
Clock Period
TCLK
1/FCLK
31,250
—
10
ns
Total Stability1
F STAB
–20
—
+20
ppm
–30
—
+30
ppm
–50
—
+50
ppm
Initial
Accuracy
FI
Measured at 25 。C at the time of
shipping
—
±2
—
ppm
Startup Time2
TSU
From V DD crossing 1.71 V to first
clock output
—
2.5
4
ms
Resume
Time3,4
T RUN
From Sleep mode
—
2.5
5
ms
From Doze mode
—
1.7
2.55
ms
From Stop mode5
—
—
1.5 x TCLK +
35
ns
Output Disable
Time3,4
TD
To Sleep/Doze mode, from output
running
—
—
225
µs
To Stop, from output running
—
—
1.5 x TCLK +
35
ns
Frequency
Update
Time4,6
T NEW_FREQ
—
—
5
ms

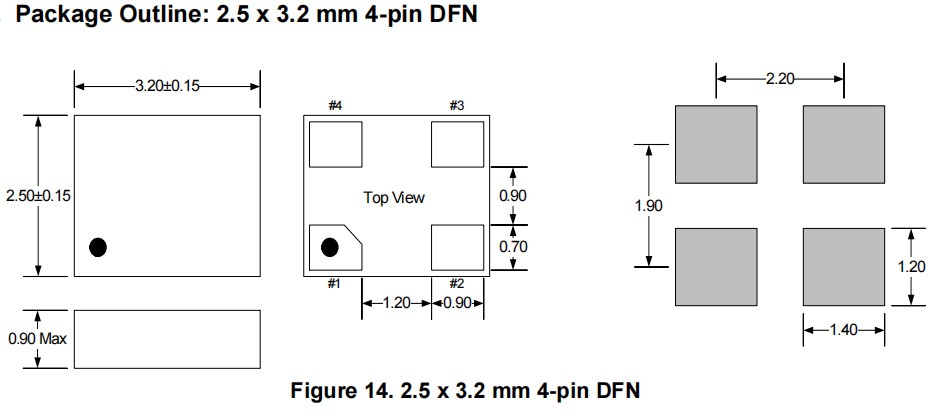

501JCA24M0000CAF,Si501,3225mm,24MHz,Silicon晶振,尺寸圖
| 原廠代碼 | 晶振廠家 | 型號 | 頻率 | 電壓 | 頻率穩定度 | 包裝/封裝 |
| 501JCA100M000CAG | Silicon晶振 | Si501 | 100MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JAA24M0000CAF | Silicon晶振 | Si501 | 24MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501AAA27M0000CAF | Silicon晶振 | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501JAA40M0000CAF | Silicon晶振 | Si501 | 40MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501EAA48M0000CAF | Silicon晶振 | Si501 | 48MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501AAA50M0000CAF | Silicon晶振 | Si501 | 50MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501JCA24M0000CAF | Silicon晶振 | Si501 | 24MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCA16M0000CAF | Silicon晶振 | Si501 | 16MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501EAA48M0000CAG | Silicon晶振 | Si501 | 48MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501BAA16M0000CAG | Silicon晶振 | Si501 | 16MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501ACA10M0000CAF | Silicon晶振 | Si501 | 10MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501JCA25M0000CAF | Silicon晶振 | Si501 | 25MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501ABA8M00000CAG | Silicon晶振 | Si501 | 8MHz | 1.7 V ~ 3.6 V | ±30ppm | 4-SMD, No Lead |
| 501JCA20M0000CAG | Silicon晶振 | Si501 | 20MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCA16M0000CAG | Silicon晶振 | Si501 | 16MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA100M000CAF | Silicon晶振 | Si501 | 100MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCAM032768CAF | Silicon晶振 | Si501 | 32.768kHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCAM032768CAF | Silicon晶振 | Si501 | 32.768kHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCAM032768CAG | Silicon晶振 | Si501 | 32.768kHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCAM032768CAG | Silicon晶振 | Si501 | 32.768kHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501HCAM032768CAF | Silicon晶振 | Si501 | 32.768kHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501HCAM032768CAG | Silicon晶振 | Si501 | 32.768kHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501ABA8M00000CAF | Silicon晶振 | Si501 | 8MHz | 1.7 V ~ 3.6 V | ±30ppm | 4-SMD, No Lead |
| 501ACA10M0000CAG | Silicon晶振 | Si501 | 10MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501JCA10M0000CAF | Silicon晶振 | Si501 | 10MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA10M0000CAG | Silicon晶振 | Si501 | 10MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501HCA12M0000CAF | Silicon晶振 | Si501 | 12MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501HCA12M0000CAG | 石英晶振 | Si501 | 12MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501BAA16M0000CAF | Silicon晶振 | Si501 | 16MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JCA20M0000CAF | Silicon晶振 | Si501 | 20MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501AAA24M0000CAF | Silicon晶振 | Si501 | 24MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501AAA24M0000CAG | Silicon晶振 | Si501 | 24MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501JAA24M0000CAG | Silicon晶振 | Si501 | 24MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JCA24M0000CAG | Silicon晶振 | Si501 | 24MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501AAA25M0000CAF | Silicon晶振 | Si501 | 25MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501AAA25M0000CAG | Silicon晶振 | Si501 | 25MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501JAA25M0000CAF | Silicon晶振 | Si501 | 25MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA25M0000CAG | Silicon晶振 | Si501 | 25MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JCA25M0000CAG | Silicon晶振 | Si501 | 25MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501HCA26M0000CAF | Silicon晶振 | Si501 | 26MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501HCA26M0000CAG | Silicon晶振 | Si501 | 26MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501AAA27M0000CAG | Silicon晶振 | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501HCA27M0000CAF | Silicon晶振 | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501HCA27M0000CAG | Silicon晶振 | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501JAA40M0000CAG | Silicon晶振 | Si501 | 40MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501AAA50M0000CAG | Silicon晶振 | Si501 | 50MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501BAA50M0000CAF | Silicon晶振 | Si501 | 50MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501BAA50M0000CAG | Silicon晶振 | Si501 | 50MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501ACA100M000CAF | Silicon晶振 | Si501 | 100MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501ACA100M000CAG | Silicon晶振 | Si501 | 100MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501BCAM032768CAFR | Silicon晶振 | Si501 | 32.768kHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCAM032768CAGR | Silicon晶振 | Si501 | 32.768kHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCAM032768CAFR | Silicon晶振 | Si501 | 32.768kHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCAM032768CAGR | Silicon晶振 | Si501 | 32.768kHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501HCAM032768CAFR | Silicon晶振 | Si501 | 32.768kHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501HCAM032768CAGR | Silicon晶振 | Si501 | 32.768kHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501ABA8M00000CAFR | Silicon晶振 | Si501 | 8MHz | 1.7 V ~ 3.6 V | ±30ppm | 4-SMD, No Lead |
| 501ABA8M00000CAGR | Silicon晶振 | Si501 | 8MHz | 1.7 V ~ 3.6 V | ±30ppm | 4-SMD, No Lead |
| 501ACA10M0000CAFR | Silicon晶振 | Si501 | 10MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501ACA10M0000CAGR | Silicon晶振 | Si501 | 10MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501JCA10M0000CAFR | Silicon晶振 | Si501 | 10MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA10M0000CAGR | Silicon晶振 | Si501 | 10MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501HCA12M0000CAFR | Silicon晶振 | Si501 | 12MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501HCA12M0000CAGR | Silicon晶振 | Si501 | 12MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501BCA16M0000CAFR | Silicon晶振 | Si501 | 16MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCA16M0000CAGR | Silicon晶振 | Si501 | 16MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BAA16M0000CAFR | Silicon晶振 | Si501 | 16MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501BAA16M0000CAGR | Silicon晶振 | Si501 | 16MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JCA20M0000CAFR | Silicon晶振 | Si501 | 20MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA20M0000CAGR | Silicon晶振 | Si501 | 20MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501AAA24M0000CAFR | Silicon晶振 | Si501 | 24MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501AAA24M0000CAGR | Silicon晶振 | Si501 | 24MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501JAA24M0000CAFR | Silicon晶振 | Si501 | 24MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA24M0000CAGR | Silicon晶振 | Si501 | 24MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JCA24M0000CAFR | Silicon晶振 | Si501 | 24MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA24M0000CAGR | Silicon晶振 | Si501 | 24MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501AAA25M0000CAFR | Silicon晶振 | Si501 | 25MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501AAA25M0000CAGR | Silicon晶振 | Si501 | 25MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501JAA25M0000CAFR | Silicon晶振 | Si501 | 25MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA25M0000CAGR | Silicon晶振 | Si501 | 25MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JCA25M0000CAFR | Silicon晶振 | Si501 | 25MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA25M0000CAGR | Silicon晶振 | Si501 | 25MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501HCA26M0000CAFR | Silicon晶振 | Si501 | 26MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501HCA26M0000CAGR | Silicon晶振 | Si501 | 26MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501AAA27M0000CAFR | Silicon晶振 | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501AAA27M0000CAGR | Silicon晶振 | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501HCA27M0000CAFR | Silicon晶振 | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501HCA27M0000CAGR | Silicon晶振 | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501JAA40M0000CAFR | Silicon晶振 | Si501 | 40MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA40M0000CAGR | Silicon晶振 | Si501 | 40MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501EAA48M0000CAFR | Silicon晶振 | Si501 | 48MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501EAA48M0000CAGR | Silicon晶振 | Si501 | 48MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501AAA50M0000CAFR | Silicon晶振 | Si501 | 50MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501AAA50M0000CAGR | Silicon晶振 | Si501 | 50MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501BAA50M0000CAFR | Silicon晶振 | Si501 | 50MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501BAA50M0000CAGR | Silicon晶振 | Si501 | 50MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501ACA100M000CAFR | Silicon晶振 | Si501 | 100MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501ACA100M000CAGR | Silicon晶振 | Si501 | 100MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501JCA100M000CAFR | Silicon晶振 | Si501 | 100MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA100M000CAGR | Silicon晶振 | Si501 | 100MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
