頻率：32.768KHz
尺寸：3.2x1.5x0.9mm
FX135A,FX135A-327,3215mm,FOX?？怂咕д?32.768KHz，美國進口晶振，FOX晶振，?？怂咕д?，型號：FX135A，編碼為：FX135A-327，頻率：32.768KHz，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：3.2x1.5x0.9mm，兩腳貼片晶振，石英晶振，無源晶振，石英晶體諧振器，3215晶振，無鉛晶振，具有超小型晶振，輕薄型晶振，高品質晶振，高可靠性晶振，耐熱及耐環境特點。應用于：移動通訊晶振，時計產品晶振，時鐘晶振，儀器儀表設備晶振，可穿戴設備晶振， 無線藍牙晶振，智能家居等應用。

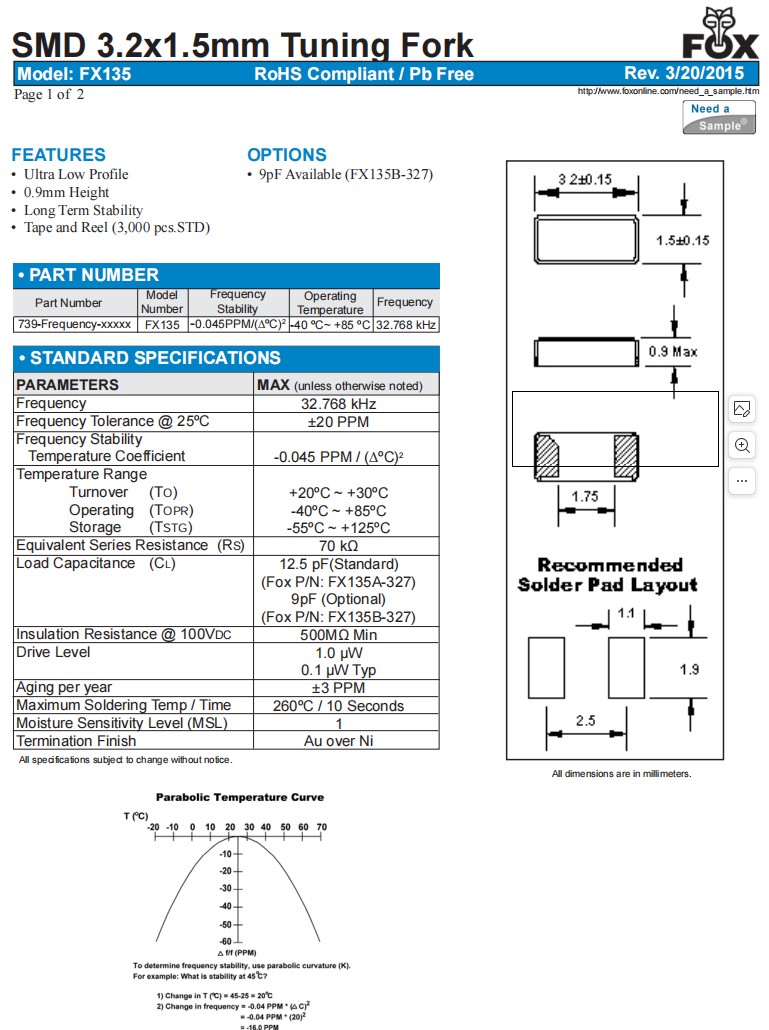

FX135A,FX135A-327,3215mm,FOX福克斯晶振,32.768KHz,參數表
PARAMETERS
MAX (unless otherwise noted)
Frequency
32.768 kHz
Frequency Tolerance @ 25ºC
±20 PPM
Frequency Stability
Temperature Coefficient
-0.045 PPM / (△ºC)2
Temperature Range
Turnover （TO）
Operating （TOPR）
Storage （TSTG)
+20ºC ~ +30ºC
-40ºC ~ +85ºC
-55ºC ~ +125ºC
Equivalent Series Resistance (RS)
70 kΩ
Load Capacitance (Cl)
12.5 pF(Standard)
(Fox P/N: FX135A-327)
9pF (Optional)
(Fox P/N: FX135B-327)
Insulation Resistance @ 100VDC
500MΩ Min
Drive Level
1.0 μW
0.1 μW Typ
Aging per year
±3 PPM
Maximum Soldering Temp / Time
260ºC / 10 Seconds
Moisture Sensitivity Level (MSL)
1
Termination Finish
Au over Ni

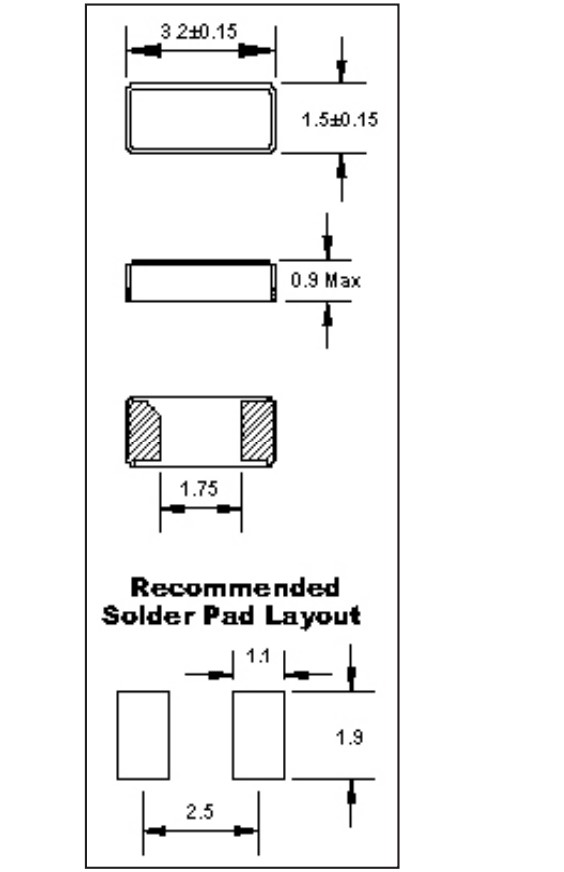

FX135A,FX135A-327,3215mm,FOX福克斯晶振,32.768KHz,尺寸圖
| 原廠編碼 | 晶振廠家 | 型號 | 頻率 | 包裝/封裝 | 頻率穩定度 |
| FOXSDLF/120-20 | Fox晶振 | HC49SDLF | 12MHz | HC49/US | ±50ppm |
| FX135A-327 | Fox晶振 | FX135A | 32.768kHz | 2-SMD, No Lead | - |
| FSRLF327 | Fox晶振 | FSRLF | 32.768kHz | 4-SOJ, 5.50mm pitch | - |
| FSXLF327 | Fox晶振 | FSXLF | 32.768kHz | 4-SMD, Flat Lead, 3 Leads | - |
| FQ5032B-12.000 | Fox晶振 | C5BQ | 12MHz | 4-SMD, No Lead | ±30ppm |
| FSMLF327 | Fox晶振 | FSMLF | 32.768kHz | 4-SOJ, 2.29mm pitch | - |
| FOXSDLF/160-20 | Fox晶振 | HC49SDLF | 16MHz | HC49/US | ±50ppm |
| FOXSDLF/200-20 | Fox晶振 | HC49SDLF | 20MHz | HC49/US | ±50ppm |
| FQ3225B-12.000 | Fox晶振 | FQ3225B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FOXSLF/200-20 | Fox晶振 | HC49SLF | 20MHz | HC49/US | ±50ppm |
| FOXSLF/120-20 | Fox晶振 | HC49SLF | 12MHz | HC49/US | ±50ppm |
| FX252BS-16.000 | Fox晶振 | FX252B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032B-20.000 | Fox晶振 | C5BQ | 20MHz | 4-SMD, No Lead | ±30ppm |
| FOXLF200-20 | Fox晶振 | HC49ULF | 20MHz | HC49/U | ±50ppm |
| NC38LF-327 | Fox晶振 | NC38LF | 32.768kHz | Cylindrical Can, Radial | - |
| NC26LF-327 | Fox晶振 | NC26LF | 32.768kHz | Cylindrical Can, Radial | - |
| FOXSDLF/120R-20/TR | Fox晶振 | HC49SDLF | 12MHz | HC49/US | ±50ppm |
| FSRLF327-6 | Fox晶振 | FSRLF | 32.768kHz | 4-SOJ, 5.50mm pitch | - |
| FX425B-12.000 | Fox晶振 | FX425B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FX122-327 | Fox晶振 | FX122 | 32.768kHz | 2-SMD, No Lead | - |
| FOXSLF/160-20 | Fox晶振 | HC49SLF | 16MHz | HC49/US | ±50ppm |
| FOXSLF/160 | Fox晶振 | HC49SLF | 16MHz | HC49/US | ±50ppm |
| FOXSLF/128-20 | Fox晶振 | HC49SLF | 12.288MHz | HC49/US | ±50ppm |
| FOXSLF/245F-20 | Fox晶振 | HC49SLF | 24.576MHz | HC49/US | ±50ppm |
| FOXSLF/120 | Fox晶振 | HC49SLF | 12MHz | HC49/US | ±50ppm |
| FOXLF120-20 | Fox晶振 | HC49ULF | 12MHz | HC49/U | ±50ppm |
| FOXLF160 | Fox晶振 | HC49ULF | 16MHz | HC49/U | ±50ppm |
| FOXLF160-20 | Fox晶振 | HC49ULF | 16MHz | HC49/U | ±50ppm |
| FOXSDLF/245F-20 | Fox晶振 | HC49SDLF | 24.576MHz | HC49/US | ±50ppm |
| FOXSDLF/160R-20/TR | Fox晶振 | HC49SDLF | 16MHz | HC49/US | ±50ppm |
| FOXSDLF/200R-20/TR | Fox晶振 | HC49SDLF | 20MHz | HC49/US | ±50ppm |
| FOXSDLF/245FR-20/TR | Fox晶振 | HC49SDLF | 24.576MHz | HC49/US | ±50ppm |
| FQ5032B-24.576 | Fox晶振 | C5BQ | 24.576MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032B-16.000 | Fox晶振 | C5BQ | 16MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032BR-12.000 | Fox晶振 | C5BQ | 12MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032BR-20.000 | Fox晶振 | C5BQ | 20MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225B-16.000 | Fox晶振 | FQ3225B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-12.000 | Fox晶振 | FQ3225B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FOXLF120 | Fox晶振 | HC49ULF | 12MHz | HC49/U | ±50ppm |
| FOXSDLF/128-20 | Fox晶振 | HC49SDLF | 12.288MHz | HC49/US | ±50ppm |
| FOXSLF/200 | Fox晶振 | HC49SLF | 20MHz | HC49/US | ±50ppm |
| FX252BS-20.000 | Fox晶振 | FX252B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032BR-16.000 | Fox晶振 | C5BQ | 16MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-16.000 | Fox晶振 | FX425B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225B-20.000 | Fox晶振 | FQ3225B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-16.000 | Fox晶振 | FQ3225B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-20.000 | Fox晶振 | FQ3225B | 20MHz | 4-SMD, No Lead | ±50ppm |
| 603-12-67 | Fox晶振 | FX325BS | 12MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-12.000 | Fox晶振 | FX532B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-16.000 | Fox晶振 | FX532B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-20.000 | Fox晶振 | FX532B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-24.576 | Fox晶振 | FX532B | 24.576MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-20.000 | Fox晶振 | FX425B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-24.576 | Fox晶振 | FX425B | 24.576MHz | 4-SMD, No Lead | ±50ppm |
| FPXLF120-20 | Fox晶振 | FPXLF | 12MHz | 4-SMD, No Lead | ±50ppm |
| FPXLF160 | Fox晶振 | FPXLF | 16MHz | 4-SMD, No Lead | ±50ppm |
| FPXLF160-20 | Fox晶振 | FPXLF | 16MHz | 4-SMD, No Lead | ±50ppm |
| FPXLF200-20 | Fox晶振 | FPXLF | 20MHz | 4-SMD, No Lead | ±50ppm |
