頻率：12.288MHZ
尺寸：8.0*4.5mm
大真空視聽設備晶振,1HX12288CD1A,DSX840GA無源晶振，尺寸8.0*4.5mm，頻率12.288M，負載電容20PF，精度30PPM，無源貼片晶振，SMD晶振，陶瓷晶振，貼片陶瓷晶振，兩腳貼片晶振，水晶振動子，8045mm貼片晶振，無源晶振，SMD晶體諧振器，陶瓷面貼片晶振，輕薄型晶振，高精度晶振，高可靠性能晶振，低損耗晶振，低功耗晶振，數字視聽設備晶振，小型設備晶振，智能家居晶振，無線設備晶振，藍牙耳機晶振，具有良好的耐熱性能。
SMD晶振產品比較適合用于數字視聽設備，小型設備，智能家居，無線設備，藍牙耳機等領域。大真空視聽設備晶振,1HX12288CD1A,DSX840GA無源晶振.
大真空視聽設備晶振,1HX12288CD1A,DSX840GA無源晶振，尺寸8.0*4.5mm，頻率12.288M，負載電容20PF，精度30PPM，無源貼片晶振，SMD晶振，陶瓷晶振，貼片陶瓷晶振，兩腳貼片晶振，水晶振動子，8045mm貼片晶振，無源晶振，SMD晶體諧振器，陶瓷面貼片晶振，輕薄型晶振，高精度晶振，高可靠性能晶振，低損耗晶振，低功耗晶振，數字視聽設備晶振，小型設備晶振，智能家居晶振，無線設備晶振，藍牙耳機晶振，具有良好的耐熱性能。
SMD晶振產品比較適合用于數字視聽設備，小型設備，智能家居，無線設備，藍牙耳機等領域。大真空視聽設備晶振,1HX12288CD1A,DSX840GA無源晶振.

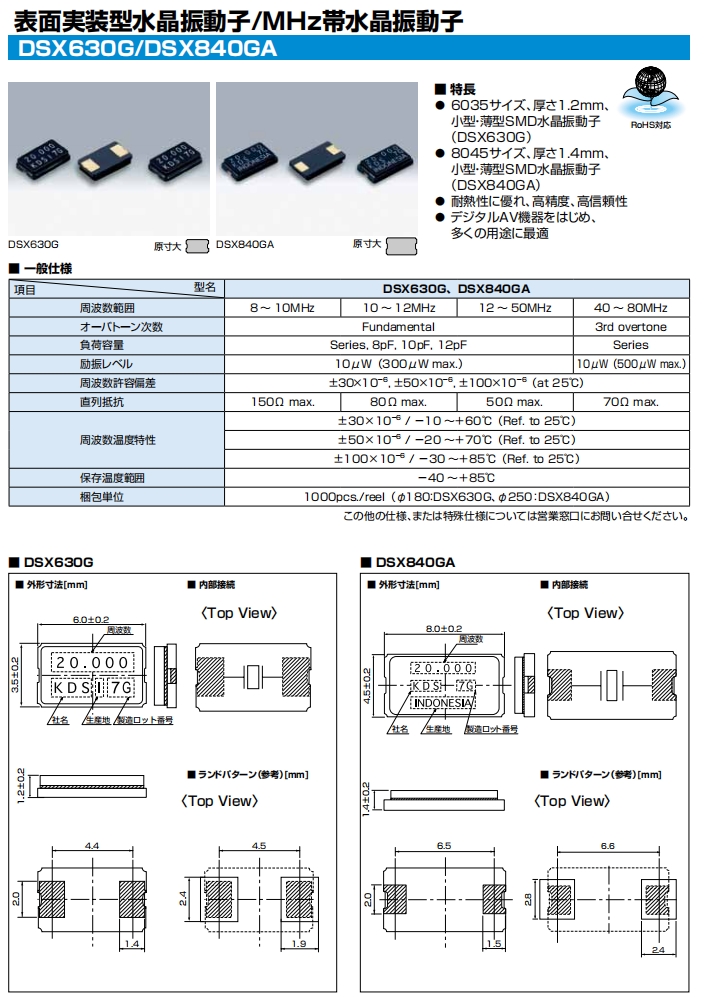

大真空視聽設備晶振,1HX12288CD1A,DSX840GA無源晶振 參數表
項目
型名
DSX630G、DSX840GA
頻率范圍
8 ~ 10MHz
10~ 12MHz
12.288MHz
40 ~ 80MHz
泛音階
Fundamental
3rd overtone
負載容量
Series, 8pF, 10pF, 12pF
Series
激勵電平
10μW(300μW max.)
10μW(500μW max.)
頻率允許偏差
±30×10−6 , ±50×10−6 , ±100×10−6 (at 25℃)
串聯電阻
150Ω max.
80Ω max.
50Ω max.
70Ω max.
頻率溫度特性
±30×10−6 / −10 ~＋60℃(Ref. to 25℃)
±50×10−6 / −20 ~＋70℃(Ref. to 25℃)
±100×10−6 / −30 ~＋85℃(Ref. to 25℃)
保存溫度范圍
−40~＋85℃
包裝單位
1000pcs./reel(φ180：DSX630G、φ250：DSX840GA)

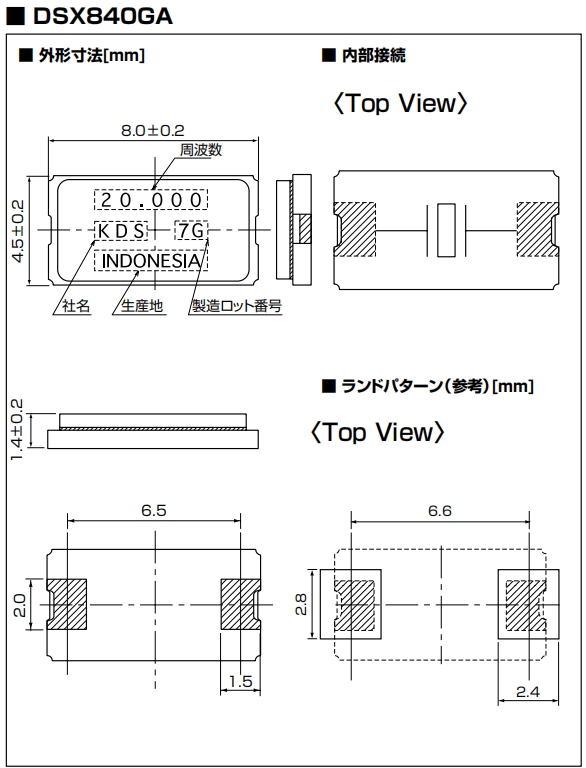

大真空視聽設備晶振,1HX12288CD1A,DSX840GA無源晶振 尺寸圖
大真空視聽設備晶振,1HX12288CD1A,DSX840GA無源晶振
日產晶振產品特點：
8045尺寸、1.4mm厚、小型/薄型SMD石英晶體諧振器（DSX840GA）
耐熱性好、高精度、高可靠性
| 品牌 | 原廠代碼 | 型號 | 尺寸 | 頻率 | 負載/電壓 | 精度 | 溫度 |
| KDS晶振 | 1N240000AB0J | DSX321G | 3225 | 40.000M | 15PF | 15PPM | 40~125度 |
| KDS晶振 | 1C240000AB0G | DSX321G | 3225 | 40.000M | 10PF | 10PPM | |
| KDS晶振 | X4S013000DA1H-W | HSX421S | 4025 | 13.000M | 10PF | 20ppm | |
| KDS晶振 | X1H013000B81H | HSX531S | 5032 | 13.000M | 8PF | 10ppm | |
| KDS晶振 | 1C736864CC1A | DSX530GA | 5032 | 36.864M | 8PF | 25PPM | |
| KDS晶振 | 1HX12288CD1A | DSX840GA | 8045 | 12.288M | 20PF | 30PPM | |
| KDS晶振 | 1CX40000EE1O | DSX840GA | 8045 | 40.000M | 18PF | 50ppm | |
| KDS晶振 | 1CW04000KK3C | DSX151GAL | 11.8*5.5 | 4.000M | |||
| KDS晶振 | 1CW08192EK3A | DSX151GAL | 11.8*5.5 | 8.192M | 15PF | 20ppm | |
| KDS晶振 | CW08000EK3B | DSX151GAL | 11.8*5.5 | 8.000M | |||
| KDS晶振 | 1AJ039286A | SMD-49 | 3.928231M | ||||
| KDS晶振 | 1AJ040003DJ | SMD-49 | 4.000M | ||||
| KDS晶振 | 1AJ043324C | SMD-49 | 11*4.6 | 4.332M | 12PF | 20PPM | |
| KDS晶振 | 1AJ073726AV | SMD-49 | 7.3728M | ||||
| KDS晶振 | 1AJ099976A | SMD-49 | 9.9975M | ||||
| KDS晶振 | 1AR11059CEB | SMD-49 | 11.0592M | 16PF | 30PPM | ||
| KDS晶振 | 1AJ160006BL | SMD-49 | 16.000M | ||||
| KDS晶振 | 1AJ16000EEL | SMD-49 | 16.000M | ||||
| KDS晶振 | 1AJ160003D | SMD-49 | 16.000M | 30PPM | |||
| KDS晶振 | 1AJ17408AAGA | SMD-49 | 11*4.6 | 17.408M | 16PF | 50PPM | |
| KDS晶振 | 1AJ240006AEA | SMD-49 | 11*4.6 | 24.000M | 16PF | 50PPM | |
| KDS晶振 | 1AJ240006AK | SMD-49 | 11*4.6 | 24.000M | 16PF | 30PPM | |
| KDS晶振 | 1AJ240006BB | SMD-49 | 11*4.6 | 24.000M | 16PF | 30PPM | |
| KDS晶振 | 1AJ245765C | SMD-49 | 11*4.6 | 24.576M | 18PF | 30PPM | |
| KDS晶振 | 1AR245766AZ | SMD-49 | 11*4.6 | 24.576M | 20PF | 30ppm | |
| KDS晶振 | 1AR245766BE | SMD-49 | 11*4.6 | 24.576M | |||
| KDS晶振 | 1AJ250004B | SMD-49 | 11*4.6 | 25.000M | 20PF | 30PPM | |
| KDS晶振 | 1AR270002GA | SMD-49 | 11*4.6 | 27.000M | 12.9PF | 20PPM | |
| KDS晶振 | 1AR270002CG | SMD-49 | 11*4.6 | 27.000M | 10PF | 20PPM | |
| KDS晶振 | 1AR270002CGA | SMD-49 | 11*4.6 | 27.000M | 10PF | 30PPM | |
| KDS晶振 | 1AR270002EH | SMD-49 | 11*4.6 | 27.000M | 12PF | 20PPM | |
| KDS晶振 | 1AV270002BA | SMD-49 | 11*4.6 | 27.000M | 16PF | 50PPM | |
| KDS晶振 | 1AR270002CQ | SMD-49 | 11*4.6 | 27.000M | 10PF | 30ppm | |
| KDS晶振 | 1AJ270002CH | SMD-49 | 11*4.6 | 27.000M | 10PF | 20ppm | |
| KDS晶振 | 1AJ270002DT | SMD-49 | 11*4.6 | 27.000M | 12PF | 15ppm | |
| KDS晶振 | 1AR304002A | SMD-49 | 11*4.6 | 30.400M | 12PF | 50ppm | |
| KDS晶振 | 1AC112893EA | AT-49 | 11*4.6 | 11.2893M | 10PF | 20ppm | |
| KDS晶振 | 1AC125821EA | AT-49 | 11*4.6 | 12.58291M | 8.8PF | 20ppm | |
| KDS晶振 | 1AY289002DB | AT-49 | 11*4.6 | 28.900M | 12PF | 50PPM | |
| KDS晶振 | SB103CE1MM | SINGLE | |||||
| KDS晶振 | 1JAAL0032768BAAX | MO1532 | 32.768K | ||||
| KDS晶振 | 17CG03840A06 | DSR1612ATH | 1612 | 38.400M | 8PF | 10ppm | |
| KDS晶振 | 1RAK38400CKA | DSR211STH | 2016 | 38.4M | 7pf | 12ppm | |
| KDS晶振 | 1XZA032768AD19 | DSK321STD | 3225 | 32.768K | |||
| KDS晶振 | 7FG00003A03 | DSO1612AR | 1612 | 32.768KHZ | 3.3V | 20PPM | |
| KDS晶振 | ZC08759 | DSO211AH | 2016 | 25.000M | 3.3V | 50ppm | |
| KDS晶振 | 1XSF016000EH | DSO221SHF | 2520 | 16.000M | |||
| KDS晶振 | 1XSE012000AR58 | DSO321SR | 3225 | 12.000M | 3.3V | 50ppm | |
| KDS晶振 | 7FE02496A00 | DSO221SX | 2520 | 24.96M | |||
| KDS晶振 | 1XSF033333ARA | DSO221SR | 2520 | 33.3333M | 100ppm | ||
| KDS晶振 | 1XSE024000AW1 | DSO321SW | 3225 | 24.000M | |||
| KDS晶振 | 1XSE025000AR5 | DSO321SR | 3225 | 25.000M | |||
| KDS晶振 | 1XSE033333ARD | DSO321SR | 3225 | 33.3333M | |||
| KDS晶振 | 1XSE038702AR | DSO321SRAB | 3225 | 38.7024M | |||
| KDS晶振 | 1XSE050000ART | DSO321SR | 3225 | 50.000M | 100ppm | ||
| KDS晶振 | 1XST156250AKM | DSO323SK | 3225 | 156.25M | 50PPM | ||
| KDS晶振 | 1XSR025000AR25 | DSO751SR | 7050 | 25.000M | 3.3V | 50ppm | |
| KDS晶振 | 1XSA050000AVW | DSO751SV | 7050 | 50.000M | 3.3V | 100ppm | |
| KDS晶振 | ZC12456 | DSB211SDN | 2016 | 16.320M | 3.3V | 1.5ppm | |
| KDS晶振 | 1XXD16367MAA | DSB211SDN | 2016 | 16.367667M | 3.3V | 1.5ppm | |
| KDS晶振 | 1XXB16367MAA | DSB221SDN | 2520 | 16.367667M | 2.8V | 1.5ppm |
