頻率：26MHZ
尺寸：2.5x2.0mm
X系列石英振動子,Mmdcomp數字視頻晶振,X10CB1-26.000MHZ-T，尺寸2.5x2.0mm，頻率26MHZ，麥迪康石英晶振，歐美進口晶振，SMD晶振，石英晶體諧振器，石英晶振，無源石英晶體，無源貼片晶振，無源晶體，輕薄型晶振，四腳貼片晶振，環保晶振，2520mm貼片晶振，高質量晶振，高性能晶振，低損耗晶振，低功耗晶振，數字視頻專用晶振，平板電腦晶振，小型設備晶振，多媒體設備晶振，影音系統晶振，智能穿戴晶振，便攜式設備晶振，具有高質量高性能的特點。
石英晶振產品比較常用于數字視頻，平板電腦，小型設備，多媒體設備，影音系統，智能穿戴，便攜式設備等應用領域。X系列石英振動子,Mmdcomp數字視頻晶振,X10CB1-26.000MHZ-T.
X系列石英振動子,Mmdcomp數字視頻晶振,X10CB1-26.000MHZ-T，尺寸2.5x2.0mm，頻率26MHZ，麥迪康石英晶振，歐美進口晶振，SMD晶振，石英晶體諧振器，石英晶振，無源石英晶體，無源貼片晶振，無源晶體，輕薄型晶振，四腳貼片晶振，環保晶振，2520mm貼片晶振，高質量晶振，高性能晶振，低損耗晶振，低功耗晶振，數字視頻專用晶振，平板電腦晶振，小型設備晶振，多媒體設備晶振，影音系統晶振，智能穿戴晶振，便攜式設備晶振，具有高質量高性能的特點。
石英晶振產品比較常用于數字視頻，平板電腦，小型設備，多媒體設備，影音系統，智能穿戴，便攜式設備等應用領域。X系列石英振動子,Mmdcomp數字視頻晶振,X10CB1-26.000MHZ-T.

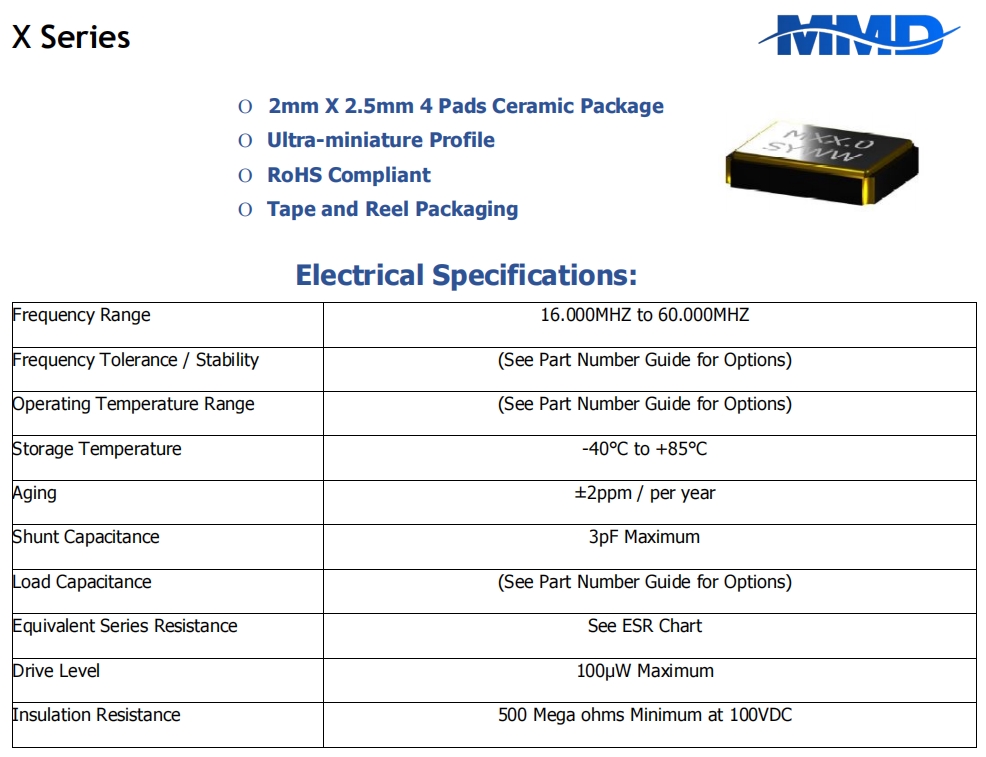

X系列石英振動子,Mmdcomp數字視頻晶振,X10CB1-26.000MHZ-T 參數表
| Frequency Range | 26.000MHZ | |||||||||
| Frequency Tolerance / Stability | (See Part Number Guide for Options) | |||||||||
| Operating Temperature Range | (See Part Number Guide for Options) | |||||||||
| Storage Temperature | -40°C to +85°C | |||||||||
| Aging | ±2ppm / per year | |||||||||
| Shunt Capacitance | 3pF Maximum | |||||||||
| Load Capacitance | (See Part Number Guide for Options) | |||||||||

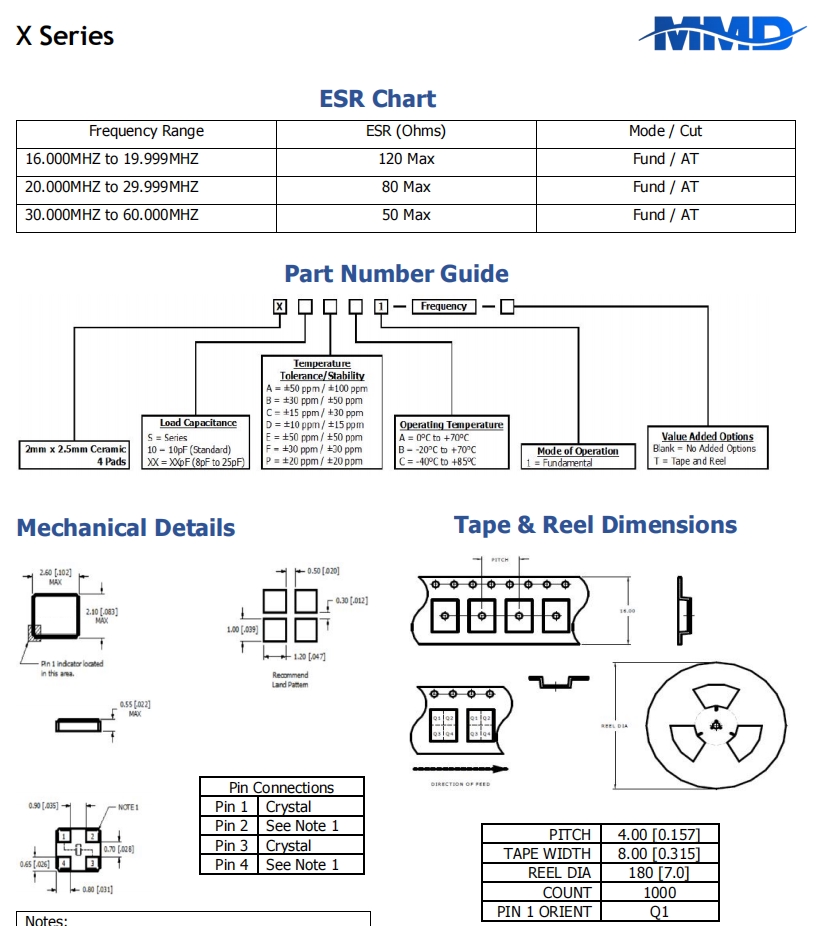

| Equivalent Series Resistance | See ESR Chart | |||||||||
| Drive Level | 100µW Maximum | |||||||||
 Insulation Resistance
|
500 Mega ohms Minimum at 100VDC | |||||||||

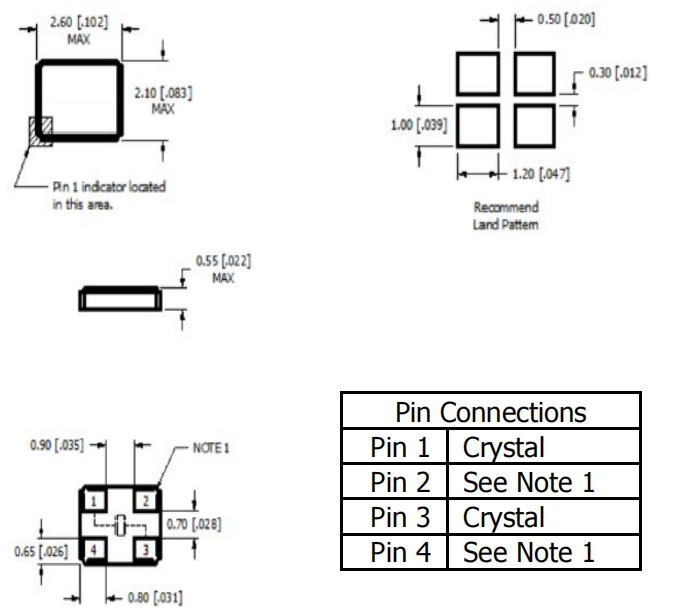

X系列石英振動子,Mmdcomp數字視頻晶振,X10CB1-26.000MHZ-T 尺寸圖
X系列石英振動子,Mmdcomp數字視頻晶振,X10CB1-26.000MHZ-T
SMD晶振產品特點：
2mm X 2.5mm 4片陶瓷封裝
超小型剖面
符合RoHS
膠帶和卷筒包裝
| Mfr Part # | Mfr | Description | Series | Frequency | Frequency Stability |
| WC146SMF-32.768KHZ-T | 麥迪康晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | WC146SM | 32.768 kHz | - |
| DF18CC1-4.000MHZ-T | 麥迪康晶振 | CRYSTAL 4.0000MHZ 18PF SMD | D | 4 MHz | ±30ppm |
| DF18CC1-16.384MHZ-T | 麥迪康晶振 | CRYSTAL 16.3840MHZ 18PF SMD | D | 16.384 MHz | ±30ppm |
| MMC-463F-32.768KHZ-T | 麥迪康晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | MMC | 32.768 kHz | - |
| WC315-32.768KHZ-T | 麥迪康晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | WC315 | 32.768 kHz | - |
| DF18CC1-9.8304MHZ-T | 麥迪康晶振 | CRYSTAL 9.8304MHZ 18PF SMD | D | 9.8304 MHz | ±30ppm |
| DF18CC1-16.000MHZ-T | 麥迪康晶振 | CRYSTAL 16.0000MHZ 18PF SMD | D | 16 MHz | ±30ppm |
| DF18CC1-10.000MHZ-T | 麥迪康晶振 | CRYSTAL 10.0000MHZ 18PF SMD | D | 10 MHz | ±30ppm |
| DF18CC1-10.240MHZ-T | 麥迪康晶振 | CRYSTAL 10.2400MHZ 18PF SMD | D | 10.24 MHz | ±30ppm |
| DF18CC1-3.6864MHZ-T | 麥迪康晶振 | CRYSTAL 3.6864MHZ 18PF SMD | D | 3.6864 MHz | ±30ppm |
| DF18CC1-4.500MHZ-T | 麥迪康晶振 | CRYSTAL 4.5000MHZ 18PF SMD | D | 4.5 MHz | ±30ppm |
| DF18CC1-15.000MHZ-T | 麥迪康晶振 | CRYSTAL 15.0000MHZ 18PF SMD | D | 15 MHz | ±30ppm |
| DF18CC1-3.579545MHZ-T | 麥迪康晶振 | CRYSTAL 3.579545MHZ 18PF SMD | D | 3.579545 MHz | ±30ppm |
| DF18CC1-13.000MHZ-T | 麥迪康晶振 | CRYSTAL 13.0000MHZ 18PF SMD | D | 13 MHz | ±30ppm |
| DF18CC1-14.31818MHZ-T | 麥迪康晶振 | CRYSTAL 14.31818MHZ 18PF SMD | D | 14.31818 MHz | ±30ppm |
| T10GC1-20.000MHZ-T | 麥迪康晶振 | CRYSTAL 20.0000MHZ 10PF SMD | T | 20 MHz | ±30ppm |
| X10CB1-40.000MHZ-T | 麥迪康晶振 | CRYSTAL 40.0000MHZ 10PF SMD | X | 40 MHz | ±30ppm |
| X10CB1-30.000MHZ-T | 麥迪康晶振 | CRYSTAL 30.0000MHZ 10PF SMD | X | 30 MHz | ±30ppm |
| X10CB1-24.576MHZ-T | 麥迪康晶振 | CRYSTAL 24.5760MHZ 10PF SMD | X | 24.576 MHz | ±30ppm |
| X10CB1-22.1184MHZ-T | 麥迪康晶振 | CRYSTAL 22.1184MHZ 10PF SMD | X | 22.1184 MHz | ±30ppm |
| X10CB1-27.000MHZ-T | 麥迪康晶振 | CRYSTAL 27.0000MHZ 10PF SMD | X | 27 MHz | ±30ppm |
| X10CB1-32.000MHZ-T | 麥迪康晶振 | CRYSTAL 32.0000MHZ 10PF SMD | X | 32 MHz | ±30ppm |
| X10CB1-25.000MHZ-T | 麥迪康晶振 | CRYSTAL 25.0000MHZ 10PF SMD | X | 25 MHz | ±30ppm |
| DF18CC1-20.000MHZ-T | 麥迪康晶振 | CRYSTAL 20.0000MHZ 18PF SMD | D | 20 MHz | ±30ppm |
| DF18CC1-24.576MHZ-T | 麥迪康晶振 | CRYSTAL 24.5760MHZ 18PF SMD | D | 24.576 MHz | ±30ppm |
| DF18CC1-4.433619MHZ-T | 麥迪康晶振 | CRYSTAL 4.433619MHZ 18PF SMD | D | 4.433619 MHz | ±30ppm |
| DF18CC1-19.6608MHZ-T | 麥迪康晶振 | CRYSTAL 19.6608MHZ 18PF SMD | D | 19.6608 MHz | ±30ppm |
| DF18CC1-14.7456MHZ-T | 麥迪康晶振 | CRYSTAL 14.7456MHZ 18PF SMD | D | 14.7456 MHz | ±30ppm |
| DF18CC1-30.000MHZ-T | 麥迪康晶振 | CRYSTAL 30.0000MHZ 18PF SMD | D | 30 MHz | ±30ppm |
| DF18CC1-16.9344MHZ-T | MMDCOMP晶振 | CRYSTAL 16.9344MHZ 18PF SMD | D | 16.9344 MHz | ±30ppm |
| DF18CC1-6.144MHZ-T | 麥迪康晶振 | CRYSTAL 6.1440MHZ 18PF SMD | D | 6.144 MHz | ±30ppm |
| DF18CC1-7.3728MHZ-T | 麥迪康晶振 | CRYSTAL 7.3728MHZ 18PF SMD | D | 7.3728 MHz | ±30ppm |
| DF18CC1-4.194304MHZ-T | 麥迪康晶振 | CRYSTAL 4.194304MHZ 18PF SMD | D | 4.194304 MHz | ±30ppm |
| DF18CC1-18.432MHZ-T | 麥迪康晶振 | CRYSTAL 18.4320MHZ 18PF SMD | D | 18.432 MHz | ±30ppm |
| DF18CC1-15.360MHZ-T | 麥迪康晶振 | CRYSTAL 15.3600MHZ 18PF SMD | D | 15.36 MHz | ±30ppm |
| DF18CC1-6.7458MHZ-T | 麥迪康晶振 | CRYSTAL 6.7458MHZ 18PF SMD | D | 6.7458 MHz | ±30ppm |
| DF18CC1-18.000MHZ-T | 麥迪康晶振 | CRYSTAL 18.0000MHZ 18PF SMD | D | 18 MHz | ±30ppm |
| DF18CC1-12.000MHZ-T | 麥迪康晶振 | CRYSTAL 12.0000MHZ 18PF SMD | D | 12 MHz | ±30ppm |
| DF18CC1-4.9152MHZ-T | 麥迪康晶振 | CRYSTAL 4.9152MHZ 18PF SMD | D | 4.9152 MHz | ±30ppm |
| DF18CC1-28.63636MHZ-T | 麥迪康晶振 | CRYSTAL 28.63636MHZ 18PF SMD | D | 28.63636 MHz | ±30ppm |
| DF18CC1-6.000MHZ-T | 麥迪康晶振 | CRYSTAL 6.0000MHZ 18PF SMD | D | 6 MHz | ±30ppm |
| DF18CC1-5.000MHZ-T | 麥迪康晶振 | CRYSTAL 5.0000MHZ 18PF SMD | D | 5 MHz | ±30ppm |
| DF18CC1-13.500MHZ-T | 麥迪康晶振 | CRYSTAL 13.5000MHZ 18PF SMD | D | 13.5 MHz | ±30ppm |
| DF18CC1-24.000MHZ-T | 麥迪康晶振 | CRYSTAL 24.0000MHZ 18PF SMD | D | 24 MHz | ±30ppm |
| DF18CC1-11.0592MHZ-T | 麥迪康晶振 | CRYSTAL 11.0592MHZ 18PF SMD | D | 11.0592 MHz | ±30ppm |
| DF18CC1-9.216MHZ-T | 麥迪康晶振 | CRYSTAL 9.2160MHZ 18PF SMD | D | 9.216 MHz | ±30ppm |
| DF18CC1-12.288MHZ-T | 麥迪康晶振 | CRYSTAL 12.2880MHZ 18PF SMD | D | 12.288 MHz | ±30ppm |
| T10GC1-22.1184MHZ-T | 麥迪康晶振 | CRYSTAL 22.1184MHZ 10PF SMD | T | 22.1184 MHz | ±30ppm |
| T10GC1-24.000MHZ-T | 麥迪康晶振 | CRYSTAL 24.0000MHZ 10PF SMD | T | 24 MHz | ±30ppm |
| T10GC1-19.200MHZ-T | 麥迪康晶振 | CRYSTAL 19.2000MHZ 10PF SMD | T | 19.2 MHz | ±30ppm |
| T10GC1-24.576MHZ-T | 麥迪康晶振 | CRYSTAL 24.5760MHZ 10PF SMD | T | 24.576 MHz | ±30ppm |
| T10GC1-16.000MHZ-T | 麥迪康晶振 | CRYSTAL 16.0000MHZ 10PF SMD | T | 16 MHz | ±30ppm |
| T10GC1-16.384MHZ-T | 麥迪康晶振 | CRYSTAL 16.3840MHZ 10PF SMD | T | 16.384 MHz | ±30ppm |
| T10GC1-48.000MHZ-T | 麥迪康晶振 | CRYSTAL 48.0000MHZ 10PF SMD | T | 48 MHz | ±30ppm |
| X10CB1-16.000MHZ-T | 麥迪康晶振 | CRYSTAL 16.0000MHZ 10PF SMD | X | 16 MHz | ±30ppm |
| X10CB1-16.3676MHZ-T | 麥迪康晶振 | CRYSTAL 16.3676MHZ 10PF SMD | X | 16.3676 MHz | ±30ppm |
| X10CB1-26.000MHZ-T | 麥迪康晶振 | CRYSTAL 26.0000MHZ 10PF SMD | X | 26 MHz | ±30ppm |
| X10CB1-24.000MHZ-T | 麥迪康晶振 | CRYSTAL 24.0000MHZ 10PF SMD | X | 24 MHz | ±30ppm |
| X10CB1-16.384MHZ-T | 麥迪康晶振 | CRYSTAL 16.3840MHZ 10PF SMD | X | 16.384 MHz | ±30ppm |
