6G基站晶振,NDK汽車音響專用振蕩器,NP3225SAD-156.25MHZ-NSC5347B，尺寸為3.2*2.5mm，頻率156.25MHZ，輸出邏輯為LVPECL，LVPECL差分晶振，LVPECL輸出晶振，OSC差分晶振，低電壓差分晶振，低抖動差分晶振，低損耗差分振蕩器，高性能差分晶振，高品質差分晶振，通訊差分晶振，工業級差分振蕩器，6G模塊差分晶振，光通訊差分信號輸出LVPECL，基站專用差分晶振，路由器差分晶振，汽車音響差分晶振，物聯網差分晶振，具有低電壓低抖動高精度的特點，貼片差分晶振產品非常適合用于5G兼容設備、基站、光網絡單元、SDH/SONET設備，低端路由器、以太網、光收發器，無線網絡設備，汽車音響、汽車電腦等領域。6G基站晶振,NDK汽車音響專用振蕩器,NP3225SAD-156.25MHZ-NSC5347B.

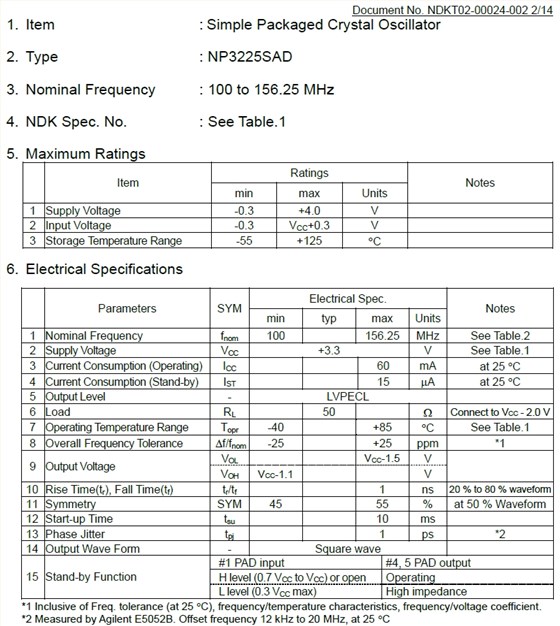

6G基站晶振,NDK汽車音響專用振蕩器,NP3225SAD-156.25MHZ-NSC5347B參數表
| Item | Ratings | Notes | ||||||||||||||||||
| min | max | Units | ||||||||||||||||||
| 1 | Supply Voltage | -0.3 | +4.0 | V | ||||||||||||||||
| 2 | Input Voltage | -0.3 | VCC+0.3 | V | ||||||||||||||||
| 3 | Storage Temperature Range | -55 | +125 | 。C | ||||||||||||||||
| Parameters | SYM | Electrical Spec. | Notes | |||||||||||||||||
| min | typ | max | Units | |||||||||||||||||
| 1 | Nominal Frequency | fnom |
|
156.25 | MHz | See Table.2 | ||||||||||||||
| 2 | Supply Voltage | VCC | +3.3 | V | See Table.1 | |||||||||||||||
| 3 | Current Consumption (Operating) | ICC | 60 | mA | at 25。C | |||||||||||||||
| 4 | Current Consumption (Stand-by) | IST | 15 | μA | at 25。C | |||||||||||||||
| 5 | Output Level | - | LVPECL | |||||||||||||||||
| 6 | Load | RL | 50 | Ω | Connect to VCC- 2.0 V | |||||||||||||||
| 7 | Operating Temperature Range | Topr | -40 | +85 | 。C | See Table.1 | ||||||||||||||
| 8 | Overall Frequency Tolerance | Δf/fnom | -25 | +25 | ppm | *1 | ||||||||||||||
| 9 | Output Voltage | VOL | VCC- 1.5 | V | ||||||||||||||||
| VOH | VCC- 1.1 | V | ||||||||||||||||||
| 10 | Rise Time(tr), Fall Time(tf) | tr/tf | 1 | ns | 20 % to 80 % waveform | |||||||||||||||
| 11 | Symmetry | SYM | 45 | 55 | % | at 50 % Waveform | ||||||||||||||
| 12 | Start-up Time | tsu | 10 | ms | ||||||||||||||||
| 13 | Phase Jitter | tpj | 1 | ps | *2 | |||||||||||||||
| 14 | Output Wave Form | - | Square wave | |||||||||||||||||
| 15 | Stand-by Function | #1 PAD input | #4, 5 PAD output | |||||||||||||||||
| H level (0.7 VCCto VCC) or open | Operating | |||||||||||||||||||
| L level (0.3 VCCmax) | High impedance | |||||||||||||||||||

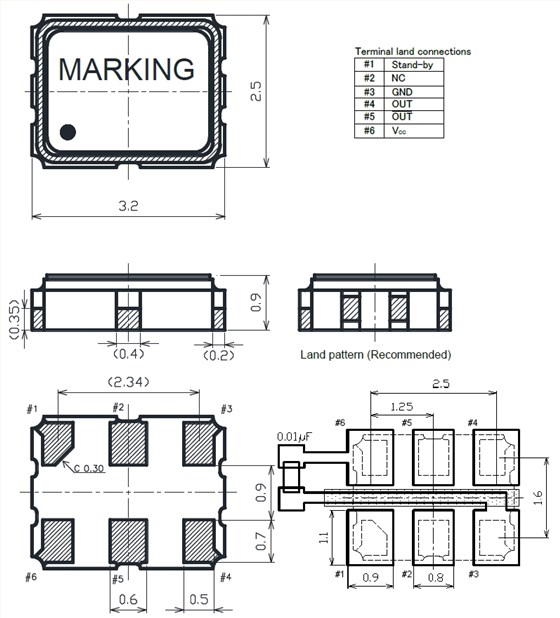

6G基站晶振,NDK汽車音響專用振蕩器,NP3225SAD-156.25MHZ-NSC5347B尺寸圖

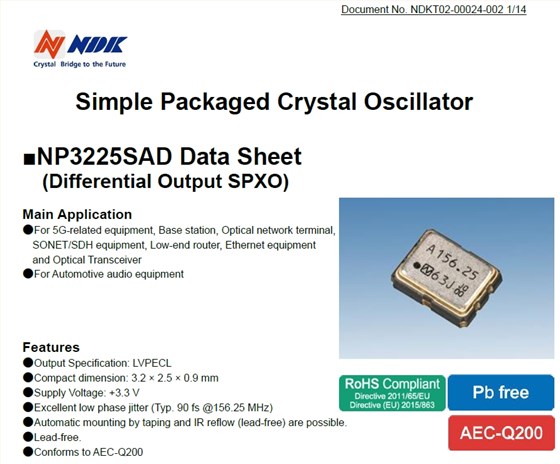

產品特性：
LVDS差分輸出SPXO晶體振蕩器
緊湊型:3.2 x 2.5 x 0.9毫米
電源電壓:+2.5V或者+3.3V
低相位抖動:典型。156.25 MHz時為47fs
通過纏繞自動安裝和IR回流(無鉛)是可能的。
無鉛
更多相關日本電波NDK晶振型號
| Model | Nominal frequency[MHz] | Specification number | 晶振廠家 | Package size(LxW)[mm] | Output specification | Operating temperature rang[℃] | Storage temperature range[℃] | Supply voltage[V] |
| NP3225SC | 100MHZ | NSC5082A | NDK晶振 | 3.2x2.5 | HCSL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SC | 156.25MHZ | NSC5082A | NDK晶振 | 3.2x2.5 | HCSL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SC | 100MHZ | NSC5345B | NDK晶振 | 3.2x2.5 | HCSL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SC | 156.25MHZ | NSC5345B | NDK晶振 | 3.2x2.5 | HCSL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SC | 100MHZ | NSC5191A | NDK晶振 | 3.2x2.5 | HCSL | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SC | 156.25MHZ | NSC5191A | NDK晶振 | 3.2x2.5 | HCSL | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SC | 100MHZ | NSC5346B | NDK晶振 | 3.2x2.5 | HCSL | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SC | 156.25MHZ | NSC5346B | NDK晶振 | 3.2x2.5 | HCSL | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SAB | 100MHZ | NSC5186A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SAB | 125MHZ | NSC5186A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SAB | 156.25MHZ | NSC5186A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SAB | 100MHZ | NSC5186B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SAB | 125MHZ | NSC5186B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SAB | 156.25MHZ | NSC5186B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SBB | 100MHZ | NSC5187A | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SBB | 125MHZ | NSC5187A | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SBB | 156.25MHZ | NSC5187A | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SBB | 100MHZ | NSC5187B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SBB | 125MHZ | NSC5187B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SBB | 156.25MHZ | NSC5187B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SAD | 100MHZ | NSC5347B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SAD | 156.25MHZ | NSC5347B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SBD | 100MHZ | NSC5348B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SBD | 156.25MHZ | NSC5348B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SCD | 100MHZ | NSC5349B | NDK晶振 | 3.2x2.5 | HCSL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SCD | 156.25MHZ | NSC5349B | NDK晶振 | 3.2x2.5 | HCSL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP5032SA | 100MHZ | NSC5400A | NDK晶振 | 5.0x3.2 | LVPECL | 0~70 | -55~+125 | +3.3±0.33 |
| NP5032SA | 102.564MHZ | NSC5400A | NDK晶振 | 5.0x3.2 | LVPECL | 0~70 | -55~+125 | +3.3±0.33 |
| NP5032SA | 125MHZ | NSC5400A | NDK晶振 | 5.0x3.2 | LVPECL | 0~70 | -55~+125 | +3.3±0.33 |
| NP5032SA | 133.33MHZ | NSC5400A | NDK晶振 | 5.0x3.2 | LVPECL | 0~70 | -55~+125 | +3.3±0.33 |
| NP5032SA | 133.333MHZ | NSC5400A | NDK晶振 | 5.0x3.2 | LVPECL | 0~70 | -55~+125 | +3.3±0.33 |
| NP5032SA | 148.5MHZ | NSC5400A | NDK晶振 | 5.0x3.2 | LVPECL | 0~70 | -55~+125 | +3.3±0.33 |
| NP5032SA | 156.25MHZ | NSC5400A | NDK晶振 | 5.0x3.2 | LVPECL | 0~70 | -55~+125 | +3.3±0.33 |
| NP5032SA | 100MHZ | NSC5400B | NDK晶振 | 5.0x3.2 | LVPECL | 0~85 | -55~+125 | +3.3±0.33 |
| NP5032SA | 102.564MHZ | NSC5400B | NDK晶振 | 5.0x3.2 | LVPECL | 0~85 | -55~+125 | +3.3±0.33 |
| NP5032SA | 125MHZ | NSC5400B | NDK晶振 | 5.0x3.2 | LVPECL | 0~85 | -55~+125 | +3.3±0.33 |
| NP5032SA | 133.33MHZ | NSC5400B | NDK晶振 | 5.0x3.2 | LVPECL | 0~85 | -55~+125 | +3.3±0.33 |
| NP5032SA | 133.333MHZ | NSC5400B | NDK晶振 | 5.0x3.2 | LVPECL | 0~85 | -55~+125 | +3.3±0.33 |
| NP5032SA | 148.5MHZ | NSC5400B | NDK晶振 | 5.0x3.2 | LVPECL | 0~85 | -55~+125 | +3.3±0.33 |
| NP5032SA | 156.25MHZ | NSC5400B | NDK晶振 | 5.0x3.2 | LVPECL | 0~85 | -55~+125 | +3.3±0.33 |
| NP5032SA | 100MHZ | NSC5400C | NDK晶振 | 5.0x3.2 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP5032SA | 102.564MHZ | NSC5400C | NDK晶振 | 5.0x3.2 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP5032SA | 125MHZ | NSC5400C | NDK晶振 | 5.0x3.2 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP5032SA | 133.33MHZ | NSC5400C | NDK晶振 | 5.0x3.2 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP5032SA | 133.333MHZ | NSC5400C | NDK晶振 | 5.0x3.2 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP5032SA | 148.5MHZ | NSC5400C | NDK晶振 | 5.0x3.2 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP5032SA | 156.25MHZ | NSC5400C | NDK晶振 | 5.0x3.2 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP5032SB | 100MHZ | NSC5401A | NDK晶振 | 5.0x3.2 | LVDS | 0~70 | -55~+125 | +2.5±0.125 |
| NP5032SB | 102.564MHZ | NSC5401A | NDK晶振 | 5.0x3.2 | LVDS | 0~70 | -55~+125 | +2.5±0.125 |
| NP5032SB | 125MHZ | NSC5401A | NDK晶振 | 5.0x3.2 | LVDS | 0~70 | -55~+125 | +2.5±0.125 |
| NP5032SB | 148.5MHZ | NSC5401A | NDK晶振 | 5.0x3.2 | LVDS | 0~70 | -55~+125 | +2.5±0.125 |
| NP5032SB | 156.25MHZ | NSC5401A | NDK晶振 | 5.0x3.2 | LVDS | 0~70 | -55~+125 | +2.5±0.125 |
| NP5032SB | 100MHZ | NSC5402A | NDK晶振 | 5.0x3.2 | LVDS | 0~70 | -55~+125 | +3.3±0.33 |
| NP5032SB | 102.564MHZ | NSC5402A | NDK晶振 | 5.0x3.2 | LVDS | 0~70 | -55~+125 | +3.3±0.33 |
| NP5032SB | 125MHZ | NSC5402A | NDK晶振 | 5.0x3.2 | LVDS | 0~70 | -55~+125 | +3.3±0.33 |
| NP5032SB | 148.5MHZ | NSC5402A | NDK晶振 | 5.0x3.2 | LVDS | 0~70 | -55~+125 | +3.3±0.33 |
| NP5032SB | 156.25MHZ | NSC5402A | NDK晶振 | 5.0x3.2 | LVDS | 0~70 | -55~+125 | +3.3±0.33 |
| NP5032SB | 100MHZ | NSC5401B | NDK晶振 | 5.0x3.2 | LVDS | 0~85 | -55~+125 | +2.5±0.125 |
| NP5032SB | 102.564MHZ | NSC5401B | NDK晶振 | 5.0x3.2 | LVDS | 0~85 | -55~+125 | +2.5±0.125 |
| NP5032SB | 125MHZ | NSC5401B | NDK晶振 | 5.0x3.2 | LVDS | 0~85 | -55~+125 | +2.5±0.125 |
| NP5032SB | 148.5MHZ | NSC5401B | NDK晶振 | 5.0x3.2 | LVDS | 0~85 | -55~+125 | +2.5±0.125 |
| NP5032SB | 156.25MHZ | NSC5401B | NDK晶振 | 5.0x3.2 | LVDS | 0~85 | -55~+125 | +2.5±0.125 |
| NP5032SB | 100MHZ | NSC5402B | NDK晶振 | 5.0x3.2 | LVDS | 0~85 | -55~+125 | +3.3±0.33 |
| NP5032SB | 102.564MHZ | NSC5402B | NDK晶振 | 5.0x3.2 | LVDS | 0~85 | -55~+125 | +3.3±0.33 |
| NP5032SB | 125MHZ | NSC5402B | NDK晶振 | 5.0x3.2 | LVDS | 0~85 | -55~+125 | +3.3±0.33 |
| NP5032SB | 148.5MHZ | NSC5402B | NDK晶振 | 5.0x3.2 | LVDS | 0~85 | -55~+125 | +3.3±0.33 |
| NP5032SB | 156.25MHZ | NSC5402B | NDK晶振 | 5.0x3.2 | LVDS | 0~85 | -55~+125 | +3.3±0.33 |
| NP5032SB | 100MHZ | NSC5401C | NDK晶振 | 5.0x3.2 | LVDS | -40~85 | -55~+125 | +2.5±0.125 |
| NP5032SB | 102.564MHZ | NSC5401C | NDK晶振 | 5.0x3.2 | LVDS | -40~85 | -55~+125 | +2.5±0.125 |
| NP5032SB | 125MHZ | NSC5401C | NDK晶振 | 5.0x3.2 | LVDS | -40~85 | -55~+125 | +2.5±0.125 |
| NP5032SB | 148.5MHZ | NSC5401C | NDK晶振 | 5.0x3.2 | LVDS | -40~85 | -55~+125 | +2.5±0.125 |
| NP5032SB | 156.25MHZ | NSC5401C | NDK晶振 | 5.0x3.2 | LVDS | -40~85 | -55~+125 | +2.5±0.125 |
| NP5032SB | 100MHZ | NSC5402C | NDK晶振 | 5.0x3.2 | LVDS | -40~85 | -55~+125 | +3.3±0.33 |
